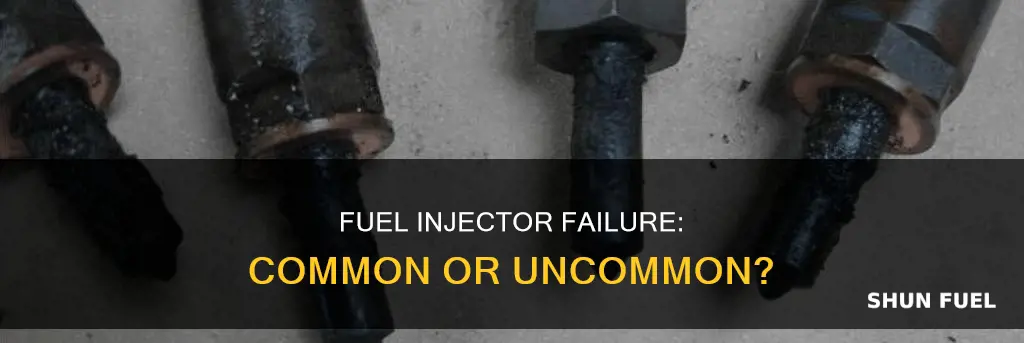

Fuel injectors are an essential component of modern vehicles, but they can also be a common source of problems. Fuel injector issues can lead to engine failure and prevent your car from starting. There are several reasons why fuel injectors may fail, including clogging due to poor fuel quality or heat soak, solenoid failure, engine blow-by, and mechanical or electrical failures. Diagnosing fuel injector problems can be challenging, but ignoring the signs of a failing injector can lead to more costly repairs down the line. Some common warning signs of a failing fuel injector include a rough idle, excessive engine vibration, difficulty accelerating, and the check engine light turning on.
| Characteristics | Values |
|---|---|
| Common Causes of Fuel Injector Failure | Contamination, carbon build-up, internal o-ring failure, solenoid failure, engine blow-by, broken or leaking injector, poor fuel quality, heat soak |
| Signs of a Failing Fuel Injector | Rough idling, excessive engine vibration, poor performance, lousy gas mileage, abrupt loss of engine power, engine misfire, engine stalling, check engine light, engine failure |
| Fuel Injector Diagnostics | Scan tools, OE procedures, Reconditioned and Returned (R&R) service, ultrasonic cleaning, flow testing, leak testing, spray pattern testing |
Explore related products
What You'll Learn
Fuel injector electrical and mechanical failure modes
Fuel injectors are electro-mechanical devices, so they can fail in both electrical and mechanical ways.
Mechanical Failure Modes
Fuel injectors can fail due to issues with the mechanical soundness of the injector structure. The injector is susceptible to contamination and carbon build-up, which can restrict the flow of fuel. This can lead to poor atomization of the fuel, resulting in high emissions, poor engine performance, and poor fuel economy. Other mechanical issues include internal o-ring failure, which can cause fuel to leak externally, and abrasion caused by impurities in the fuel, which can alter the fuel spray pattern and lead to reduced engine performance.
Electrical Failure Modes
Electrical failure modes can be more challenging to diagnose and may require specialized tools and expertise. Issues with the electrical system controlling the fuel injector can affect the injector's ability to open and close properly, leading to an irregular fuel supply and engine surges. In some cases, electrical failures may be related to problems with the fuel injector itself, such as contamination or internal component failures.
Preventing Fuel Injector Failure
To prevent fuel injector failure, it is important to maintain the fuel injection system properly and avoid problematic practices. This includes keeping the fuel system clean, changing fuel filters regularly, and purchasing fuel from reliable sources. Additionally, it is crucial to address any signs of fuel injector problems early on, as prompt diagnosis and repair can help prevent further damage and more costly repairs.
Fuel Injector Measurement: Understanding Injector Flow Rate
You may want to see also
Explore related products
Restricted injectors and poor atomization
Fuel injectors are electro-mechanical devices that can fail in a variety of ways, including electrical and mechanical issues. Restricted injectors are a common type of mechanical failure, which can be caused by contamination and carbon build-up. This restriction can adversely affect the spray pattern, resulting in poor atomization of the fuel.
Atomization is the process of dispersing fuel into fine particles, which increases the surface area for evaporation and improves the chances of fuel and oxygen mixing. When atomization is poor, the fuel does not disperse into fine drops, which can lead to issues with the engine. Poor atomization can be caused by increased back pressure of compressed air in the cylinder, which increases air resistance acting on the fuel spray. Additionally, a steep cam contour or high camshaft speed can increase the speed of fuel supply, leading to increased fuel pressure and a larger spray cone angle.
Restricted injectors can cause a range of issues, including high emissions, poor fuel economy, and poor performance. Diagnosing restricted injectors can be challenging, and it is often necessary to remove the injector for thorough testing. Symptoms of restricted injectors include poor idle quality, hesitation or stumble on acceleration, failed emissions tests, and poor cold engine performance.
To prevent and address restricted injector issues, regular maintenance is crucial. This includes cleaning the injectors and ensuring they are free of contamination and carbon build-up. In some cases, remanufactured injectors may be used as a cost-effective repair solution, but it is important to choose reputable sources to ensure quality.
Fuel Injector Cleaner: Friend or Foe?
You may want to see also
Explore related products
Fuel injector cleaning and maintenance
Fuel injectors are electro-mechanical devices, so they can fail in both electrical and mechanical ways. Injectors are manufactured to extremely precise tolerances and are susceptible to certain types of mechanical failures, including contamination and internal o-ring failure. As a result, the injector can be affected by carbon buildup and contamination, which will restrict the flow of fuel. This can lead to a range of issues, including an abrupt loss of engine power, poor fuel economy, and poor performance.
There are differing opinions on the necessity of fuel injector cleaning. Some sources claim that it is often recommended by shops and dealer service centers, but it is not necessary unless it is correcting a running problem. Others suggest that it can be beneficial as a preventive measure, especially if you are using cheaper fuel. Symptoms that indicate a professional cleaning is needed include rough idling, stalling, misfires, sputtering, and poor acceleration. These issues often occur in cars that are not frequently driven.
There are a few methods for cleaning fuel injectors:
- Using a fuel-injector cleaner additive, which can be poured into the gas tank and will clean the injectors as you drive. It is important to read the instructions on these products, as some can be used at every fill-up, while others recommend less frequent use.
- Having a mechanic clean the injectors, either with the injectors still on the engine or removed. This method can be more expensive, especially if the injectors are removed, but it is a more thorough cleaning.
Quieting Noisy Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel injector replacement
Fuel injectors are designed to be incredibly long-lasting, but they can fail. As they are electrical components in a high-heat environment, exposed to contaminants in the fuel, there is always a chance of failure. The most common causes of fuel injector failure are electrical or mechanical issues, contamination, and carbon build-up.
If you are replacing your fuel injectors, it is important to note that this can be a dangerous job and it may be best to seek professional help. If you are going to attempt it yourself, ensure you have the right tools and safety equipment. You will need an assortment of common wrenches, a socket and ratchet set, a fuel line disconnect tool, screwdrivers, pliers, gloves, eye protection, and a fire extinguisher.
The first step is to let the car cool down for 30-45 minutes. Then, disconnect the battery and remove the connectors on top of the fuel rail. Remove any clips or nuts holding the fuel rail in place and lift it off, bringing the injectors with it. You may need to use pliers to disconnect the electrical connector on each injector.
Next, gently wiggle the injectors out of the fuel rail. You may need to press on some clips to remove them. Take a photo of the injectors to remember their orientation and direction. You can then clean the old injectors and replace the O-rings, or insert the new injectors in the same way the old ones were installed. Dip the tips of the new injectors in fuel or engine oil to prevent leaks.
Finally, line up the injectors with their corresponding holes and carefully slide them into place. Reattach the fuel rail and the battery, and turn the key to the 'on' position. Wait 10 seconds before turning to engine start.
Rebuilding VW GDI Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
![HiSport Fuel Injector 101 Micron Baskets Filter [6mm x 3mm x12mm] Universal Repair Seal Kits [20 Pcs]](https://m.media-amazon.com/images/I/61cmuoRfZuS._AC_UY218_.jpg)
Fuel injector diagnostic procedures
Fuel injectors are an essential component of a vehicle's engine, delivering the required amount of fuel for combustion. While they are generally reliable, fuel injectors can occasionally malfunction, leading to performance issues and increased emissions. Diagnosing fuel injector issues can be challenging, but with the right tools and knowledge, it is possible to identify and address problems effectively. Here are some diagnostic procedures to identify and address fuel injector issues:
Understanding the Basics: It is crucial to comprehend the fundamental role of the fuel system, which is to provide a clean and consistent fuel supply in the amount needed by the engine. This process can be divided into fuel delivery and fuel control. A discrepancy in either of these functions can lead to various issues, including higher emissions, lower fuel economy, and driveability complaints.
Visual Inspection: One of the initial steps in diagnosing fuel injector issues is to perform a visual inspection. This involves checking for any signs of external leaks or damage. Inspecting the fuel injectors for any physical signs of wear, tear, or contamination can provide valuable insights into potential problems.
Scan Tools and OE Procedures: Accurate diagnosis of fuel injector issues often requires access to scan tools and OE (Original Equipment) procedures. These tools and procedures enable technicians to properly diagnose fuel injector problems and determine the necessary repairs or replacements. The Bosch Diesel network, for example, has shops with trained diesel experts who can diagnose and repair fuel injectors.
Fuel Pressure Gauge Testing: Connecting a fuel pressure gauge to the test port or using appropriate adaptors can help diagnose fuel injector issues. With the engine off, compare the reading to specifications. A low reading could indicate a weak fuel pump, a restriction in the fuel flow, or a stuck-open fuel pressure regulator. If the pressure quickly drops after reaching the specifications, it may suggest a leaking injector or a faulty fuel pump module check valve.
Engine Running Test: With the gauge still connected, start the engine and allow it to reach its normal operating temperature. The system pressure should drop by 3 to 5 psi due to the injectors opening and closing. Rapid pressure fluctuations can indicate air in the fuel supply, often caused by flow restrictions. On a returnable system, disconnecting the vacuum line to the regulator should result in an 8 to 10 psi increase in pressure.
OBD2 Scanners: On-board diagnostics (OBD) systems, particularly OBD2 scanners, have transformed vehicle diagnostics. These scanners allow communication between the vehicle's electronic control unit (ECU) and the scanner, providing valuable information about the fuel injectors. OBD2 scanners offer access to trouble codes, real-time data feeds, and diagnostic tests, making it easier to identify issues such as clogged or malfunctioning injectors.
Fuel Injector Removal and Reconditioning: In some cases, removing the fuel injectors and sending them for reconditioning and returning (R&R) services can provide a comprehensive assessment of their health. This process includes ultrasonic cleaning, flow testing, leak testing, spray pattern testing, and the replacement of seals and o-rings.
Swapping Injectors: To verify whether the issue lies with a specific injector, the ECM (Engine Control Module), or the wiring harness, technicians can swap injectors between cylinders and observe if the diagnostic trouble code (DTC) moves with the injector or remains with the same cylinder.
Propane Test and No-Fuel Checks: If the propane test confirms that the engine has a spark, the next step is to check for no-fuel-related issues. This includes verifying the fuel pump and injector power fuses, as well as checking the P0230 to P0233 range of DTCs related to the fuel pump primary circuit operation.
It is important to note that fuel injector issues can be complex, and proper diagnosis requires a systematic approach. By following these procedures and utilizing the appropriate tools, technicians can effectively identify and address fuel injector problems, ensuring optimal vehicle performance, fuel efficiency, and emissions compliance.
Differentiating OBD1 and OBD2 Honda Fuel Injectors
You may want to see also
Frequently asked questions
Fuel injectors are one of the great advances in automotive technology and are far more efficient than the old carburetor system. However, fuel injector failure is a common issue.
There are several signs that indicate a fuel injector is failing. These include:
- Poor engine performance
- Poor fuel economy
- Rough idling
- Excessive engine vibration
- Poor acceleration
- Engine misfire
- Engine stalling
- Check Engine light is on
Fuel injectors can fail due to various reasons, including:
- Clogging from dirt, debris, or fuel impurities
- Heat soak, which leads to the buildup of waxy olefins that harden and clog the injectors
- Solenoid failure, which creates a magnetic field to pull up the fuel injector pintle
- Engine blow-by, where fuel and oil residue clog the injectors
- Broken or leaking fuel injector
- Contamination and carbon buildup
- Internal o-ring failure
Diagnosing a fuel injector issue can be tricky and often requires specialized tools and knowledge. It is recommended to consult a trained automotive repair specialist or a shop with diesel experts, such as the Bosch Diesel network.
If your fuel injector is failing, there are a few options:
- Add a fuel injector cleaner to remove debris and gunk from the injector.
- Test and repair the injectors at a specialized location, such as a Bosch Diesel Center.
- Replace the fuel injector with a new one if it is cracked or broken.
