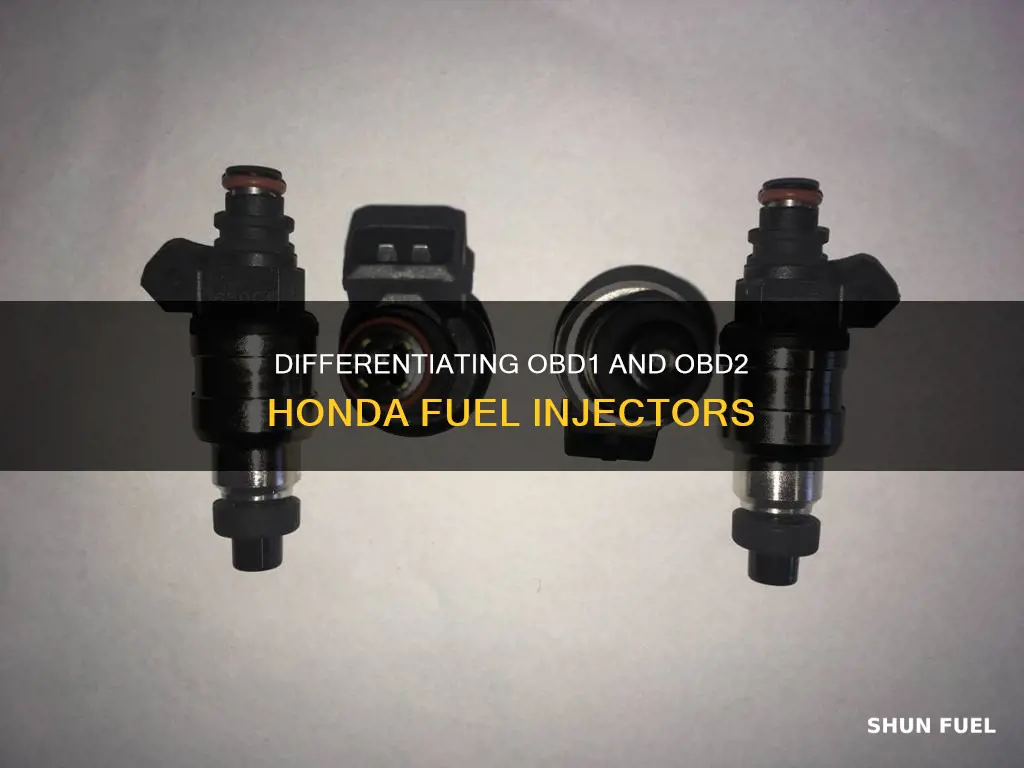

Honda fuel injectors are a popular topic among car enthusiasts, with many seeking to understand the differences between OBD1 and OBD2 systems. OBD1, or On-Board Diagnostics 1, was used in older Honda models from 1992 to 1995, while OBD2 was introduced in 1996 and newer vehicles. The distinction between these two systems is important as it affects the compatibility of fuel injectors and other performance modifications. While OBD1 is known for its ease of reprogramming, OBD2 has a more advanced sensor system, and the two differ in their connector types, with OBD1 having two rows of pins and OBD2 introducing a new 16-pin connector.
Explore related products
What You'll Learn
- OBD1 is the most popular OBD as it's the easiest to reprogram your computer
- OBD2 looks for many more sensors than OBD1
- OBD2 cars can use an adapter to run larger injectors or OBD1 fuel injectors
- OBD2 cars have a service port in the cup holder
- OBD1 harnesses have two plugs for the distributor, OBD2 has one
OBD1 is the most popular OBD as it's the easiest to reprogram your computer
OBD1 is the most popular OBD as it is the easiest to reprogram your computer. Introduced in the 1980s, OBD1 was the first standardized diagnostic system within the automotive industry. Its purpose was to provide mechanics and technicians with a universal method for diagnosing and troubleshooting vehicle problems. OBD1 systems use a variety of different communication protocols, while OBD2 systems use a standardized protocol called CAN (Controller Area Network).
OBD1 systems offer limited diagnostic capabilities when compared to OBD2. OBD1 primarily focuses on emission-related systems, providing basic fault codes and limited sensor data. In contrast, OBD2 expands diagnostic capabilities, offering comprehensive access to various systems, including the engine, transmission, ABS, airbags, and more. OBD2 also utilizes standardized Diagnostic Trouble Codes (DTCs), facilitating easier identification and troubleshooting of issues.
Despite the advantages of OBD2, OBD1 remains popular due to its ease of reprogramming and tuning capabilities. Tuning cars with an OBD1 cable is not very common as it requires a higher level of knowledge about reading and writing to the actual ECU. Additionally, converting to OBD1 is harder than OBD2, which allows for easy swapping between standards with just a jumper harness.
It is important to note that OBD1 and OBD2 have specific applications based on vehicle models and years. OBD1 was used on vehicles from the early 1990s to the mid-1990s, while OBD2 is used on all vehicles manufactured after 1996.
Mieneke's Fuel Injector Cleaning Process Explained
You may want to see also
Explore related products
OBD2 looks for many more sensors than OBD1
OBD stands for On-Board Diagnostics. It is a system that monitors and reports on the performance of a vehicle's engine and emission control systems. OBD systems were first introduced in the early 1990s and have become increasingly sophisticated over the years. There are two main types of OBD systems: OBD1 and OBD2.
OBD1 systems are more basic and less comprehensive than OBD2 systems. OBD1 systems typically only monitor emission control systems, while OBD2 systems monitor a wide range of engine and emission control systems, as well as other systems such as the transmission, ABS, and airbags. OBD2 looks for many more sensors than OBD1.
The Diagnostic Trouble Codes (DTCs) of OBD-I vehicles can usually be found without an expensive scan tool. Each manufacturer used its own Diagnostic Link Connector (DLC), DLC location, DTC definitions, and procedure to read the DTCs from the vehicle. DTCs from OBD-I cars are often read through the blinking patterns of the 'Check Engine Light' (CEL) or 'Service Engine Soon' (SES) light. By connecting certain pins of the diagnostic connector, the 'Check Engine' light will blink out a two-digit number that corresponds to a specific error condition.
OBD2 systems, on the other hand, use a standardized protocol called CAN (Controller Area Network), which makes it easier to diagnose problems as all OBD2 scanners use the same protocol. OBD2 systems also have more diagnostic modes available, such as Service / Mode $01, which shows current sensor live data from PIDs ("Parameter IDs"), and Service / Mode $06, which is a Request for On-Board Monitoring Test Results for Continuously and Non-Continuously Monitored Systems.
In addition to the increased number of sensors and diagnostic modes, OBD2 systems also introduced a new 16-pin connector, which was added to cars from 1996 onwards. This connector is usually located under the dashboard on the driver's side.
Fuel Injector Problems: Can a Treatment Fix Them?
You may want to see also
Explore related products
OBD2 cars can use an adapter to run larger injectors or OBD1 fuel injectors
OBD1 and OBD2 are two different types of on-board diagnostics systems, which refer to the computer system that runs the engine of a car. Honda models from 1992 to 1995 are OBD1, while 1996 and later models are OBD2.
The adapter cable is convenient to use, requiring no special tools, and is designed to be plug-and-play. It is important to note that some modification may be required for the adapter to fit properly, and the quality of the adapters may vary.
Converting between OBD1 and OBD2 is generally easier than converting to OBD0, as it typically only requires a jumper harness without the need for additional wiring.
Dialing Back Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
OBD2 cars have a service port in the cup holder
OBD1 and OBD2 are two iterations of the onboard diagnostic system for cars. OBD1 was first standardised in the late 1980s, and OBD2 is the second iteration, developed about a decade later. OBD2 was a significant upgrade in terms of ease of use and vehicle data extraction capabilities. It is now mandatory for all cars and trucks sold in the US (after 1996) and Europe (after 2001) to have an OBD2 port.
One way to distinguish between OBD1 and OBD2 Honda cars is to look at the cup holder. If you pull out your cup holder and see a service port, then your car is OBD2. If there is no service port, then it is an OBD1 car.
The OBD2 port is a 16-pin port that allows a mechanic or anyone with the right interface to read error codes and other vehicle data using a special scan tool. The OBD2 port is usually located under the driver's side dash, beneath the steering column, or between the transmission and cup holder.
OBD2 systems are much more advanced than OBD1 systems. While OBD1 only looks for what is necessary to make the engine run, OBD2 monitors many more sensors and components. OBD2 is connected to the check engine light and other dashboard warning lights, illuminating them when a problem is detected. It can also provide real-time vehicle data, even when you are away from your vehicle.
Fuel Injector Sizing: Understanding Your Car's Needs
You may want to see also
Explore related products
OBD1 harnesses have two plugs for the distributor, OBD2 has one
Honda's On-Board Diagnostics (OBD) is a computer system that runs the engines of Honda cars. There are different generations of OBD systems, with OBD1 and OBD2 being the most popular. OBD1 harnesses have two plugs for the distributor, while OBD2 has only one. This is one of the most straightforward ways to tell the difference between the two systems.
The OBD1 system is the most popular OBD system as it is the easiest to reprogram your computer. Almost all Hondas from 1992 to 1995 run on OBD1. The 1990-1993 Accords are also OBD1. One good way to identify an OBD1 car is to know the year of the car. Generally, Hondas from 1992 to 1995 are OBD1, while those from 1996 onwards are OBD2. Another way to identify an OBD2 car is to check for a service port in the cup holder.
The OBD2 system looks for many more things, like sensors, compared to OBD1, which only looks for what it needs to make the engine run. OBD2 also has a 16-pin connector, which was added in 1996. OBD2 systems are harder to tune as no one has cracked the code to tune OBD2 ECUs. OBD1 is the preferred system if you want to tune your car.
There are also OBD0 or "Pre-OBD" systems, which are normally found in 1988-1991 Civics and Integras. OBD0 is considered a mess and should be avoided as it is not uncommon for the distributor to fail. OBD0 also typically uses vacuum lines.
Fuel Injectors: Do They Wear Out Over Time?
You may want to see also
Frequently asked questions
The easiest way to tell is by knowing the year of your car. Honda cars from 1992 to 1995 are OBD1, while 1996 and newer models are OBD2.
OBD2 looks for a lot more sensors than OBD1, which only looks for what is necessary to run the engine. OBD1 is also the most popular OBD as it is the easiest to reprogram your computer.
Yes, you can. There are OBD1 to OBD2 adapter fuel injector connector conversion jumper harnesses available for Honda cars.
Yes, you can. There are OBD2 to OBD1 adapter fuel injector connector conversion jumper harnesses available for Honda cars.
