Fuel pumps and injection pumps are both integral parts of a vehicle's fuel injection system, which is responsible for delivering fuel to the engine. Fuel pumps are lubricated by the fuel, while injection pumps may use engine oil for lubrication. Although they share a similar purpose, there are distinct differences between fuel pumps and injection pumps in diesel engines when compared to those in petrol engines. This is primarily due to the differences in fuel and engine characteristics. Diesel injection pumps, for example, operate at much higher pressures than petrol injection pumps because diesel fuel is denser. Understanding the unique designs and functions of these pumps is crucial for anyone interested in diesel engines or diesel-powered vehicles.
| Characteristics | Values |
|---|---|
| Purpose | Fuel pumps and injection pumps both serve the same purpose: to send fuel from the fuel dispenser to the engine cylinders. |
| Lubrication | Fuel pumps are lubricated by the fuel itself (diesel fuel for diesel engines, gasoline for petrol engines). Injection pumps may use engine oil as a lubricator. |
| Design | Fuel pumps and injection pumps have different designs, adapted to the fuel and engine characteristics they use. |
| Pressure | Diesel injection pumps operate at a much higher pressure than petrol fuel pumps. |
| Control | Common rail and distributor injection pumps are electronically controlled, while other types are mechanically driven. |
| Ignition | Diesel engines do not need an ignition system, unlike gasoline engines. |
Explore related products
What You'll Learn
The purpose of fuel pumps and injection pumps
Fuel pumps and injection pumps are both integral components of a vehicle's fuel injection system. The main purpose of the fuel pump is to draw fuel from the fuel tank and deliver it to the engine. This process involves the pump pulling fuel out of the tank and pumping it through to the engine, where it is then injected into the intake manifold or directly into the combustion chamber.
Fuel pumps can be mechanical or electric. Mechanical pumps are driven by the camshaft or a special shaft driven by the crankshaft. Electric fuel pumps, on the other hand, are usually located inside the fuel tank and are commonly found in modern fuel-injected cars. The fuel pump is lubricated by the fuel itself, with diesel fuel lubricating diesel pumps and gasoline lubricating petrol pumps.
Injection pumps, on the other hand, are responsible for pumping fuel into the cylinders of a diesel engine. They pressurise and calculate the fuel, delivering it to each cylinder at the right moment. This timely and precise delivery of an air-fuel mixture into the chamber is crucial for combustion. Injection pumps are categorised as low-pressure components and are designed to work efficiently with the specific fuel and engine characteristics they use.
The injection pump's timing is crucial. It rotates at half crankshaft speed in a conventional four-stroke diesel engine, injecting fuel just before the top dead centre of the cylinder's compression stroke. Additionally, all injection pumps incorporate a governor to cut off the fuel supply if the crankshaft rpm endangers the engine. This is an important safety feature as diesel engines can suffer catastrophic damage if they are over-revved.
In summary, while both fuel pumps and injection pumps are essential for a vehicle's fuel injection system, they serve distinct purposes. Fuel pumps focus on drawing fuel from the tank and delivering it to the engine, while injection pumps pressurise and calculate the fuel, ensuring precise delivery to the cylinders for combustion.
The Importance of Polishing Diesel Fuel
You may want to see also
Explore related products
Differences in design between diesel and gasoline fuel pumps
Although diesel and gasoline fuel pumps share the same purpose, they have distinct designs. These design differences are due to the pumps being adapted to work efficiently with the fuel and engine characteristics they use.
One of the most significant differences between diesel and gasoline injection pumps is the pressure at which the fuel injection system operates. Gasoline engines inject fuel at a pressure between 10 and 60 pounds per square inch (PSI), whereas diesel fuel injection systems operate at a much higher pressure of between 10,000 and 30,000 PSI. This is because diesel fuel is denser than gasoline. The higher pressure in diesel injection pumps ensures that fuel is injected into the engine at the proper pressure for combustion.
The location of the fuel pump also differs between gasoline and diesel engines. In gasoline engines, the fuel pump is usually located inside the fuel tank, whereas, in diesel engines, the pump is typically located outside the fuel tank, connected to the engine or fuel line.
Another difference in design is the focus of each pump. Gasoline is highly volatile and easily vaporises, so the design of gasoline pumps focuses on keeping the fuel cool and preventing excessive vaporisation. Diesel fuel, on the other hand, is less volatile and does not require the same cooling mechanisms. Therefore, the design focus of diesel fuel pumps is to deliver fuel at the appropriate pressure.
The internal components of the pumps also differ. Gasoline pumps usually have finer mesh filters to prevent debris and contaminants from entering the engine, while diesel pumps have larger filters to accommodate thicker diesel fuel.
Does Diesel Fuel Additive Acetone Mixtures Work?
You may want to see also
Explore related products
The function of injection pumps in diesel engines
An injection pump is a device that pumps fuel into the cylinders of a diesel engine. The main purpose of the fuel injection system is to deliver fuel into the engine cylinders, while precisely controlling the injection timing, fuel atomization, and other parameters. The injection pump was traditionally driven indirectly from the crankshaft by gears, chains, or a toothed belt. It rotates at half the crankshaft speed in a conventional four-stroke diesel engine.
The performance of diesel engines is heavily influenced by their injection system design. The most notable advances in diesel engines have resulted directly from superior fuel injection system designs. While the main purpose of the system is to deliver fuel to the cylinders of a diesel engine, it is how the fuel is delivered that makes the difference in engine performance, emissions, and noise characteristics.
Earlier diesel pumps used an in-line layout with a series of cam-operated injection cylinders in a line, similar to a miniature inline engine. Inline pumps are still favoured for large multi-cylinder engines such as those found in trucks, construction equipment, stationary engines, and agricultural vehicles. For cars and light trucks, the rotary pump or distributor pump was developed. It uses a single injection cylinder driven by an axial cam plate, injecting fuel into the individual fuel lines via a rotary distribution valve. Later versions, such as the Bosch VE pump, vary the injection timing with crankshaft speed to allow greater power at high crank speeds.
Modern-day diesel engines use the Direct Injection (DI) method, where pressurized fuel is injected directly into the engine chambers via fuel injectors. Fuel injectors ensure fuel delivery into the combustion chambers by controlling the quantity and timing of injection. They also atomize the fuel into tiny particles to enhance combustion. The atomization of fuel and complete evaporation are critical to ensuring high combustion efficiency and optimum engine performance.
Converting Plastic to Diesel: A Sustainable Fuel Solution
You may want to see also
Explore related products
$415.93 $451.58
Types of diesel fuel injection pumps
The injection pump is a vital component of diesel engines, determining their efficiency, performance, and reliability. There are several types of diesel fuel injection pumps, each with unique characteristics.
Firstly, the common rail fuel injection pump is an electronically controlled diesel fuel supply system. It was developed to meet modern exhaust gas regulations. This pump consists of a supply pump, common rail, electronically controlled injectors, sensors that detect the engine's condition, and a computer that controls these devices. The supply pump produces high-pressure fuel, which is distributed to the injectors by the common rail. The injectors are mounted on each cylinder of the engine.
Secondly, the distributor (rotary) fuel injection pump is also electronically controlled. It uses sensors, an electronic control unit (ECU), and an actuator. The ECU can be thought of as a microcomputer that guides the performance of the fuel injectors. In distributor-type pumps, a single plunger generates enough force to pump fuel through all the injectors. This results in lower pressure than an individual inline injection pump, but its small size makes it ideal for limited-space applications.

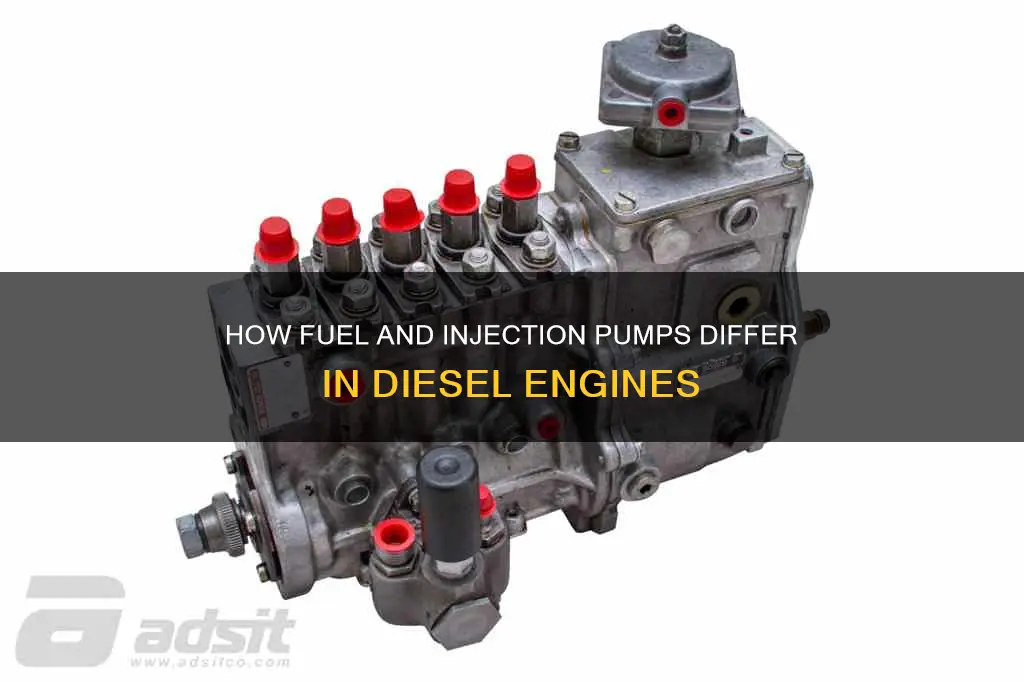

Thirdly, the in-line fuel injection pump is one of two mechanically controlled diesel fuel systems. It is primarily used for medium to large trucks and construction machinery. The number of fuel pressure mechanisms matches the engine cylinders. A camshaft drives the fuel pressure and injection quantity control mechanisms within the pump body, which follows an injection order to feed fuel to each engine cylinder.
Finally, the distributor injection pump is the other mechanically controlled diesel fuel pump. It has just one fuel pressure mechanism, despite the number of engine cylinders. The distributor is designed to follow the injection order to distribute pressurised fuel to each cylinder. The pump housing holds all its components, including the governor, timer, and feed pump.
It is important to know the type of diesel fuel pump in your vehicle, as issues with the pump can lead to problems such as poor fuel efficiency, engine noise, weak acceleration, and failure to meet emission standards.
Understanding Diesel Engine Fuel Consumption Calculations
You may want to see also
Explore related products
Issues with diesel injection pumps
Fuel pumps, whether designed for petrol or diesel engines, are lubricated by the fuel itself. In diesel vehicles, the fuel pump is lubricated by diesel fuel, while in petrol vehicles, the pump is lubricated by gasoline.
The main job of a diesel injection pump is to use pressure and send the fuel from the fuel dispenser to the engine cylinders. Modern-day diesel engines use the Direct Injection (DI) method, where pressurized fuel is directly injected into the engine chambers via fuel injectors. The injectors ensure fuel delivery into the combustion chambers by controlling the quantity and timing of the injection.
However, issues with diesel injection pumps can lead to several problems, including:
- Poor fuel efficiency
- Engine noise
- Weak acceleration
- Failure to meet emission standards
- Engine sputtering or hesitation when trying to speed up
- Wear and tear on fuel pump bearings
- Poor engine performance
- Engine overheating
- Coolant leaks
- Damage to the EGR system
- Power loss
These issues can be caused by several factors, including contaminated diesel fuel, an empty fuel tank, a dirty fuel injector, and faulty timing. Preventative measures such as using clean and reliable diesel fuel, regularly changing the fuel filter, and maintaining a sufficient fuel level in the tank can help stave off these problems.
Washington Ferries: Diesel Fuel Sources and Operations
You may want to see also
Frequently asked questions
A fuel pump is a core part of the fuel injection system. Its main job is to use pressure to send fuel from the fuel dispenser to the engine cylinders.
An injection pump is an automobile component that pumps fuel at high pressure. It acts as the engine's heartbeat, managing the timing and delivery of the amount of fuel needed to gain the desired power.
While both serve the same purpose and use the same source for lubrication, they have different designs. Fuel pumps are lubricated by the fuel itself, while some parts of injection pumps, such as the mechanical governor, might use engine oil as a lubricator.
Injection pump issues can lead to problems such as poor fuel efficiency, engine noise, weak acceleration, and failure to meet emission standards.
