The question of whether a fuel pump relay is the same as a fuse is a common one among car owners and mechanics alike. While both components play crucial roles in the proper functioning of a vehicle's fuel system, they serve distinct purposes and operate differently. A fuse is a safety device designed to protect the electrical circuit by interrupting the flow of current when it detects an overload or short circuit, whereas a fuel pump relay is an electromagnetic switch that controls the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. Understanding the differences between these two components is essential for diagnosing and resolving fuel system issues effectively.
| Characteristics | Values |
|---|---|
| Function | Fuel pump relay: Controls power to the fuel pump; Fuse: Protects the electrical circuit from overcurrent |
| Operation | Relay: Electromechanical switch activated by a control signal; Fuse: Passive device that breaks the circuit when current exceeds its rating |
| Reusability | Relay: Reusable unless mechanically damaged; Fuse: Single-use, must be replaced after blowing |
| Location | Relay: Typically found in the fuse box or relay panel; Fuse: Located in the fuse box or inline with the circuit |
| Failure Mode | Relay: Can fail open (no power) or closed (constant power); Fuse: Fails open (breaks the circuit) |
| Diagnostic | Relay: Can be tested for continuity and proper switching; Fuse: Tested for continuity (blown fuse shows no continuity) |
| Purpose | Relay: Ensures controlled operation of the fuel pump; Fuse: Prevents electrical damage due to overcurrent |
| Cost | Relay: Generally more expensive than a fuse; Fuse: Inexpensive and easily replaceable |
| Complexity | Relay: More complex with moving parts; Fuse: Simple, passive component |
| Replacement | Relay: Requires specific replacement part; Fuse: Requires matching amperage rating |
Explore related products
What You'll Learn
Relay vs. Fuse Functionality
A fuel pump relay and a fuse serve distinct purposes in a vehicle's electrical system, though both are critical for safety and functionality. The fuse acts as a sacrificial component, designed to break the circuit if an overload or short circuit occurs, thereby protecting the wiring and components from damage. It is a passive device that operates based on the current flowing through it—once the current exceeds the fuse's rating, it blows, cutting off power. For instance, a typical fuel pump fuse might be rated at 15 to 20 amps, ensuring it can handle normal operation but fails safely under fault conditions.
In contrast, a fuel pump relay is an active switch that controls the flow of power to the fuel pump. It operates based on signals from the vehicle's computer or ignition system, allowing the pump to engage only when needed, such as during engine startup or operation. Relays use an electromagnet to close a high-current circuit, enabling them to handle the substantial power demands of the fuel pump without overheating. Unlike a fuse, a relay does not protect against overcurrent; instead, it ensures efficient and controlled power delivery.
To illustrate their roles, consider a scenario where the fuel pump draws excessive current due to a malfunction. The fuse would blow, immediately cutting power to prevent a fire or damage to the wiring harness. However, the relay itself would not fail in this situation unless it was already defective. Instead, the relay’s function is to manage the pump’s operation, turning it on and off as required, while the fuse provides a safety net for electrical faults.
When diagnosing fuel pump issues, it’s crucial to differentiate between relay and fuse problems. A blown fuse indicates an overcurrent condition, often caused by a short circuit or a failing pump. A faulty relay, on the other hand, may prevent the pump from activating at all, even if the fuse is intact. Testing involves checking the fuse for continuity and verifying the relay’s operation using a multimeter or by swapping it with a known-good unit. Always replace fuses with the correct amperage rating to avoid recurring failures.
In summary, while both components are essential for fuel pump operation, their functions are complementary rather than interchangeable. The fuse safeguards against electrical faults, while the relay ensures precise control of the pump’s power supply. Understanding their roles simplifies troubleshooting and highlights the importance of maintaining both for reliable vehicle performance.
Easy Steps to Safely Remove Clips on Your Fuel Pump
You may want to see also
Explore related products
Physical Differences Explained
A fuel pump relay and a fuse are distinct components in a vehicle's electrical system, each serving a unique purpose. Physically, the most immediate difference lies in their size and structure. A fuse is typically a small, cylindrical or blade-like device, often made of plastic and metal, designed to fit snugly into a fuse box. Its primary function is to protect the circuit by breaking the connection if an overload occurs, usually indicated by a visible break in the internal wire. In contrast, a fuel pump relay is larger and more complex, housed in a rectangular or square casing with multiple pins or terminals. These terminals connect to the vehicle’s wiring harness, allowing the relay to act as a switch, controlling the flow of power to the fuel pump based on signals from the engine control unit (ECU).
Examining their construction reveals further differences. Fuses are simple, disposable components with a single internal wire or filament that melts under excessive current. They are designed to be easily replaced and are often color-coded to indicate their amperage rating, such as a 10A or 20A fuse. Relays, on the other hand, contain an electromagnetic coil and a set of contacts that open or close when the coil is energized. This mechanism allows the relay to handle higher currents and switch power to the fuel pump efficiently, without being directly exposed to the full load. While fuses are passive and reactive, relays are active and responsive, making them unsuitable substitutes for one another.

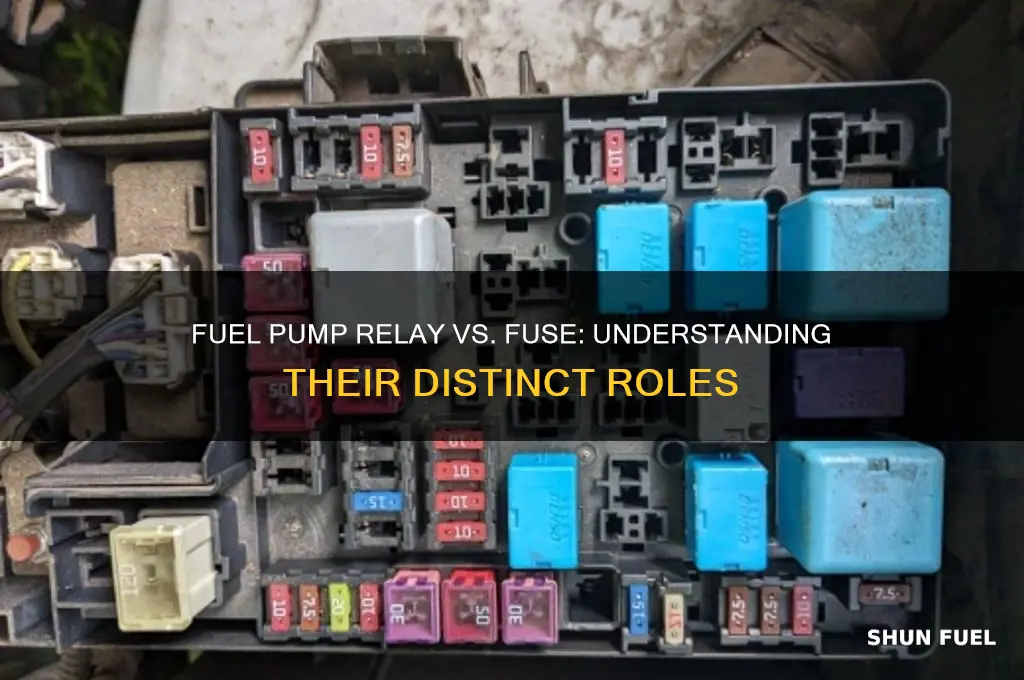

The location and mounting of these components also highlight their differences. Fuses are typically found in a centralized fuse box, often under the dashboard or in the engine bay, where they are easily accessible for inspection and replacement. Relays, however, are usually located near the component they control—in the case of a fuel pump relay, it is often mounted close to the fuel tank or within the engine compartment. This placement ensures minimal voltage drop and efficient operation. Understanding these physical distinctions is crucial for troubleshooting, as misidentifying a relay for a fuse or vice versa can lead to incorrect diagnostics and potential damage to the vehicle’s electrical system.
Practical considerations further emphasize their differences. When replacing a fuse, it is essential to match the amperage rating exactly to avoid inadequate protection or immediate failure. For example, using a 20A fuse in a 10A slot can cause the circuit to overload and potentially damage wiring. Relays, however, require compatibility with the specific voltage and current demands of the fuel pump, as well as the correct pin configuration for the vehicle’s wiring harness. A mismatched relay may fail to activate the fuel pump or cause intermittent operation, leading to poor engine performance or stalling. Always consult the vehicle’s manual or a trusted repair guide to ensure the correct component is used.
In summary, while both a fuel pump relay and a fuse play critical roles in a vehicle’s electrical system, their physical differences are fundamental to their function. Fuses are small, disposable, and protective, while relays are larger, reusable, and control-oriented. Recognizing these distinctions not only aids in accurate identification but also ensures proper maintenance and repair, safeguarding the vehicle’s performance and longevity.
Does BCM Control Fuel Pump? Understanding the Role of Body Control Module
You may want to see also
Explore related products
Common Symptoms of Failure
A failing fuel pump relay or fuse can manifest in ways that mimic other engine issues, making diagnosis tricky. One telltale sign is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the relay or fuse isn’t delivering power to the fuel pump, preventing it from priming the system with fuel. If the engine cranks but doesn’t start, or starts only after multiple attempts, suspect a faulty relay or blown fuse. Always check the fuse first, as it’s cheaper and easier to replace, but if the fuse is intact, the relay is the next likely culprit.
Another symptom is a sputtering or stalling engine, particularly under acceleration or at high speeds. This happens when the fuel pump intermittently loses power due to a failing relay or a fuse that’s beginning to degrade. The pump may still work momentarily but fails to maintain consistent fuel pressure, causing the engine to misfire or shut down. If this occurs, test the relay’s terminals for voltage using a multimeter; a lack of power indicates a relay issue, while a blown fuse will show no continuity.
Unusual noises from the fuel tank area, such as whining or humming, can also signal trouble. While these sounds often point to a failing fuel pump itself, they can sometimes be caused by an erratic relay that’s sending inconsistent power. If the noise is intermittent or changes with ignition cycles, the relay is likely at fault. However, if the noise is constant and loud, the pump may be damaged due to prolonged relay failure. In either case, address the relay or fuse issue first, as it’s often the root cause.
A less obvious symptom is a sudden drop in fuel efficiency or rough idling. When the fuel pump relay or fuse malfunctions, the pump may run at a lower speed or cycle on and off unpredictably, leading to inadequate fuel delivery. This can cause the engine to run lean, triggering check engine lights or OBD-II codes related to fuel system errors. Use a fuel pressure gauge to verify if the pump is operating within spec; if pressure is low and the fuse is good, replace the relay immediately to prevent further damage.
Lastly, a complete loss of power while driving is a critical symptom of a failed fuel pump relay or fuse. This occurs when the relay opens or the fuse blows entirely, cutting power to the pump and starving the engine of fuel. The vehicle will stall abruptly, and restarting it will be impossible until the issue is resolved. Carry spare fuses and a basic multimeter in your vehicle to diagnose and fix this roadside emergency. If the fuse blows repeatedly, investigate the relay or wiring for shorts or overloads.
Enable Your 2002 Ford Escort's Fuel Pump Inertia Switch Easily
You may want to see also
Explore related products
Testing Methods for Both
A fuel pump relay and a fuse serve distinct functions in a vehicle's electrical system, but both are critical for the fuel pump's operation. While a fuse protects the circuit from overcurrent, the relay acts as a switch, controlling power to the fuel pump. Testing these components requires different methods, each tailored to their unique roles.
Testing a Fuel Pump Relay
Begin by locating the relay, often found in the under-hood fuse/relay box. Identify the correct relay by consulting the vehicle’s manual. Use a multimeter to check for continuity across the relay’s coil terminals (typically pins 85 and 86) with the ignition on. A reading of 0 ohms indicates a functional coil. Next, swap the fuel pump relay with a similar one (e.g., the horn relay) to see if the fuel pump activates. If it does, the original relay is faulty. Alternatively, apply 12 volts directly to the fuel pump connector to bypass the relay; if the pump runs, the relay is likely the issue. Always ensure the vehicle is in a safe, well-ventilated area during testing.
Testing a Fuse
Fuses are simpler to test but equally important. Start by visually inspecting the fuse for a broken or melted filament, which indicates a blown fuse. For a more accurate test, use a multimeter set to the continuity or resistance mode. Remove the fuse and touch the multimeter probes to both ends. A reading of 0 ohms means the fuse is intact; no reading or infinite resistance indicates a blown fuse. If the fuse appears intact but the circuit is dead, test the fuse under load by connecting a test light in parallel with the fuse. If the light doesn’t illuminate, replace the fuse, even if it looks undamaged.
Comparative Analysis of Testing Methods
While both components require a multimeter, the approach differs. Relay testing involves checking coil continuity and bypassing the relay, whereas fuse testing focuses on visual inspection and continuity checks. Relays often fail due to internal contacts burning out, while fuses fail by breaking the circuit. Understanding these differences ensures accurate diagnosis and prevents misidentifying the faulty component.
Practical Tips for Efficient Testing
Always test fuses first, as they are cheaper and easier to replace. If the fuse is intact, proceed to the relay. Keep a spare relay and fuses in your vehicle for quick swaps during testing. Label relays and fuses before removal to avoid confusion. For relays, use a relay puller tool to extract them safely without damaging the socket. Finally, document your findings to streamline future diagnostics.
Testing a fuel pump relay and fuse requires distinct methods but shares the goal of ensuring fuel system reliability. By mastering these techniques, you can diagnose issues efficiently, saving time and money. Remember, a systematic approach—starting with the fuse and moving to the relay—is key to accurate troubleshooting.
Identifying Optimax Pulse Fuel Pump Issues: A Comprehensive Guide
You may want to see also
Explore related products
Replacement and Repair Tips
A fuel pump relay and a fuse serve distinct purposes in your vehicle’s electrical system, yet confusion often arises when diagnosing fuel delivery issues. The relay acts as a switch, controlling power to the fuel pump, while the fuse protects the circuit from overcurrent. If your engine cranks but doesn’t start, or if you hear no fuel pump hum during key-on, the relay or fuse might be at fault. Before replacing either, locate them using your vehicle’s manual—relays are typically in the fuse box or under the hood, while fuses are always in the fuse panel. Always test the relay with a multimeter or swap it with a known-good one to confirm failure. Fuses, however, are simpler: inspect for a broken filament or use a fuse tester.
When replacing a fuel pump relay, ensure the new part matches the original’s specifications, including pin configuration and amperage rating. Generic relays may fit but lack the durability of OEM parts. For fuses, use the exact amperage specified in the manual—higher ratings can cause circuit damage, while lower ones may blow prematurely. Pro tip: carry spares of both in your vehicle, as they’re common failure points and easy to replace roadside. If issues persist after replacement, the problem may lie elsewhere, such as a faulty fuel pump, clogged filter, or wiring harness damage.
Repairing a faulty relay is rarely practical due to its sealed design, but you can clean its contacts with electrical cleaner if corrosion is visible. For fuses, prevention is key: inspect the fuse panel for signs of overheating or melted plastic, which indicate underlying electrical issues. If a fuse blows repeatedly, trace the circuit for shorts or overloads—common culprits include damaged wiring or malfunctioning components like fuel injectors. Always disconnect the battery before working on electrical systems to avoid shocks or accidental shorts.
Comparing the two, relays are more prone to wear due to their mechanical switching function, while fuses fail primarily from overcurrent events. Relays often fail silently, leaving you stranded, whereas blown fuses are immediately obvious. In older vehicles, relays may degrade from heat or vibration, making periodic inspection advisable. Modern vehicles with computer-controlled fuel systems may integrate the relay into a module, complicating DIY repairs. If in doubt, consult a professional to avoid misdiagnosis or further damage.
Finally, understanding the interplay between relays and fuses can save time and money. For instance, a blown fuse can prevent the relay from activating, mimicking a relay failure. Conversely, a stuck relay can cause a fuse to blow by overloading the circuit. Always address the root cause, not just the symptom. Keep a log of replacements and issues to identify patterns, such as recurring fuse blows in specific circuits. With these tips, you’ll approach fuel pump relay and fuse issues systematically, ensuring your vehicle stays reliable and safe.
Locating the Fuel Pump in a 1996 Mazda Protege
You may want to see also
Frequently asked questions
No, the fuel pump relay and the fuse are different components. The relay is an electrical switch that controls power to the fuel pump, while the fuse is a protective device that prevents electrical overloads by breaking the circuit if excessive current flows.
No, a fuel pump relay cannot be replaced with a fuse. They serve different functions—the relay manages the on/off operation of the fuel pump, while the fuse protects the circuit from damage.
If the fuel pump relay fails, the fuel pump may not receive power, causing the engine to stall or not start. If the fuse fails, it will blow, cutting off power to the fuel pump and preventing it from operating.
Not always. The fuel pump relay is typically found in the fuse box or relay panel under the hood or inside the car, while the fuse is usually located in the fuse box. However, their exact locations vary by vehicle, so consult the owner’s manual for specifics.
