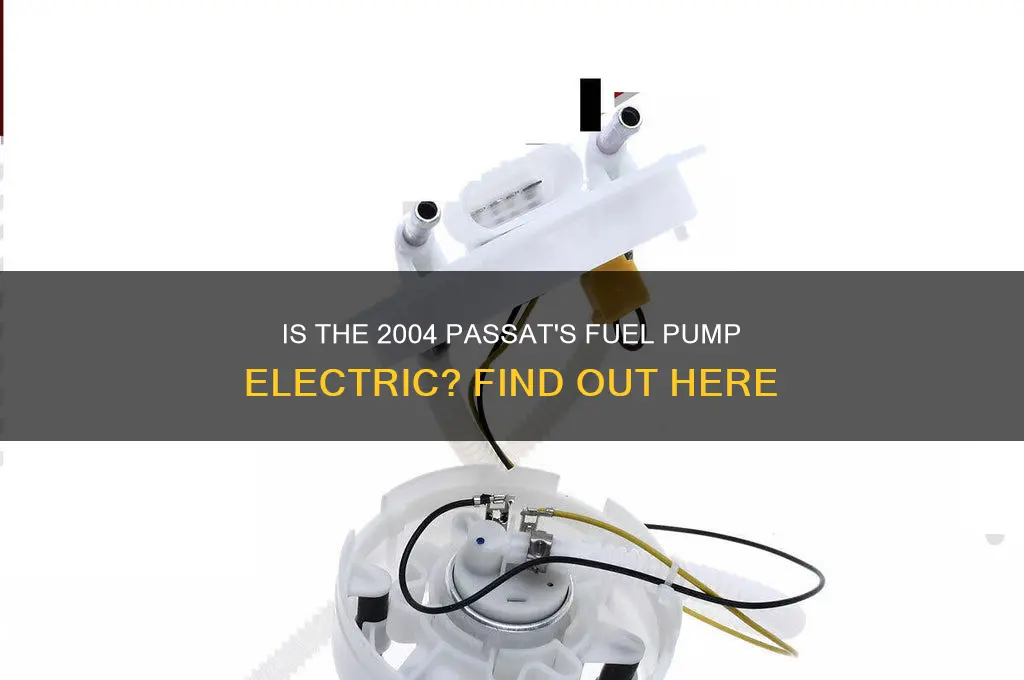

The 2004 Volkswagen Passat, a popular mid-size sedan, features an electric fuel pump as part of its fuel delivery system. This design is common in modern vehicles, including the Passat, as it ensures efficient and reliable fuel supply to the engine. Located inside the fuel tank, the electric fuel pump in the 2004 Passat operates by drawing fuel from the tank and delivering it under pressure to the engine’s fuel injectors. This setup not only enhances performance but also improves safety by reducing the risk of fuel leaks compared to older mechanical fuel pump systems. Understanding whether the fuel pump is electric is crucial for diagnostics, maintenance, and troubleshooting fuel-related issues in this model.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Electric |
| Location | Inside the fuel tank (in-tank fuel pump) |
| Voltage | Typically operates on 12V DC |
| Function | Delivers fuel from the tank to the engine under pressure |
| Compatibility | Specific to Volkswagen Passat 2004 models |
| Replacement Part Number | Varies by manufacturer (e.g., OEM or aftermarket options like 1J0 919 051F) |
| Symptoms of Failure | Engine stalling, difficulty starting, loss of power, whining noise |
| Maintenance | No routine maintenance required; replace only if faulty |
| Cost (Approx.) | $100-$300 (part only), $200-$500 with labor |
| Lifespan | Typically lasts 100,000 to 150,000 miles |
| Diagnostic Codes | P0087, P0088 (related to fuel pressure issues) |
Explore related products
What You'll Learn
Location of the fuel pump in a 2004 Passat
The fuel pump in a 2004 Volkswagen Passat is indeed electric, a standard feature in modern vehicles for its efficiency and reliability. Located within the fuel tank, this design choice serves a dual purpose: it helps maintain fuel pressure more consistently and reduces the risk of vapor lock, a common issue in older mechanical systems. This integration also ensures that the fuel remains cool, as the pump is submerged, which can improve performance and longevity.
To access the fuel pump for maintenance or replacement, one must first relieve the fuel system pressure and disconnect the battery to prevent accidents. The fuel tank is located beneath the rear seat, requiring the removal of the seat cushion and the fuel pump access panel. This process involves unscrewing several bolts and carefully lowering the panel to expose the pump assembly. It’s crucial to work in a well-ventilated area and avoid any ignition sources due to the flammable nature of gasoline.
Comparing the 2004 Passat’s fuel pump location to earlier models reveals a significant evolution in design. Older vehicles often housed the pump externally, near the engine bay, which exposed it to higher temperatures and increased the risk of failure. The in-tank design not only enhances safety but also reduces noise, as the fuel acts as a natural sound dampener. This shift underscores Volkswagen’s focus on improving both performance and driver experience.
For DIY enthusiasts, replacing the fuel pump on a 2004 Passat requires intermediate mechanical skills and specific tools, such as a fuel line disconnect tool and a torque wrench. The process involves draining the fuel tank, disconnecting electrical connectors, and removing the retaining ring that secures the pump module. A common mistake is overtightening the new pump, which can damage the sealing gasket. Following the manufacturer’s torque specifications (typically 10-15 Nm) is essential for a leak-free installation.
In summary, the electric fuel pump of a 2004 Passat is strategically located inside the fuel tank, a design that optimizes performance, safety, and durability. Understanding its location and the steps required for maintenance or replacement can save time and prevent errors, whether you’re a professional mechanic or a hands-on car owner. Always prioritize safety and adhere to recommended procedures to ensure a successful repair.
Step-by-Step Guide: Installing a Fuel Pump in a 2006 Grand Caravan
You may want to see also
Explore related products
How to test the electric fuel pump for faults
The 2004 Volkswagen Passat is equipped with an electric fuel pump, a crucial component that ensures fuel delivery from the tank to the engine. When diagnosing fuel system issues, testing the electric fuel pump is a critical step. Here’s a structured approach to identify faults effectively.
Step-by-Step Testing Procedure: Begin by locating the fuel pump, typically situated inside the fuel tank. Accessing it may require removing the rear seat or a dedicated service panel, depending on the Passat’s trim. Next, disconnect the fuel pump’s electrical connector and attach a multimeter to measure voltage. With the ignition turned on, the pump should receive 12 volts. If voltage is absent, inspect the fuse and relay associated with the fuel pump circuit. Proceed by connecting a test light or voltmeter to the pump’s ground wire. A weak or non-existent ground can cause pump failure, so verify continuity between the ground point and the vehicle’s chassis.
Cautions and Considerations: Testing the fuel pump involves working with electrical components and fuel systems, so safety is paramount. Always relieve fuel system pressure before disconnecting lines or accessing the pump. Use a pressure gauge to ensure the system is depressurized, and work in a well-ventilated area to avoid inhaling fuel vapors. Additionally, avoid sparking tools near the fuel tank, as this poses a fire risk. If the pump is inaccessible without specialized tools, consult a professional to prevent damage to the vehicle.
Analyzing Results: If the pump receives power and ground but fails to operate, it’s likely faulty and requires replacement. However, if power or ground is missing, trace the issue to the respective circuit. A blown fuse often indicates a short circuit, while a faulty relay may prevent power delivery. Use a wiring diagram specific to the 2004 Passat to identify the correct fuse and relay locations. If the pump operates intermittently, check for loose connections or corroded terminals, as these can disrupt consistent power supply.
Practical Tips for Accuracy: To ensure accurate testing, use a digital multimeter with a minimum-maximum function to capture voltage fluctuations. If the pump is accessible, listen for its hum during ignition start-up, as a silent pump often indicates failure. For in-tank pumps, use a stethoscope-like tool to amplify sound. If the pump runs but delivers insufficient fuel pressure, test the fuel pressure regulator and filter for clogs or leaks. Always cross-reference findings with the Passat’s service manual for diagnostic codes and specifications.
Cammed 94 Mustang GT: Fuel Pump Upgrade Necessary or Not?
You may want to see also
Explore related products
Common symptoms of a failing fuel pump
A failing fuel pump can manifest in various ways, often mimicking other engine issues, making diagnosis tricky. One of the most common symptoms is a sudden loss of power or acceleration, especially during high-speed driving or when the vehicle is under load, such as climbing a hill. This occurs because the fuel pump struggles to deliver the required amount of fuel to the engine, leading to a lean fuel-air mixture. For instance, if your 2004 Passat hesitates or stutters when you press the accelerator, it might be a sign that the electric fuel pump is on its last legs.
Another telltale sign is unusual noises coming from the fuel tank area. A whining or buzzing sound, particularly during startup or when the fuel tank is low, could indicate that the fuel pump is working harder than normal or is mechanically worn. This noise is often more noticeable in electric fuel pumps, like the one in the 2004 Passat, as they rely on an electric motor to operate. If you hear such sounds, it’s crucial to inspect the pump promptly, as continued operation can lead to complete failure.
Engine sputtering or misfiring is another symptom that shouldn’t be ignored. When the fuel pump fails to maintain consistent fuel pressure, the engine may receive an irregular supply of fuel, causing it to run roughly or stall. This can be particularly dangerous if it happens while driving, as it may lead to a loss of control. In the case of the 2004 Passat, which relies on an electric fuel pump, this issue can be exacerbated by electrical system faults or a failing pump relay.
Lastly, difficulty starting the engine, especially after the vehicle has been sitting for a while, is a classic sign of a failing fuel pump. If the pump isn’t delivering enough fuel to the injectors, the engine may crank but fail to start, or it may start and then immediately stall. This symptom often worsens in colder temperatures, as fuel becomes thicker and harder to pump. For Passat owners, checking the fuel pump’s electrical connections and ensuring the fuel filter is clean can sometimes provide temporary relief, but a failing pump will eventually need replacement.
In summary, recognizing the symptoms of a failing fuel pump—such as power loss, unusual noises, engine sputtering, and starting difficulties—can save you from costly repairs or roadside breakdowns. For a 2004 Passat with an electric fuel pump, regular maintenance and prompt attention to these signs are key to keeping your vehicle running smoothly.
Locate Your EZGO Gas Cart's Fuel Pump: A Quick Guide
You may want to see also
Explore related products
Steps to replace the electric fuel pump
The 2004 Volkswagen Passat is equipped with an electric fuel pump, a common feature in modern vehicles for its efficiency and reliability. Replacing this component requires careful preparation and execution to ensure safety and functionality. Here’s a step-by-step guide to help you through the process.
Preparation and Safety Measures
Before beginning, ensure the vehicle is parked on a flat surface, the engine is cool, and the fuel tank is as empty as possible to minimize spillage. Disconnect the battery to prevent accidental ignition. Gather the necessary tools, including a jack, jack stands, wrenches, and a new fuel pump assembly. Wear safety goggles and gloves, as fuel exposure can be hazardous. Relieve the fuel system pressure by locating the pressure relief valve, typically near the fuel rail, and depressurizing it according to the manufacturer’s instructions.
Accessing the Fuel Pump
The electric fuel pump on a 2004 Passat is located inside the fuel tank, necessitating its removal. Start by relieving the rear seats to access the fuel pump module. Disconnect the negative battery terminal to avoid electrical hazards. Use a jack to safely lift the vehicle and secure it on jack stands. Locate the fuel tank and remove the retaining straps holding it in place. Carefully lower the tank to access the pump assembly. Be cautious not to damage fuel lines or surrounding components during this step.
Removing and Replacing the Pump
With the fuel tank accessible, disconnect the electrical connector and fuel lines from the pump module. Use a fuel line disconnect tool if necessary to avoid damaging the lines. Remove the retaining lock ring or bolts securing the pump assembly to the tank. Carefully lift the old pump out and insert the new one, ensuring it seats properly. Reattach the lock ring or bolts, then reconnect the fuel lines and electrical connector. Double-check all connections for tightness and integrity.
Reassembly and Testing
Reinstall the fuel tank, securing it with the retaining straps. Lower the vehicle from the jack stands and reconnect the battery. Turn the ignition to the "on" position (without starting the engine) to prime the fuel system and check for leaks. Inspect all connections and the tank for any signs of fuel spillage. If no leaks are detected, start the engine and monitor its performance. Allow the vehicle to run for a few minutes to ensure the new pump operates smoothly.
Final Considerations
Replacing an electric fuel pump is a task that demands precision and attention to detail. While DIY-friendly, it’s advisable to consult a professional if you’re unsure about any step. Proper disposal of the old pump and any residual fuel is essential to comply with environmental regulations. Regular maintenance, such as checking fuel filters and monitoring pump performance, can extend the life of your new component and prevent future issues.
Locating the Fuel Pump on a 1994 Jeep Wrangler: A Guide
You may want to see also
Explore related products
Cost of repairing or replacing the fuel pump
The 2004 Volkswagen Passat, like most modern vehicles, is equipped with an electric fuel pump. This component is crucial for delivering fuel from the tank to the engine, ensuring optimal performance. When this pump fails, the repair or replacement cost can vary significantly based on several factors. Understanding these can help you budget effectively and avoid unexpected expenses.
Diagnosis and Labor Costs
Before any repair or replacement, a proper diagnosis is essential. Mechanics typically charge between $50 and $150 for diagnostic services. Labor costs for fuel pump replacement can range from $200 to $500, depending on the complexity of accessing the pump in your Passat. The fuel pump in a 2004 Passat is located inside the fuel tank, requiring the tank to be dropped for access. This process is labor-intensive and adds to the overall cost.
Parts Pricing
The cost of a new fuel pump for a 2004 Passat varies widely. OEM (Original Equipment Manufacturer) parts typically range from $200 to $400, while aftermarket options can be cheaper, starting at around $100. However, opting for a cheaper part may compromise quality and longevity. Additionally, some pumps come as part of a complete assembly, including the sending unit, which can increase the price to $300–$600.
DIY vs. Professional Repair
If you’re mechanically inclined, replacing the fuel pump yourself can save on labor costs. However, this task is not for beginners. It requires specialized tools, such as a fuel line disconnect tool and a jack to safely lower the fuel tank. Mistakes can lead to fuel leaks or electrical issues, potentially costing more in the long run. For most owners, professional installation is the safer and more reliable option.
Additional Expenses
Beyond the pump and labor, there are other potential costs. If the fuel tank needs to be cleaned or if there’s damage to the fuel lines, these repairs can add $100–$300. Additionally, some mechanics may recommend replacing the fuel filter at the same time, which costs around $50–$100. Always ask for a detailed breakdown of the estimate to avoid surprises.
Preventive Measures
Regular maintenance can extend the life of your fuel pump. Keep your fuel tank at least a quarter full to prevent the pump from overheating, as it relies on fuel for cooling. Using high-quality fuel and replacing the fuel filter every 30,000–50,000 miles can also reduce wear and tear. While these steps won’t eliminate the risk of failure, they can delay the need for costly repairs.
Priming Your New Electric Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Yes, the 2004 Volkswagen Passat is equipped with an electric fuel pump, which is located inside the fuel tank.
Common signs of a failing fuel pump include difficulty starting the engine, sputtering or stalling, loss of power, and unusual noises coming from the fuel tank area.
Replacing the electric fuel pump on a 2004 Passat requires working inside the fuel tank, which can be complex and potentially hazardous. It’s recommended to have a professional mechanic perform the replacement to ensure safety and proper installation.
