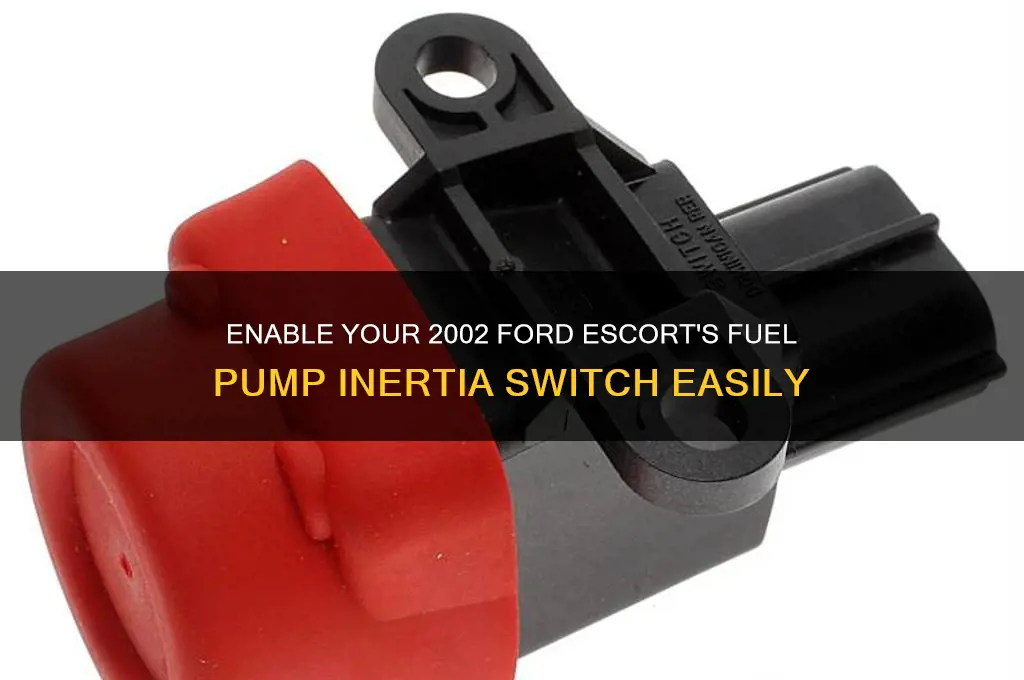

The 2002 Ford Escort is equipped with a fuel pump inertia switch, a safety feature designed to shut off the fuel pump in the event of a collision. Enabling this switch is a straightforward process that ensures the vehicle’s safety systems are functioning correctly. To activate the fuel pump inertia switch, locate it first, typically found in the trunk area or near the driver’s side kick panel, depending on the model. Once identified, ensure the switch is in the on position, usually indicated by a green button or a clearly marked label. If the switch has been triggered and is in the off position, reset it by pressing the button until it clicks securely into place. After resetting, start the vehicle to confirm the fuel pump is operational. Regularly checking and understanding how to enable this switch can help maintain the vehicle’s safety features and prevent potential fuel-related issues.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2002 Ford Escort |
| Component | Fuel Pump Inertia Switch (also known as the Fuel Pump Shut-Off Switch) |
| Location | Typically located in the passenger compartment, often near the firewall |
| Purpose | Safety device to shut off the fuel pump in case of an accident or impact |
| Reset Procedure | Push the inertia switch button to reset it (button pops out when tripped) |
| Testing Method | Press the button to ensure it clicks into place and stays engaged |
| Common Issues | Switch may trip due to rough driving, accidents, or electrical faults |
| Replacement Part | Ford part number varies; consult manual or dealership |
| Tools Required | None (manual reset) |
| Safety Precaution | Ensure vehicle is off and in a safe location before resetting |
| Related Symptoms | Engine stalls or fails to start after an impact or rough driving |
| Manual Reference | 2002 Ford Escort Owner's Manual, Section on Fuel System |
| Alternative Names | Fuel Pump Cutoff Switch, Inertia Switch |
| Diagnostic Tip | Check if the switch is tripped before diagnosing other fuel system issues |
Explore related products
What You'll Learn
- Location of the Inertia Switch: Identify the exact position of the fuel pump inertia switch in your 2002 Ford Escort
- Resetting the Inertia Switch: Learn how to reset the switch after it has been triggered to shut off the fuel pump
- Testing the Inertia Switch: Use a multimeter to test the switch for functionality and ensure it is working correctly
- Bypassing the Inertia Switch: Understand the steps and risks involved in bypassing the inertia switch temporarily
- Replacing a Faulty Switch: Guide to removing and installing a new inertia switch if the original is defective
Location of the Inertia Switch: Identify the exact position of the fuel pump inertia switch in your 2002 Ford Escort
The 2002 Ford Escort, like many vehicles of its era, incorporates a fuel pump inertia switch as a safety feature designed to cut power to the fuel pump in the event of a collision. Locating this switch is the first step in enabling it, whether for troubleshooting or resetting after an accidental trigger. In the 2002 Ford Escort, the inertia switch is typically found in the trunk area, specifically near the left rear quarter panel. This placement is strategic, as it keeps the switch accessible yet out of the way of everyday interactions with the vehicle. To pinpoint its exact location, start by opening the trunk and removing the interior panel on the driver’s side. Behind this panel, you’ll find a small, rectangular switch with a red button, which is the inertia switch.
Analyzing the design rationale behind this location reveals a balance between safety and practicality. Placing the switch in the trunk ensures it’s protected from accidental activation during routine activities, such as bumps or jostling in the cabin. However, it also requires the driver to be aware of its existence and location, as it’s not immediately visible. This underscores the importance of familiarizing yourself with your vehicle’s safety features, especially those that may require manual intervention. For instance, if your fuel pump stops working after a minor collision, knowing where the inertia switch is can save you from unnecessary panic or costly diagnostic visits.
To access the inertia switch, follow these steps: First, ensure the vehicle is parked on a flat surface and the ignition is turned off. Open the trunk and locate the interior panel near the left rear quarter panel. This panel is typically held in place by plastic clips or screws. Gently pry or unscrew the panel to expose the switch. Once exposed, you’ll see the inertia switch, often labeled with a fuel pump symbol or the word "RESET." If the switch has been triggered, the red button will be popped out. To reset it, simply press the button firmly until it clicks back into place.
A practical tip for owners of the 2002 Ford Escort is to periodically check the inertia switch’s condition during routine maintenance. Ensure the area around the switch is free of debris or moisture, as these can interfere with its operation. Additionally, if you frequently drive on rough terrain or in conditions where the vehicle may experience jolts, it’s wise to familiarize yourself with the switch’s reset procedure. While the inertia switch is a reliable safety feature, it’s not infallible, and understanding its mechanics can empower you to address issues swiftly.
In conclusion, the inertia switch in the 2002 Ford Escort is a critical yet often overlooked component. Its location in the trunk, near the left rear quarter panel, reflects a thoughtful balance between safety and accessibility. By knowing where to find it and how to reset it, you can ensure your vehicle remains operational in situations where the switch may have been triggered inadvertently. This knowledge not only enhances your safety but also reinforces your confidence in maintaining your vehicle’s functionality.
Understanding the Functionality and Importance of In-Tank Fuel Pumps
You may want to see also
Explore related products
Resetting the Inertia Switch: Learn how to reset the switch after it has been triggered to shut off the fuel pump
The inertia switch in a 2002 Ford Escort is a safety feature designed to shut off the fuel pump in the event of a collision or sudden impact. This switch, often located in the trunk or near the fuel pump, is a critical component that can prevent fuel-related hazards. However, it can also be triggered accidentally, leaving you stranded with a vehicle that won’t start. Understanding how to reset this switch is essential for any Ford Escort owner.
To reset the inertia switch, first locate it. In the 2002 Ford Escort, it is typically found in the trunk, mounted near the left side panel or close to the fuel pump itself. The switch is usually a small, red button that may be recessed to prevent accidental activation. Once located, press the button firmly until it clicks into place. This action resets the switch, allowing the fuel pump to resume operation. If the button does not click, inspect the switch for damage or debris that might be obstructing its function.
While resetting the inertia switch is straightforward, it’s important to diagnose why it was triggered in the first place. Common causes include rough driving conditions, minor accidents, or even hitting a pothole at high speed. If the switch is triggered frequently, inspect the vehicle for loose components or mounting issues that could be causing excessive vibration or impact. Ignoring recurring triggers may lead to further mechanical problems or safety risks.
For added safety, always ensure the vehicle is on a flat, stable surface before attempting to reset the inertia switch. If the switch was triggered due to an accident, check for fuel leaks or other damage before proceeding. In cases where the switch is inaccessible or damaged, consult a professional mechanic to avoid potential hazards. Regularly inspecting the switch and its mounting area during routine maintenance can help prevent unexpected shutdowns and keep your Ford Escort running smoothly.
Does Meineke Install Fuel Pumps? A Comprehensive Guide to Services
You may want to see also
Explore related products
Testing the Inertia Switch: Use a multimeter to test the switch for functionality and ensure it is working correctly
The inertia switch in a 2002 Ford Escort is a safety feature designed to cut power to the fuel pump in the event of a collision. Testing its functionality is crucial to ensure it operates correctly, preventing potential fuel-related hazards. A multimeter is your go-to tool for this task, offering a precise way to verify the switch’s condition. Before proceeding, locate the inertia switch, typically found in the trunk or near the fuel pump itself, and ensure the vehicle is turned off to avoid electrical mishaps.
To begin testing, set your multimeter to the continuity or resistance setting. This mode will help determine if the switch is open or closed under normal conditions. Disconnect the inertia switch from the wiring harness and place the multimeter probes on the switch’s terminals. A functional switch should show continuity (low resistance) when in the "on" position and no continuity (high resistance) when triggered or in the "off" position. If the readings are inconsistent, the switch may be faulty and require replacement.
Next, simulate a trigger event to test the switch’s responsiveness. Gently tap the inertia switch with a soft mallet or your hand, mimicking the impact that would occur during a collision. Immediately check the multimeter for a change in continuity. If the switch fails to open (lose continuity) upon impact, it’s likely defective. Conversely, resetting the switch should restore continuity, confirming its ability to function as intended. This step is critical for ensuring the switch activates during an actual emergency.
While testing, keep in mind that environmental factors like dirt or corrosion can affect the switch’s performance. Inspect the terminals for any signs of damage or buildup and clean them if necessary. Additionally, ensure the switch is securely mounted, as loose connections can lead to false readings. If the switch passes all tests, reattach it to the wiring harness and verify its operation by starting the vehicle. A properly functioning inertia switch will allow the fuel pump to engage without issue.
In conclusion, testing the inertia switch with a multimeter is a straightforward yet essential procedure for maintaining vehicle safety. By systematically checking continuity, simulating a trigger event, and addressing potential issues, you can confidently ensure the switch operates as designed. Regular inspection and testing not only prolong the switch’s lifespan but also provide peace of mind, knowing your 2002 Ford Escort is equipped to handle unexpected situations effectively.
Easy Steps to Remove Fuel Pump Screen from Honda Civic
You may want to see also
Explore related products
Bypassing the Inertia Switch: Understand the steps and risks involved in bypassing the inertia switch temporarily
The inertia switch in a 2002 Ford Escort is a safety feature designed to cut power to the fuel pump in the event of a collision, reducing the risk of fire. However, in some cases, this switch may trigger falsely due to rough driving conditions or malfunctions, leaving you stranded. Bypassing the inertia switch temporarily can be a quick fix to get your vehicle running again, but it’s crucial to understand the process and the associated risks.
To bypass the inertia switch, locate it first—typically found in the trunk, near the fuel pump relay, or under the rear seat. Once identified, disconnect the switch’s wiring harness. Using a jumper wire, connect the two terminals of the harness together, effectively bypassing the switch. This restores power to the fuel pump, allowing the engine to start. Ensure the wire is securely connected and insulated to prevent short circuits. This method is straightforward but should only be used as a temporary solution while you arrange for proper repairs.
While bypassing the inertia switch is simple, it comes with significant risks. The switch is a critical safety feature, and disabling it removes the vehicle’s ability to shut off the fuel pump in an accident. This increases the risk of fire or explosion in a collision. Additionally, bypassing the switch may mask an underlying issue, such as a faulty fuel pump or wiring problem, which could lead to further damage if left unaddressed. Always prioritize diagnosing and fixing the root cause rather than relying on a temporary bypass.
If you choose to bypass the inertia switch, exercise extreme caution. Avoid driving aggressively or in conditions that could trigger the switch, as the safety mechanism is now disabled. After bypassing, immediately schedule an inspection with a mechanic to identify and resolve the issue. Keep a fire extinguisher in your vehicle as a precautionary measure. Remember, this is a temporary fix—never a long-term solution.
In summary, bypassing the inertia switch on a 2002 Ford Escort can be a practical way to get your vehicle running in an emergency, but it’s not without risks. Understand the steps involved, act responsibly, and address the underlying problem promptly. Safety should always be your top priority when dealing with fuel system components.
Can a Faulty Fuel Pump Cause a Blown Fuse?
You may want to see also
Explore related products
Replacing a Faulty Switch: Guide to removing and installing a new inertia switch if the original is defective
The inertia switch in a 2002 Ford Escort serves as a critical safety feature, cutting power to the fuel pump in the event of a collision. If this switch malfunctions, it can mistakenly disable the fuel pump, causing the engine to stall or fail to start. Identifying a faulty inertia switch involves checking for symptoms like sudden loss of power, failure to start despite a functioning fuel pump, or a reset button that feels loose or unresponsive. Before assuming the switch is defective, rule out other issues such as a blown fuse, empty fuel tank, or faulty fuel pump relay.
Replacing a defective inertia switch requires precision and attention to detail. Begin by locating the switch, typically found in the trunk area near the fuel pump wiring harness or along the driver’s side kick panel in some models. Disconnect the negative battery terminal to prevent accidental activation of the fuel system. Carefully unplug the wiring harness from the switch, noting the orientation of the connectors for reassembly. Use a screwdriver to remove the mounting screws securing the switch to the vehicle frame. Avoid forcing the switch out, as this can damage surrounding components.
Installing a new inertia switch is a straightforward process but demands careful handling. Position the replacement switch in the same location as the original, ensuring it aligns with the mounting holes. Secure it with the provided screws, tightening them just enough to hold the switch firmly without stripping the threads. Reconnect the wiring harness, verifying that the connectors are fully seated. Reattach the negative battery terminal and test the switch by pressing the reset button to ensure it engages properly.
A common mistake during replacement is overlooking the switch’s orientation or failing to test it post-installation. Always double-check that the reset button is accessible and functions correctly. If the new switch fails to resolve the issue, inspect the wiring harness for damage or corrosion, as this can mimic a faulty switch. For added safety, consider installing the switch in a more accessible location, such as under the dashboard, to simplify future resets or replacements.
In conclusion, replacing a faulty inertia switch in a 2002 Ford Escort is a task that combines diagnostic skill with mechanical precision. By methodically identifying the issue, carefully removing the old switch, and correctly installing the new one, you can restore the vehicle’s fuel system functionality and ensure continued safety. Always prioritize safety by working in a well-ventilated area and avoiding open flames or sparks near fuel lines. With the right tools and attention to detail, this repair can be completed efficiently, saving time and potential towing costs.
Kawasaki STX 900 Jet Ski: Fuel Pump Presence Explained
You may want to see also
Frequently asked questions
The fuel pump inertia switch on a 2002 Ford Escort is typically located in the trunk area, near the spare tire or along the driver's side rear quarter panel. It is often a red button designed to reset the fuel pump in case of an accident.
To reset the fuel pump inertia switch, locate the red button and press it firmly until it clicks into place. This action re-engages the fuel pump circuit, allowing the vehicle to start again after the switch has been tripped.
The fuel pump inertia switch is designed to trip during a collision or sudden impact to prevent fuel from pumping and reduce the risk of fire. It can also trip due to rough driving conditions, such as hitting a pothole or driving over a speed bump too quickly.
