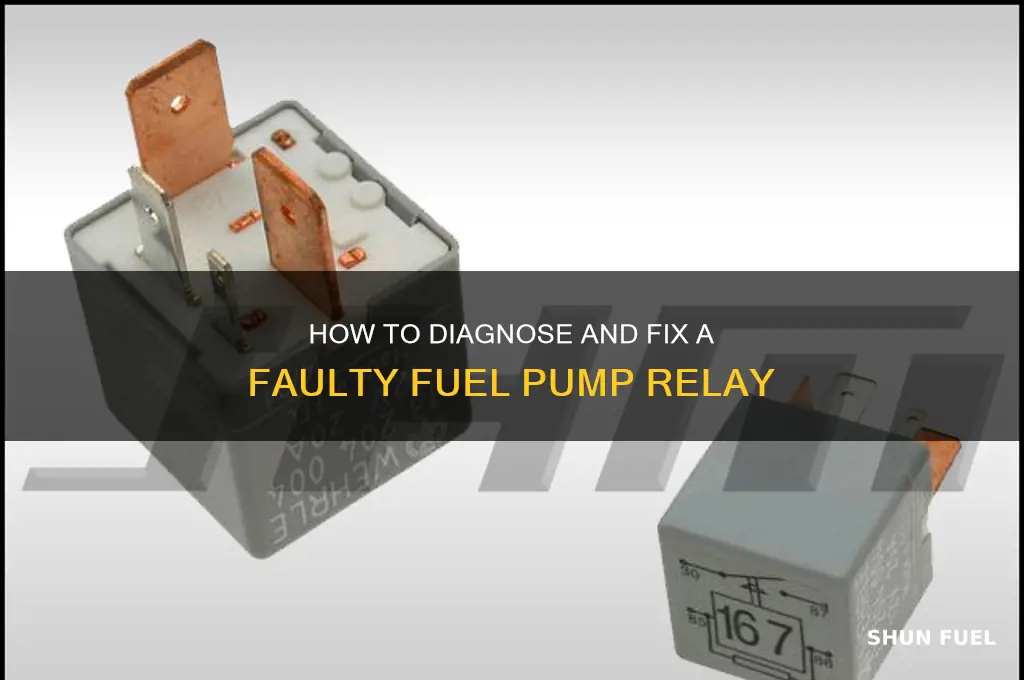

If you suspect your vehicle is experiencing fuel delivery issues, such as difficulty starting, stalling, or poor performance, one potential culprit could be a bad fuel pump relay. The fuel pump relay is a critical component that controls the flow of electricity to the fuel pump, ensuring it operates correctly to deliver fuel from the tank to the engine. When the relay fails, it can cause intermittent or complete loss of fuel pressure, leading to engine problems. Symptoms of a faulty fuel pump relay include the engine cranking but not starting, sudden stalls while driving, or a lack of response when turning the key. Diagnosing the issue involves checking for power at the fuel pump connector, testing the relay for continuity, or swapping it with a known good relay. Addressing a bad fuel pump relay promptly is essential to prevent further damage and restore your vehicle’s performance.
| Characteristics | Values |
|---|---|
| Symptoms of a Bad Fuel Pump Relay | Engine stalls, difficulty starting, no fuel pressure, erratic engine behavior |
| Common Causes of Failure | Overheating, corrosion, worn contacts, electrical faults |
| Diagnostic Methods | Multimeter testing, visual inspection, checking for power at the pump |
| Location | Typically near the fuse box or under the hood, varies by vehicle |
| Replacement Cost | $20-$100 (part), $50-$200 (labor), depending on vehicle and location |
| DIY Difficulty | Moderate (requires basic electrical knowledge and tools) |
| Prevention Tips | Regular maintenance, avoiding electrical overloads, using quality parts |
| Related Components | Fuel pump, fuse, ECU, wiring harness |
| Impact on Vehicle | Can cause engine failure, reduced performance, or inability to start |
| Testing Tools | Multimeter, test light, fuel pressure gauge |
Explore related products
What You'll Learn
Symptoms of a failing fuel pump relay
A failing fuel pump relay can manifest in subtle yet critical ways, often mimicking symptoms of other fuel system issues. One of the earliest signs is intermittent stalling, particularly during acceleration or under load. This occurs because the relay fails to consistently deliver power to the fuel pump, causing temporary fuel starvation to the engine. Drivers might notice the vehicle hesitates or sputters before abruptly shutting off, only to restart without issue moments later. This unpredictability can be both frustrating and dangerous, especially in high-traffic situations.
Another telltale symptom is difficulty starting the engine, even when the battery and starter are in good condition. A failing relay may not engage the fuel pump during the initial cranking phase, resulting in a lack of fuel pressure. This can lead to extended cranking times or a complete failure to start. In some cases, the engine may start but quickly stall, as the relay fails to maintain power to the pump. If you’ve ruled out issues like a dead battery or clogged fuel filter, the relay could be the culprit.
Unusual noises from the fuel tank area can also indicate a failing fuel pump relay. When the relay malfunctions, the fuel pump may operate erratically, causing it to whine, hum, or click excessively. These sounds are often more noticeable during startup or when the fuel tank is nearly empty. While some noise from the fuel pump is normal, sudden changes in volume or frequency warrant attention. Ignoring these sounds can lead to complete pump failure, leaving you stranded.
A less obvious but equally important symptom is poor fuel efficiency. A failing relay can cause the fuel pump to operate inconsistently, delivering too much or too little fuel to the engine. This inefficiency can lead to increased fuel consumption, as the engine compensates for the irregular fuel supply. If you’ve noticed a sudden drop in miles per gallon without changes in driving habits or conditions, the relay may be to blame. Monitoring fuel efficiency over time can help identify this issue early.
Finally, dashboard warning lights, such as the check engine light or fuel system warning, may illuminate due to a failing relay. Modern vehicles use sensors to monitor fuel pressure and pump operation, and a malfunctioning relay can trigger these alerts. While these lights can indicate various issues, they should never be ignored. Using an OBD-II scanner to retrieve error codes can help pinpoint the problem, though professional diagnosis is often necessary for confirmation. Addressing these warnings promptly can prevent further damage to the fuel system.
Checking Voltage on a 2009 Beetle's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
How to test fuel pump relay
A failing fuel pump relay can mimic symptoms of a bad fuel pump, leading to misdiagnosis and unnecessary repairs. Testing the relay is a straightforward process that can save time and money. Begin by locating the relay, typically found in the fuse box under the hood or near the firewall. Consult your vehicle’s manual for the exact location, as it varies by make and model. Once identified, visually inspect the relay for signs of damage, such as corrosion or burnt pins, which may indicate a need for replacement.
To test the relay, you’ll need a multimeter and a basic understanding of electrical circuits. Start by removing the relay from its socket. Using the multimeter, check for continuity across the relay’s control circuit pins, usually labeled 85 and 86. With the ignition on, these pins should show a closed circuit, indicating power is reaching the relay. If there’s no continuity, the issue may lie in the wiring or the relay itself. Next, apply power to the relay’s coil (pins 85 and 86) and check for continuity between the power input (pin 30) and output (pin 87). A functioning relay will show continuity here, confirming it’s capable of activating the fuel pump circuit.
Another practical method is the swap test. If your vehicle has multiple relays of the same type, temporarily swap the fuel pump relay with another, such as the horn or AC relay. If the fuel pump begins to whir during the key-on position or the swapped component stops functioning, the relay is likely faulty. This test is quick and doesn’t require specialized tools, making it ideal for roadside diagnostics. However, ensure the swapped relay controls a non-critical system to avoid further issues.
For a more definitive test, use a relay test tool or a 12V test light. Connect the test light between the relay’s output (pin 87) and ground. With the ignition on, the light should illuminate if the relay is functioning. If not, check the relay’s coil pins for power. If power is present but the light remains off, the relay’s internal switch is likely broken. This method provides a clear visual indication of the relay’s condition, making it easier to diagnose.
In conclusion, testing a fuel pump relay involves a combination of visual inspection, multimeter checks, and practical swap tests. By systematically evaluating the relay’s electrical connections and functionality, you can accurately determine whether it’s the source of your fuel system issues. Always prioritize safety by disconnecting the battery before handling electrical components and refer to your vehicle’s manual for specific details. A properly diagnosed relay can prevent unnecessary fuel pump replacements and ensure your vehicle runs smoothly.
Best Places to Buy Fuel Pump Diode for 2002 Lincoln LS
You may want to see also
Explore related products
Common causes of relay failure
Relay failure can often be traced back to a few common culprits, each with its own telltale signs and preventive measures. One primary cause is overheating, which occurs when the relay is subjected to excessive current or operates in high-temperature environments. Over time, this heat degrades the internal components, such as the coil or contacts, leading to malfunction. For instance, a fuel pump relay working overtime in a vehicle with a faulty cooling system is at higher risk. To mitigate this, ensure proper ventilation around the relay and verify that the electrical load matches the relay’s specifications.
Another frequent issue is corrosion or contamination, particularly in relays exposed to moisture or harsh environments. Dust, dirt, or chemical residues can accumulate on the contacts, increasing resistance and disrupting the electrical flow. This is especially problematic in automotive relays, where road salt or humidity can seep into the relay housing. Regular inspection and cleaning of the relay terminals, along with using sealed or weatherproof relays in vulnerable locations, can significantly extend their lifespan.
Mechanical wear and tear is an inevitable factor, particularly in relays with moving parts like armatures or contacts. Over thousands of cycles, these components can become misaligned, pitted, or worn down, leading to inconsistent performance or complete failure. For example, a fuel pump relay that activates frequently in short-trip driving scenarios may experience accelerated wear. Replacing relays proactively after a certain mileage or operational hours, as recommended by the manufacturer, can prevent unexpected breakdowns.
Lastly, voltage spikes or electrical surges pose a significant threat to relay longevity. These can occur due to faulty alternators, jump-starting, or even lightning strikes, causing instantaneous damage to the relay’s delicate electronics. Installing a surge protector or voltage regulator in the circuit can safeguard the relay from such events. Additionally, using relays with built-in suppression diodes or varistors provides an extra layer of protection against transient voltages.
Understanding these common causes allows for targeted maintenance and preventive actions, ensuring relays operate reliably in critical systems like fuel pumps. By addressing overheating, contamination, mechanical wear, and electrical surges, you can minimize downtime and avoid costly repairs.
Diagnosing Fuel Pump Failure: Signs and Testing Methods Explained
You may want to see also
Explore related products
Cost to replace fuel pump relay
A failing fuel pump relay can leave you stranded, but replacing it doesn't have to break the bank. The cost to replace a fuel pump relay typically ranges from $50 to $200, depending on the make and model of your vehicle. This price includes both the part and labor, though DIY enthusiasts can often save significantly by purchasing the relay themselves and installing it with basic tools.
Analyzing the factors that influence this cost reveals a clear pattern. The relay itself is usually inexpensive, costing between $10 and $50, with OEM (Original Equipment Manufacturer) parts generally priced higher than aftermarket options. Labor costs, however, can vary widely. Dealerships and specialized mechanics may charge $50 to $150 per hour, while independent shops often offer more competitive rates. Additionally, some vehicles require more intricate access to the relay, increasing labor time and, consequently, the overall cost.
For those considering a DIY approach, replacing a fuel pump relay is often straightforward. Locate the relay in the fuse box (consult your vehicle’s manual if unsure), disconnect the battery, remove the old relay, and insert the new one. Ensure the relay is seated correctly and reconnect the battery. While this method saves money, it’s crucial to verify the issue is indeed the relay before proceeding. Symptoms like engine stalling, difficulty starting, or a dead engine can mimic other fuel system problems, so testing the relay with a multimeter or consulting a mechanic can prevent unnecessary repairs.
Comparatively, the cost of ignoring a bad fuel pump relay far outweighs the expense of replacement. A failing relay can cause inconsistent fuel delivery, leading to poor engine performance, reduced fuel efficiency, or even complete engine failure. Over time, this can damage the fuel pump or other components, resulting in repairs that cost hundreds or even thousands of dollars. Addressing the issue promptly not only saves money but also ensures your vehicle remains reliable and safe to drive.
In conclusion, replacing a fuel pump relay is a cost-effective repair that can prevent more significant issues down the road. Whether you opt for professional installation or tackle the job yourself, understanding the factors that influence the cost and the potential consequences of delay empowers you to make an informed decision. With a modest investment, you can keep your vehicle running smoothly and avoid the inconvenience of unexpected breakdowns.
Understanding Fuel Lift Pumps: Function, Operation, and Importance Explained
You may want to see also
Explore related products
DIY fuel pump relay replacement steps
A failing fuel pump relay can leave you stranded, but replacing it yourself is often a straightforward and cost-effective solution. Before diving into the replacement process, it’s crucial to confirm that the relay is indeed the culprit. Symptoms like a no-start condition, sputtering engine, or intermittent power loss can point to a bad relay. Once you’ve diagnosed the issue, gather the necessary tools: a new fuel pump relay (ensure it matches your vehicle’s specifications), a flathead screwdriver, and possibly a socket set if the relay is located in a hard-to-reach area. Always consult your vehicle’s manual for the exact location of the relay, as it varies by make and model.
The first step in replacing the fuel pump relay is to locate it. In most vehicles, the relay is found in the fuse box under the hood, though some models may place it in the cabin or near the fuel pump itself. Once located, identify the correct relay by comparing it to the diagram in your vehicle’s manual or using the labeling on the fuse box cover. Carefully pry out the old relay using a flathead screwdriver, taking care not to damage the surrounding components. Insert the new relay, ensuring it clicks into place securely. This simple swap often takes less than 10 minutes but can save you a costly trip to the mechanic.
While the process is generally simple, there are a few cautions to keep in mind. Always disconnect the battery before working on any electrical components to prevent short circuits. If the relay is difficult to remove, avoid excessive force, as this could damage the fuse box. Additionally, double-check that the new relay is the correct part for your vehicle, as using an incompatible relay can cause further issues. After installation, test the vehicle by starting the engine and listening for the fuel pump to prime, which should occur for 2-3 seconds when the ignition is turned on.
In conclusion, replacing a fuel pump relay is a DIY-friendly task that requires minimal tools and time. By following these steps and exercising caution, you can restore your vehicle’s performance and avoid unnecessary expenses. Remember, proper diagnosis is key—if symptoms persist after replacement, other components like the fuel pump or wiring may need attention. With this guide, you’re equipped to tackle the job confidently and get back on the road.
Testing Ground on Fuel Pump: Multimeter Guide for Accurate Results
You may want to see also
Frequently asked questions
Common signs of a bad fuel pump relay include the engine not starting, stalling, or struggling to maintain power. You can also test the relay by listening for a clicking sound when the ignition is turned on or by using a multimeter to check for continuity.
A fuel pump relay can fail due to age, electrical overload, corrosion, or exposure to heat and moisture. Poor connections or a malfunctioning fuel pump can also strain the relay, leading to failure.
Driving with a bad fuel pump relay is not recommended, as it can cause the engine to stall unexpectedly, leading to unsafe driving conditions. It’s best to have the relay inspected and replaced by a professional as soon as possible.
