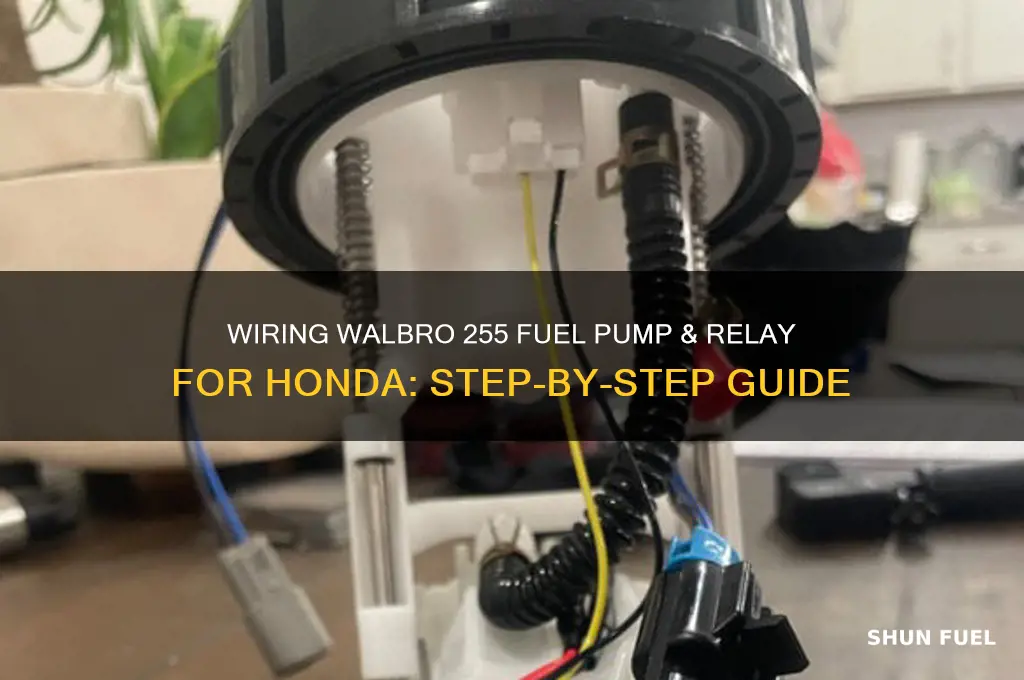

Wiring a Walbro 255 fuel pump and relay in a Honda requires careful planning and execution to ensure optimal performance and safety. This process involves connecting the fuel pump to a relay, which acts as a switch to handle the high current draw, and then integrating it with the vehicle’s electrical system. Key steps include selecting the appropriate gauge wiring, installing a fuse for protection, and grounding the system properly. Additionally, understanding the Honda’s wiring diagram and the Walbro pump’s specifications is crucial to avoid common pitfalls like voltage drops or overheating. Proper installation ensures reliable fuel delivery, especially in high-performance or modified setups.
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire, relay, fuse, connectors, Walbro 255 pump, crimping tool, multimeter
- Locate Power Source: Choose 12V constant power source, like battery terminal or fuse box
- Install Relay: Connect relay to power, ground, pump, and ECU trigger wire
- Wire Fuel Pump: Run power from relay to pump, ground pump to chassis
- Test & Secure: Verify connections, check pump operation, secure wires with zip ties
Gather Tools & Materials: Wire, relay, fuse, connectors, Walbro 255 pump, crimping tool, multimeter
Before diving into the wiring process for your Honda’s Walbro 255 fuel pump and relay, it’s critical to assemble the right tools and materials. This step is often overlooked, but it’s the foundation of a successful installation. Start by gathering 14-16 gauge stranded copper wire for durability and flexibility, a 30-amp relay to handle the pump’s current draw, and a 30-amp fuse to protect the circuit. You’ll also need weatherproof connectors to ensure longevity, especially in engine bays exposed to heat and moisture. The Walbro 255 pump itself is the centerpiece, but don’t overlook the importance of a crimping tool for secure connections and a multimeter for testing continuity and voltage. Skipping any of these items could lead to inefficiency, failure, or even safety hazards.
Analyzing the tools and materials reveals their interconnected roles. For instance, the crimping tool isn’t just for convenience—it ensures connections are tight enough to prevent voltage drop, which can starve the pump of power. Similarly, the multimeter isn’t optional; it’s your diagnostic lifeline for verifying power delivery and troubleshooting issues like a blown fuse or faulty relay. The wire gauge matters too: 14-gauge is ideal for shorter runs, while 16-gauge can suffice for longer distances, but always prioritize amperage ratings to avoid overheating. Each component, from the relay to the connectors, must be rated for the specific demands of the Walbro 255, which draws up to 15 amps under load.
Persuasively, investing in high-quality materials now saves time and money later. Cheap connectors or a low-amp relay might work initially but will fail under stress, leaving you stranded. For example, using a 20-amp relay instead of a 30-amp one could cause it to melt or malfunction when the pump operates at full capacity. Similarly, skipping the fuse entirely is a recipe for disaster, as it’s the first line of defense against short circuits. Think of these materials as an insurance policy for your fuel system—cutting corners here undermines the entire project.
Comparatively, the Walbro 255 pump’s wiring demands differ from stock Honda setups. Unlike OEM pumps, the Walbro requires a dedicated power circuit due to its higher current draw. This is why the relay is essential—it isolates the pump’s power from the ECU, preventing overloading. In contrast, stock systems often integrate the pump’s power into the ECU’s circuit, which isn’t sufficient for the Walbro’s performance. Understanding this distinction highlights why each tool and material is non-negotiable. For instance, the multimeter becomes invaluable when confirming the relay’s activation or checking for ground faults, tasks irrelevant in simpler setups.
Descriptively, imagine your workspace laid out with these tools and materials: rolls of wire coiled neatly, the relay’s terminals gleaming, and the Walbro pump’s robust housing ready for installation. The crimping tool sits beside a tray of connectors, while the multimeter stands by for testing. Each item serves a purpose, from the fuse’s compact yet critical role to the wire’s length, which must reach from the battery to the pump without excessive slack. This visual preparedness translates to efficiency during installation, ensuring you’re not scrambling for missing parts mid-project. By treating this gathering phase as a ritual, you set the stage for a smooth, professional-grade wiring job.
