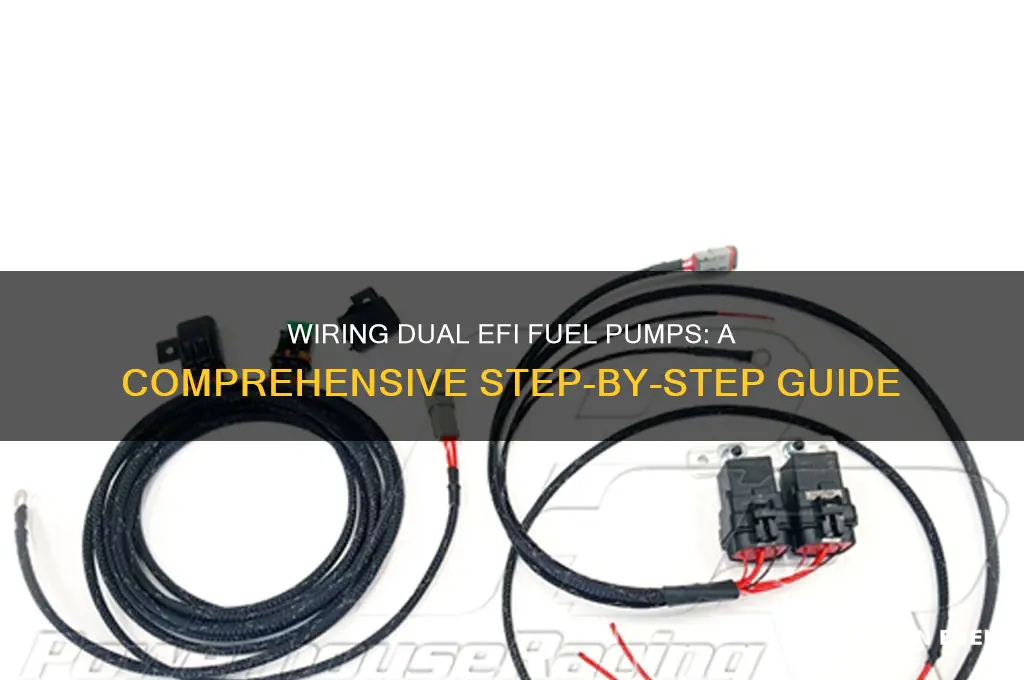

Wiring Dual Efi Fuel Pumps: A Comprehensive Step-By-Step Guide

how to wire dual efi fuel pumps

Wiring dual EFI fuel pumps is a critical task for ensuring reliable fuel delivery in high-performance or modified vehicles. This setup involves connecting two electric fuel pumps in a way that maximizes efficiency, redundancy, and safety. Proper wiring includes selecting the correct relays, fuses, and wiring gauge to handle the amperage draw, as well as configuring the pumps to operate in series, parallel, or a combination of both, depending on the system’s requirements. Additionally, integrating a fuel pressure regulator and ensuring proper grounding are essential steps to prevent electrical issues and maintain consistent fuel pressure. Following a detailed wiring diagram and adhering to best practices will help achieve a robust and fail-safe fuel delivery system.

shunfuel

Pump Selection: Choose pumps with matching flow rates, voltage, and amperage for balanced fuel delivery

Selecting pumps with identical flow rates is critical for maintaining consistent fuel pressure across your EFI system. Mismatched flow rates can lead to one pump working harder than the other, causing premature wear or uneven fuel delivery. For example, pairing a 300 LPH (liters per hour) pump with a 255 LPH pump will result in the higher-flow pump compensating for the weaker one, leading to inefficiency and potential failure. Always consult your engine’s fuel demand—typically calculated as (engine size × 0.8) × 0.5 for naturally aspirated setups or (engine size × 1.2) × 0.5 for turbocharged/supercharged setups—to determine the minimum required flow rate, then choose two pumps that meet or exceed this collectively.

Voltage and amperage compatibility are equally vital to prevent electrical system strain and ensure longevity. Most EFI fuel pumps operate on 12V systems, but amperage draw varies widely. For instance, a pump drawing 15 amps under load paired with one drawing 20 amps will overload the wiring harness if not properly accounted for. Use a relay and fuse setup rated for the combined amperage of both pumps, and ensure your power wire gauge matches the current demand—typically 10-gauge wire for up to 30 amps or 8-gauge for higher loads. Always verify your vehicle’s alternator output to ensure it can handle the additional electrical load.

Balancing fuel delivery isn’t just about matching specs—it’s about redundancy and reliability. Dual pumps should operate in tandem or as a primary/secondary setup, depending on your system design. For tandem operation, use a Y-fitting to combine fuel lines, ensuring both pumps contribute equally. For primary/secondary setups, wire the pumps to activate sequentially under specific conditions, such as the secondary pump engaging at high RPM or under heavy load. This requires a dual-pump controller or a custom relay setup with pressure switches to trigger the secondary pump when needed.

Practical tip: Test your pumps individually before installation to confirm their flow rates and amperage draw match the manufacturer’s specifications. Use a fuel pressure gauge and multimeter to verify performance under load. If one pump deviates significantly, replace it before proceeding. Additionally, install an inline fuel filter before each pump to prevent debris from damaging the internal components, which is especially critical in high-flow systems where contaminants can cause rapid wear.

In conclusion, pump selection is a cornerstone of dual EFI fuel pump setups. Matching flow rates ensures balanced fuel delivery, while voltage and amperage compatibility safeguards your electrical system. By prioritizing these specifications and implementing proper wiring practices, you’ll achieve a reliable, efficient fuel system capable of meeting your engine’s demands under all conditions.

shunfuel

Relay Wiring: Use relays to control power to each pump independently for safety and efficiency

Relays are the unsung heroes of dual EFI fuel pump setups, offering precise control over power distribution to each pump. By using relays, you can ensure that each pump operates independently, which is crucial for both safety and efficiency. This setup allows you to activate one pump at a time or both simultaneously, depending on the engine’s demand, preventing overloading and extending the lifespan of the pumps. For instance, a low-pressure pump can handle everyday driving, while a high-pressure pump engages only under high-load conditions, optimizing fuel delivery and reducing unnecessary wear.

To implement relay wiring, start by selecting relays rated for the current draw of your fuel pumps. A typical EFI pump draws between 10 and 20 amps, so choose relays with a slightly higher capacity, such as 30-amp relays, to ensure reliability. Wire each relay to its dedicated pump, using a fused power source to protect against shorts. Connect the relay coils to a switched ignition source, allowing the pumps to activate only when the engine is running. This prevents the pumps from drawing power unnecessarily, conserving energy and reducing the risk of fuel system issues when the vehicle is off.

One practical tip is to incorporate a fail-safe mechanism, such as a pressure switch or an ECU signal, to activate the second pump only when needed. For example, a pressure switch set to 40 psi can trigger the high-pressure pump when fuel demand exceeds the low-pressure pump’s capacity. This ensures efficient operation while maintaining redundancy in case one pump fails. Always use high-quality wiring and connectors to handle the amperage and prevent voltage drop, which can cause erratic pump behavior.

Comparing relay wiring to direct wiring highlights its advantages. Direct wiring both pumps to a single power source can lead to overheating, excessive current draw, and potential failure under high loads. Relay wiring, on the other hand, provides granular control, allowing you to manage power distribution dynamically. For example, during cold starts, only one pump may activate to reduce initial load, while both pumps engage during aggressive driving to meet fuel demands. This adaptability not only enhances performance but also safeguards the electrical system.

In conclusion, relay wiring is a critical component of dual EFI fuel pump setups, offering safety, efficiency, and flexibility. By controlling each pump independently, you can tailor fuel delivery to driving conditions, reduce wear, and ensure system reliability. Whether you’re building a high-performance vehicle or upgrading a daily driver, investing time in proper relay wiring pays dividends in both functionality and longevity. Always consult a wiring diagram specific to your setup and test the system thoroughly before hitting the road.

shunfuel

Fusing Setup: Install proper fuses to protect wiring and pumps from electrical overloads

Electrical overloads can cripple dual EFI fuel pump systems, leading to pump failure or even fire hazards. Fuses act as sacrificial guardians, interrupting excessive current flow before it damages components. Selecting the correct fuse rating is critical—it must handle the pumps' combined amperage draw under maximum load without blowing prematurely. For example, if each pump draws 15 amps, a 30-amp fuse provides adequate protection while allowing normal operation. Always consult the pump manufacturer’s specifications for precise amperage requirements.

Installation location matters as much as fuse rating. Place fuses as close to the power source as possible to protect the entire circuit. Use a fuse holder designed for high-current applications, ensuring secure connections and easy replacement. Avoid splicing fuses directly into the wiring harness, as this compromises reliability and safety. For added protection, incorporate a circuit breaker in parallel with the fuses—it automatically resets after minor overloads, reducing downtime during troubleshooting.

Consider the environment when choosing fuse types. Waterproof fuses are essential for systems exposed to moisture, while high-temperature-rated fuses are ideal for engine bays. Blade-type fuses are common for their compact size and reliability, but ANL fuses offer higher amperage capacity for more demanding setups. Always use fuses from reputable manufacturers to ensure consistent performance and compliance with safety standards.

A layered approach enhances safety further. Install a master fuse near the battery to protect the main power feed, followed by individual fuses for each pump. This redundancy ensures that a fault in one pump doesn’t compromise the entire system. Label each fuse clearly to simplify maintenance and diagnostics, especially in complex dual-pump configurations. Regularly inspect fuses for corrosion or damage, replacing them proactively to maintain system integrity.

Finally, integrate a fail-safe mechanism to alert you to fuse failures. LED indicators or warning lights tied to the fuse circuit provide immediate feedback if a fuse blows. This not only prevents unexpected pump shutdowns but also allows for swift corrective action. By prioritizing a robust fusing setup, you safeguard your dual EFI fuel pump system against electrical failures, ensuring reliability and longevity under all operating conditions.

shunfuel

Grounding: Ensure secure, clean grounds for both pumps to prevent voltage drops and failures

Grounding is the unsung hero of dual EFI fuel pump setups, often overlooked until voltage drops or erratic pump behavior surface. Poor grounding introduces resistance, starving pumps of the consistent power they need to operate reliably. Even a slight voltage drop can cause fuel pressure fluctuations, leading to engine misfires or stalling under load. Secure, clean grounds act as the electrical backbone, ensuring both pumps receive uninterrupted power, especially during high-demand scenarios like acceleration or towing.

To achieve robust grounding, start by identifying dedicated ground points for each pump. Avoid daisy-chaining grounds, as this compounds resistance and increases failure points. Use 10-gauge or thicker stranded copper wire for ground connections, ensuring it’s rated for automotive use. Strip wire ends cleanly and secure them with star washers or grounding rings to penetrate paint or corrosion, establishing a solid metal-to-metal contact. Test continuity with a multimeter to confirm a resistance reading of less than 0.1 ohms between the ground point and chassis.

Environmental factors play a critical role in ground integrity. Moisture, dirt, and vibration can degrade connections over time. Apply dielectric grease to terminals to repel moisture and corrosion, but avoid overusing it, as excess can insulate rather than conduct. Periodically inspect grounds for signs of corrosion, looseness, or damage, particularly after off-road use or exposure to road salt. A compromised ground can mimic pump failure, leading to unnecessary diagnostics and part replacements.

Comparing grounding practices in dual pump setups to single pump systems highlights the increased demand for reliability. While a single pump may tolerate marginal grounding, dual pumps draw twice the current, amplifying the effects of poor connections. Think of grounding as the foundation of a house—a weak foundation jeopardizes the entire structure. Similarly, inadequate grounding undermines the performance and longevity of your fuel delivery system.

In conclusion, grounding isn’t just a step—it’s a safeguard. Treat it with the same precision as wiring the power supply. Secure, clean grounds ensure both pumps operate in harmony, delivering consistent fuel pressure without voltage-related hiccups. Invest time in grounding upfront, and you’ll avoid troubleshooting headaches down the road. After all, in high-performance fuel systems, the ground is as critical as the power itself.

shunfuel

Fail-Safe Wiring: Wire pumps in parallel or series with a switch for redundancy in case one fails

Wiring dual EFI fuel pumps in parallel or series with a switch isn’t just about adding redundancy—it’s about ensuring your engine never starves for fuel, even if one pump fails. Parallel wiring allows both pumps to operate independently, sharing the load and providing full flow if one fails. Series wiring, on the other hand, boosts pressure by linking pumps sequentially, though it sacrifices flow if one pump stops working. Adding a switch lets you manually activate the backup pump, giving you control over the fail-safe mechanism. This setup is ideal for high-performance or racing applications where fuel delivery is critical.

To wire pumps in parallel, connect the positive terminals of both pumps to a fused relay or switch, and ground their negative terminals together. This ensures both pumps receive power simultaneously, maintaining full flow capacity if one fails. For series wiring, connect the output of the first pump to the input of the second, then wire both pumps to a single relay or switch. While series wiring increases pressure, it’s less common for EFI systems due to the risk of reduced flow during failure. Always use relays rated for the pump’s amperage (typically 20–30 amps per pump) and fuse the circuit to prevent electrical fires.

A persuasive argument for this fail-safe approach is its simplicity and effectiveness. By dedicating a switch to activate the backup pump, you eliminate the need for complex automatic systems, reducing cost and potential points of failure. For example, a toggle switch mounted in the cabin allows you to instantly respond to a pump failure, ensuring uninterrupted fuel delivery. This manual control is particularly valuable in racing scenarios, where quick decision-making can prevent engine damage or loss of performance.

Comparing parallel and series wiring highlights their trade-offs. Parallel wiring is the safer choice for EFI systems, as it maintains flow even during failure, while series wiring is better suited for applications requiring higher pressure, like turbo setups. However, the added switch in either configuration provides an extra layer of reliability. For instance, if one pump fails in a parallel setup, flipping the switch ensures the remaining pump operates at full capacity. In a series setup, the switch allows you to bypass the failed pump, though flow will still be reduced.

In practice, start by selecting pumps with matching flow rates (e.g., 255 LPH each) to ensure balanced performance. Use 10-gauge wire for pumps drawing over 20 amps to minimize voltage drop, and install a 30-amp relay for each pump. Mount the switch in a convenient location, labeling it clearly for emergency use. Test the system by simulating a pump failure—disconnect one pump and verify the switch activates the backup. This fail-safe wiring not only protects your engine but also provides peace of mind, knowing you’re prepared for the unexpected.

Frequently asked questions

Wiring dual EFI fuel pumps ensures a consistent and reliable fuel supply, especially in high-performance or racing applications. It provides redundancy, so if one pump fails, the other continues to operate, preventing engine stalling.

The wiring setup depends on your fuel system design. Typically, dual pumps are wired in parallel for increased flow or in series for higher pressure. Consult your fuel pump manufacturer’s guidelines for specific recommendations.

It’s not recommended to use a single relay for dual pumps, as it may overload the relay. Use separate relays for each pump to ensure proper current handling and control.

Dual EFI fuel pumps are typically controlled by the ECU to activate only when the engine is running. This prevents unnecessary fuel pressure and reduces the risk of overheating the pumps.

Ensure all wiring is properly insulated and secured to prevent shorts or damage. Use a fuse or circuit breaker for each pump, and ground the system correctly. Always work with the power disconnected to avoid accidents.
