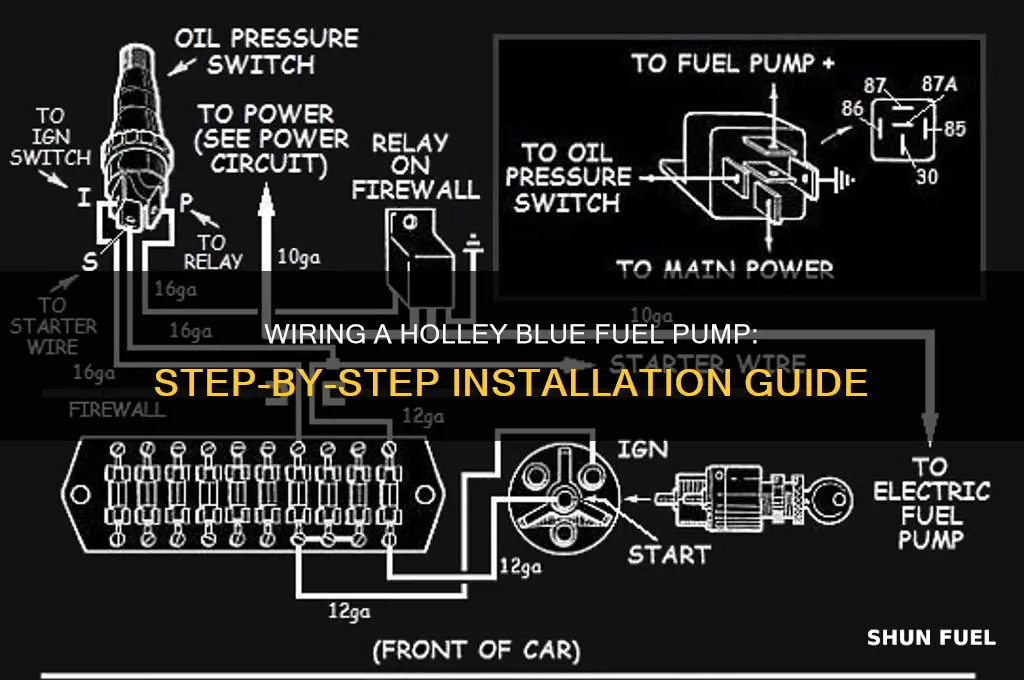

Wiring up a Holley Blue electric fuel pump is a straightforward process that ensures your engine receives a consistent and reliable fuel supply. This high-performance fuel pump is designed for carbureted applications and requires a basic understanding of automotive electrical systems. The installation involves connecting the pump to a 12-volt power source, typically the vehicle's battery, and grounding it securely. It's crucial to use an appropriate fuse and relay to protect the circuit and prevent overloading. Additionally, the pump should be mounted in a location that allows for proper fuel flow and easy access for maintenance. Following the manufacturer's instructions and using the correct wiring diagram will ensure a safe and efficient setup, optimizing the performance of your Holley Blue fuel pump.
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire, connectors, relay, fuse, terminals, heat shrink, pump, wiring diagram
- Locate Power Source: Connect to battery or alternator for consistent 12V power supply
- Install Relay & Fuse: Protect circuit with relay and fuse near power source
- Wire Pump to Relay: Connect pump to relay, ensuring proper polarity and secure connections
- Ground the System: Securely ground pump and relay to chassis for reliable operation
Gather Tools & Materials: Wire, connectors, relay, fuse, terminals, heat shrink, pump, wiring diagram
Before you embark on wiring up a Holley Blue fuel pump, it’s critical to assemble the right tools and materials. This isn't just about having everything on hand—it’s about ensuring safety, efficiency, and longevity of your setup. Start with the essentials: wire rated for automotive use (typically 12-14 gauge for fuel pumps), connectors that match your vehicle’s wiring harness, and a relay to handle the pump’s current draw without overloading the switch. A fuse is non-negotiable; choose one rated for the pump’s amperage (usually 15-20 amps for the Holley Blue). Terminals and heat shrink tubing are vital for secure, weatherproof connections, while the pump itself should be inspected for compatibility with your fuel system. Finally, a wiring diagram specific to the Holley Blue is your roadmap—don’t skip it.
Analyzing the components, the relay is often overlooked but plays a pivotal role. It acts as a buffer between the pump and the switch, preventing voltage drop and ensuring consistent power delivery. Without it, the pump’s lifespan could be compromised. Similarly, heat shrink isn’t just for aesthetics; it seals connections against moisture and corrosion, a common cause of electrical failures in fuel systems. When selecting wire, avoid cheap alternatives—automotive-grade wire is designed to withstand temperature fluctuations and vibration. The wiring diagram is your fail-safe; it clarifies how to integrate the pump with your vehicle’s existing system, avoiding costly mistakes like reversed polarity or insufficient grounding.
Persuasively, investing in quality materials upfront saves time and money in the long run. For instance, using a fuse with the correct rating prevents overcurrent damage, while proper connectors ensure a snug fit that won’t loosen over time. The Holley Blue pump is a high-performance component, and its wiring should reflect that. Skimping on tools like a crimping tool for terminals or a heat gun for heat shrink can lead to subpar connections that fail under stress. Think of this step as the foundation of your project—a strong base ensures everything else falls into place seamlessly.
Comparatively, wiring a Holley Blue pump isn’t like setting up a household appliance. The environment under the hood is harsh, with extreme temperatures, vibrations, and exposure to fuel vapors. That’s why wire must be insulated for high heat, connectors should be corrosion-resistant, and terminals need to be tightly crimped. Unlike simpler projects, the relay and fuse aren’t optional—they’re safety features that protect both the pump and your vehicle. The wiring diagram acts as a translator, bridging the gap between the pump’s requirements and your vehicle’s electrical system. Without it, you’re essentially guessing, and guesswork has no place in fuel system installations.
Descriptively, imagine opening your toolbox to find everything laid out: rolls of wire in vibrant colors, a relay with its sturdy casing, and a fuse holder waiting to be installed. The heat shrink tubing sits coiled, ready to snugly wrap around connections, while the terminals gleam with metallic precision. The Holley Blue pump, with its robust build, sits nearby, a testament to engineering excellence. The wiring diagram, printed or pulled up on a screen, is your guide through this intricate process. Each component has a role, and together, they transform a collection of parts into a functional, reliable fuel delivery system.
Instructively, here’s how to approach this step: First, verify the pump’s compatibility with your vehicle’s fuel type and pressure requirements. Next, measure and cut the wire to length, leaving extra for routing and connections. Strip the ends and attach terminals using a crimping tool, ensuring a tight fit. Slide heat shrink over the connections before crimping, then apply heat to seal them. Install the relay near the pump, following the wiring diagram to connect it to the power source, switch, and pump. Add the fuse inline with the power wire to protect the circuit. Double-check all connections for security and test the system before driving. This methodical approach ensures a professional-grade installation that performs reliably for years.
Step-by-Step Guide: Removing Fuel Pump from 1987 Ford Ranger
You may want to see also
Explore related products
$199.99
Locate Power Source: Connect to battery or alternator for consistent 12V power supply
The Holley Blue electric fuel pump demands a steady 12V power source to operate reliably. While the battery provides this voltage, connecting directly to it isn’t always ideal. The alternator, which recharges the battery and maintains system voltage during operation, offers a more stable power supply, especially under load. This distinction is crucial for preventing voltage drops that could starve the pump, leading to engine performance issues.
Steps to Connect to the Battery:
- Locate the Battery Terminals: Identify the positive (+) and negative (-) terminals on your vehicle’s battery.
- Use a Relay: Install a 30-amp relay between the battery and the fuel pump to protect the wiring and prevent overloading.
- Run Dedicated Wires: Use 10-gauge or thicker wires to handle the pump’s current draw. Connect the relay’s power input to the battery’s positive terminal and ground the negative wire to the chassis or battery negative.
- Fuse the Circuit: Install a 20-amp inline fuse within 12 inches of the battery to safeguard against short circuits.
Steps to Connect to the Alternator:
- Identify the Alternator’s Output: Locate the B+ terminal on the alternator, which provides regulated 12V power.
- Install a Voltage Regulator (Optional): If your alternator lacks built-in regulation, add an external regulator to ensure consistent voltage to the pump.
- Wire with Caution: Use 12-gauge wire for this connection, as the alternator’s output is typically lower amperage than the battery.
- Ground Securely: Ensure the pump’s ground wire is connected to a clean, unpainted metal surface for optimal conductivity.
Cautions and Considerations:
- Avoid tapping into existing circuits, as this can overload them and cause failures.
- Never connect the pump directly to the battery without a relay, as this risks draining the battery when the engine is off.
- Test voltage at the pump under load to ensure it remains within 12–14V for optimal performance.
Choosing between the battery and alternator depends on your vehicle’s setup and the pump’s demands. The battery offers simplicity, while the alternator provides stability. Regardless of the source, proper wiring, fusing, and grounding are non-negotiable for safe and efficient operation. Always consult the Holley Blue fuel pump manual for specific amperage and wiring recommendations.
Is Your Fuel Pump Sufficient? Signs You Might Need an Upgrade
You may want to see also
Explore related products
$89.99 $99.99
Install Relay & Fuse: Protect circuit with relay and fuse near power source
Installing a relay and fuse is a critical step in wiring a Holley Blue fuel pump, ensuring the circuit is protected from overcurrent and short circuits. The relay acts as a switch, allowing the pump to draw high current without overloading the vehicle’s wiring, while the fuse provides a fail-safe, interrupting power if the current exceeds safe levels. This setup not only safeguards your electrical system but also enhances the pump’s reliability and longevity.
Begin by selecting a relay rated for the fuel pump’s current draw, typically 20–30 amps for most Holley Blue pumps. Position the relay as close to the power source as possible, such as the battery, to minimize voltage drop. Connect the relay’s power input (pin 87) to the fuel pump’s positive terminal, and the output (pin 30) to the battery’s positive terminal via a fused link. Use a 10–14 gauge wire for these connections to handle the pump’s load efficiently.
Next, install a fuse holder with an appropriately rated fuse (e.g., 20A for a 20A relay) within 18 inches of the power source. This placement ensures the fuse protects the entire circuit from the battery onward. Connect the fuse holder in series between the battery and the relay’s power input. Always use a high-quality, blade-type fuse designed for automotive applications to ensure reliability under the hood’s harsh conditions.
When wiring the relay’s control circuit, connect pin 85 to ground and pin 86 to the pump’s trigger source, such as an ignition-switched 12V supply. This ensures the pump operates only when the ignition is on, conserving power and reducing wear. Use 16–18 gauge wire for the control circuit, as it carries minimal current. Double-check all connections for tightness and insulation to prevent shorts or corrosion.
Finally, test the setup by turning the ignition on and verifying the pump activates. Listen for the relay’s click, confirming it’s engaging properly. If the fuse blows or the pump fails to run, inspect for short circuits or incorrect wiring. Properly installed, the relay and fuse not only protect your Holley Blue fuel pump but also integrate it seamlessly into your vehicle’s electrical system, ensuring safe and efficient operation.
Locating the Fuel Pump on Your Honda Silverwing: A Quick Guide
You may want to see also
Explore related products
Wire Pump to Relay: Connect pump to relay, ensuring proper polarity and secure connections
Connecting the Holley Blue fuel pump to a relay is a critical step in ensuring reliable and safe operation. The relay acts as a switch, allowing the pump to draw power directly from the battery while protecting the vehicle’s wiring from high current loads. Begin by identifying the pump’s power and ground wires, typically marked with specific colors (e.g., red for power, black for ground). Match these to the corresponding terminals on the relay, ensuring proper polarity to avoid damage or malfunction. Use a wiring diagram specific to your Holley Blue pump model for clarity, as configurations can vary.
Secure connections are non-negotiable in this process. Loose or corroded wires can lead to voltage drops, overheating, or intermittent pump operation. Strip the wire ends cleanly, apply a thin layer of dielectric grease to prevent corrosion, and use high-quality connectors or solder joints for maximum reliability. Heat shrink tubing is highly recommended to insulate and protect the connections from moisture and vibration. Double-check each connection with a multimeter to confirm continuity before proceeding.
Polarity errors are a common pitfall when wiring a fuel pump to a relay. Reversing the power and ground wires can fry the pump instantly or cause erratic behavior. Always verify the relay’s pinout and the pump’s wiring diagram to ensure alignment. If using a universal relay, test the setup with a low-voltage source before connecting to the battery to confirm correct polarity. This precautionary step can save time, money, and frustration.
For added safety, incorporate a fuse between the battery and the relay. A 20-amp fuse is typically sufficient for the Holley Blue pump, but consult the manufacturer’s specifications for your specific model. This fuse acts as a fail-safe, protecting the wiring harness in case of a short circuit or overload. Mount the fuse holder close to the battery terminal to minimize the length of unprotected wire, reducing the risk of fire in the event of a fault.
Finally, route the wires away from hot surfaces, moving parts, and sharp edges to prevent damage. Use zip ties or wire looms to secure the harness neatly, ensuring it doesn’t interfere with other components. Test the system by activating the relay and listening for the pump’s priming cycle. If the pump fails to engage, recheck connections, polarity, and fuse integrity. Properly wired and secured, the Holley Blue fuel pump will deliver consistent performance, ensuring your engine receives the fuel it needs under all conditions.
Locating the Fuel Pump on a 1993 Vehicle: A Quick Guide
You may want to see also
Explore related products
Ground the System: Securely ground pump and relay to chassis for reliable operation
Proper grounding is the unsung hero of any electrical system, and your Holley Blue fuel pump is no exception. A secure ground connection ensures the pump and relay operate efficiently, preventing voltage drops that can lead to erratic performance or even failure. Without a solid ground, the electrical current has nowhere to return, leaving your fuel pump stranded and your engine starving for fuel.
To ground the system effectively, start by selecting a clean, bare metal surface on the chassis. Use a wire brush or sandpaper to remove any paint, rust, or debris, ensuring a direct metal-to-metal contact. Connect the ground wire from the fuel pump and relay to this spot using a ring terminal and a self-tapping screw. For added reliability, apply a small amount of dielectric grease to the connection to prevent corrosion over time.
Consider this: a weak ground can mimic symptoms of a faulty pump or relay, leading to unnecessary troubleshooting and part replacements. By prioritizing grounding, you eliminate a common failure point and ensure consistent fuel delivery. Think of it as the foundation of your fuel system—skimp on it, and the entire structure suffers.
For those upgrading from older systems, note that the Holley Blue pump requires a dedicated ground separate from the vehicle’s main grounding point. This minimizes interference and ensures the pump’s high current draw doesn’t affect other components. If you’re unsure about the quality of your chassis ground, test it with a multimeter; a reading above 0.1 ohms indicates a poor connection that needs addressing.
In summary, grounding isn’t just a step—it’s a safeguard. Spend the extra few minutes to secure your pump and relay to the chassis, and you’ll reap the rewards of a reliable, trouble-free fuel system. After all, a grounded system is a dependable system.
Does the Fuel Pump Operate with VATS System Activated?
You may want to see also
Frequently asked questions
The Holley Blue fuel pump operates on 12 volts DC. Ensure your wiring is connected to a 12V power source for proper functionality.
Connect the pump’s power wire to the ignition-switched 12V source, such as the ignition switch’s accessory terminal, to ensure the pump only runs when the ignition is on.
Yes, using a relay is recommended to protect the pump and ensure consistent power delivery. Connect the relay’s coil to the ignition switch and the relay’s output to the pump.
Use 10-12 gauge wire for the power and ground connections to handle the current draw of the pump without excessive voltage drop.
Connect the pump’s ground wire directly to the vehicle’s chassis or battery negative terminal using a clean, corrosion-free connection for reliable grounding.
