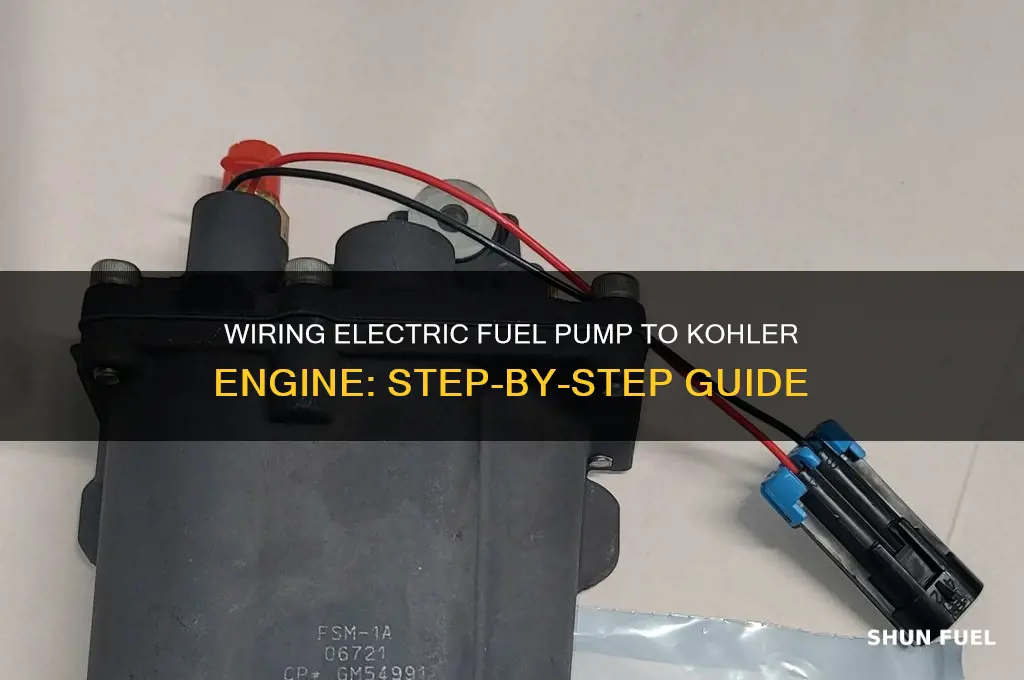

Wiring an electric fuel pump to a Kohler engine requires careful planning and execution to ensure reliable performance and safety. Begin by selecting a fuel pump compatible with your engine’s fuel demands and voltage requirements, typically 12V for most Kohler engines. Disconnect the battery before starting to avoid electrical hazards. Connect the fuel pump’s positive wire to a switched power source, such as the ignition switch, to ensure the pump operates only when the engine is running. Ground the negative wire securely to the engine block or chassis. Install an inline fuse near the battery to protect the circuit from overcurrent. Ensure all connections are weatherproof and secure, using heat shrink tubing or electrical tape. Test the setup by turning on the ignition and verifying the pump activates and delivers fuel to the carburetor or fuel injection system. Always follow Kohler’s guidelines and consult the fuel pump’s manual for specific instructions.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Electric, typically 12V |
| Kohler Engine Compatibility | Most Kohler engines with carburetors (check specific model for compatibility) |
| Wiring Diagram | Varies depending on engine model and fuel pump. Refer to Kohler engine manual and fuel pump instructions. |
| Power Source | Battery (typically 12V) |
| Fuse | Inline fuse (amp rating specified by fuel pump manufacturer) |
| Switch | Ignition switch or dedicated fuel pump switch |
| Relay | Recommended for high-current draw pumps to protect wiring |
| Ground Connection | Securely grounded to engine block or chassis |
| Wire Gauge | Sufficient gauge to handle fuel pump current (check pump specifications) |
| Fuel Line Connection | Compatible fuel line and fittings for pump and carburetor |
| Safety Precautions | Work with engine off, disconnect battery, avoid sparks near fuel |
| Testing | Test pump operation before starting engine |
