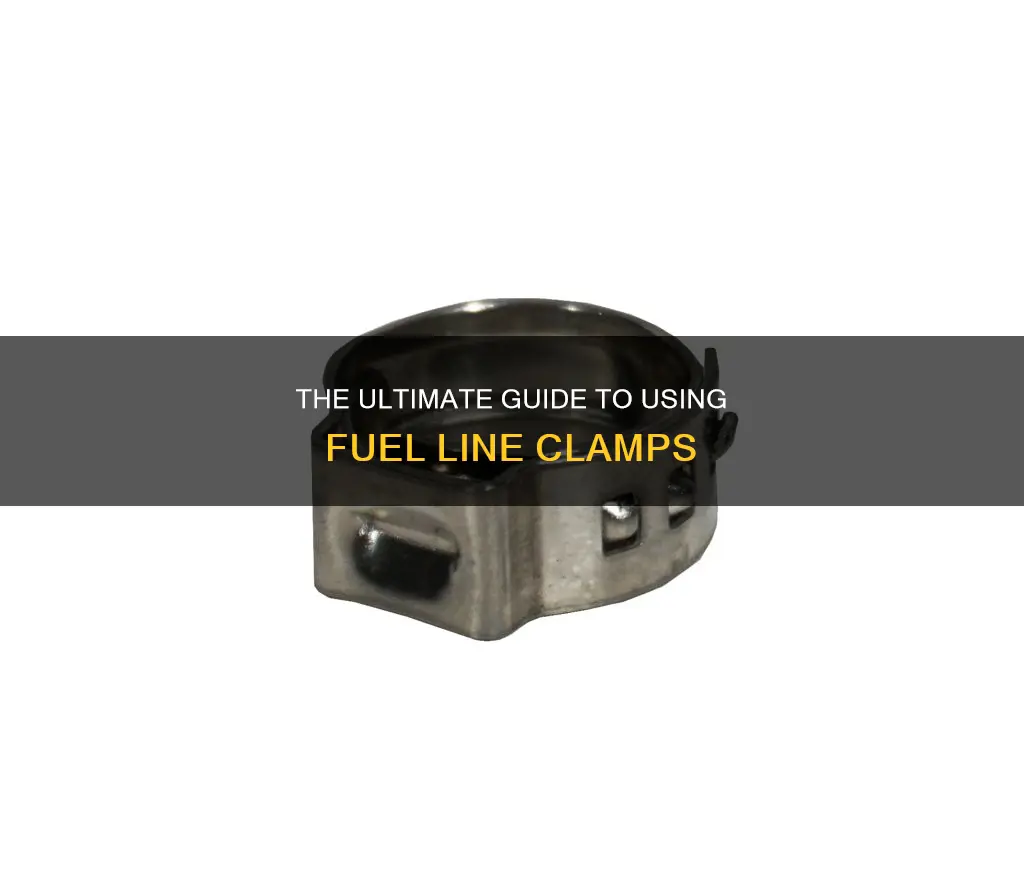

Mastering Fuel Line Clamps: A Comprehensive Guide To Installation And Maintenance

Fuel line clamps are essential components for securing fuel lines in vehicles, ensuring a safe and efficient fuel supply. When using fuel line clamps, it's important to follow a few key steps. First, inspect the fuel line for any signs of damage or wear before installation. Then, choose the appropriate clamp size and material for the fuel line's diameter and environment. Properly align the clamp and secure it tightly, ensuring a snug fit without causing any damage to the fuel line. Regularly check and adjust the clamps to maintain optimal performance and prevent potential fuel leaks. By following these guidelines, you can effectively use fuel line clamps to protect your vehicle's fuel system.

Material Selection: Choose the right material for your fuel line clamp based on temperature and pressure requirements

When it comes to selecting the appropriate material for your fuel line clamp, it's crucial to consider the specific operating conditions of your vehicle. The choice of material directly impacts the clamp's ability to withstand temperature fluctuations, pressure variations, and the corrosive effects of fuel. Here's a detailed guide on how to choose the right material:

Understanding Temperature and Pressure Requirements:

Start by evaluating the temperature and pressure ranges your fuel lines will encounter. Fuel temperatures can vary significantly, especially in high-performance engines or vehicles operating in extreme climates. Common fuel temperatures can range from -40°C to 120°C. Additionally, consider the pressure differentials within the fuel system. High-pressure fuel systems, often found in modern engines, can reach pressures of 200-300 psi or more. Understanding these requirements is essential to ensure the material can handle the stress.

Material Considerations:

Metals:

• Stainless Steel: This is a popular choice for fuel line clamps due to its excellent corrosion resistance and ability to withstand high temperatures. Austenitic stainless steel, such as 304 or 316, is commonly used for its durability and resistance to oxidation.
• Aluminum: Lightweight and cost-effective, aluminum is suitable for applications where weight reduction is a priority. However, it may not be as durable as stainless steel in extreme conditions.
• Brass: Brass offers good corrosion resistance and is often used in low-pressure applications. It is less common for high-pressure fuel systems due to its lower strength.

Elastomers:

• Rubber: Natural or synthetic rubber can be used for the clamp's elastic component. It provides flexibility and helps secure the fuel line. Look for rubber compounds that can withstand fuel temperatures and have good aging properties.
• Silicone: Silicone rubber is an excellent choice for high-temperature applications, as it maintains its flexibility even in extreme heat. It is also resistant to fuel degradation.

Composite Materials:

For specialized applications, composite materials like carbon fiber-reinforced polymers can be considered. These offer exceptional strength-to-weight ratios and can provide unique benefits in specific vehicle designs.

Application-Specific Considerations:

• Fuel Type: Different fuels have varying properties. For example, ethanol-blended fuels may require materials with enhanced corrosion resistance.
• Engine Design: Consider the engine's layout and the space available for the clamp. Some designs might benefit from custom-made clamps.
• Environmental Factors: Operating environments, such as marine or off-road conditions, may demand materials with superior corrosion resistance.

In summary, material selection for fuel line clamps is a critical aspect of ensuring the longevity and reliability of your vehicle's fuel system. By carefully considering temperature, pressure, and fuel type, you can choose the right materials to create a secure and durable clamp.

Size and Fit: Ensure the clamp is the correct size and fits snugly around the fuel line without damaging it

When working with fuel line clamps, ensuring the correct size and fit is crucial for a secure and safe installation. The first step is to identify the appropriate clamp for your specific fuel line. Different fuel lines have varying diameters, so it's essential to measure the line's outer diameter accurately. You can use a tape measure or a caliper for this purpose. Once you have the measurement, compare it with the specifications provided by the manufacturer or the clamp's manufacturer. Select a clamp with a slightly larger inside diameter than the fuel line's diameter to allow for a snug fit.

A properly sized clamp should be able to encircle the fuel line without any gaps, ensuring a tight seal. However, it's important to avoid applying excessive force during installation. If the clamp is too tight, it may damage the fuel line, leading to potential leaks or even a break in the line. The ideal fit is one where the clamp securely holds the line in place without causing any distortion or permanent deformation.

To ensure a snug fit, you can use a few techniques. Firstly, you can slightly lubricate the fuel line and the clamp's inner surface to facilitate insertion. This reduces friction and makes it easier to get the clamp into place. Once the clamp is positioned, use your hands or a tool to gently tighten it, ensuring it doesn't slip off. You should feel a slight resistance when tightening, indicating that the clamp is securely in place.

It's worth noting that over-tightening can be just as problematic as under-tightening. If you encounter resistance when turning the clamp, it might be a sign that you're applying too much force. In such cases, back off slightly and try again. Remember, the goal is to achieve a firm hold without causing any harm to the fuel line.

Additionally, consider the orientation of the clamp. Some fuel lines may have specific mounting points or angles, so ensure the clamp is positioned correctly to maintain the line's integrity. By paying close attention to size, fit, and proper installation techniques, you can effectively use fuel line clamps to secure your fuel lines, ensuring a reliable and safe fuel system.

Installation Technique: Follow a step-by-step guide for proper installation, including tightening the clamp securely

When installing fuel line clamps, it's crucial to follow a systematic approach to ensure a secure and reliable connection. Here's a step-by-step guide to help you through the process:

• Prepare the Components: Begin by laying out all the necessary parts, including the fuel line, clamp, and any additional fittings or adapters. Ensure that the fuel line is clean and free from any debris or contaminants. Inspect the clamp for any signs of damage or wear; replace it if necessary to ensure optimal performance.
• Position the Clamp: Slide the clamp onto the fuel line, ensuring it covers the desired length of the line. The clamp should fit snugly around the fuel line without being too tight or too loose. Use your fingers or a soft cloth to adjust the position if needed, making sure it is centered and aligned with the line's curvature.
• Secure the Clamp: Now, it's time to tighten the clamp securely. Use a wrench or a pair of pliers to apply firm pressure to the clamp's adjustment screw or bolt. Turn it in a clockwise direction, tightening it gradually and evenly. The goal is to create a firm grip without causing any damage to the fuel line. As you tighten, ensure that the clamp remains in contact with the entire length of the fuel line, providing an even pressure distribution.
• Final Checks: After tightening the clamp, perform some final inspections. Check for any visible gaps or spaces between the clamp and the fuel line. Ensure that the clamp is not pinching or crushing the line in any area. Also, verify that the fuel line is not kinked or bent at unusual angles, as this could affect the flow and potentially cause damage over time.
• Testing: To ensure the effectiveness of the installation, consider running a test. Turn on the fuel supply and check for any leaks around the clamp. If no leaks are observed, your installation is successful. This step is crucial, especially when dealing with fuel lines, as it helps identify any potential issues before they become major problems.

Remember, proper installation of fuel line clamps is essential for maintaining the integrity of your fuel system. By following these steps and paying attention to detail, you can ensure a secure and reliable connection, minimizing the risk of fuel leaks and potential engine issues. Always refer to the manufacturer's guidelines for specific instructions tailored to your fuel line clamp model.

Leak Testing: After installation, test for leaks by applying pressure and checking for any signs of fuel escaping

After installing fuel line clamps, it is crucial to perform a leak test to ensure the system's integrity and prevent potential fuel leaks. This process involves applying pressure to the fuel lines and carefully inspecting for any signs of fuel escaping. Here's a step-by-step guide on how to conduct this test effectively:

Preparation: Before starting, ensure you have the necessary tools, including a fuel pressure gauge, a small container or rag to catch any potential leaks, and a source of fuel pressure if applicable. It is recommended to work in a well-ventilated area and wear protective gear, such as gloves and safety goggles, to minimize any potential hazards.

Applying Pressure: Begin by connecting the fuel pressure gauge to the fuel line where the clamp was installed. Start the engine and allow it to idle for a few minutes to ensure the fuel system reaches a stable pressure. Then, slowly increase the engine speed to generate higher pressure. Monitor the gauge to measure the pressure and ensure it meets the manufacturer's specifications. If you're using a fuel pump, apply pressure manually or with a pump to simulate the engine's operation.

Leak Inspection: With the fuel line under pressure, carefully inspect the clamp and surrounding areas for any signs of fuel escaping. Look for wet spots on the ground, fuel residue on the clamp or nearby components, or any unusual odors. Pay close attention to the clamp's connection points and ensure there are no visible cracks or damage that could lead to leaks. If you notice any fuel escaping, immediately release the pressure and investigate the source of the leak.

Troubleshooting: If a leak is detected, you may need to adjust the clamp's position or tighten it further. Ensure the clamp is securely fastened and that there are no gaps or misalignments. In some cases, you might need to remove the clamp and re-install it, ensuring a proper fit. It is essential to address any leaks promptly to prevent potential engine damage and maintain a safe operating environment.

Documentation: After the leak test, document the results, including the pressure readings and any observations. This documentation will be valuable for future reference and can help identify potential issues with the fuel system. Regular leak testing is an essential maintenance practice to ensure the longevity and reliability of your fuel-clamped system.

Maintenance and Inspection: Regularly inspect and maintain the clamp to ensure it remains effective over time

When it comes to maintaining and inspecting fuel line clamps, regular attention is crucial to ensure their effectiveness and prevent potential issues. These clamps play a vital role in securing fuel lines, and their proper maintenance can significantly contribute to the overall safety and performance of a vehicle's fuel system. Here's a comprehensive guide on how to approach this task:

Visual Inspection: Begin by performing a thorough visual inspection of the fuel line clamp. Check for any visible signs of wear, damage, or corrosion. Look for cracks, brittleness, or any deformation that might indicate the clamp's integrity is compromised. Pay close attention to the clamp's surface; if you notice any signs of rust or degradation, it's essential to address the issue promptly. Over time, environmental factors can take a toll on the clamp's material, so regular checks are imperative.

Tightness and Fit: Ensure that the clamp is securely tightened around the fuel line. Loosen the clamp slightly and then retighten it by hand to achieve the correct tension. A properly tightened clamp should feel snug but not overly tight, as excessive force can damage the fuel line. Use a wrench or a specialized tool to tighten the clamp, ensuring you don't overtighten it. Regularly checking the clamp's tightness is essential, especially after any repairs or replacements, to guarantee a secure connection.

Flexibility and Movement: Fuel lines need to have some flexibility to accommodate engine movement and temperature changes. Inspect the clamp to ensure it allows for this movement without excessive play or looseness. If the clamp is too tight, it may restrict the fuel line's flexibility, leading to potential issues during engine operation. Conversely, if the clamp is too loose, it might not provide adequate support, causing the fuel line to sag or vibrate excessively.

Regular Maintenance Schedule: Implement a regular maintenance schedule to inspect and maintain the fuel line clamps. This is particularly important for vehicles that operate in harsh conditions or those with high mileage. Consider the following:

• Seasonal Checks: Perform inspections at the beginning and end of each season, especially in regions with extreme weather changes.
• Routine Inspections: Include fuel line clamp checks during routine oil changes or vehicle servicing.
• After Repairs: Whenever fuel system repairs are carried out, inspect and re-evaluate the clamps to ensure they are functioning correctly.

By adhering to a consistent maintenance routine, you can identify and address any potential issues before they escalate. This proactive approach will help ensure the longevity of the fuel line clamp and contribute to the overall reliability of your vehicle's fuel system. Remember, proper maintenance and regular inspections are key to keeping your vehicle's fuel lines secure and efficient.
