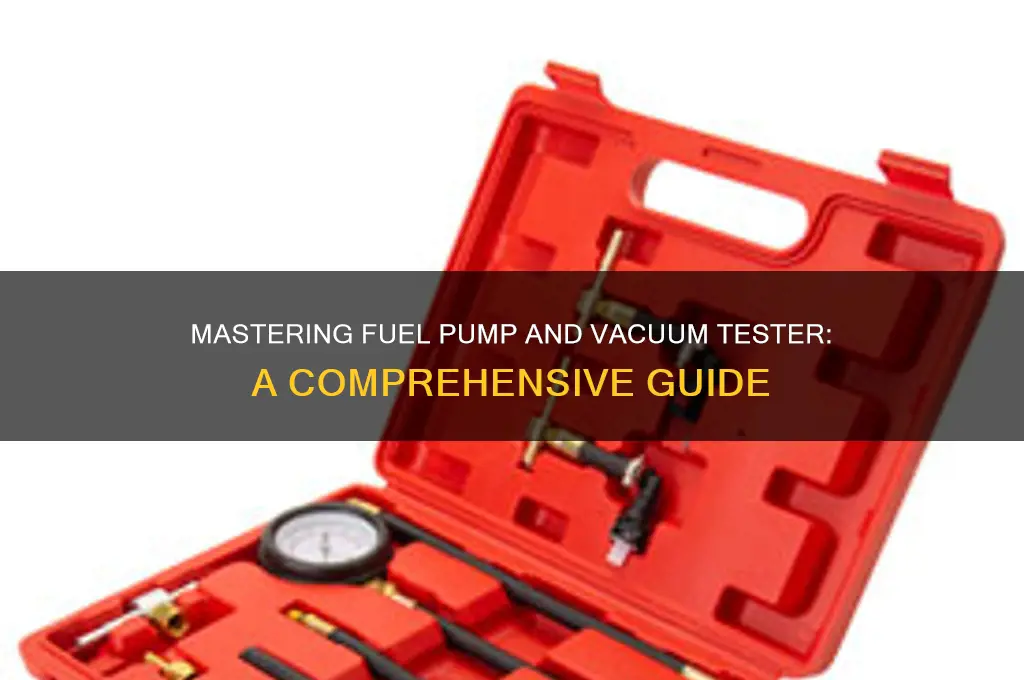

A fuel pump and vacuum tester is an essential diagnostic tool for assessing the performance of a vehicle's fuel and vacuum systems. This device allows mechanics to measure fuel pressure, check for leaks, and evaluate the efficiency of the vacuum system, ensuring optimal engine operation. By connecting the tester to the fuel rail or vacuum source, users can identify issues such as clogged fuel filters, weak fuel pumps, or vacuum leaks, which can lead to poor engine performance or starting difficulties. Proper use of this tool involves following specific steps, including securing connections, interpreting gauge readings, and comparing results to manufacturer specifications. Mastering the fuel pump and vacuum tester not only aids in troubleshooting but also helps maintain vehicle reliability and longevity.
| Characteristics | Values |
|---|---|
| Purpose | Diagnose fuel pump and engine vacuum issues. |
| Tools Required | Fuel pump and vacuum tester, pressure gauge, vacuum gauge, hose adapters. |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel pressure. |
| Fuel Pump Testing Steps | 1. Connect tester to fuel line. 2. Turn ignition to ON. 3. Check pressure. |
| Normal Fuel Pressure Range | 30–60 PSI (varies by vehicle; check manual). |
| Vacuum Testing Steps | 1. Connect tester to intake manifold. 2. Start engine. 3. Check vacuum. |
| Normal Vacuum Range (Idle) | 15–22 inHg. |
| Normal Vacuum Range (Acceleration) | Drops to 5–10 inHg. |
| Common Issues Detected | Weak fuel pump, clogged fuel filter, vacuum leaks, engine misfires. |
| Post-Test Actions | Reconnect battery, inspect components, repair as needed. |
| Frequency of Testing | Annually or when symptoms (e.g., hard starting, stalling) occur. |
Explore related products
What You'll Learn
Understanding Fuel Pump Basics
Fuel pumps are the heart of a vehicle's fuel system, responsible for delivering fuel from the tank to the engine at the correct pressure and volume. Without a functioning fuel pump, your engine will starve, leading to poor performance or complete failure. Understanding the basics of how a fuel pump operates is crucial for diagnosing issues and ensuring your vehicle runs smoothly. Fuel pumps come in two primary types: mechanical and electric. Mechanical pumps, commonly found in older carbureted engines, are driven by the camshaft and rely on engine motion. Electric fuel pumps, standard in modern vehicles, are typically located inside the fuel tank and operate via an electric motor, providing more consistent fuel delivery under varying conditions.
Diagnosing fuel pump issues often requires a systematic approach. Start by checking for symptoms like sputtering, stalling, or difficulty starting, which may indicate low fuel pressure. A fuel pump and vacuum tester is an invaluable tool for this process. To use it, first disconnect the fuel line at the engine and attach the tester. Turn the ignition to the "on" position (but don’t start the engine) to activate the pump. Observe the gauge: a healthy fuel pump should deliver pressure within the manufacturer’s specifications, typically between 30 and 60 PSI for most vehicles. If the pressure is low or nonexistent, the pump may be failing. Always refer to your vehicle’s manual for exact values, as they vary by make and model.
One common misconception is that a fuel pump’s failure is solely due to age. While wear and tear play a role, other factors like contaminated fuel, electrical issues, or a clogged fuel filter can also cause premature failure. For instance, ethanol-blended fuels can degrade rubber components in older pumps, leading to leaks or reduced efficiency. To extend the life of your fuel pump, maintain a clean fuel system by using high-quality fuel and replacing the fuel filter every 30,000 to 50,000 miles, depending on your vehicle’s recommendations. Regularly inspecting fuel lines for cracks or leaks can also prevent sudden pump failure.
When using a vacuum tester in conjunction with a fuel pump test, you can gain deeper insights into engine performance. A vacuum tester measures manifold vacuum, which should remain steady during operation. If vacuum readings fluctuate while testing fuel pressure, it may indicate issues like a leaking intake manifold gasket or worn piston rings. This dual testing approach allows you to pinpoint whether the problem lies in the fuel delivery system or elsewhere in the engine. Always perform these tests in a well-ventilated area and avoid open flames, as fuel is highly flammable.
In conclusion, mastering fuel pump basics empowers you to diagnose and address issues before they escalate. By understanding the pump’s role, recognizing symptoms of failure, and using tools like a fuel pump and vacuum tester effectively, you can maintain optimal engine performance. Remember, prevention is key—regular maintenance and awareness of your vehicle’s specific needs will save you time, money, and frustration in the long run.
