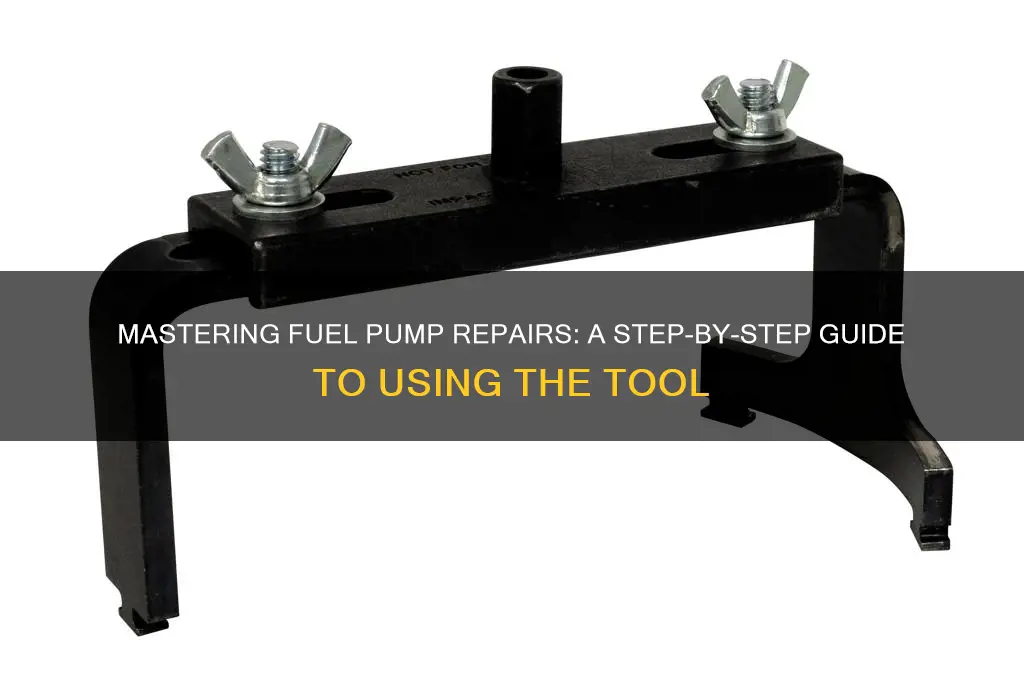

Using a fuel pump tool is essential for safely and efficiently removing and installing fuel pumps in vehicles. This specialized tool is designed to relieve pressure in the fuel system, ensuring a secure working environment by minimizing the risk of fuel spills or accidents. To use it, first locate the fuel pump Schrader valve or test port, typically found along the fuel lines or near the fuel tank. Attach the fuel pump tool securely to the valve, then slowly depress the tool’s handle to release the pressure. Once the pressure is relieved, you can safely disconnect the fuel lines and remove the fuel pump. Always follow the manufacturer’s instructions and wear appropriate safety gear, such as gloves and safety goggles, to protect against fuel exposure.
| Characteristics | Values |
|---|---|
| Purpose | To safely remove and install fuel pump modules without damaging the locking ring or fuel tank. |
| Tool Types | Manual (hand-operated), pneumatic (air-powered), hydraulic. |
| Compatibility | Specific to vehicle make, model, and fuel pump design. Check manufacturer specifications. |
| Components | Locking ring removal tool, installation tool, adapter plates (if needed), instructions. |
| Safety Precautions | Work in well-ventilated area, disconnect battery, relieve fuel system pressure, wear safety goggles and gloves. |
| Steps | 1. Locate fuel pump access point. 2. Relieve fuel pressure. 3. Disconnect electrical connectors. 4. Securely attach tool to locking ring. 5. Rotate tool to loosen/tighten locking ring. 6. Remove/install fuel pump module. |
| Common Issues | Stripped locking rings, incorrect tool alignment, insufficient force applied. |
| Maintenance | Keep tool clean, lubricate moving parts, inspect for wear and damage before each use. |
| Cost | Varies widely depending on type and brand, ranging from $20 to $200+. |
| Alternatives | In some cases, a large strap wrench or specialized pliers can be used, but risk damaging the locking ring. |
Explore related products
What You'll Learn
- Safety Precautions: Wear gloves, goggles, ensure vehicle is off, and work in well-ventilated area
- Tool Selection: Choose the correct fuel pump tool for your vehicle’s make and model
- Disconnecting Fuel Lines: Release pressure, disconnect lines carefully to avoid spills or damage
- Removing the Pump: Access the tank, unbolt the pump, and lift it out gently
- Installing the Pump: Align new pump, secure bolts, reconnect lines, and test for leaks
Safety Precautions: Wear gloves, goggles, ensure vehicle is off, and work in well-ventilated area
Before engaging with any fuel system component, it’s critical to neutralize the risk of ignition. Fuel is highly flammable, and even a small spark can lead to catastrophic consequences. Always ensure the vehicle is completely turned off—not just in accessory mode—and remove the keys from the ignition. This eliminates the possibility of accidental electrical surges that could ignite fuel vapors. If working on a vehicle with a manual transmission, engage the parking brake and place the car in gear for added stability.
Personal protective equipment (PPE) is non-negotiable when handling fuel. Nitrile or latex gloves provide a barrier against skin contact with gasoline, which can cause irritation or absorb harmful chemicals through the skin. Safety goggles are equally essential, as fuel splashes or debris from the fuel tank can cause severe eye injuries. Avoid using cloth or leather gloves, as these materials can absorb fuel and increase the risk of burns. Ensure goggles fit snugly and are rated for chemical resistance to provide adequate protection.
Fuel vapors are heavier than air and tend to accumulate in low-lying areas, creating a hazardous environment. Always work in a well-ventilated area to disperse these vapors and reduce the risk of inhalation or explosion. If working indoors, open windows and use fans to maintain airflow. Avoid using heaters, open flames, or any ignition sources nearby. For added safety, consider using a respirator with organic vapor cartridges if ventilation is limited or if you’re working in a confined space like a basement or garage.
Even with precautions, accidents can happen. Keep a Class B fire extinguisher within arm’s reach when working on the fuel system. This type of extinguisher is specifically designed to combat flammable liquid fires. Additionally, have a spill kit on hand to contain and clean up any fuel leaks promptly. Absorbent pads, containment trays, and disposal bags are essential components of a spill kit. Familiarize yourself with the location of the nearest emergency eyewash station or shower in case of chemical exposure.
Finally, approach the task with a methodical mindset. Rushing increases the likelihood of mistakes, which can lead to dangerous situations. Double-check that all safety measures are in place before beginning work. If you’re unsure about any step, consult the vehicle’s manual or seek guidance from a professional. Remember, the goal is not just to complete the task but to do so without compromising your safety or the integrity of the vehicle. Taking these precautions ensures that using a fuel pump tool remains a controlled and secure process.
Upgrading Your Vehicle: A Step-by-Step Guide to Installing an Aftermarket Fuel Pump Electronic
You may want to see also
Explore related products
Tool Selection: Choose the correct fuel pump tool for your vehicle’s make and model
Selecting the right fuel pump tool begins with understanding your vehicle’s specific requirements. Fuel systems vary widely across makes and models, from the locking mechanisms on fuel lines to the design of the pump itself. For instance, European vehicles often require specialized tools with metric measurements, while American models may use standard sizes. Ignoring these differences can lead to incompatibility or damage. Always consult your vehicle’s manual or a trusted repair guide to identify the exact tool needed. This step is non-negotiable—it ensures efficiency and prevents costly mistakes.
Consider the material and build quality of the fuel pump tool as well. Cheap, flimsy tools may seem economical but can fail under pressure, risking damage to your fuel system. Opt for tools made from hardened steel or corrosion-resistant alloys, especially if you work in humid environments. For example, a fuel line disconnect tool with a reinforced handle will provide better leverage and durability. Investing in a high-quality tool not only safeguards your vehicle but also saves time and frustration in the long run.
Compatibility extends beyond physical dimensions to include the tool’s functionality. Some fuel pump tools are designed for specific tasks, such as releasing spring clamps or detaching quick-connect fittings. For instance, a dual-purpose tool that handles both fuel lines and filter removal can streamline your workflow. Assess whether your vehicle requires a single-function or multi-function tool based on the complexity of its fuel system. Misusing a tool for an unintended purpose can cause leaks or system malfunctions.
Finally, don’t overlook the importance of ergonomic design. A tool with a comfortable grip and intuitive operation reduces the risk of slipping, especially when working with flammable fuels. Look for features like non-slip handles or textured grips, which enhance control in greasy or tight spaces. While ergonomics may seem secondary to functionality, a well-designed tool minimizes user fatigue and improves precision during repairs. Prioritize tools that balance comfort and utility for a safer, more efficient experience.
Oil Leak Impact: How It Affects Your Fuel Pump's Performance
You may want to see also
Explore related products
Disconnecting Fuel Lines: Release pressure, disconnect lines carefully to avoid spills or damage
Before disconnecting fuel lines, always release the pressure in the system to prevent accidental fuel spray or leaks. This step is crucial for safety and to avoid damage to the fuel pump and surrounding components. Start by locating the fuel pressure relief valve or Schrader valve, typically found on the fuel rail. Attach a fuel pressure gauge to the valve and depress it to release the pressure. If your vehicle doesn’t have a relief valve, consult the repair manual for model-specific instructions, such as running the engine until it stalls or using a scan tool to activate the fuel pump relay. Once pressure is released, listen for a hiss or check the gauge to confirm the system is depressurized.
Disconnecting fuel lines requires precision and care to avoid spills, which can be hazardous and environmentally damaging. Begin by identifying the quick-connect fittings or clamps securing the lines to the fuel pump or filter. For quick-connect fittings, use a fuel line disconnect tool to release the locking mechanism—insert the tool into the fitting’s release tab and gently pry it open while pulling the line away. Avoid forcing the line, as this can damage the fitting or cause fuel to spill. If the lines are clamped, loosen the clamp with a flathead screwdriver or pliers, then slide it away from the connection point before carefully pulling the line free. Always have a catch pan or rag ready to contain any residual fuel.
The risk of spills isn’t just about mess—fuel exposure can corrode components, harm skin, or ignite under certain conditions. To minimize this risk, work in a well-ventilated area and wear safety goggles and nitrile gloves. If a spill occurs, immediately clean it with an absorbent material and dispose of it according to local hazardous waste regulations. Additionally, inspect the disconnected lines for cracks, swelling, or deterioration, as damaged lines should be replaced before reassembly. Taking these precautions ensures both your safety and the longevity of the fuel system.
Comparing the disconnect process across different vehicle types highlights the importance of adaptability. Modern vehicles often use quick-connect fittings for ease of service, while older models may rely on clamps or hose clamps. Hybrid or diesel vehicles might have additional safety protocols, such as double-layered fuel lines or specialized tools. Always refer to the vehicle’s service manual for specific instructions, as improper disconnection can void warranties or cause system failures. By understanding these variations, you can approach the task with confidence and precision, regardless of the vehicle’s make or model.
Understanding the Fuel Pump System in a 2004 Audi Allroad
You may want to see also
Explore related products
Removing the Pump: Access the tank, unbolt the pump, and lift it out gently
Accessing the fuel tank is the first critical step in removing a fuel pump, and it requires precision and caution. Modern vehicles often locate the fuel tank beneath the rear seat or under the vehicle’s chassis, protected by a metal or plastic shield. To begin, disconnect the negative battery terminal to prevent electrical hazards, then relieve the fuel system pressure using a specialized tool to avoid accidental fuel spray. Once the tank is accessible, remove the retaining bolts or straps securing it to the vehicle frame, ensuring you support the tank’s weight to prevent damage. This step demands attention to detail, as improper handling can lead to fuel spills or structural harm.
Unbolting the fuel pump assembly is a delicate process that hinges on understanding the locking mechanism. Most fuel pumps are secured by a flange or locking ring, which requires a specific tool to release. Position the fuel pump tool over the locking ring and rotate it counterclockwise to disengage the pump from the tank. Be mindful of the fuel lines and wiring harness connected to the pump, as these components are fragile and prone to damage. If the locking ring is stubborn, apply gentle, steady force rather than brute strength to avoid stripping the threads. This stage tests both patience and mechanical finesse.
Lifting the fuel pump out of the tank is where the risk of contamination or damage peaks. Before extraction, use a clean rag to wipe any debris or residue from the pump’s surface to prevent it from entering the tank. Tilt the pump slightly to break the seal, then lift it straight upward, maintaining a steady grip. Be cautious of residual fuel in the pump, as spills can pose fire hazards or harm the environment. Once removed, inspect the pump for signs of wear or damage, such as cracked seals or corroded terminals, which could indicate underlying issues. This step is as much about technique as it is about safety and diagnostics.
A comparative analysis of manual versus tool-assisted removal highlights the efficiency of using a fuel pump tool. Without the proper tool, technicians often resort to improvised methods like screwdrivers or pry bars, which increase the risk of damage to the locking ring or tank. In contrast, a dedicated fuel pump tool provides a secure grip and even force distribution, minimizing the chance of errors. For instance, the OTC 7465 fuel pump module removal tool is designed to fit most locking rings, offering versatility across vehicle makes and models. Investing in the right tool not only simplifies the process but also extends the lifespan of the fuel system components.
In conclusion, removing a fuel pump is a task that blends technical skill with safety awareness. By systematically accessing the tank, unbolting the pump with precision, and lifting it out gently, you can avoid common pitfalls such as fuel spills or component damage. Practical tips, like using a clean rag to wipe the pump and supporting the tank during removal, further ensure a smooth process. Whether you’re a professional mechanic or a DIY enthusiast, mastering this procedure with the right tools and techniques will save time and prevent costly mistakes.
Understanding Low Voltage Fuel Pumps: Functions, Issues, and Solutions
You may want to see also
Explore related products
Installing the Pump: Align new pump, secure bolts, reconnect lines, and test for leaks
Precision is paramount when installing a new fuel pump, as even minor misalignments can lead to inefficiencies or damage. Begin by aligning the new pump with the mounting bracket or assembly, ensuring it sits flush and matches the orientation of the old unit. Use a fuel pump tool to assist in positioning, especially if the pump is located in a tight or hard-to-reach area. Double-check the alignment by comparing it to the vehicle’s manual or referencing the old pump’s placement. Proper alignment not only ensures functionality but also prevents unnecessary strain on the pump’s components.
Securing the bolts is the next critical step, and it demands both care and torque specifications. Tighten the bolts in a diagonal or crisscross pattern to distribute pressure evenly, avoiding warping or cracking the pump housing. Refer to the vehicle’s service manual for the exact torque values, typically ranging from 15 to 25 foot-pounds, depending on the model. Over-tightening can strip threads or damage seals, while under-tightening risks loosening over time. A torque wrench is essential here—never rely on guesswork. If a torque wrench isn’t available, tighten the bolts firmly but avoid excessive force.
Reconnecting the fuel lines is where the fuel pump tool often proves indispensable. Use the tool to gently guide lines into place, ensuring they are securely attached to the pump’s inlet and outlet ports. Inspect the lines for cracks or wear, replacing them if necessary. Clamp the lines firmly but avoid over-tightening, as this can deform the fittings or damage the lines. For vehicles with quick-connect fittings, listen for an audible click to confirm a secure connection. If working with a high-pressure fuel system, wear safety goggles and gloves to protect against accidental fuel spray.
Testing for leaks is the final, non-negotiable step before considering the installation complete. Start by pressurizing the fuel system—turn the ignition to the "on" position (without starting the engine) to activate the pump for a few seconds. Inspect all connections, bolts, and lines for signs of leakage. Use a spray bottle with soapy water to detect even the smallest leaks, as fuel may not be visible otherwise. If leaks are found, address them immediately by tightening connections or replacing faulty components. Once confirmed leak-free, start the engine and monitor the pump’s operation for unusual noises or vibrations, ensuring it runs smoothly under load.
Understanding the Unique Fuel Pump Design in 1996 Jeep Cherokee
You may want to see also
Frequently asked questions
A fuel pump tool is a specialized device designed to test, diagnose, or remove fuel pumps from vehicles. It is used to check fuel pressure, flow, and electrical connections, ensuring the fuel pump is functioning correctly or aiding in its replacement.
To test fuel pressure, connect the fuel pump tool to the fuel system’s test port, typically located on the fuel rail. Start the engine and observe the pressure gauge. Compare the reading to the vehicle’s specifications to determine if the fuel pump is operating within the correct range.
Yes, some fuel pump tools are designed to assist in removing the fuel pump assembly from the gas tank. These tools often include locking mechanisms to secure the pump for safe extraction, preventing damage to the tank or pump.
Always relieve fuel system pressure before using the tool, work in a well-ventilated area, and avoid open flames or sparks. Wear safety goggles and gloves, and ensure the vehicle is turned off and the battery is disconnected to prevent accidents.
Use the tool to check for proper voltage at the pump’s electrical connector, test fuel pressure, and inspect for leaks. If the pump fails to deliver the correct pressure or voltage, it may need to be replaced or further diagnosed by a professional.
