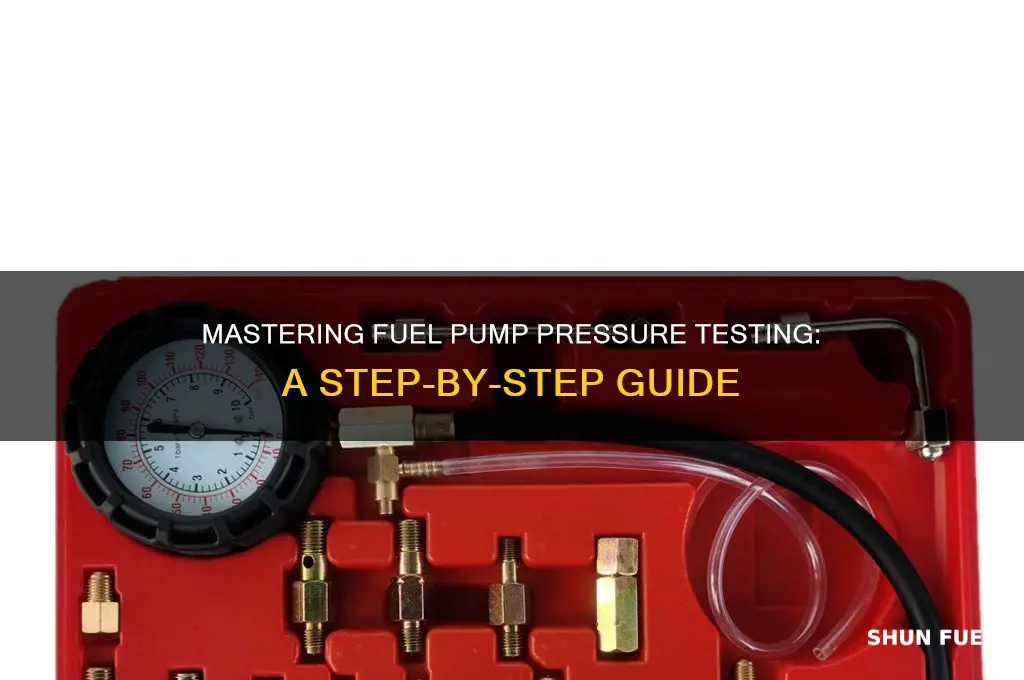

A fuel pump pressure tester is an essential tool for diagnosing issues with a vehicle's fuel system, ensuring the fuel pump operates at the correct pressure for optimal engine performance. To use this tool, start by locating the fuel pressure test port, typically found on the fuel rail or near the fuel filter, and connect the tester's gauge securely. Next, relieve the fuel system pressure by loosening the Schrader valve or using the vehicle’s relief procedure, then reattach the tester. With the engine running, observe the gauge to verify the pressure matches the manufacturer’s specifications, noting any fluctuations or inconsistencies that may indicate a faulty fuel pump or clogged fuel lines. Proper use of a fuel pump pressure tester helps identify problems early, preventing potential engine damage and ensuring reliable vehicle operation.
| Characteristics | Values |
|---|---|
| Purpose | To measure fuel pressure in the fuel system to diagnose pump performance. |
| Required Tools | Fuel pump pressure tester, safety goggles, gloves, wrench/socket set. |
| Safety Precautions | Work in a well-ventilated area, avoid sparks, and relieve fuel pressure. |
| Steps | 1. Disconnect fuel line or use a test port. 2. Attach tester to fuel system. 3. Start engine and observe pressure gauge. 4. Compare readings to manufacturer specs. 5. Reattach fuel line after testing. |
| Pressure Range | Typically measures 0–100 PSI (varies by vehicle). |
| Compatibility | Ensure tester is compatible with vehicle's fuel system (e.g., EFI, carbureted). |
| Diagnostic Use | Identifies low pressure (weak pump), high pressure (clogged filter), or leaks. |
| Maintenance Frequency | Test annually or when fuel system issues are suspected. |
| Common Issues Detected | Clogged fuel filter, failing fuel pump, faulty pressure regulator. |
| Cost of Tester | $20–$100 (varies by brand and features). |
| Professional vs. DIY | Can be used by both professionals and DIY enthusiasts with basic knowledge. |
| Environmental Impact | Minimize fuel spills and dispose of fuel safely. |
| Manufacturer Specifications | Refer to vehicle manual for correct pressure values. |
| Additional Features | Some testers include hose, gauge, and adapters for different fuel systems. |
Explore related products
What You'll Learn
- Prepare the Tester: Gather tools, locate fuel pump, relieve system pressure, and connect tester to fuel line
- Attach Gauge: Securely connect pressure gauge to tester, ensuring no leaks for accurate readings
- Run Engine Test: Start engine, monitor pressure, and compare readings to manufacturer specifications
- Check for Leaks: Inspect connections, hoses, and fittings for fuel leaks during testing
- Interpret Results: Analyze pressure data, diagnose issues, and determine necessary repairs or adjustments
Prepare the Tester: Gather tools, locate fuel pump, relieve system pressure, and connect tester to fuel line
Before testing fuel pump pressure, ensure you have the right tools: a fuel pump pressure tester, safety goggles, gloves, and a wrench or socket set. These aren’t optional—fuel systems operate under high pressure, and mishandling can lead to injury or damage. The tester itself typically includes a gauge, hoses, and adapters to fit various fuel line sizes. Double-check compatibility with your vehicle’s system; using the wrong adapter can skew results or cause leaks. Once gathered, lay out your tools in a logical order to streamline the process. Efficiency here saves time and reduces the risk of skipping critical steps.
Locating the fuel pump is the next hurdle, and it’s not always obvious. In most vehicles, the pump is inside the fuel tank, requiring you to drop the tank or access it through a dedicated panel. However, some models, like older Fords or certain imports, house the pump inline near the engine bay. Consult your vehicle’s manual or a trusted repair guide to pinpoint its location. Misidentifying the pump or attempting to test the wrong component wastes effort and could damage unrelated parts. If the pump is in the tank, prepare for a more involved process, including siphoning fuel to reduce weight and risk.
Relieving system pressure is non-negotiable for safety and accuracy. Start by locating the fuel pressure relief valve or Schrader valve, often found on the fuel rail or near the engine. Depress the valve with a tool to release pressure, but do so cautiously—fuel can spray unexpectedly. If your vehicle lacks a relief valve, disconnect the fuel pump relay or fuse and run the engine until it stalls. This method depletes residual pressure but requires a battery with sufficient charge. Skipping this step can lead to fuel spraying when you disconnect lines, increasing fire risk and complicating the test.
Connecting the tester to the fuel line demands precision. First, disconnect the fuel line at the appropriate point, typically near the fuel rail or filter. Attach the tester’s hose securely, ensuring a tight seal to prevent leaks. If the line uses quick-connect fittings, use the correct release tool to avoid damaging the connectors. Once connected, open the tester’s valve slowly to allow fuel to flow into the gauge. Monitor for leaks at all junctions; even a small drip can escalate quickly. Proper connection ensures accurate readings and maintains a safe testing environment.
Each step in preparing the tester—gathering tools, locating the pump, relieving pressure, and connecting the tester—is critical for both safety and accuracy. Cutting corners risks injury, vehicle damage, or unreliable results. Approach the process methodically, treating each stage as a prerequisite for the next. With the right preparation, you’ll not only diagnose fuel system issues effectively but also minimize hazards inherent in working with pressurized fuel systems.
