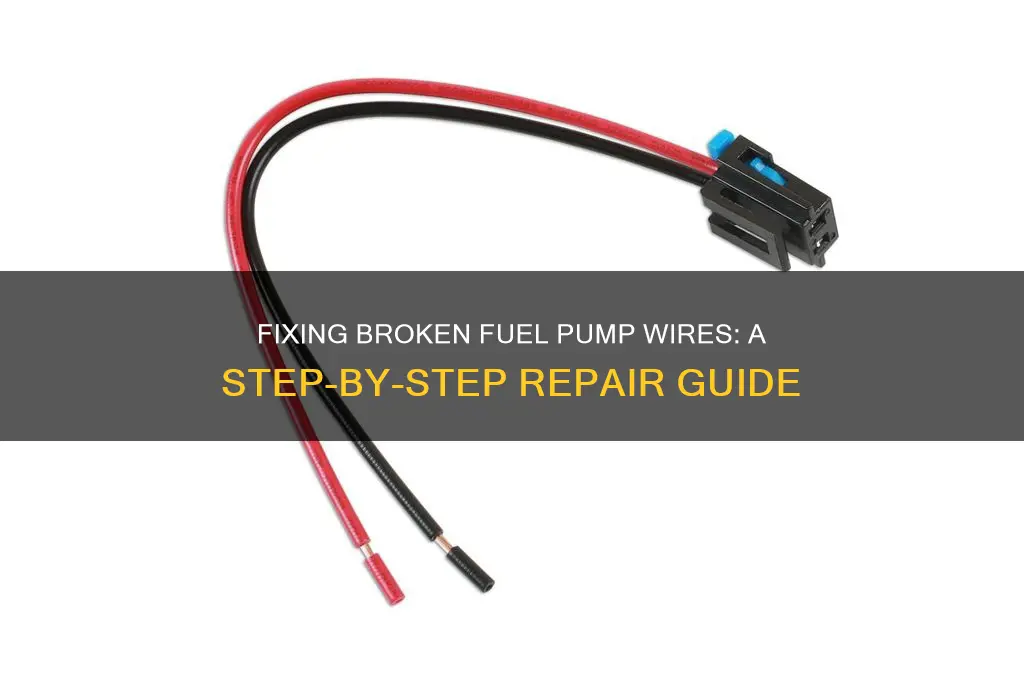

Repairing broken fuel pump wires is a critical task for maintaining a vehicle’s fuel system, as damaged wires can lead to engine stalling, poor performance, or even complete failure. The process typically involves identifying the location of the break, stripping the damaged section of the wire, and reconnecting it using solder or a wire connector for a secure and reliable joint. It’s essential to ensure the wires are properly insulated to prevent short circuits and to test the connection afterward to confirm the fuel pump operates correctly. Safety precautions, such as disconnecting the battery and working in a well-ventilated area, are crucial to avoid accidents. With the right tools and careful attention to detail, this repair can restore the fuel system’s functionality and extend the life of the vehicle.
| Characteristics | Values |
|---|---|
| Tools Required | Wire strippers, crimp connectors, soldering iron, heat shrink tubing, multimeter, electrical tape |
| Safety Precautions | Disconnect battery, work in a well-ventilated area, avoid sparks near fuel lines |
| Diagnosis Steps | Check for visible damage, test for continuity using a multimeter, inspect for corrosion |
| Repair Methods | Splicing wires, soldering, using crimp connectors, replacing damaged sections |
| Wire Splicing | Strip wires, twist together, solder, and insulate with heat shrink tubing |
| Crimp Connectors | Use appropriate size connectors, insert stripped wires, crimp securely |
| Soldering | Clean wire ends, apply solder, ensure strong connection, insulate with heat shrink |
| Heat Shrink Tubing | Slide over repaired area, apply heat to shrink, ensure tight seal |
| Testing After Repair | Reconnect battery, check for proper fuel pump operation, inspect for leaks or sparks |
| Prevention Tips | Use wire loom for protection, avoid routing wires near hot components, regular inspections |
| Common Causes of Damage | Abrasion, corrosion, rodent damage, vibration, aging |
| Professional Help | Recommended if unsure about repair, complex wiring systems, or safety concerns |
Explore related products
What You'll Learn
- Identify Wire Damage: Locate frayed, corroded, or broken wires near the fuel pump using a multimeter
- Gather Tools & Materials: Prepare wire strippers, connectors, heat shrink tubing, soldering iron, and replacement wires
- Disconnect Battery: Ensure safety by disconnecting the car battery before starting any repair work
- Splice or Replace Wires: Cut damaged sections, strip ends, and splice or replace wires using proper connectors
- Test & Secure Connections: Reconnect battery, test fuel pump operation, and secure repaired wires with zip ties
Identify Wire Damage: Locate frayed, corroded, or broken wires near the fuel pump using a multimeter
Frayed, corroded, or broken wires near the fuel pump can lead to erratic engine performance, stalling, or even a no-start condition. Identifying the damage is the first step in repairing it. A multimeter becomes your detective tool here, allowing you to pinpoint the exact location of the problem.
Before diving in, ensure your vehicle is on a level surface, the engine is off, and the ignition is in the "off" position. Safety first – disconnect the battery to prevent accidental sparks.
Start by locating the fuel pump wiring harness. Consult your vehicle's manual for its exact location, as it varies across makes and models. Once found, visually inspect the wires for obvious signs of damage: exposed copper strands, cracked insulation, or burn marks. Even minor fraying can cause intermittent issues. If visual inspection doesn't reveal the culprit, it's time to bring out the multimeter.
Set your multimeter to the continuity setting (usually represented by a diode symbol or a sound wave). This setting checks if electricity can flow through the wire. Touch the multimeter probes to the ends of the wire you suspect is damaged. If the multimeter beeps or shows a reading close to zero, the wire has continuity and is likely intact. If there's no beep or the reading is infinite, the wire is broken or severely damaged.
Remember, fuel pump wires often run through areas exposed to heat, moisture, and vibration, making them prone to wear and tear. Don't assume a wire is good just because it looks intact. Always use the multimeter to confirm continuity. By systematically testing each wire in the harness, you can accurately identify the damaged section, paving the way for a successful repair.
