Mercedes Mullins
Clogged fuel injectors can cause a range of issues, from an engine that idles roughly to one that stalls altogether. Fuel injectors deliver fuel to the combustion chamber, and if they are blocked, the air-fuel mixture becomes 'lean', meaning there is too much air and not enough fuel. This can be caused by carbon build-up, gunk in the fuel supply, rust, or a bad fuel filter. To unclog a fuel injector, it is recommended to remove it from the engine and use a high-quality injector cleaner. This can be done by connecting the injector to a battery and spraying aerosol injector cleaner through it, followed by compressed air.

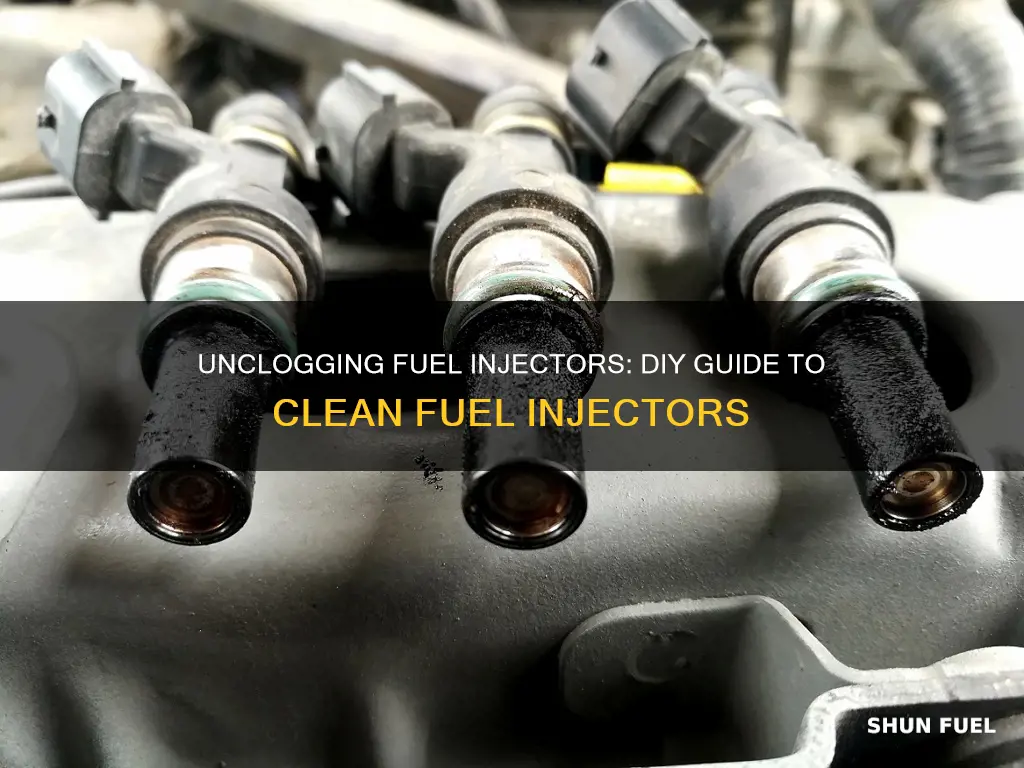

How to Unclog Fuel Injectors
| Characteristics | Values |
|---|---|
| Signs of Clogged Fuel Injectors | Rough idling, stalling, increased fuel consumption, poor fuel economy, Check Engine Light is on |
| Causes of Clogged Fuel Injectors | Carbon accumulation, gunk and varnish buildup, sediment and debris from fuel storage tanks, rust from gas tank, bad fuel filter |
| Cleaning Methods | Remove and clean injectors manually, use gasoline/fuel injector additives, connect to a 9V battery and spray aerosol injector cleaner, use acetone or compressed air |
| Tools and Materials | Electrical lead, vehicle battery, rubber hose, injector cleaner, replacement o-rings, rubber clamps, gasoline additive, 9V battery, aerosol injector cleaner, acetone |
| Precautions | Ensure spark plugs are dry, do not use excessive current |
Explore related products
What You'll Learn
Cleaning without removing injectors
Cleaning Fuel Injectors Without Removing Them
Fuel injectors are small electrical devices that inject fuel into the combustion chamber of a vehicle's engine. They are essential for a smooth-running engine, but over time, they can get clogged with dirt and carbon deposits, leading to issues like rough idling, reduced efficiency, and power loss.
Steps to Clean Fuel Injectors Without Removing Them:
- Prepare the work area: Ensure you are working in a well-ventilated area as you will be using solvents. It is also important to wear protective clothing, such as long trousers and sleeves, to safeguard your skin from any potential burns.
- Locate the fuel injector: Open your car hood and locate the fuel injector. The location of the fuel rail, which supplies the fuel injectors with fuel, can vary between different car models, so you may need to refer to your car manual.
- Disconnect the fuel rail: Disconnect the fuel rail from the injector by removing its bolts or loosening the clamp, depending on your car's make and model.
- Prepare the cleaning solution: Remove the cap of your fuel injector cleaning tool and fill it with your chosen cleaning solution. The cleaning solution should be formulated to dissolve build-ups and deposits in the injector nozzles.
- Set up the cleaning tool: Place the fuel injector cleaning tool above the engine and, if possible, hang it from your bonnet using the hook. Connect the outlet pipe of the tool to your fuel rail using the appropriate connector attachment. Most kits come with a variety of connectors, so try a few to find the right fit for your fuel pipe.
- Deactivate the fuel pump: Open your car's fuse box and remove the fuel pump relay to prevent fuel from being sent to the engine during the cleaning process. This step is crucial to avoid potential damage.
- Run the cleaning solution: Once everything is set up, run the engine and let it idle until the cleaning solution is all used up. This allows the cleaning solution to pass through the injectors and remove any debris and grime.
- Reattach components: After the cleaning solution is used up, turn off your engine and disconnect the fuel injector cleaning kit. Reattach all the components you removed, including the fuel rail, hose, fuel tank cover, and pump relay.
- Check for issues: Start the engine and ensure it is running smoothly. Pay attention to any leaks or unusual noises that may indicate underlying issues. If you encounter any problems, seek professional assistance.
Preventative Measures:
To maintain the cleanliness of your fuel injectors and reduce the need for frequent cleaning, consider the following preventative measures:
- Regular check-ups
- Usage of fuel additives
- Opting for high-quality fuel
- Using top-tier gasoline, especially for gasoline direct injection (GDI) engines
Fuel Injector Cleaner: Can You Overdo It?
You may want to see also
Explore related products
Using electricity to clean injectors
Using electricity to clean fuel injectors is a process that can be done at home with the right tools and safety precautions. It is important to note that fuel injectors are key components linked to a car's performance, and regular maintenance can help prevent issues. Here is a step-by-step guide on how to use electricity to clean your fuel injectors:
Step 1: Purchase a Fuel Injector Cleaner Kit
Firstly, you will need to acquire a fuel injector cleaner kit. These kits are designed to simplify the cleaning process and are usually compatible with various vehicle models. Look for a kit that includes all the necessary tools for a thorough cleaning, such as the OTC 7649A Cleaning Kit or a similar alternative. Ensure that the kit contains a cleaning fluid that can effectively dissolve carbon deposits, such as those containing polyetheramine (PEA).
Step 2: Disconnect the Fuel Pump
Before beginning the cleaning process, it is crucial to disconnect the fuel pump to prevent fuel from entering the injectors during cleaning. This can typically be done by removing a fuse or relay. Once the pump is disconnected, start the engine and let it run until it uses up the fuel in the lines and dies, depressurizing the fuel system.
Step 3: Access the Fuel Injectors
Carefully disconnect the electrical connectors from each injector. You may need to use a wrench to remove any bolts or fasteners holding the fuel rail in place. Gently lift the fuel rail to access the injectors. Some kits may require you to attach a hose from the kit to the fuel port on the fuel rail, bypassing the vehicle's fuel system.
Step 4: Apply Electric Current
Attach alligator clips to the leads on a 12-volt battery. Connect the other end of the leads to the ports on the side of the fuel injector. This will provide electric power to the injector, allowing the cleaning process to begin.
Step 5: Clean the Fuel Injectors
With the electric current applied, spray carburetor or engine cleaner into the fuel injector for about 60 seconds. This will flush out the injector and remove any residue or buildup inside. You may need to repeat this process for each injector. Additionally, some kits may instruct you to fill the injector with a cleaning solution and let it run through the injectors for 15 to 30 minutes, depending on the level of clogging.
Step 6: Reassemble and Test
Once the cleaning process is complete, carefully reassemble the components in the reverse order of disassembly. Reattach the fuel rail with the injectors to the engine, ensuring all injectors are properly seated. Reconnect the electrical connectors and the fuel pump by replacing the previously removed fuse or relay. Turn on the ignition to re-pressurize the fuel system and check for any leaks. Finally, start the engine and let it idle to ensure everything is functioning correctly.
It is important to note that, in some severe cases, you may need to dismantle the fuel injector system and seek professional help for cleaning or replacement. Additionally, always refer to your vehicle's manual or online resources to understand the specific layout of your engine and the location of the fuel injectors.
Cleaning Fuel Injectors: DIY or Professional Help?
You may want to see also
Explore related products
Removing gunk and carbon buildup
To remove gunk and carbon buildup from your vehicle's fuel injectors, you must first remove the injectors from your vehicle's engine. The amount of disassembly will vary depending on the type of engine, but you will likely need to disconnect the fuel supply and remove the fuel rails. Consult your vehicle's service manual for detailed instructions on this process.
Once the injectors are removed, you can begin the cleaning process. Attach a rubber hose to the opening using hose clamps to prevent any spills. Connect one side of an electrical lead to the injectors and the other side to the positive terminal of your vehicle's battery. Only connect the lead when you are ready to create a spark.
To clean the injectors, use a high-quality injector cleaner. There are hundreds of cleaners available on the market. Allow the cleaner to flow through the injectors, ensuring that it reaches the valve area, as surface cleaning is often insufficient. You can also try using acetone, brake cleaner, or carb cleaner to remove caked-on varnish or debris.
After cleaning, disconnect the rubber hose from the rail side and attach it to the outflow side. This will help remove any remaining deposits or buildup. Finally, attach a new o-ring and re-insert the fuel injector. It is recommended to replace the o-rings, as they are generally not reusable.
If you prefer not to remove the injectors from the engine, you have some alternative options. You can use a gasoline additive that cleans fuel injectors or try using a 9V battery to open the injector and spray aerosol injector cleaner through it, followed by compressed air. However, keep in mind that these methods may not be as effective as removing the injectors and cleaning them thoroughly.
Understanding Diesel Engine Fuel Injector Systems
You may want to see also
Explore related products
Signs of clogged injectors
Clogged fuel injectors are a natural byproduct of engine combustion. The injectors are clogged by carbon deposits created when gasoline burns. The injectors can be clogged in their open position or stuck shut. While diagnosing dead or clogged fuel injectors can be difficult, there are several signs that indicate your fuel injectors are clogged.
One of the most common signs of clogged fuel injectors is engine performance issues. This could manifest as a sluggish response to your acceleration commands, including when you are stopped or trying to pick up speed. Your engine may also start to surge or sputter and threaten to stall. In some cases, clogged fuel injectors can lead to engine failure and prevent your car from starting.
Clogged fuel injectors can also affect your gas mileage. If the injectors are clogged in the open position, your engine will receive too much gasoline and burn off the excess, reducing your gas mileage. Conversely, if the injectors are partially clogged closed, your engine will not receive enough gasoline, causing it to work harder and stress out, again reducing your gas mileage.
Another sign of clogged fuel injectors is rough idling. Your engine should always idle smoothly, and rough idling can indicate that your engine is not getting enough gasoline due to clogged injectors. You will feel your vehicle vibrate as you sit at an idle, and you may hear the engine cutting in and out or sputtering. If the problem is severe, you may also notice excess black exhaust.
Finally, if your fuel injectors are leaking, it could be a sign that they are clogged. A fuel leak could indicate a crack in the rubber seals or the fuel injector itself, and clogged injectors can cause leaking due to the build-up of pressure.
Stabil Fuel Injector Cleaning: Does It Work?
You may want to see also
Explore related products
Cleaning products to use
To unclog fuel injectors, it is recommended to remove them from the engine and clean them thoroughly. This allows you to physically remove any gunk, varnish, or sediment that has built up.
There are a variety of cleaning products available to clean fuel injectors. One option is to use a high-quality injector cleaner. These are available in aerosol cans and can be sprayed through the injectors, followed by compressed air. It is important to note that you should not use anything more powerful than a 9V battery to avoid damaging the injectors.
Another method is to use a fuel pump to force acetone through the injectors in both directions. This ensures that the cleaner reaches the valve area, which is crucial for effective cleaning.
Additionally, there are gasoline additives available that can clean fuel injectors without the need to remove them from the engine. However, it is important to note that these additives may not be as effective if they cannot get inside the injector.
To prevent future clogging, it is recommended to regularly clean your fuel injectors and ensure that your fuel tank is free of debris and sediment.
Fuel Injectors in Nissan Altima: How Many Are There?
You may want to see also
Frequently asked questions
If your vehicle’s engine is idling roughly or stalling, this could be a sign of a clogged fuel injector. Other signs include jerkiness, unsmooth driving or acceleration, and burning more gas.
Fuel injectors can get clogged due to a build-up of varnish, gunk, and sediment when fuel is left in the tank for long periods. They can also get clogged by rust from the vehicle's gas tank or a bad fuel filter.
Yes, there are some options for cleaning fuel injectors without removal. You can use a gasoline additive, or an aerosol injector cleaner, followed by compressed air.
You can use a gasoline additive that cleans fuel injectors. Alternatively, you can connect the fuel injector to a 9V battery, and spray aerosol injector cleaner through it.
First, remove the fuel injectors from your vehicle’s engine. Disconnect the fuel supply and remove the fuel rails, and the rubber o-ring from the fuel rail side of the injector. Attach a rubber hose to the opening using hose clamps to prevent spills. You will also need some electricity to clean the fuel injectors effectively, so connect one side of an electrical lead to the injectors, and the other side to the positive terminal of your vehicle’s battery.
