Regan Brown

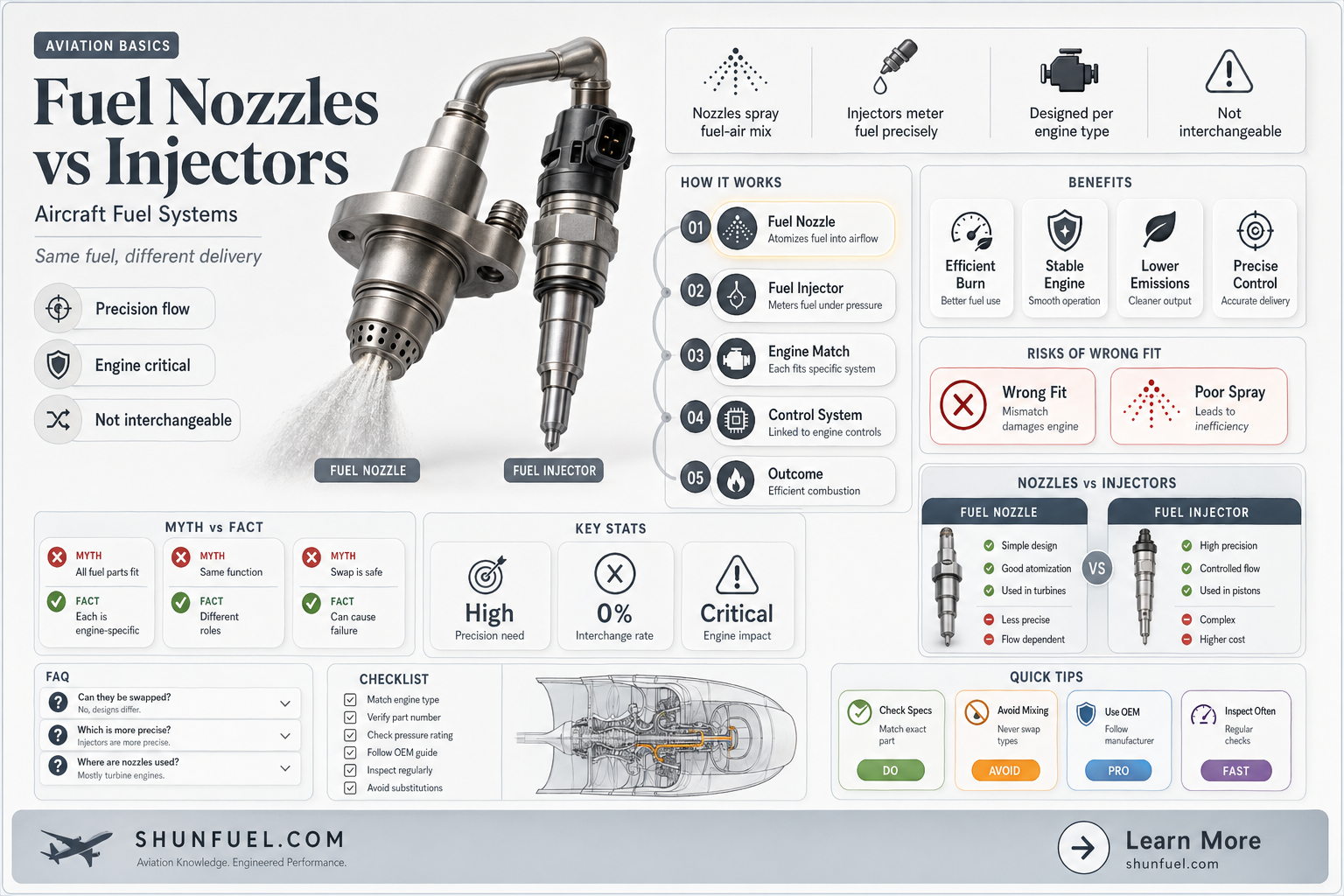

Fuel injectors and nozzles are an important part of the fuel system in vehicles and aircraft. While the terms are often used interchangeably, there are some key differences between fuel injectors and nozzles. Fuel injectors are devices that deliver fuel to the engine, while nozzles are just the end part of the injector with holes that deliver the fuel. Fuel injectors are found in both car engines and aircraft engines, but the specific design can vary between applications. For example, car injectors typically have moving parts and open and close in response to electrical signals, while jet engine fuel nozzles have no moving parts and the fuel flow is regulated by adjusting the fuel pressure. This text will explore the similarities and differences between airplane fuel nozzles and fuel injectors, the problems that can arise, and how to address them.
| Characteristics | Values |
|---|---|
| Fuel Injector Nozzles | Can be cleaned with a solvent |
| Fuel Injector Nozzles | Can be partially or completely plugged |
| Fuel Injector Nozzles | Can be cleaned with acetone and blown out with compressed air |
| Fuel Injector Nozzles | Can be disassembled and replaced |
| Fuel Injector Nozzles | Are constantly spraying fuel into the intake ports |
| Fuel Injector Nozzles | Measure engine air consumption |
| Fuel Injector Nozzles | Use airflow forces to control fuel flow to the engine |
| Fuel Injector Nozzles | Have radial holes (called bleeds) that connect the nozzle's inner bore with the air outside of the injector |
| Fuel Injector Nozzles | Have cylindrical screens and sharp bends in the bleeds to keep foreign materials out |
| Fuel Injector Nozzles | Are controlled for both flow (back pressure) and flow pattern |
| Fuel Injector Nozzles | May be visually inspected with a boroscope |
| Fuel Injector Nozzles | Are different from car injectors, which open and close in response to an electrical signal |
| Fuel Injector Nozzles | Are similar to injectors in a jet engine, which are just nozzles with no moving parts |
| Fuel Injector Nozzles | Are part of the Bendix-RSA and Continental Motors fuel injection systems |
| Fuel Injector Nozzles | Are used on all fuel-injected Lycoming and some Continental engines |
| Fuel Injector Nozzles | May be interchanged with the term "fuel discharge nozzles" |
| Fuel Injector Nozzles | May be contaminated with small amounts of dirt |
Explore related products
What You'll Learn
- Injector nozzles can get plugged, partially or completely
- Fuel flow is controlled by the difference in pressure across the fuel diaphragm
- Injector nozzles can be cleaned with acetone and compressed air
- The stream from each nozzle should be smooth, steady, and equal
- Fuel injectors in jet engines are monitored for defects by FADAC
Injector nozzles can get plugged, partially or completely
The risk of nozzle plugging can be minimized by proper maintenance practices. Nozzles are constantly cleaned with a solvent (avgas), and there are two screens upstream of the nozzle, in the gascolator and fuel control unit, which help prevent plugging. However, our research revealed that most plugged nozzle issues were maintenance-induced, resulting from contamination introduced during the remove-and-replace process, mistorquing of nozzles leading to fuel leaks, or installing nozzles in the wrong cylinders, causing fuel-air mixture imbalances.
To prevent these issues, it is essential to ensure proper maintenance procedures are followed. Additionally, seeking guidance from reputable organizations, such as GAMI and Savvy Aviation Inc., can provide valuable insights into best practices for nozzle care and maintenance.
It is worth noting that the nozzle plays a crucial role in the overall performance of the injector. The nozzle's main function is to spray the fuel into the cylinder in an atomized state (a mist), which facilitates easy ignition and efficient engine operation. The size of the nozzle affects the atomization of the fuel and the rate at which fuel is delivered to the cylinder. Therefore, selecting the appropriate nozzle size and ensuring its proper functioning are vital for optimizing engine performance.
In conclusion, while injector nozzles can experience partial or complete plugging, it is a relatively uncommon occurrence due to the constant cleaning and protective measures in place. Nonetheless, proper maintenance procedures and seeking guidance from experts in the field are crucial to mitigate the risk of nozzle plugging and ensure the optimal performance of the injector system.
Clean Fuel Injectors: DIY Guide for Chevy Cavalier
You may want to see also
Explore related products
Fuel flow is controlled by the difference in pressure across the fuel diaphragm
The term "airplane fuel nozzle" is used interchangeably with "fuel injector" or "fuel injector nozzle". These nozzles are responsible for delivering fuel to the engine. They are a crucial component of the fuel injection system, which controls the flow of fuel to match the engine's airflow requirements.
The fuel flow in these systems is influenced by various factors, including the pressure and volume of fuel supplied to the injectors. The difference in pressure across the fuel diaphragm plays a significant role in regulating fuel flow. This differential pressure, known as the fuel metering force, determines the distance the ball valve attached to the diaphragm opens, thereby controlling the orifice opening and fuel flow rate.
The fuel inlet pressure is applied to one side of the fuel diaphragm, while the metered fuel pressure (after passing through the fuel strainer and manual mixture control rotary plate) is on the other side, or the "ball side". The difference in pressure between these two sides influences the movement of the ball valve, which in turn regulates the fuel flow.
The airflow consumption of the engine is another factor that affects fuel flow. By sensing the impact pressure and venturi throat pressure in the throttle body, the system can measure airflow consumption. These pressures are directed to the two sides of an air diaphragm, and changes in engine air consumption result in variations in air velocity in the venturi. This, in turn, influences the fuel flow to the engine.
Additionally, the fuel flow is controlled by a pressurized flow divider, which ensures that metered fuel is distributed to the various cylinders at different engine speeds. When the control is placed in idle cutoff, this flow divider also shuts off the individual nozzle lines. The role of the fuel control unit is to maintain the metered fuel under pressure and regulate its distribution to the cylinders.
Calibrating Diesel Fuel Injectors: A Step-by-Step Guide for Technicians
You may want to see also
Explore related products
Injector nozzles can be cleaned with acetone and compressed air
Injector nozzles can become partially or fully plugged, leading to diminished fuel flow and a risk of detonation at very high power settings. While it is rare for an injector nozzle to become plugged, it is important to clean them to restore engine performance.
Those with some mechanical skill can also clean injector nozzles themselves. This involves pulling the injectors, disassembling them, and cleaning the parts in an acetone bath and with wire brushes. However, this approach requires careful handling of the injector parts and knowledge of how to put them back together.
Another method for cleaning injector nozzles is to connect the fuel injector to a 9-volt battery and spray aerosol injector cleaner through them, followed by compressed air. It is important not to use anything more powerful than a 9-volt battery, as excessive current can damage the injectors.
In addition to acetone and compressed air, other cleaning solutions can be used to clean injector nozzles, including gasoline, brake cleaner, and carburetor cleaner. However, it is important to note that gasoline can alter the combustion qualities of diesel fuel and strip lubricating films from diesel parts, so it is not recommended.
Testing Fuel Injectors: A Step-by-Step Guide for Miatas
You may want to see also
Explore related products
The stream from each nozzle should be smooth, steady, and equal
When it comes to the topic of airplane fuel nozzles and their relation to fuel injectors, it's important to understand the role of each component in ensuring a smooth and efficient fuel delivery system. In this context, the stream from each nozzle should indeed exhibit specific characteristics for optimal performance.
Firstly, it's crucial to recognise that the terms "fuel discharge nozzles" and "fuel injectors" are often used interchangeably in the aviation industry, particularly in reference to the Bendix-RSA and Continental Motors fuel injection systems commonly found in GA airplanes. These nozzles are an essential part of the fuel injection process, as they are responsible for directing the fuel into the cylinder intake ports.
Now, to ensure optimal performance, the stream from each nozzle should possess certain characteristics. It should be "smooth and steady," as described in various sources. This smoothness and steadiness refer to the consistency and stability of the fuel stream as it exits the nozzle. Any fluctuations or interruptions in the stream can indicate a problem with the nozzle, such as clogging or dirt accumulation.
Additionally, it is important that the amount of fuel discharged from each nozzle is equal. This equality ensures that each cylinder receives the same quantity of fuel, allowing them to produce an equal amount of power. This, in turn, contributes to a smoother and more efficient engine operation. Variations in fuel distribution among cylinders can lead to performance issues and potential safety hazards.
To achieve this equality in fuel distribution, fuel injection systems utilise a fuel distributor or flow divider. This component ensures that the fuel is divided into equal portions and directed to the respective nozzles. Any deviations in the amount of fuel discharged from each nozzle can indicate a restriction or clogging in that particular nozzle, requiring maintenance or cleaning.
In summary, the stream from each nozzle in an airplane's fuel injection system should be smooth, steady, and equal in terms of fuel distribution. These characteristics are essential for maintaining engine performance, efficiency, and overall safety. Regular maintenance and cleaning of the nozzles are crucial to prevent clogging and ensure the desired stream characteristics.
Fuel Injectors in Audi A8: 2009 Model Feature?
You may want to see also
Explore related products
Fuel injectors in jet engines are monitored for defects by FADAC
Fuel injectors and nozzles are used interchangeably in aviation. Fuel injectors in jet engines are monitored for defects by FADAC (or FADEC) to ensure optimum engine efficiency and safety. FADAC stands for Full Authority Digital Engine (or Electronics) Control. It is a system consisting of a digital computer called an Electronic Engine Controller (EEC) or Engine Control Unit (ECU) and its accessories, which control all aspects of aircraft engine performance.
FADAC monitors fuel flow, compressor vane position, engine roughness, and other parameters to ensure the engine is functioning correctly. The throttle response and Exhaust Gas Temperature (EGT) are also monitored to understand the health of the fuel nozzles. If the engine exceeds the EGT limit, a borescope inspection is required to visually verify the condition of the fuel nozzles and combustion chamber. This is because defective fuel nozzles can lead to a "hot spot" that accelerates the burning/oxidation of the combustion chamber.
The FADAC system automatically sets the fuel mixture and ignition timing for the most efficient power-to-fuel consumption, taking into account RPM, throttle position, air temperature, oil temperature, and atmospheric pressure. Each cylinder has its own fuel injector, ensuring an equal distribution of fuel and, therefore, equal power production in all cylinders.
FADAC has been produced for both piston and jet engines, with the first FADAC in service being the Rolls-Royce Pegasus engine developed for the Harrier II. FADAC can also be programmed to take automatic measures to avoid exceeding certain engine parameters, such as temperature, without pilot intervention.
Fuel Injector Types: How Many Are There?
You may want to see also
Frequently asked questions
A nozzle is the metal end part of the injector assembly with holes in it. Fuel injector nozzles are designed to deliver specific amounts of fuel to each individual cylinder.
A clogged nozzle may be identified by a smaller amount of fuel in its container after the flow-check period. Other signs include erratic combustion or engine surging.
The proper method of cleaning is to wash the nozzle thoroughly with acetone and blow it out with compressed air. However, cleaning does not always work, and the nozzle may need to be replaced.
