Katerina Swanson

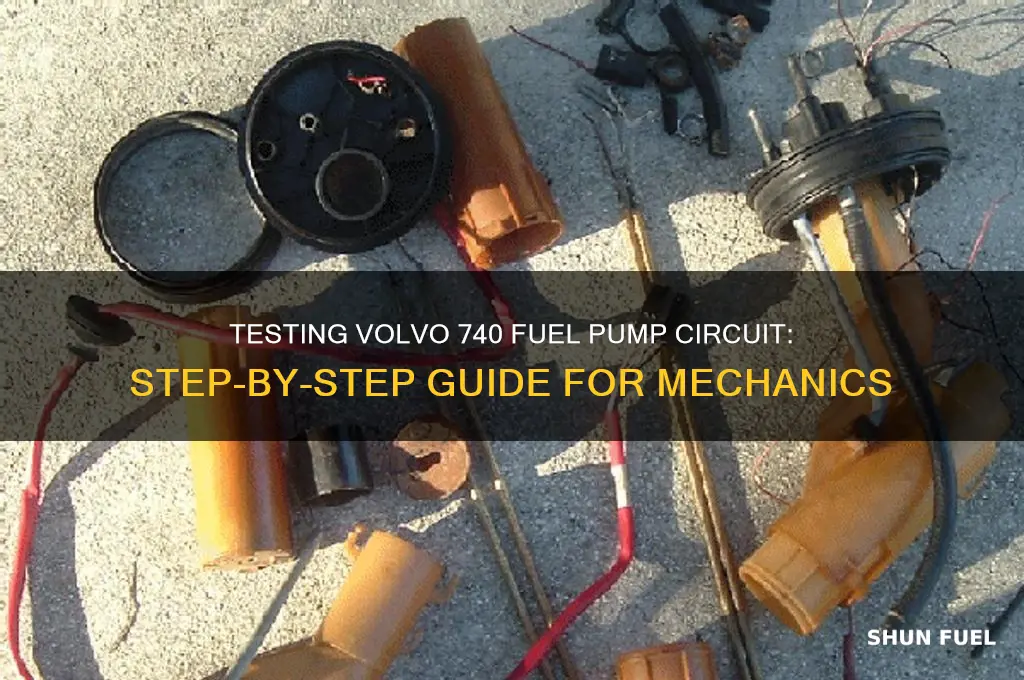

Testing the fuel pump circuit on a Volvo 740 involves a systematic approach to ensure the system is functioning correctly. Start by verifying the fuel pump relay, which is typically located in the fuse box; swap it with a similar relay or use a multimeter to check for continuity. Next, inspect the fuel pump fuse for any signs of damage or blowing. With the key in the on position, listen for the fuel pump’s priming hum near the fuel tank; if absent, proceed to check the fuel pump’s electrical connections for corrosion or loose wires. Use a test light or multimeter to confirm power is reaching the pump at the connector. If power is present but the pump doesn’t operate, the pump itself may be faulty and require replacement. Always prioritize safety by working in a well-ventilated area and disconnecting the battery before handling electrical components.
Explore related products
What You'll Learn
Fuel Pump Relay Testing
The fuel pump relay in a Volvo 740 is a critical component that bridges the gap between the ignition system and the fuel pump, ensuring that fuel is delivered to the engine only when necessary. Testing this relay is a straightforward process that can help diagnose issues such as a non-starting engine or erratic fuel delivery. Begin by locating the relay, typically found in the fuse box under the hood or near the driver’s side kick panel. Consult the vehicle’s manual for the exact location, as it varies by model year. Once identified, the relay can be tested using a multimeter or by swapping it with a known-good relay from another circuit.
To test the fuel pump relay using a multimeter, start by removing it from its socket. A typical relay has four or five pins, corresponding to the coil and contacts. Apply 12 volts to the coil pins (usually marked as 85 and 86) and check for continuity between the common pin (87) and the normally open pin (30). If the relay is functioning, the multimeter should show a closed circuit when voltage is applied. Conversely, if the relay is faulty, there will be no continuity, indicating a need for replacement. This method is precise and allows for a clear diagnosis of the relay’s internal state.
Another practical approach is the swap test, which requires no specialized tools. Locate a relay in the fuse box that matches the fuel pump relay’s pin configuration, such as the horn or cooling fan relay. Swap the relays and attempt to start the vehicle. If the fuel pump engages and the engine starts, the original relay is likely faulty. However, if the issue persists, the problem may lie elsewhere in the circuit, such as a bad fuel pump or a wiring fault. This method is quick and effective for isolating the relay as the source of the problem.
When testing the fuel pump relay, it’s crucial to observe safety precautions. Always disconnect the battery before handling electrical components to prevent short circuits or accidental activation of systems. Additionally, avoid touching the relay’s terminals with bare hands, as oil from the skin can cause corrosion. If using a multimeter, ensure it is set to the correct voltage or resistance range to avoid damaging the device. These steps not only ensure accurate testing but also protect both the vehicle and the technician.
In conclusion, fuel pump relay testing is a vital diagnostic step for troubleshooting fuel delivery issues in a Volvo 740. Whether using a multimeter for a detailed analysis or performing a swap test for a quick check, understanding the relay’s function and location is key. By following these methods and safety guidelines, even a novice can effectively diagnose and resolve relay-related problems, restoring the vehicle’s performance with confidence.
Troubleshooting Gasboy Transfer Pump: Common Issues and Fixes for Fuel Pumping
You may want to see also
Explore related products
Circuit Wiring Continuity Check
A broken fuel pump circuit can leave your Volvo 740 stranded, but a continuity check is a powerful diagnostic tool to pinpoint the issue. This test verifies the electrical pathway between two points in the circuit, ensuring current can flow uninterrupted. Think of it as checking for a clear road: if there's a break or obstruction, the fuel pump won't receive power.
Conducting a continuity check requires a multimeter, a device that measures electrical resistance. Set your multimeter to the continuity or resistance setting, typically denoted by a symbol resembling a speaker or the Greek letter omega (Ω). Touch the probes together; a beep or near-zero resistance reading confirms the meter is functioning correctly.
Now, locate the fuel pump relay and connector within your Volvo's engine bay. Consult your vehicle's manual for precise locations. With the ignition off, disconnect the fuel pump connector. Identify the power and ground wires leading to the pump. Touch one multimeter probe to the power wire terminal and the other to a good ground, such as the engine block. If the circuit is intact, the multimeter will beep or display a low resistance reading. No beep or high resistance indicates a break in the wiring, a faulty connector, or a problem with the fuel pump itself.
Remember, safety is paramount. Always disconnect the battery before working on any electrical components. Avoid conducting tests with the engine running, as fuel pumps operate under pressure and can be dangerous. If you're unsure about any step, consult a qualified mechanic.
By systematically checking continuity throughout the fuel pump circuit, you can isolate the source of the problem and get your Volvo 740 back on the road. This methodical approach saves time and money by preventing unnecessary part replacements and ensures a safe and effective repair.
Emergency Car Starting: How to Run Your Vehicle Without a Fuel Pump
You may want to see also
Explore related products
Voltage Drop Measurement at Pump
A critical step in diagnosing fuel pump circuit issues in a Volvo 740 is measuring voltage drop across the pump’s terminals. This test isolates resistance in the circuit, which can cause insufficient power delivery to the pump. Unlike a simple voltage presence test, voltage drop measurement reveals hidden problems like corroded connections, undersized wiring, or high-resistance grounds. It’s a precise diagnostic tool that differentiates between a failing pump and a failing circuit.
To perform this test, start by locating the fuel pump’s electrical connector, typically found near the tank or in the engine bay relay area. With the ignition on and the pump activated (via the relay or a manual override), connect your multimeter in parallel across the pump’s positive and negative terminals. A healthy circuit should show a voltage drop of less than 0.2 volts under load. Higher readings indicate excessive resistance, pointing to issues like oxidized terminals, damaged wires, or poor grounding. Always compare the drop to battery voltage; for a 12V system, a 1V drop represents an 8% power loss, which can starve the pump.
One common oversight is neglecting to test under load. The pump draws maximum current when running, so testing with the pump off or idling provides incomplete data. Use a fuel pump relay test procedure or a jumper wire to activate the pump while measuring. Additionally, ensure the ground path is tested separately by measuring voltage drop between the pump’s ground terminal and the battery negative. A significant drop here often indicates a faulty ground connection, a frequent culprit in older vehicles like the Volvo 740.
Comparing voltage drop measurements to known benchmarks is key. For instance, a 0.5V drop across a 15-amp load translates to a 0.033-ohm resistance—well above acceptable limits for a fuel pump circuit. Such discrepancies highlight the need for repairs, whether replacing damaged wires or cleaning corroded terminals. This methodical approach not only identifies the problem but also quantifies its severity, guiding targeted repairs.
In practice, voltage drop testing is a time-saver. Instead of replacing parts blindly, it pinpoints the exact location of circuit inefficiency. For the Volvo 740, where fuel pump issues are common, this test distinguishes between a worn pump and a failing electrical supply. Armed with a multimeter and this technique, even novice mechanics can diagnose complex issues with confidence, ensuring the pump receives the full power it needs to operate reliably.
Locate the Fuel Pump Relay on a 2000 Nissan Altima
You may want to see also
Explore related products
Inertia Switch Functionality Test
The inertia switch in a Volvo 740 is a critical safety feature designed to cut power to the fuel pump in the event of a collision, reducing the risk of fire. Testing its functionality ensures it operates correctly without falsely triggering or failing to respond when needed. This test is straightforward but requires attention to detail to avoid misinterpretation of results.
Begin by locating the inertia switch, typically mounted in the trunk or near the fuel pump relay. It features a red button that resets the circuit after activation. With the ignition off, press this button to ensure it’s in the "on" position. Next, start the vehicle and listen for the fuel pump’s priming hum, which confirms the circuit is active. If the pump doesn’t engage, the switch may be faulty or stuck in the "off" position.
To simulate an impact, gently but firmly tap the switch with a mallet or heavy object while the engine is running. The fuel pump should immediately stop, and the engine will stall. If it doesn’t, the switch is likely defective and needs replacement. After the test, reset the switch by pressing the red button again and verify the pump reactivates upon restarting the vehicle.
A common mistake is over-force when testing, which can damage the switch or surrounding components. Use controlled, moderate taps, and avoid striking the switch directly with metal tools. Additionally, ensure the vehicle is in a safe, well-ventilated area during testing to mitigate risks associated with fuel system manipulation.
In conclusion, the inertia switch functionality test is a quick but essential diagnostic step in evaluating the Volvo 740’s fuel pump circuit. It combines simplicity with precision, ensuring this safety mechanism remains reliable. Regular testing, especially after minor collisions or if fuel delivery issues arise, can prevent potential hazards and maintain the vehicle’s operational integrity.
1996 Mercury Villager Van Fuel Pump Location Guide
You may want to see also
Explore related products
Fuel Pressure Regulator Inspection
A malfunctioning fuel pressure regulator can lead to poor engine performance, reduced fuel efficiency, or even stalling. Inspecting this component is a critical step when diagnosing issues in the Volvo 740’s fuel pump circuit. Begin by locating the regulator, typically mounted on the fuel rail near the intake manifold. Before proceeding, relieve fuel system pressure by disconnecting the fuel pump relay and running the engine until it stalls. This safety measure prevents accidental fuel spray during inspection.
Visually inspect the regulator for signs of leakage, corrosion, or damage. Even a small fuel stain around the diaphragm or vacuum hose connection can indicate a failing unit. Next, check the vacuum hose connected to the regulator for cracks, looseness, or disconnection. A compromised vacuum hose can disrupt the regulator’s ability to maintain proper fuel pressure, leading to symptoms like hard starting or rough idling. Replace the hose if any defects are found.
To test the regulator’s functionality, use a fuel pressure gauge to measure pressure at idle and under load. Connect the gauge to the fuel rail test port and start the engine. At idle, the pressure should typically read between 30 and 40 psi, depending on the model year. Rev the engine to 2000 RPM and observe the pressure drop; a functioning regulator will maintain a consistent drop of 5–10 psi. If the pressure fails to adjust or drops excessively, the regulator is likely faulty and requires replacement.
Consider the age and mileage of the vehicle when interpreting results. Volvo 740s from the late 1980s and early 1990s often experience regulator failure after 150,000 miles due to diaphragm wear. If the regulator is suspected to be the issue, replacement is generally more cost-effective than attempting a repair. Always use OEM or high-quality aftermarket parts to ensure compatibility and reliability.
Incorporating this inspection into your diagnostic routine can save time and prevent misdiagnosis. While the fuel pump often takes the blame for circuit issues, a failing regulator can mimic similar symptoms. By systematically evaluating the regulator’s condition and performance, you can pinpoint the root cause and restore the Volvo 740’s fuel system to optimal operation.
Locating the Fuel Pump on a 1996 Corvette: A Quick Guide
You may want to see also
Frequently asked questions
Locate the fuel pump relay in the fuse box, typically under the hood. Swap it with a relay of the same type (e.g., AC compressor relay) and start the engine. If the fuel pump works, the original relay is faulty.
With the ignition on, you should measure 12 volts at the fuel pump connector. Use a multimeter to test for power at the pump’s positive terminal.
Disconnect the fuel pump connector and use a multimeter to check for continuity between the ground terminal and the vehicle chassis. A reading of 0 ohms indicates a good ground.
Turn the ignition to the "on" position (do not start the engine) and listen for the fuel pump’s priming hum near the fuel tank. If no sound is heard, the pump may be faulty or the circuit is compromised.
