The fuel pump on a 1996 Corvette is located inside the fuel tank, a common placement for many modern vehicles to ensure safety and maintain fuel pressure. To access it, you’ll need to remove the fuel tank, which involves disconnecting the fuel lines, electrical connectors, and tank straps. This process requires careful attention to safety, as working with fuel systems can be hazardous. Once the tank is removed, the fuel pump module can be accessed and replaced if necessary. It’s recommended to consult the vehicle’s service manual or seek professional assistance if you’re unfamiliar with the procedure.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank (in-tank fuel pump) |
| Access Point | Beneath the rear seat, requiring seat removal for access |
| Fuel Tank Type | Single fuel tank (located at the rear of the vehicle) |
| Pump Type | Electric fuel pump |
| Model Specifics | Applies to all 1996 Chevrolet Corvette models (C4 generation) |
| Tools Required for Access | Socket set, screwdriver, trim removal tools |
| Common Issues | Fuel pump failure, fuel pressure regulator issues, wiring harness problems |
| Replacement Difficulty | Moderate (requires fuel tank draining and rear seat removal) |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel pressure |
| OEM Part Number | Varies by specific model and manufacturer (e.g., AC Delco or equivalent) |
Explore related products
What You'll Learn
Fuel pump location in 1996 Corvette engine bay
The fuel pump in a 1996 Corvette is not located in the engine bay, contrary to what one might expect. Instead, it is situated within the fuel tank, a design choice that offers several advantages. This in-tank placement reduces fuel pump noise, keeps the pump cool by immersing it in fuel, and minimizes the risk of fuel line leaks. For Corvette owners, this means the fuel pump is less accessible for quick inspections but is generally more reliable over time.
To access the fuel pump for maintenance or replacement, you’ll need to remove the fuel tank. Start by relieving the fuel system pressure, disconnecting the negative battery terminal, and raising the vehicle to access the tank from beneath. The tank is secured by straps and electrical connectors, which must be carefully detached. Once removed, the fuel pump module can be extracted by releasing the locking ring that holds it in place. This process requires basic mechanical skills and safety precautions, such as working in a well-ventilated area and avoiding ignition sources.
Comparing the 1996 Corvette’s fuel pump location to earlier models highlights a significant evolution in design. Older Corvettes often featured external fuel pumps, which were more prone to overheating and failure. The in-tank design introduced in the C4 generation (1984–1996) improved longevity and performance, making it a benchmark for modern fuel delivery systems. This shift underscores the importance of understanding your vehicle’s specific design when troubleshooting or upgrading components.
For DIY enthusiasts, replacing the fuel pump on a 1996 Corvette can be a cost-effective alternative to professional service. Aftermarket fuel pump kits are available, typically ranging from $150 to $300, depending on the brand and included components. Ensure the replacement pump meets OEM specifications to avoid compatibility issues. While the task is straightforward, it’s crucial to follow a step-by-step guide or consult a repair manual to avoid mistakes that could lead to fuel system damage or safety hazards.
Finally, regular maintenance of the fuel system can prevent premature fuel pump failure. Inspect fuel lines for cracks, ensure the fuel filter is replaced every 30,000 miles, and use high-quality gasoline to minimize contaminants. For 1996 Corvette owners, understanding the fuel pump’s in-tank location and its maintenance requirements can save time, money, and frustration, ensuring the vehicle’s performance remains optimal for years to come.
DIY Fuel Pump Relay Bypass: Step-by-Step Guide for Easy Installation
You may want to see also
Explore related products
Identifying the fuel pump assembly components

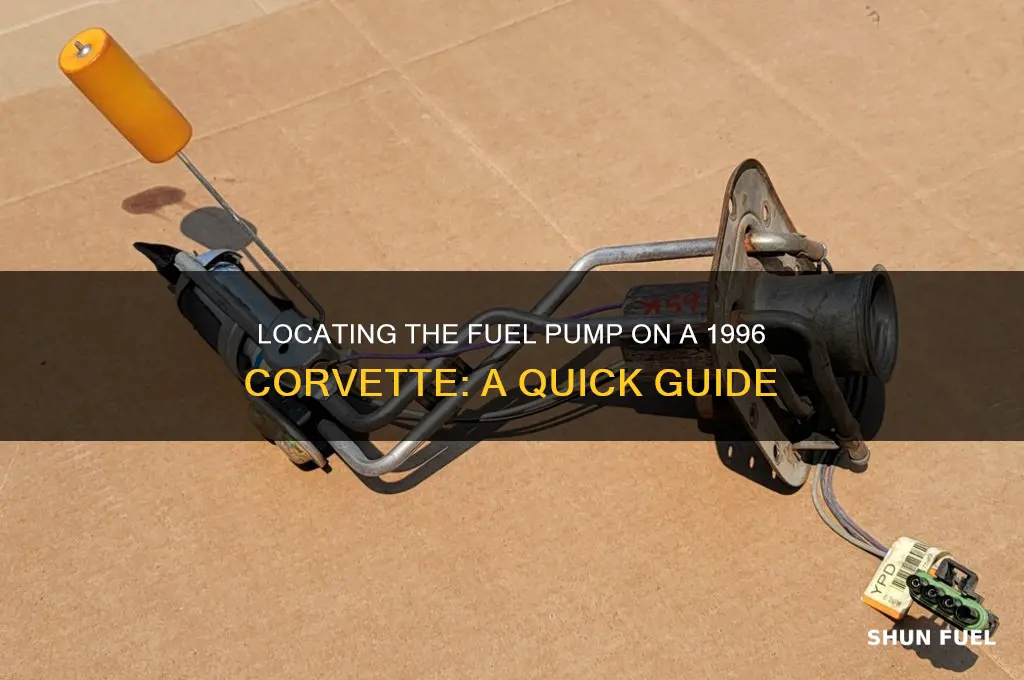

The fuel pump on a 1996 Corvette is located within the fuel tank, a common placement in many modern vehicles to reduce the risk of fire and maintain fuel pressure. Identifying the components of the fuel pump assembly is crucial for maintenance, troubleshooting, or replacement. The assembly typically includes the electric fuel pump, a sending unit that monitors fuel levels, a pressure regulator to maintain consistent fuel pressure, and a filter to prevent contaminants from reaching the engine. Each component plays a vital role in ensuring the engine receives clean, pressurized fuel for optimal performance.
Analyzing the fuel pump assembly begins with understanding its modular design. The electric fuel pump is the heart of the system, drawing fuel from the tank and delivering it to the engine. The sending unit, often integrated with the pump, provides real-time data on fuel levels to the vehicle’s gauge. The pressure regulator ensures fuel pressure remains within the engine’s specifications, preventing issues like vapor lock or poor combustion. The filter, usually located at the pump’s inlet, traps debris and particles, safeguarding the fuel injectors and engine. Recognizing these components and their functions is the first step in diagnosing or servicing the system.
When identifying the fuel pump assembly components, start by locating the fuel tank access panel, typically beneath the rear seat or trunk. After safely relieving fuel system pressure, remove the panel to expose the tank. The assembly is usually secured by a locking ring or bolts, which, when removed, allow the unit to be extracted from the tank. Inspect each component for signs of wear, corrosion, or damage. For example, a clogged filter or a malfunctioning sending unit can lead to inaccurate fuel gauge readings or poor engine performance. Practical tip: Always work in a well-ventilated area and use non-sparking tools to minimize fire risk.
Comparatively, the 1996 Corvette’s fuel pump assembly shares similarities with other GM vehicles of the era but includes unique features tailored to its high-performance engine. For instance, the pump’s flow rate and pressure specifications are higher to meet the demands of the LT1 or LT4 V8 engines. This makes compatibility a key consideration when sourcing replacement parts. While aftermarket options may be available, OEM components ensure precise fitment and performance. Additionally, the Corvette’s in-tank design requires careful handling during removal and installation to avoid damaging the tank or assembly.
Instructively, to replace or service the fuel pump assembly, follow these steps: First, disconnect the negative battery terminal to prevent electrical hazards. Relieve fuel system pressure using the Schrader valve near the fuel rail. Remove the rear seat or trunk panel to access the fuel tank. Disconnect the electrical connector and fuel lines from the assembly. Use a specialized tool to remove the locking ring and extract the unit. Install the new assembly, ensuring all components are securely connected and sealed. Reassemble the vehicle, then test the system for leaks and proper operation. Caution: Fuel systems operate under high pressure, so always exercise care to avoid injury or damage.
