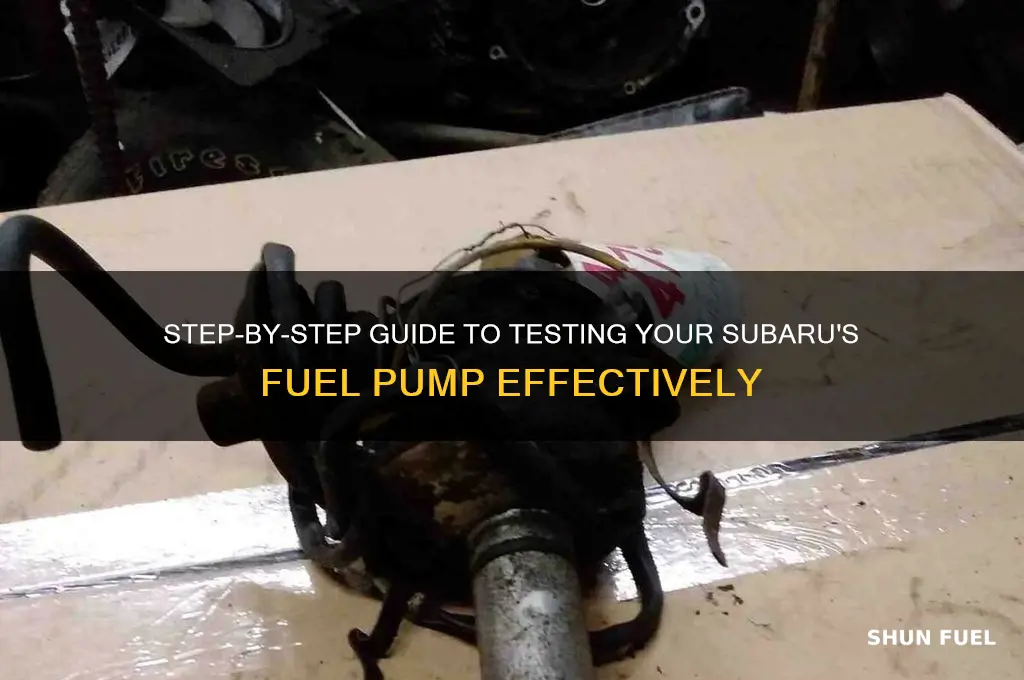

Testing a Subaru fuel pump is a critical diagnostic step to ensure your vehicle’s fuel system is functioning properly. The fuel pump is responsible for delivering fuel from the tank to the engine, and any malfunction can lead to poor performance, stalling, or even a no-start condition. To test the fuel pump, start by checking the fuel pressure using a gauge, which should match the specifications outlined in your Subaru’s service manual. Additionally, listen for the fuel pump’s priming noise when turning the ignition to the ON position without starting the engine. If the pump is silent or pressure is insufficient, further inspection of the pump, relay, fuse, and wiring may be necessary to identify and resolve the issue. Proper testing ensures the fuel pump is either functioning correctly or requires replacement, maintaining your Subaru’s reliability and performance.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Fuel Pressure Gauge, Safety Gloves, Safety Goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Fuel Pump Location | Typically located inside the fuel tank (access via rear seat or trunk) |
| Testing Method 1: Listen for Operation | Turn the ignition to ON (do not start), listen for a humming sound (2-3 seconds) |
| Testing Method 2: Measure Voltage | Check voltage at the fuel pump connector (typically 12V with ignition ON) |
| Testing Method 3: Fuel Pressure Test | Connect a fuel pressure gauge to the fuel rail, check pressure (Subaru specs vary by model, e.g., 40-60 PSI) |
| Testing Method 4: Resistance Check | Measure fuel pump resistance (typically 1-3 ohms, consult Subaru manual for exact specs) |
| Common Symptoms of Failure | Engine cranks but won’t start, sputtering, loss of power, no humming sound |
| Replacement Recommendation | Replace fuel pump if it fails any of the above tests |
| Applicable Subaru Models | Impreza, Outback, Legacy, Forester, WRX, BRZ, etc. (varies by year/model) |
| Professional Assistance | Consult a certified Subaru mechanic for complex diagnostics or replacement |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
- Electrical Testing: Check voltage at pump connector, test for continuity in wiring
- Pressure Testing: Use gauge to measure fuel pressure, compare with specifications
- Listening Test: Turn key to ON, listen for pump hum (2-3 seconds)
- Post-Test Inspection: Inspect pump for leaks, corrosion, or physical damage
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
Before testing a Subaru fuel pump, meticulous pre-test preparation is crucial to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a fuel pressure gauge, wrenches or sockets (typically 10mm and 12mm for Subaru models), safety gloves, safety goggles, and a container for fuel spillage. A multimeter may also be required if electrical testing is part of your diagnostic process. Organizing these tools beforehand prevents mid-task interruptions and reduces the risk of errors.
Safety is paramount when working with fuel systems. Fuel is highly flammable and can cause severe injuries if mishandled. Always work in a well-ventilated area, away from open flames or sparks. Wear nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from potential splashes. Ensure the vehicle is parked on a level surface and the engine is cool to minimize risks associated with heat and instability.
Disconnecting the battery is a critical step often overlooked. Subaru’s fuel systems are electronically controlled, and disconnecting the battery prevents accidental activation of the fuel pump during testing. Locate the negative terminal (usually marked with a "-" symbol) and use a wrench to loosen the nut, then carefully remove the cable. Wrap the exposed terminal with electrical tape to prevent accidental contact. This step not only safeguards against electrical hazards but also protects sensitive components from voltage spikes.
Relieving fuel pressure is essential to avoid fuel spraying or leaking during the test. Start by locating the fuel pump access point, typically found under the rear seat or in the trunk, depending on the Subaru model. Remove the access panel and locate the Schrader valve (similar to a tire valve stem). Attach the fuel pressure gauge to the valve and depress it to release pressure. Monitor the gauge until it reads zero, ensuring the system is safe to work on. If pressure doesn’t relieve, consult the vehicle’s manual for model-specific procedures, as some Subarus may require running the engine briefly with the fuel pump fuse removed.
In summary, pre-test preparation for a Subaru fuel pump test involves a systematic approach: gather tools, prioritize safety, disconnect the battery, and relieve fuel pressure. Each step is designed to streamline the testing process while mitigating risks. By adhering to these guidelines, you’ll create a safe, controlled environment for accurate diagnostics, ensuring both your safety and the integrity of the vehicle’s fuel system.
Step-by-Step Guide: Removing Fuel Pump from 1979 Dodge W150
You may want to see also
Explore related products
Electrical Testing: Check voltage at pump connector, test for continuity in wiring
A faulty fuel pump can leave you stranded, but electrical testing offers a precise way to diagnose the issue before resorting to costly replacements. Start by locating the fuel pump connector, typically found near the fuel tank. With the ignition on, use a multimeter to measure voltage at the connector. Subaru models often require 12 volts at the pump for proper operation. If voltage is absent or significantly lower, suspect a blown fuse, faulty relay, or wiring issue upstream of the pump.
Continuity testing is your next line of defense. Disconnect the fuel pump connector and set your multimeter to the continuity setting. Touch the probes to the corresponding wires on both sides of the connector. A continuous circuit will produce a tone or low resistance reading, indicating intact wiring. No continuity suggests a broken wire, corroded connection, or damaged harness, necessitating repair or replacement. This step isolates whether the problem lies within the pump itself or the electrical pathway feeding it.
While voltage and continuity tests are straightforward, they require precision and caution. Always disconnect the battery before handling wiring to prevent short circuits. Label wires before disconnecting them to avoid confusion during reassembly. If testing reveals inconsistent results, recheck connections and ensure the multimeter is properly calibrated. For Subaru owners, consulting the vehicle’s wiring diagram can clarify pinouts and expected voltage ranges, ensuring accurate diagnosis.
Comparing these electrical tests to mechanical inspections highlights their efficiency. Unlike pressure or flow tests, which require specialized tools and fuel system disassembly, voltage and continuity checks are non-invasive and quick. They pinpoint electrical faults with certainty, saving time and effort. However, if both tests pass but the pump still fails to operate, consider testing the pump’s ground connection or inspecting the pump itself for mechanical failure.
In conclusion, electrical testing is a critical step in diagnosing Subaru fuel pump issues. By verifying voltage at the pump connector and testing wiring continuity, you can systematically eliminate potential causes. Armed with a multimeter and basic knowledge, even novice mechanics can tackle this task confidently. Remember, accurate diagnosis not only saves money but also ensures your Subaru runs reliably for years to come.
1999 Mazda Fuel Pump PSI: Understanding the Pressure Specifications
You may want to see also
Explore related products
![Detroit Axle - Fuel Pump and Sender for 2006 2007 2008 Subaru Forester [Naturally Aspirated], Replacement Electrical Fuel Pump and Sender Assembly](https://m.media-amazon.com/images/I/71kN7X7I7UL._AC_UL320_.jpg)
Pressure Testing: Use gauge to measure fuel pressure, compare with specifications
Fuel pressure testing is a critical diagnostic step when troubleshooting a Subaru's fuel pump, offering a clear window into the pump's health and the fuel system's overall efficiency. This method involves attaching a fuel pressure gauge to the fuel rail to measure the pressure at which fuel is delivered to the engine. The key lies in comparing these readings against the manufacturer's specifications, typically found in the vehicle's service manual. For most Subaru models, the fuel pressure should fall within a specific range, often around 40 to 60 PSI (pounds per square inch) at idle, though this can vary depending on the engine and model year. Deviations from these values can indicate issues such as a weak fuel pump, clogged fuel filter, or leaks in the fuel system.
To perform this test, start by locating the fuel pressure test port on the fuel rail, usually near the engine bay. Attach the fuel pressure gauge securely, ensuring a tight seal to prevent fuel leaks. With the engine off, relieve the fuel system pressure by disconnecting the fuel pump fuse or relay and cranking the engine for a few seconds. Once the system is depressurized, reconnect the fuse or relay, start the engine, and observe the gauge reading. Note the pressure at idle and under acceleration, comparing these values to the specifications. If the pressure is too low, the fuel pump may be failing or the fuel filter could be clogged. Conversely, excessively high pressure might suggest a faulty regulator.
A practical tip for accuracy is to ensure the gauge is calibrated and compatible with the fuel type in your Subaru, as ethanol-blended fuels can affect readings. Additionally, perform the test with the fuel tank at least half full to avoid skewed results due to low fuel levels. If the pressure is inconsistent or fluctuates, inspect the fuel lines and connections for leaks or damage. This step-by-step approach not only diagnoses the fuel pump but also highlights potential issues in the broader fuel delivery system.
While pressure testing is straightforward, it’s essential to prioritize safety. Work in a well-ventilated area, avoid open flames, and wear safety goggles to protect against accidental fuel spills. If you’re unsure about any step, consult a professional or refer to detailed guides specific to your Subaru model. By mastering this technique, you can pinpoint fuel system issues with confidence, saving time and potentially costly repairs.
In conclusion, pressure testing with a gauge is a precise and effective way to evaluate a Subaru’s fuel pump performance. It transforms guesswork into data-driven diagnostics, allowing you to address problems before they escalate. Whether you’re a DIY enthusiast or a seasoned mechanic, this method is an indispensable tool in maintaining your vehicle’s reliability and efficiency.
Step-by-Step Guide to Installing a Facet Fuel Pump Easily
You may want to see also
Explore related products
![Detroit Axle - Fuel Pump Module for 2008 2009 2010 Subaru Forester [Naturally Aspirated], Electrical Fuel Pump Module Assembly Replacement](https://m.media-amazon.com/images/I/71Aq4kNg62L._AC_UL320_.jpg)
Listening Test: Turn key to ON, listen for pump hum (2-3 seconds)
A simple yet effective method to assess your Subaru's fuel pump health is the listening test. This diagnostic technique leverages your sense of hearing to detect potential issues. When you turn the ignition key to the 'ON' position, the fuel pump should activate, producing a distinct hum for 2-3 seconds. This brief activation is a crucial part of the vehicle's startup sequence, priming the fuel system for combustion.
The Science Behind the Hum: This test is based on the principle that a functional fuel pump will generate a characteristic sound when energized. The hum is a result of the pump's electric motor spinning, creating a pressure differential that draws fuel from the tank and propels it towards the engine. In Subaru vehicles, this sound is often more pronounced due to the pump's design and location within the fuel tank.
Performing the Test: To execute this test, ensure your vehicle is in a safe, well-ventilated area. Turn the ignition key to the 'ON' position without starting the engine. Listen carefully for a low-pitched hum, which should be audible from the rear of the vehicle, near the fuel tank. The sound should be consistent and last for approximately 2-3 seconds. If the pump is functioning correctly, this hum indicates that the pump is priming the fuel lines, preparing the engine for ignition.
What to Listen For: The ideal sound is a steady, low-frequency buzz, akin to a distant bee hive. Any deviation from this, such as a high-pitched whine, grinding noise, or complete silence, could signify a problem. A whining sound might suggest a pump that is struggling or lacking sufficient fuel, while grinding noises could indicate mechanical failure. Silence is the most concerning, as it may imply a complete pump failure or an electrical issue preventing activation.
Practical Tips: For a more accurate assessment, perform this test with a cold engine, as heat can affect the pump's performance. Additionally, ensure your fuel tank is at least half full, as a near-empty tank can make the pump work harder, potentially distorting the sound. If you suspect an issue, repeat the test several times to confirm the results. This listening test is a quick, non-invasive way to gather initial insights into your Subaru's fuel pump health, providing a starting point for further diagnostics.
Locating the Kubota RTV X900 Fuel Pump: A Quick Guide
You may want to see also
Explore related products
![Detroit Axle - Fuel Pump Module for 2011 2012 2013 Subaru Forester [Naturally Aspirated], Electrical Fuel Pump Module Assembly Replacement](https://m.media-amazon.com/images/I/71RnpP6ETKL._AC_UL320_.jpg)
Post-Test Inspection: Inspect pump for leaks, corrosion, or physical damage
After testing your Subaru's fuel pump, a thorough post-test inspection is crucial to ensure its reliability and longevity. Begin by examining the pump for any signs of leaks, which can manifest as fuel residue, wet spots, or a distinct gasoline odor around the pump assembly. Even minor leaks can escalate into major issues, compromising performance and safety. Use a clean cloth to wipe down the area and inspect for dampness or discoloration. If a leak is detected, trace its source—common culprits include cracked hoses, loose fittings, or a failing pump diaphragm. Address leaks promptly by replacing damaged components or tightening connections, ensuring all repairs comply with Subaru’s torque specifications.
Next, assess the pump for corrosion, a silent threat that can weaken metal components and disrupt electrical connections. Focus on areas prone to moisture exposure, such as the pump’s electrical terminals and mounting brackets. Corrosion appears as a greenish or whitish residue, often accompanied by flaking or pitting. To mitigate corrosion, clean affected areas with a wire brush and apply a dielectric grease or corrosion inhibitor. For severe cases, consider replacing corroded parts entirely. Regular inspections, especially in humid climates or after water exposure, can prevent corrosion from compromising the pump’s functionality.
Physical damage is another critical aspect of the post-test inspection. Inspect the pump’s housing, inlet/outlet ports, and mounting points for cracks, dents, or deformities. Even minor damage can lead to fuel leaks, reduced pressure, or pump failure. Pay attention to areas where the pump interfaces with other components, as friction or vibration can cause wear over time. If physical damage is identified, evaluate whether it can be repaired or if the pump requires replacement. Always refer to Subaru’s service manual for guidelines on acceptable tolerances and repair procedures.
A systematic approach to post-test inspection not only identifies immediate issues but also provides insights into the pump’s overall health. For instance, recurring leaks or corrosion may indicate underlying problems, such as a faulty fuel tank or inadequate grounding. Document your findings and compare them to previous inspections to track wear patterns and predict future maintenance needs. By combining visual inspection with diagnostic data from the fuel pump test, you can make informed decisions that maximize the pump’s lifespan and ensure your Subaru’s fuel system operates at peak efficiency.
Finally, incorporate preventive measures into your maintenance routine to minimize the risk of leaks, corrosion, or damage. This includes using high-quality fuel filters, inspecting fuel lines annually, and keeping the pump’s electrical connections clean and secure. For older Subarus, consider upgrading to a more durable fuel pump model or adding a secondary fuel filter to reduce contaminants. A proactive approach to post-test inspection not only safeguards your vehicle’s performance but also enhances safety and reduces long-term repair costs.
Step-by-Step Guide: Removing Fuel Pump from 2001 Mazda Millenia
You may want to see also
Frequently asked questions
Common signs of a failing fuel pump include difficulty starting the engine, sputtering or stalling at high speeds, loss of power during acceleration, and unusual whining noises from the fuel tank.
Yes, you can test the fuel pump’s electrical circuit using a multimeter to check for voltage at the pump connector or listen for the pump’s priming sound when turning the ignition to the "ON" position.
Basic tools include a multimeter to check voltage and resistance, a fuel pressure gauge to measure pressure, and a scan tool to read diagnostic trouble codes (DTCs) related to the fuel system.
Connect a fuel pressure gauge to the fuel rail’s test port, turn the ignition to the "ON" position, and compare the reading to the manufacturer’s specifications. Low pressure indicates a potential pump issue.
If the fuel pump fails the test, inspect the fuel filter, relay, and fuse for issues. If these components are fine, the fuel pump likely needs to be replaced. Consult a professional mechanic for confirmation.
