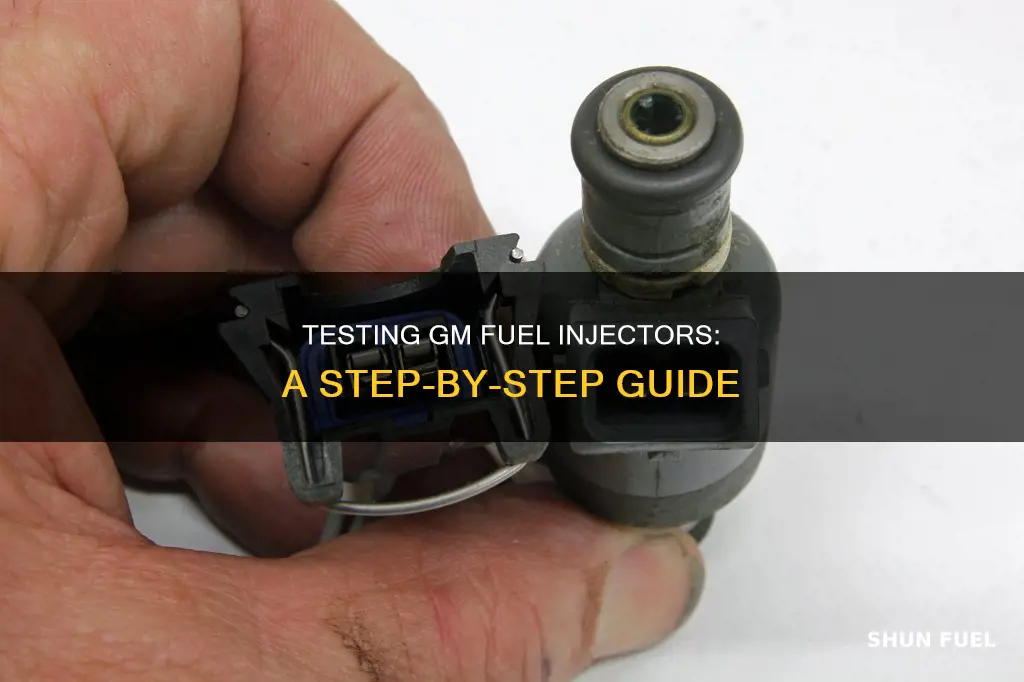

Testing GM fuel injectors can be done in a variety of ways, some of which can be done at home, while others may require a professional mechanic. Fuel injectors play an important role in vehicles, spraying fuel into the cylinders of the engine, and any issues with them can cause the engine to run poorly or not at all. One way to test fuel injectors is to use a mechanic's stethoscope or a screwdriver to listen for a clicking sound inside the injector, indicating that it is working properly. Another method is to visually inspect the fuel spray pattern, which should appear as a partially atomized inverted V; a solid, single spray or irregular pattern may indicate a dirty or broken injector. For GM vehicles, a Tech 2 balance test or the new Active Fuel Injector Testor (AFIT) can be used to test flow rates without disassembly.
Characteristics and Values Table for Testing GM Fuel Injectors
| Characteristics | Values |
|---|---|
| Tools | Active Fuel Injector Tester (AFIT), multimeter, mechanic's stethoscope, screwdriver, fuel pressure gauge, external timer tool |
| DIY or Professional Mechanic | Some issues can be diagnosed at home with simple tools, but others require a professional mechanic |
| Types of Tests | Balance test, flow test, fuel pressure leak down test, fuel spray test, coil test, fuel pressure sensor test |
| Symptoms of Faulty Injector | Engine runs badly or stops running, black smoke from the tailpipe, backfire explosions, misfires |
| GM Vehicle Types | GM 4.3L, 5.0L, 5.7L, 5.3 GDI, 3.6, 2.4 |
Explore related products
What You'll Learn
Using a mechanic's stethoscope to listen for a clicking sound
To test GM fuel injectors using a mechanic's stethoscope, follow these steps:
Firstly, you will need to access the injector itself. This may vary depending on the specific vehicle, but the injector should be located near the engine. Once you have located the injector, you can begin the test.
Place the earpiece of the mechanic's stethoscope against the injector. You may need to adjust the length of the hose to reach the injector comfortably. Start the car computer, which will energize and de-energize the injector. As the injector's valve opens and closes, it will create a clicking sound. If the injector is functioning correctly, you should hear this clicking sound inside the injector through the stethoscope.
The clicking sound is caused by the solenoid inside the injector, which activates and deactivates the valve. If you do not hear this sound, it may indicate that the injector is not working properly. However, it is important to note that the absence of a clicking sound does not necessarily mean the injector is faulty, as there could be other factors at play.
You can repeat this process on other injectors to compare the sounds and identify any potential issues. It is important to be thorough and test multiple injectors to ensure accurate results. This method of using a mechanic's stethoscope to listen for a clicking sound is a simple and effective way to check the functionality of fuel injectors.
Flushing Fuel Injectors: DIY Guide for Optimal Engine Performance
You may want to see also
Explore related products
Inspecting the fuel spray pattern
To begin, locate the fuel injectors and ensure you have clear access to them. The fuel injectors are responsible for spraying fuel into the cylinders of your engine, so you will find them positioned accordingly. Once located, the next step is to observe the fuel spray pattern. A normal, well-functioning injector will spray fuel in a specific pattern, known as an inverted V. This pattern may also appear partially atomized, which is also an indication that the injector is working correctly.
On the other hand, if you notice a solid, single spray or an irregular pattern, this could indicate that your fuel injector is dirty or that an internal component is broken or worn out. A dirty injector can often be remedied by adding a high-quality cleaning fuel system additive to your fuel tank. Alternatively, you can take your vehicle to a garage, where a professional can clean the system for you.
If, during your inspection, you do not observe any fuel coming out of the injectors, this could be indicative of a more serious problem. In this case, further testing and diagnostics are required to identify the issue. It may be necessary to consult a professional mechanic to perform more advanced tests and make any necessary repairs.
By regularly inspecting the fuel spray pattern of your GM fuel injectors, you can easily identify potential issues and take appropriate action. This simple visual inspection can help ensure the optimal performance of your vehicle and prevent more costly repairs in the future.
BMW 528i Fuel Injector: Testing and Inspection Guide
You may want to see also
Explore related products
Using a multimeter to check the coil
To test GM fuel injectors using a multimeter, you will need to check the resistance value of the coil inside the injector. This value can be found in your car's manual. If you cannot find it, you can purchase an aftermarket repair manual at a local auto parts store or online.
Once you have the correct resistance value, turn off the vehicle and remove the electrical connector from the injector you want to test. Set your multimeter to the correct value on the Ohms scale, usually at least 30 Ohms, and refer to the resistance specifications for your fuel injector.
Now, connect the positive (+) probe of the multimeter to terminal number 1 and the negative (-) probe to terminal number 2 of the coil connector. The meter should indicate infinite resistance. Next, reverse the meter leads, connecting the negative probe to terminal 1 and the positive probe to terminal 2. This time, the multimeter should indicate continuity, but not zero ohms.
If the results do not match the specified values, the coil may need to be replaced. Additionally, connect the ohmmeter between the secondary terminal (where the spark plug connects) and terminal 1. If the meter does not show infinite resistance, replace the coil.
It is important to note that using an ohmmeter to test coils may not always be the most reliable method, and other tests, such as checking the fuel spray pattern or using a test light, can also be employed to diagnose fuel injector issues.
Calibrating Fuel Injectors: '04 F150 Step-by-Step Guide
You may want to see also
Explore related products
Using a fuel pressure gauge to check for leaks
To check for leaks in GM fuel injectors using a fuel pressure gauge, you'll need to perform the following steps:
- Park your vehicle on a level surface and engage the parking brake.
- Open the hood and locate the fuel rail.
- Isolate the fuel rail by clamping off the feed and return lines. This will involve pinching both lines simultaneously to prevent fuel from flowing out through the injectors.
- Attach a fuel pressure gauge to the fuel rail. The fuel rail should have a Schrader valve or a pressure test fitting, allowing you to screw on or push-on the gauge. If there is no fitting, you may need to disconnect the fuel inlet line.
- Cycle the ignition key to the "on" position several times and then turn it off. This will re-pressurize the fuel rail.
- Observe the fuel pressure gauge. With pressure built up and the lines clamped off, the fuel rail should maintain pressure. If the pressure drops rapidly (e.g., from 60 psi to 5 psi in 5 seconds), it indicates a leaky injector.
- To confirm which injector is leaking, you can perform additional steps. Refer to your vehicle's service manual for specific procedures. One method involves raising the fuel rail slightly and placing a small napkin or piece of paper under each injector. Re-pressurize the system, then turn off the ignition and allow it to sit for about 10 minutes. If you observe fuel droplets on any of the napkins, it confirms a leaking injector, and all injectors should be replaced.
It is important to exercise caution when working with fuel systems and to refer to your vehicle's specific procedures for accurate testing methods.
Fuel Injector Seal Issues: Do They Trigger Trouble Codes?
You may want to see also
Explore related products
Using GM's Active Fuel Injector Testor (AFIT) tool
The GM Active Fuel Injector Testor (AFIT) is a tool that tests the flow rate of each injector with no disassembly required. It provides the percentage difference in flow rate, showing changes in increments of 0.1%. This tool is beneficial as it allows for a direct comparison of the flow rate between injectors, helping to identify any issues.
To use the AFIT, follow these steps:
- Connect the AFIT to the vehicle's Data Link Connector (DLC), the Schrader valve on the fuel line, and the battery.
- Build your vehicle information on a scan tool, following the on-screen instructions.
- Once the test is running, you can walk away for about 10 minutes until it is complete.
It is important to note that the AFIT does not have a built-in printer, which may be inconvenient for documenting warranty repair orders.
Additionally, there are alternative methods to test fuel injectors. One way is to use a tool like the Snap-On MT290, along with a gauge, a current probe, and a multimeter. This setup can help observe the activity of the injector, although it may not provide the same level of detail as the AFIT.
Another method is to add a pressure gauge to the fuel rail and put the key in the 'run' position without starting the car. This technique helps measure the pressure difference, similar to the AFIT's functionality.
Fuel Injectors: Open or Closed? Understanding the Basics
You may want to see also
Frequently asked questions
You can test GM fuel injectors at home by checking the fuel spray pattern. It is normal to observe fuel coming out partially atomized in an inverted V pattern. If you see a solid, single spray or an irregular pattern, your injector might be dirty or have a broken internal component. You can also test the injector's coil by checking its resistance value with a multimeter.
GM's Spider fuel injector assembly can be tested for leaks without removing the intake manifold's plenum. You can perform a simple fuel pressure leak-down test to determine whether something is wrong with the assembly.
GM has a tool called the Active Fuel Injector Testor (AFIT) that tests the flow rate of each injector without disassembly. Tech 2 can also perform an injector balance test. You can also use a mechanic's stethoscope, a hose, or a long standard screwdriver to listen for a clicking sound inside the injector.
