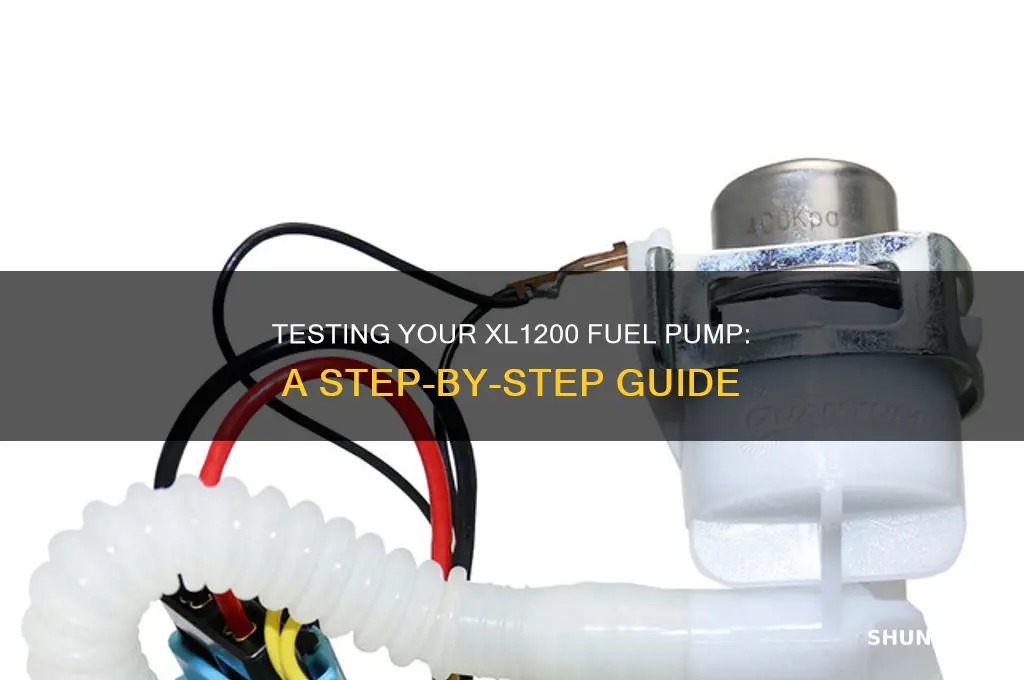

Testing the fuel pump on an XL1200 motorcycle is a critical step in diagnosing fuel delivery issues, ensuring optimal engine performance, and preventing potential breakdowns. The process typically involves checking for proper fuel pressure, verifying pump operation, and inspecting for leaks or electrical faults. To begin, disconnect the fuel line and use a pressure gauge to measure the output, comparing it to the manufacturer’s specifications. Additionally, listen for the pump’s whirring sound when the ignition is turned on, as a lack of noise may indicate a faulty pump or relay. If the pump fails these initial tests, further inspection of the wiring, fuse, and ground connections is necessary to pinpoint the issue. Proper testing ensures the fuel pump is functioning correctly, maintaining the reliability and efficiency of the XL1200.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Under the motorcycle seat, near the fuel tank (specific to Harley-Davidson XL1200 models). |
| Tools Required | Multimeter, screwdriver, wrench, and a fuel pressure gauge (optional). |
| Testing Method 1: Visual Inspection | Check for leaks, corrosion, or damage around the fuel pump and connections. |
| Testing Method 2: Power Check | Use a multimeter to test voltage at the fuel pump connector (typically 12V when ignition is on). |
| Testing Method 3: Fuel Pressure Test | Connect a fuel pressure gauge to the fuel line and check pressure (should match manufacturer specs, usually 30-60 PSI). |
| Testing Method 4: Listen for Operation | Turn the ignition on and listen for the fuel pump humming sound (should last 2-3 seconds). |
| Common Issues | Clogged fuel filter, faulty relay, or a failing pump motor. |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, and avoid sparks near fuel lines. |
| Replacement Cost | Fuel pump replacement typically costs $150-$300 (parts) + labor. |
| Frequency of Testing | Test annually or if symptoms like hard starting, stalling, or poor performance occur. |
| Manufacturer Guidelines | Refer to Harley-Davidson XL1200 service manual for model-specific testing procedures. |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure, locate pump
- Electrical Testing: Check power and ground connections, test voltage at pump connector
- Pressure Testing: Use gauge to measure fuel pressure, compare to specifications
- Flow Rate Check: Measure fuel output volume over time, verify against OEM standards
- Noise Diagnosis: Listen for unusual sounds, identify whining or humming issues
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure, locate pump
Before testing the fuel pump on your XL1200, proper preparation is crucial to ensure accuracy, safety, and efficiency. Start by gathering the necessary tools: a fuel pressure gauge, wrenches or sockets, safety gloves, safety goggles, and a container for fuel. These tools will enable you to perform the test methodically and protect yourself from potential hazards. Without them, you risk incomplete diagnostics or accidental injury, turning a straightforward task into a frustrating ordeal.
Safety should never be an afterthought. Fuel systems operate under pressure and involve flammable materials, making them inherently dangerous. Work in a well-ventilated area, away from open flames or sparks. Wear nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from accidental splashes. Ground yourself by touching a metal part of the bike before beginning to dissipate static electricity, which could ignite fuel vapors. Neglecting these precautions could lead to fires, chemical burns, or explosions.
Disconnecting the battery is a critical step often overlooked by novice mechanics. With the ignition off, locate the battery (typically under the seat or in a side compartment) and remove the negative terminal using a wrench or socket. This prevents accidental activation of the fuel pump during testing, which could skew results or cause injury. Wait at least 10 minutes after disconnection to allow the system’s capacitors to discharge fully, ensuring no residual power remains.
Relieving fuel pressure is essential to avoid fuel spraying during pump removal or testing. Start by locating the fuel pump fuse or relay in the bike’s fuse box (consult the manual for exact placement). Remove the fuse or relay to disable the pump, then crank the engine for 5–10 seconds to release pressure in the lines. If your XL1200 has a Schrader valve on the fuel rail, attach the pressure gauge and depress the valve to confirm pressure has been relieved. Failure to do this step can result in fuel spraying at high pressure, creating a fire hazard or causing fuel to enter the engine oil.
Finally, locate the fuel pump, which is typically inside the fuel tank. Accessing it requires removing the tank, a process that varies by model but generally involves loosening bolts on the tank’s mounting straps and disconnecting the fuel lines and wiring harness. Place a drain pan under the tank to catch any residual fuel. Once the tank is removed, the pump assembly will be visible at the bottom. Familiarize yourself with its components—inlet, outlet, and electrical connections—to ensure you test the correct elements. Misidentifying the pump or damaging surrounding parts during removal can complicate diagnostics and lead to costly repairs.
