Testing the fuel pump on a Toyota Corolla is a critical diagnostic step to ensure the vehicle’s fuel system is functioning properly. Symptoms such as difficulty starting, stalling, or poor engine performance may indicate a failing fuel pump. To test it, start by listening for the pump’s hum when the ignition is turned to the ON position, as this confirms initial operation. Next, measure the fuel pressure using a gauge connected to the fuel rail to ensure it matches the manufacturer’s specifications. Additionally, check for voltage at the pump’s connector to verify electrical supply. If the pump fails these tests, it may need replacement. Always consult the vehicle’s manual or a professional mechanic for accurate procedures and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | Toyota Corolla (All Generations) |
| Tools Required | Multimeter, Fuel Pressure Gauge, Screwdriver, Wrench, Safety Gloves |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, avoid sparks |
| Fuel Pump Location | Inside the fuel tank (accessible from the rear seat or trunk) |
| Testing Method 1: Listen for Operation | Turn the ignition to "ON" (do not start); listen for a humming sound (2-3 seconds) |
| Testing Method 2: Check Fuel Pressure | Use a fuel pressure gauge to measure pressure at the fuel rail (spec varies by model, typically 30-60 PSI) |
| Testing Method 3: Multimeter Voltage Test | Measure voltage at the fuel pump connector (12V when ignition is ON) |
| Testing Method 4: Resistance Test | Measure resistance across fuel pump terminals (spec varies by model, typically 1-5 ohms) |
| Common Symptoms of Failure | Engine cranks but won’t start, stalling, loss of power, whining noise |
| Replacement Cost | $200-$800 (parts and labor, depending on model and location) |
| DIY Difficulty Level | Intermediate (requires mechanical skills and tools) |
| Professional Diagnosis Recommended | Yes, if unsure about testing procedures or results |
| Maintenance Tip | Replace fuel filter regularly to prevent pump strain |
Explore related products
What You'll Learn
- Pre-Test Checks: Battery, fuel pump relay, and fuse inspection before testing the fuel pump
- Listen for Pump Noise: Turn key to ON, listen for fuel pump hum in the tank
- Fuel Pressure Test: Use gauge to measure pressure at the fuel rail for accuracy
- Voltage Testing: Check power and ground at fuel pump connector with multimeter
- Resistance Check: Measure fuel pump resistance using a multimeter for proper range
Pre-Test Checks: Battery, fuel pump relay, and fuse inspection before testing the fuel pump
Before testing the fuel pump on a Toyota Corolla, it's crucial to ensure the vehicle's electrical system is functioning correctly. A weak or dead battery can mimic fuel pump failure, leading to unnecessary part replacements. Start by checking the battery voltage with a multimeter. A healthy car battery should read between 12.4 and 12.7 volts when the engine is off. If the voltage drops below 12 volts, charge or replace the battery before proceeding. This simple step can save time and prevent misdiagnosis, ensuring that any subsequent fuel pump tests are accurate and reliable.
Next, inspect the fuel pump relay, a critical component that controls power delivery to the fuel pump. A faulty relay can cause the pump to fail intermittently or completely. Locate the relay in the fuse box, typically under the hood or near the driver’s side dashboard. Swap the fuel pump relay with a similar relay in the fuse box (e.g., the horn relay) to test its functionality. If the fuel pump activates after the swap, the relay is likely defective and needs replacement. Always consult the vehicle’s manual for the exact relay location and compatibility to avoid errors.
Fuses act as the first line of defense against electrical overloads, and a blown fuse can immediately disable the fuel pump. Locate the fuse box and identify the fuse corresponding to the fuel pump using the diagram on the fuse box cover or in the owner’s manual. Extract the fuse and inspect it for a broken or melted wire inside the transparent casing. A blown fuse should be replaced with one of the same amperage rating, typically 15–20 amps for fuel pump circuits. If the replacement fuse blows immediately, there may be a short circuit in the wiring, requiring further investigation.
Performing these pre-test checks systematically eliminates common electrical issues that could falsely indicate a faulty fuel pump. Start with the battery, as it’s the power source for the entire system, then move to the relay and fuse, which control and protect the fuel pump circuit. By addressing these components first, you ensure that any subsequent fuel pump tests are conducted under optimal conditions, leading to a more accurate diagnosis and efficient repair process. Skipping these steps risks misdiagnosis, wasted time, and unnecessary expenses.
Jet Fuel Pump Sumping Frequency: Essential Maintenance Insights
You may want to see also
Explore related products
Listen for Pump Noise: Turn key to ON, listen for fuel pump hum in the tank
One of the simplest yet most effective ways to diagnose a failing fuel pump in a Toyota Corolla is to listen for its operational noise. When you turn the ignition key to the "ON" position (without starting the engine), the fuel pump should activate momentarily, producing a distinct humming sound from the fuel tank. This sound is a crucial indicator of the pump’s functionality, as it confirms that the pump is receiving power and attempting to pressurize the fuel system. If you hear this hum, it suggests the pump is at least partially operational, narrowing down potential issues to other components like the fuel filter or injectors.
The process is straightforward but requires attention to detail. Start by ensuring the vehicle is in a quiet environment to avoid masking the pump’s noise. Place your ear near the rear passenger side of the vehicle, where the fuel tank is typically located, or use a mechanic’s stethoscope for better clarity. The hum should last for about 2-3 seconds as the pump primes the system. If the sound is weak, inconsistent, or absent, it could indicate a failing pump, a faulty relay, or an issue with the wiring harness. Note that newer Corollas may have quieter pumps, so a lack of noise doesn’t always mean a problem, but it warrants further investigation.
Comparatively, this method is less invasive than other diagnostic techniques, such as measuring fuel pressure or checking for voltage at the pump connector. It’s a quick initial check that can save time and effort, especially for DIY enthusiasts. However, it’s not foolproof. A pump that hums but doesn’t deliver adequate fuel pressure could still be defective. Therefore, while listening for the hum is a valuable first step, it should be followed by more comprehensive tests if symptoms persist, such as hard starting, stalling, or poor engine performance.
For practical application, consider this tip: if you suspect the pump is failing but still hear a faint hum, try the test with a full tank versus a near-empty one. A failing pump may struggle more when the fuel level is low, as it has to work harder to draw fuel. Additionally, if the vehicle has been sitting for a while, the pump may need to run longer to build pressure, so listen carefully for any changes in the hum’s duration or tone. Pairing this auditory test with visual inspections of fuel lines and relays can provide a more complete diagnostic picture.
Do DW Fuel Pumps Include Check Valves? A Detailed Explanation
You may want to see also
Explore related products
Fuel Pressure Test: Use gauge to measure pressure at the fuel rail for accuracy
A fuel pressure test is a critical diagnostic step when troubleshooting a Toyota Corolla's fuel system. By measuring the pressure at the fuel rail, you can determine if the fuel pump is delivering the correct amount of fuel to the engine. This test is particularly useful when diagnosing issues like hard starting, stalling, or poor performance, which could stem from a weak or failing fuel pump.
Steps to Perform a Fuel Pressure Test

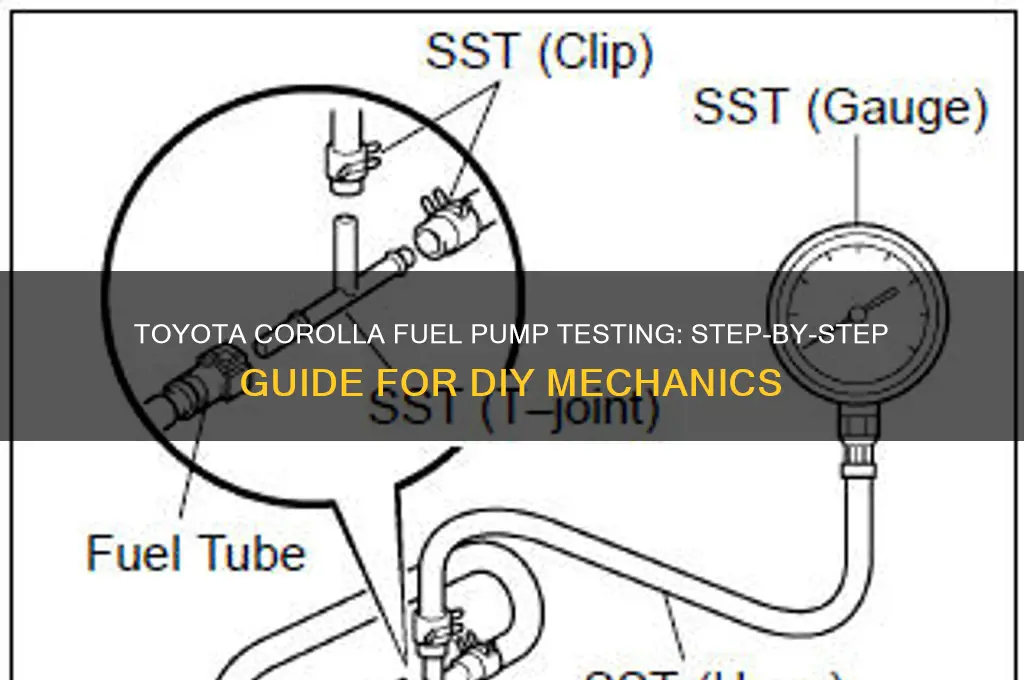

Begin by locating the fuel rail on your Toyota Corolla, typically found near the engine’s intake manifold. Attach a fuel pressure gauge to the Schrader valve on the fuel rail, ensuring a secure connection to prevent fuel leaks. With the ignition off, relieve the fuel system pressure by depressing the Schrader valve. Start the engine and observe the gauge reading. Compare the measured pressure to the specifications for your Corolla’s model year, usually found in a repair manual or online resource. For most Toyota Corollas, the fuel pressure should fall within 30–60 psi, depending on the engine load and RPM.
Cautions and Practical Tips
Always work in a well-ventilated area and avoid open flames or sparks, as fuel is highly flammable. Use a gauge specifically designed for fuel pressure testing to ensure accuracy. If the pressure is too low, inspect the fuel pump, filter, and lines for clogs or leaks. If the pressure is too high, check the fuel pressure regulator, as it may be malfunctioning. Remember, a precise measurement is key—even a slight deviation from the specified range can indicate a problem.
Analyzing Results and Next Steps
If the fuel pressure is within spec, the fuel pump is likely functioning correctly, and the issue may lie elsewhere, such as the ignition system or sensors. If the pressure is low, test the pump’s electrical circuit and check for voltage at the pump connector. A failing pump often shows inconsistent pressure under load, so perform a secondary test by revving the engine and observing the gauge for drops or fluctuations.
A fuel pressure test is a straightforward yet powerful diagnostic tool for assessing your Toyota Corolla’s fuel pump health. By accurately measuring pressure at the fuel rail, you can pinpoint issues with confidence and avoid unnecessary repairs. Whether you’re a DIY enthusiast or a professional mechanic, this test is an essential step in maintaining optimal engine performance.
Understanding Rotary Fuel Pumps: Function, Mechanism, and Operation Explained
You may want to see also
Explore related products
Voltage Testing: Check power and ground at fuel pump connector with multimeter
A faulty fuel pump can leave you stranded, but before replacing it, verify the electrical supply. Voltage testing at the fuel pump connector is a critical diagnostic step, isolating whether the issue lies with the pump itself or the power delivery system. This process requires a multimeter, a tool that measures voltage, current, and resistance, and is essential for pinpointing electrical faults.
Steps for Voltage Testing:
- Locate the Fuel Pump Connector: Consult your Toyota Corolla’s service manual to identify the fuel pump connector’s location, typically near the fuel tank. Access may require removing interior panels or underbody shields.
- Prepare the Multimeter: Set the multimeter to the DC voltage range, typically 20V, to measure the battery’s 12V system. Ensure the vehicle is off but the key is in the "ON" position to activate the fuel pump circuit.
- Test for Power: Connect the multimeter’s positive (red) lead to the wire supplying power to the fuel pump (usually a thick, colored wire) and the negative (black) lead to a known good ground, such as the vehicle’s chassis. A reading of 11–14V indicates proper power delivery.
- Test for Ground: Switch the multimeter leads, connecting the negative lead to the fuel pump’s ground wire and the positive lead to the chassis. A reading of 0V confirms a solid ground connection.
Cautions: Always disconnect the battery before handling electrical components near the fuel tank to prevent sparks. Avoid probing wires directly with the multimeter if unsure of their function, as this can damage the circuit.
Understanding the Functionality of Holdwell Fuel Pumps: A Comprehensive Guide
You may want to see also
Explore related products
Resistance Check: Measure fuel pump resistance using a multimeter for proper range
A faulty fuel pump can leave you stranded, but diagnosing the issue doesn't always require a mechanic. One crucial test you can perform yourself is a resistance check using a multimeter. This simple procedure helps determine if the fuel pump's internal windings are functioning within the manufacturer's specified range, indicating its overall health.
A multimeter, readily available at hardware stores, becomes your diagnostic tool. Set it to the ohms (resistance) setting, typically denoted by the Greek letter omega (Ω). Locate the fuel pump connector, usually found near the fuel tank. Consult your Toyota Corolla's service manual for the exact location. With the ignition off, disconnect the connector and identify the terminals corresponding to the fuel pump's power and ground. Touch the multimeter probes to these terminals, ensuring a secure connection. The displayed reading represents the fuel pump's resistance.
Compare this value to the specified range for your Corolla's fuel pump, found in the service manual. A reading within this range suggests the pump's windings are likely intact. However, a significantly higher or lower reading points towards potential issues. High resistance could indicate worn windings or a broken wire, while low resistance might signal a short circuit.
Remember, this test only assesses the pump's internal resistance. It doesn't guarantee proper fuel pressure or flow. If the resistance is within range but you still suspect a fuel pump problem, further testing, such as a pressure test, may be necessary.
Always prioritize safety when working with electrical components. Ensure the ignition is off and the battery is disconnected before handling any wiring. If you're unsure about any step, consult a qualified mechanic. While a resistance check is a valuable diagnostic tool, it's just one piece of the puzzle in understanding your Toyota Corolla's fuel system health.
Running on Empty: How Low Gas Affects Your Fuel Pump
You may want to see also
Frequently asked questions
Common signs of a failing fuel pump include difficulty starting the engine, sputtering or stalling while driving, loss of power, and unusual noises from the fuel tank. If you experience any of these symptoms, it’s advisable to test the fuel pump.
You’ll need a fuel pressure gauge, a multimeter to check voltage and resistance, and a wrench or socket set to access the fuel pump. Additionally, a repair manual specific to your Corolla model can provide detailed instructions.
Start by checking the fuel pump fuse and relay for any issues. Then, use a multimeter to test the fuel pump’s electrical connections for proper voltage. Finally, connect a fuel pressure gauge to the fuel rail and check if the pressure matches the manufacturer’s specifications. If not, the fuel pump may need replacement.
