Testing fuel pump voltage is a critical diagnostic step in troubleshooting fuel system issues in vehicles. To begin, ensure the vehicle is turned off and the ignition is in the on position without starting the engine. Locate the fuel pump relay or fuse box, typically found under the hood or near the driver's side kick panel, and identify the fuel pump wire, often labeled as such. Using a multimeter set to the voltage setting, connect the positive lead to the fuel pump wire and the negative lead to a good ground. Have an assistant turn the ignition to the start position briefly, and observe the multimeter reading; it should display the battery voltage, typically around 12 volts, indicating proper power delivery to the fuel pump. If no voltage is detected, further inspection of the wiring, relay, or fuse may be necessary to identify the root cause of the issue.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Fuel Pump Relay, Jumper Wires, Safety Gloves, Safety Goggles |
| Safety Precautions | Disconnect battery, work in well-ventilated area, avoid sparks near fuel |
| Voltage Range (Typical) | 12V (running), 0-12V (testing across terminals) |
| Test Location | Fuel pump connector or relay socket |
| Key Wire Colors | Varies by vehicle (commonly red for power, black for ground) |
| Testing Method | Measure voltage drop across fuel pump terminals with multimeter |
| Expected Results | Voltage should match battery voltage (12V) when pump is active |
| Common Issues | Low voltage (<10V), no voltage, intermittent voltage |
| Diagnostic Codes | P0087 (low fuel pressure), P0191 (fuel injector circuit issues) |
| Applicable Vehicles | Most gasoline vehicles with electric fuel pumps |
| Frequency of Testing | When diagnosing fuel system issues or during routine maintenance |
| Professional Assistance | Recommended if unsure or if issues persist after testing |
| Additional Tips | Check fuel pump fuse and relay before testing voltage |
Explore related products
What You'll Learn
- Gather Tools and Safety Gear: Multimeter, gloves, safety glasses, and a wrench for secure testing
- Locate Fuel Pump Connector: Find the pump’s electrical connector near the fuel tank
- Set Multimeter to Voltage: Configure multimeter to measure DC voltage within the pump’s range
- Connect Multimeter to Pump: Attach multimeter probes to the pump’s connector terminals
- Start Engine and Check Reading: Run engine and verify voltage matches specifications
Gather Tools and Safety Gear: Multimeter, gloves, safety glasses, and a wrench for secure testing
Before diving into testing fuel pump voltage, it’s critical to assemble the right tools and safety gear. A multimeter is your primary instrument, essential for measuring voltage accurately. Ensure it’s set to the DC voltage range, typically 20V, to match the fuel pump’s electrical system. Alongside the multimeter, gloves and safety glasses are non-negotiable. Fuel systems operate under pressure and involve flammable materials, so protecting your hands and eyes from spills or debris is paramount. A wrench completes the toolkit, allowing you to securely access the fuel pump’s electrical connector without damaging components. Skipping any of these items risks inaccurate readings or personal injury, making preparation as vital as the test itself.
Consider the multimeter as the cornerstone of this process, but its effectiveness hinges on proper handling. Always inspect it for damaged probes or a cracked display before use. For safety, avoid touching the probe tips while testing, as this can lead to electrical shocks or short circuits. Gloves, preferably insulated ones, provide an additional layer of protection against accidental contact with live wires. Safety glasses shield your eyes from fuel splashes or debris dislodged during testing. Together, these tools form a safety net, ensuring you can focus on the task without unnecessary risks.
The wrench, though seemingly simple, plays a pivotal role in accessing the fuel pump’s electrical connector. Use it to carefully loosen the connector’s retaining clip, ensuring a secure grip to avoid stripping screws or damaging wires. If the connector is hard to reach, consider using an extension or swivel head wrench for better maneuverability. Once the connector is exposed, the multimeter probes can be attached to the terminals, but only after confirming the ignition is off to prevent accidental activation of the fuel pump. This step-by-step approach minimizes the chance of errors or accidents.
A comparative analysis highlights the importance of each tool in this process. While a multimeter provides precise voltage readings, gloves and safety glasses offer physical protection, and a wrench ensures mechanical precision. Omitting any one of these could lead to suboptimal results or hazards. For instance, attempting to test voltage without safety gear in a fuel-rich environment increases the risk of injury. Similarly, using a damaged multimeter or the wrong wrench size can compromise accuracy or damage components. Each tool complements the others, creating a cohesive system for safe and effective testing.
In practice, treat this preparation as a ritual. Lay out your tools in a clean, well-lit area before starting. Double-check the multimeter’s settings and probe connections. Ensure gloves fit snugly but allow dexterity, and verify safety glasses are free of scratches or obstructions. If working on a vehicle, park it on a flat surface, engage the parking brake, and disconnect the battery to eliminate electrical hazards. These small but deliberate actions transform a potentially dangerous task into a controlled, efficient procedure. By prioritizing safety and precision, you not only protect yourself but also ensure reliable diagnostic results.
Testing Your 1995 Ford Ranger Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Locate Fuel Pump Connector: Find the pump’s electrical connector near the fuel tank
The fuel pump connector is a critical component in the fuel delivery system, serving as the lifeline between the pump and the vehicle’s electrical system. To test fuel pump voltage accurately, locating this connector is your first and most crucial step. Typically, it’s positioned near the fuel tank, often along the top or side, depending on the vehicle’s make and model. Start by consulting your vehicle’s service manual to identify its exact location, as designs vary widely across manufacturers. For example, in many rear-wheel-drive vehicles, the connector is accessible from the rear or underside of the car, while in some front-wheel-drive models, it may be tucked behind the rear seat or in the trunk.
Once you’ve identified the general area, visually inspect the fuel tank’s surroundings for a wiring harness leading to a multi-pin connector. This connector is usually protected by a plastic cover or shroud to shield it from debris and moisture. Gently remove any protective covering to expose the connector, taking care not to damage the wires or surrounding components. If the connector is difficult to locate, follow the fuel lines from the tank; the electrical connector is often in close proximity. In some cases, you may need to remove a trunk liner or access panel to gain visibility.
A practical tip for locating the connector is to use a flashlight and a mirror to inspect hard-to-reach areas. If the connector is still elusive, trace the wiring harness from the fuel pump relay or fuse box backward toward the tank. This methodical approach ensures you don’t overlook the connector, even in vehicles with complex layouts. For instance, in a Ford F-150, the connector is often found near the driver’s side of the tank, while in a Honda Civic, it’s typically accessible from the rear seat area.
Caution is essential during this process, as mishandling the connector or its surroundings can lead to electrical shorts or fuel system damage. Avoid pulling or tugging on the wires, and ensure the vehicle is turned off and the ignition key is removed to prevent accidental activation of the fuel pump. If the connector is corroded or damaged, clean it with electrical contact cleaner or consider replacing it before proceeding with voltage testing. Properly locating and handling the fuel pump connector sets the stage for an accurate and safe voltage test, ensuring you diagnose fuel system issues effectively.
Is Your Fuel Pump Failing? Signs, Symptoms, and Solutions
You may want to see also
Explore related products
Set Multimeter to Voltage: Configure multimeter to measure DC voltage within the pump’s range
Before testing fuel pump voltage, ensure your multimeter is set to the correct range. Most automotive fuel pumps operate between 9V and 16V DC, though this can vary by vehicle. Setting the multimeter to a range that includes this voltage is critical for accurate readings. For instance, if your multimeter has fixed ranges, select the 20V DC setting to safely capture the pump’s operating voltage without overloading the meter. If your multimeter has an auto-ranging feature, activate it to let the device adjust automatically, but verify it’s within the DC voltage mode. This initial step prevents damage to the multimeter and ensures reliable results.
Consider the multimeter’s resolution and accuracy when configuring it. A high-resolution meter (e.g., 0.1V increments) provides more precise readings, which is essential for diagnosing subtle voltage drops. For example, a pump operating at 13.2V might appear as 13V on a low-resolution meter, masking potential issues. If your multimeter has manual range settings, choose a range slightly above the expected voltage to maximize accuracy. For a pump expected to draw 12V, set the meter to the 20V DC range rather than 50V, as tighter ranges improve sensitivity.
When configuring the multimeter, pay attention to the probe connections. Connect the black probe to the COM (common) port and the red probe to the VΩmA port (or the dedicated voltage port if available). Reversing these can lead to incorrect readings or damage. Additionally, inspect the probes for wear or damage, as frayed wires or loose connections can introduce resistance, skewing voltage measurements. Always ensure the ignition is off when connecting the probes to avoid electrical hazards.
A common mistake is neglecting to check the multimeter’s battery. A weak battery can cause erratic readings or a blank display. Test the meter on a known voltage source, such as a 9V battery, to confirm it’s functioning correctly. If the reading is off by more than 0.2V, replace the battery before proceeding. This simple step saves time and prevents misdiagnosis, ensuring the multimeter is as reliable as the test itself.
Finally, consider environmental factors when setting up the multimeter. Extreme temperatures can affect both the meter’s performance and the fuel pump’s voltage output. For instance, in cold conditions, the pump may draw slightly higher voltage initially. Test the voltage under normal operating conditions (e.g., engine at operating temperature) for the most accurate results. By carefully configuring the multimeter and accounting for these variables, you’ll obtain a clear, actionable reading of the fuel pump’s voltage.
Understanding Johnson Outboard Fuel Pump Operation and Maintenance Tips
You may want to see also
Explore related products

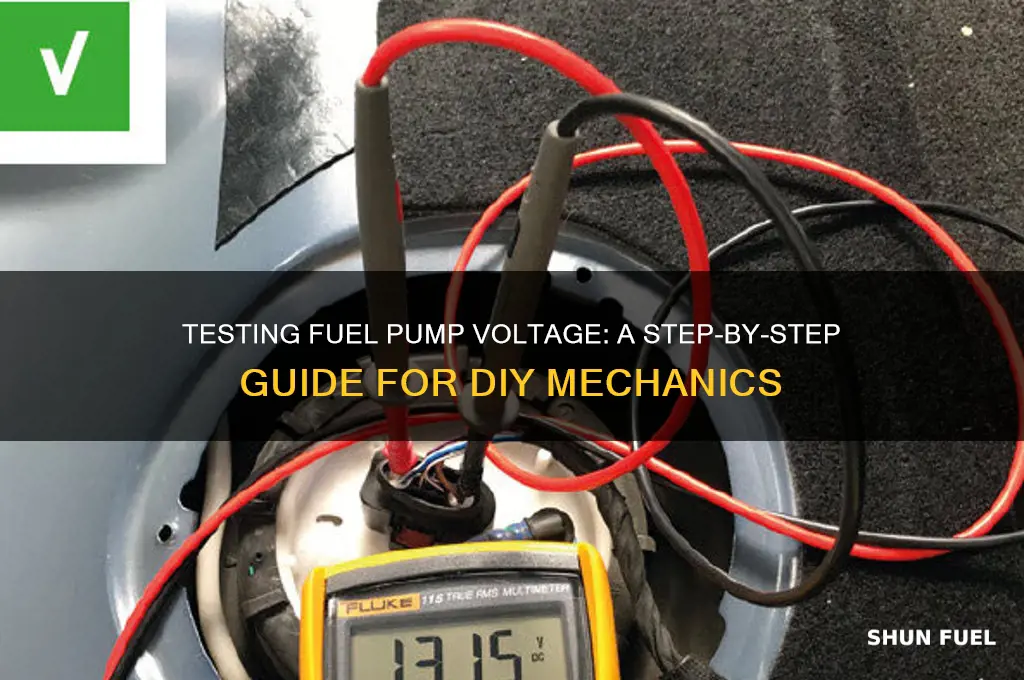

Connect Multimeter to Pump: Attach multimeter probes to the pump’s connector terminals
To accurately test fuel pump voltage, the connection between your multimeter and the pump’s terminals is critical. Begin by locating the fuel pump’s electrical connector, typically found near the fuel tank or along the fuel line. Ensure the vehicle is turned off and the ignition is in the "off" position to avoid electrical hazards. Carefully disconnect the pump’s connector, exposing the terminals. Most fuel pumps have two wires: one for power and one for ground. Identify these wires by consulting your vehicle’s manual or using a wiring diagram. Attach the multimeter’s red probe to the power terminal and the black probe to the ground terminal. This setup ensures you’re measuring the voltage supplied directly to the pump.
The precision of your multimeter settings is just as important as the physical connection. Set the multimeter to the DC voltage range, typically marked as "V" with a straight line, and ensure the range is appropriate for your vehicle’s system (usually 0-20V). If unsure, start with the highest range and adjust downward to avoid damaging the meter. Once connected, turn the ignition to the "on" position but do not start the engine. Observe the multimeter reading—it should display the voltage supplied to the pump. A healthy fuel pump typically receives between 10V and 12V, depending on the vehicle’s electrical system. If the reading is significantly lower or nonexistent, the issue may lie in the wiring, fuse, or relay rather than the pump itself.
While connecting the multimeter probes, be mindful of the terminal polarity to avoid incorrect readings or damage. Reversing the probes (red to ground, black to power) will not harm the multimeter but will yield a negative voltage reading, which can be misleading. Additionally, inspect the connector and terminals for corrosion, damage, or loose wires before testing. Clean any corrosion with a wire brush and dielectric grease to ensure a reliable connection. If the terminals appear burnt or damaged, further investigation into the wiring harness may be necessary.
A common mistake when testing fuel pump voltage is neglecting to check for continuity in the circuit. If the multimeter reads zero voltage, use the continuity setting (usually a diode symbol or sound wave) to test the wires for breaks or open circuits. Place one probe on each terminal and listen for a beep or observe a low resistance reading, indicating a complete circuit. If there’s no continuity, the wire is likely damaged and needs replacement. This step ensures you’re not misdiagnosing the pump as faulty when the issue lies elsewhere in the circuit.
In conclusion, connecting a multimeter to the fuel pump’s terminals is a straightforward yet precise process that requires attention to detail. By correctly identifying the power and ground terminals, setting the multimeter to the appropriate range, and ensuring a clean connection, you can accurately diagnose voltage issues. Pairing this test with continuity checks provides a comprehensive understanding of the fuel pump’s electrical health, helping you pinpoint the root cause of any problems efficiently. Always prioritize safety and consult vehicle-specific resources for accurate terminal identification and voltage expectations.
Does AutoZone Test Fuel Pump Relay? A Comprehensive Guide
You may want to see also
Explore related products
$70.46 $89.98
Start Engine and Check Reading: Run engine and verify voltage matches specifications
Once the engine is running, the fuel pump's voltage should stabilize, reflecting the electrical system's ability to maintain consistent power under load. This step is crucial because a fuel pump’s voltage at idle versus under load can differ significantly, and discrepancies here often reveal hidden issues. Use a digital multimeter set to DC voltage, connect it in parallel to the fuel pump’s wiring harness, and observe the reading. For most vehicles, the voltage should remain within 10% of the battery voltage (e.g., 12V to 14.4V for a 12V system). If the voltage drops below specifications, suspect a failing pump, poor ground connection, or insufficient power supply. Conversely, excessive voltage may indicate a faulty regulator or wiring issue. Always compare your readings to the vehicle’s service manual for precise thresholds.
Analyzing the voltage while the engine runs provides a dynamic perspective on the fuel pump’s performance. Unlike static tests, this method simulates real-world conditions, where the pump must deliver fuel under varying demands. For instance, a voltage drop during acceleration could point to a pump struggling to meet increased fuel pressure requirements. Similarly, erratic readings may suggest a failing pump relay or corroded connections. To isolate the issue, compare the running voltage to the key-on engine-off (KOEO) voltage; a significant disparity often indicates a problem in the pump circuit rather than the pump itself. This comparative approach helps narrow down the root cause efficiently.
When verifying voltage specifications, precision is key. Start by ensuring the multimeter leads are securely connected to the fuel pump’s power and ground wires, avoiding interference from other components. If the pump is located in the fuel tank, access the wiring via the fuel pump relay or a test port in the engine bay. For vehicles with return-less fuel systems, monitor the voltage during both idle and revving conditions, as these systems rely heavily on consistent power delivery. If the voltage fails to match specifications, retest with a known-good relay or fuse to rule out external factors. Always prioritize safety by disconnecting the battery before handling wiring and avoiding contact with moving engine parts.
A persuasive argument for this step lies in its diagnostic power. By confirming the fuel pump’s voltage under operating conditions, you eliminate guesswork and pinpoint electrical faults with confidence. For example, a pump drawing excessive current may cause voltage to sag, leading to poor engine performance or stalling. Conversely, a pump operating below required voltage may fail to deliver adequate fuel pressure, resulting in misfires or hesitation. This test is particularly valuable for diagnosing intermittent issues, as voltage fluctuations under load often correlate with drivability symptoms. Investing time in this step can save hours of troubleshooting and prevent unnecessary part replacements.
Finally, consider practical tips to streamline the process. If accessing the fuel pump wiring is challenging, use a remote starter to run the engine while you monitor the multimeter safely. For vehicles with multiple fuel pumps (e.g., in-tank and auxiliary), test each pump individually to isolate faults. Document your readings at idle, 2000 RPM, and under load to create a voltage profile for comparison. If the voltage is borderline, retest after cleaning all ground connections and inspecting the wiring harness for damage. By combining technical precision with methodical testing, this step transforms a simple voltage check into a powerful diagnostic tool.
Does the Small Block GM Fuel Pump Include an Anti-Siphon Valve?
You may want to see also
Frequently asked questions
You will need a digital multimeter, a wiring diagram for your vehicle, and safety gear such as gloves and safety goggles.
Refer to your vehicle’s wiring diagram or service manual to identify the fuel pump connector, typically located near the fuel tank or in the engine bay.
The voltage reading should match your vehicle’s battery voltage (typically 12V when the ignition is on) or the specified voltage in the service manual.
Yes, you can test voltage at the fuel pump connector without removing the tank, but ensure the connector is accessible and the ignition is on.
A low or no voltage reading may indicate a faulty relay, blown fuse, damaged wiring, or a bad fuel pump connector. Further diagnosis is required.
