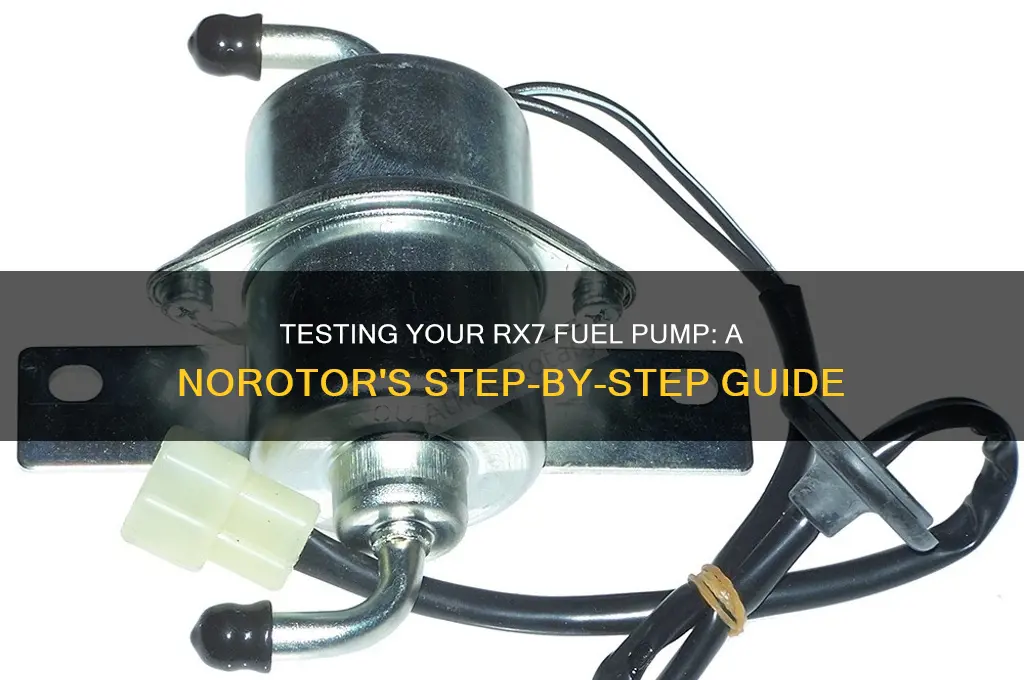

Testing the fuel pump on an RX7 with a rotary engine (Norotor) is a critical step in diagnosing fuel delivery issues, ensuring optimal engine performance, and preventing potential breakdowns. The process typically involves checking for proper fuel pressure, verifying electrical connectivity, and assessing the pump’s operation. Begin by disconnecting the fuel line and using a gauge to measure the pressure while the pump is running; it should match the manufacturer’s specifications. Next, inspect the wiring harness and relay for any signs of damage or corrosion, as electrical faults are common culprits. Additionally, listen for unusual noises during operation, which may indicate a failing pump. If the pump fails to activate, test the power supply at the pump connector to confirm if the issue lies with the pump itself or the control circuit. Proper testing ensures the fuel system is functioning correctly, maintaining the RX7’s renowned performance and reliability.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Inside the fuel tank (in-tank fuel pump). |
| Testing Tools Required | Multimeter, fuel pressure gauge, jumper wires, 12V power source. |
| Electrical Testing | Check for 12V power at the pump connector when the ignition is on. |
| Ground Testing | Ensure a good ground connection at the pump's ground wire. |
| Resistance Testing | Measure resistance across the pump terminals (typically 2-4 ohms). |
| Fuel Pressure Testing | Connect a pressure gauge to the fuel rail; pressure should be 30-40 PSI. |
| In-Tank Access | Drop the fuel tank or use an access panel (if available). |
| Symptoms of Failure | No start, hard start, stalling, whining noise from the tank. |
| Replacement Recommendation | Replace if electrical tests fail or pressure is insufficient. |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure. |
| Compatibility | Applies to Mazda RX-7 with in-tank fuel pump (1986-1991 models). |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure, locate pump
- Electrical Testing: Check power, ground, and signal at pump connector using multimeter
- Pressure Testing: Use gauge to verify pump output pressure meets factory specifications
- In-Tank Inspection: Drop tank, inspect pump condition, check for debris or damage
- Post-Test Diagnosis: Analyze results, replace faulty components, retest for proper function
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure, locate pump
Before testing the fuel pump on your RX7 with a Norotor setup, meticulous preparation is paramount. Begin by gathering the necessary tools: a fuel pressure gauge, wrenches or sockets compatible with your fuel lines and pump fittings, a container for fuel spillage, and safety gear including gloves and safety goggles. Each tool serves a specific purpose—the pressure gauge to measure fuel system integrity, wrenches to disconnect lines safely, and the container to manage any fuel that may escape during the process.
Safety cannot be overstated when working with fuel systems. Ensure the vehicle is parked on a level surface, away from open flames or sparks, and in a well-ventilated area. Fuel vapors are highly flammable, and even a small spark can lead to catastrophic consequences. Equip yourself with gloves to protect against fuel exposure and goggles to shield your eyes from accidental splashes. A fire extinguisher nearby is a prudent addition to your safety arsenal.
With safety measures in place, disconnect the battery to eliminate the risk of electrical shorts or accidental pump activation. Locate the negative terminal, typically marked with a minus sign, and use the appropriate wrench to loosen the nut securing the cable. Once disconnected, secure the cable away from the battery terminal to prevent accidental reconnection. This step is critical, as it ensures the fuel pump remains inactive during the testing process, minimizing the risk of fuel ignition or electrical damage.
Relieving fuel pressure is the next critical step. Start by locating the fuel pressure relief valve or Schrader valve, often found on the fuel rail or near the fuel injectors. Depress the valve using a small tool, such as a screwdriver or the appropriate gauge adapter, to release any residual pressure in the system. Listen for the hiss of escaping fuel, which confirms the pressure has been relieved. This step prevents fuel from spraying uncontrollably when you disconnect the lines, reducing the risk of spills and fires.
Finally, locate the fuel pump itself. In an RX7 with a Norotor setup, the pump is typically mounted in the fuel tank, requiring you to access it from underneath the vehicle. Use a jack to safely raise the car and secure it on stands. Trace the fuel lines from the engine bay to the tank, identifying the pump’s location. Familiarize yourself with its mounting and connections, as this knowledge will streamline the testing process and ensure you work efficiently. Proper preparation at this stage sets the foundation for a safe, accurate, and successful fuel pump test.
DIY Fuel Pump Construction Guide for Wisconsin Motors: Step-by-Step
You may want to see also
Explore related products
Electrical Testing: Check power, ground, and signal at pump connector using multimeter
A faulty fuel pump can leave your RX-7 stranded, but before condemning the pump itself, it's crucial to verify the electrical system feeding it. A multimeter becomes your diagnostic ally in this scenario, allowing you to pinpoint issues with power delivery, grounding, or the control signal.
This process involves a systematic approach, checking each vital electrical parameter at the pump connector.
Power Check: With the ignition switched on, set your multimeter to the DC voltage range (typically 20V). Connect the red lead to the power pin on the fuel pump connector and the black lead to a known good ground (like the battery negative terminal). A healthy system should display a voltage reading close to your battery voltage (around 12V). If the reading is significantly lower or non-existent, suspect a blown fuse, a faulty relay, or a broken wire supplying power to the pump.
Ground Check: A solid ground is essential for the pump's operation. Switch your multimeter to the continuity or resistance setting. Connect one lead to the ground pin on the pump connector and the other to a known good chassis ground point. A reading close to 0 ohms indicates a good ground. High resistance or an open circuit points to a corroded connector, a broken ground wire, or a poor connection at the chassis ground point.
Signal Check: The fuel pump is typically controlled by a signal from the engine control unit (ECU). This signal is usually a pulsed voltage. Consult your RX-7's service manual to identify the specific pin on the pump connector that receives this signal. With the ignition on and the engine cranking (or running), set your multimeter to the DC voltage range. Connect the leads to the signal pin and a good ground. You should observe a pulsing voltage signal. The exact frequency and amplitude will vary depending on your RX-7's model year and ECU programming. If no signal is present, the issue could lie with the ECU, the wiring harness, or the fuel pump control circuit.
Troubleshooting Tips: Always ensure your multimeter is set to the correct range and polarity before making measurements. Double-check your connections to avoid damaging the multimeter or the vehicle's electrical system. If you're unsure about pin identification, refer to a wiring diagram specific to your RX-7 model. Remember, electrical diagnostics can be complex. If you're uncomfortable or unsure, consult a qualified mechanic to avoid further complications.
Weak Fuel Pump Lifespan: How Long Can It Last Before Failing?
You may want to see also
Explore related products
Pressure Testing: Use gauge to verify pump output pressure meets factory specifications
Pressure testing is a critical step in diagnosing fuel pump issues on an RX7 with a Norotor setup. The fuel pump’s output pressure must align with factory specifications to ensure optimal engine performance. Deviations, even slight, can lead to poor fuel delivery, misfires, or inefficient combustion. A pressure gauge becomes your diagnostic ally here, providing precise measurements to confirm whether the pump is functioning within acceptable parameters.
To begin, disconnect the fuel line at the fuel rail and attach the pressure gauge securely. Ensure all connections are tight to prevent leaks, as fuel under pressure can be hazardous. With the ignition on but the engine off, observe the gauge reading. Factory specifications for the RX7’s fuel pump typically range between 30 and 40 psi, depending on the model year and modifications. If the gauge reads outside this range, the pump may be failing or clogged, necessitating further inspection or replacement.
Comparing pressure testing to other diagnostic methods highlights its efficiency. Unlike visual inspections or listening for pump operation, pressure testing provides quantifiable data. It eliminates guesswork, allowing you to pinpoint the issue with confidence. For instance, a low-pressure reading could indicate a weak pump, while excessive pressure might suggest a clogged fuel filter or regulator malfunction. This method is particularly valuable for Norotor setups, where precise fuel delivery is essential for the rotary engine’s unique demands.
A practical tip: Always test the fuel pressure regulator simultaneously. A faulty regulator can skew pump pressure readings, leading to misdiagnosis. Disconnect the vacuum line from the regulator and cap it before testing. If the pressure stabilizes within spec, the regulator is likely the culprit. Additionally, ensure the fuel tank is at least half full during testing, as low fuel levels can affect pump performance and pressure readings.
In conclusion, pressure testing with a gauge is a definitive way to verify your RX7’s fuel pump output. It’s a straightforward yet powerful diagnostic tool that saves time and prevents unnecessary part replacements. By adhering to factory specifications and following these steps, you can ensure your Norotor setup runs smoothly, delivering the performance these iconic engines are known for.
Understanding the Functionality of a Facet Fuel Pump: A Comprehensive Guide
You may want to see also
Explore related products
![[2-Pack] Reusable Ethanol Testing Kit - Wide Mouth Fuel Test Bottle for E85 and Ethanol Levels - Fewer Spills and Clear Results in Minutes - Test Hundreds of Times - Two Ethanol Test Bottles Included](https://m.media-amazon.com/images/I/71sU-J0V11L._AC_UL320_.jpg)
In-Tank Inspection: Drop tank, inspect pump condition, check for debris or damage
The in-tank fuel pump of an RX7 is a critical component often overlooked until symptoms like sputtering or hard starts appear. Performing an in-tank inspection is a proactive measure to diagnose issues before they escalate. This process involves dropping the fuel tank, a task that requires careful preparation to avoid spills or damage. Ensure the vehicle is on a level surface, the fuel level is below a quarter tank, and the battery is disconnected to prevent accidental ignition. Use a jack and stands to secure the vehicle, and have a drain pan ready to catch any residual fuel.
Once the tank is safely removed, the inspection begins with a visual assessment of the pump’s condition. Look for signs of corrosion, cracks, or leaks in the pump housing. The fuel pump’s inlet screen is a common trouble spot, often clogged with debris from a deteriorating fuel tank or contaminated fuel. Use a bright light and magnifying glass to inspect the screen for fine particles or rust flakes. If the screen is clogged, fuel flow is restricted, leading to poor engine performance. Cleaning or replacing the screen is essential to restore proper function.
Debris in the tank is another critical issue to address during inspection. Over time, sediment, rust, and particulate matter accumulate at the tank’s bottom, especially in older RX7s with steel tanks prone to corrosion. Swirl the remaining fuel in the tank (if any) and observe for floating particles. If debris is present, the tank should be thoroughly cleaned or replaced to prevent pump damage. A fuel filter can catch some contaminants, but it’s no substitute for a clean tank environment.
Damage to the pump itself, such as broken wires or a seized motor, requires immediate attention. Test the pump’s electrical connections for continuity using a multimeter, ensuring the wiring harness is intact. If the pump fails to operate when powered directly, it’s likely faulty and needs replacement. Consider upgrading to a higher-performance pump if the original unit has failed repeatedly, as aftermarket options often offer improved durability and flow rates.
In conclusion, an in-tank inspection is a meticulous but necessary procedure for maintaining the RX7’s fuel system. By systematically checking the pump’s condition, clearing debris, and addressing damage, you can prevent costly repairs and ensure reliable performance. This hands-on approach not only saves money but also deepens your understanding of the vehicle’s mechanics, making it a valuable skill for any RX7 owner.
Fuel Pump Voltage Requirements: Essential Power for Optimal Performance
You may want to see also
Explore related products
Post-Test Diagnosis: Analyze results, replace faulty components, retest for proper function
After testing your RX-7's fuel pump using methods from NoRotors or similar resources, you’re left with data that demands interpretation. A fuel pump operating below 3-5 psi at idle or failing to maintain pressure under load indicates a problem. Cross-reference your readings with the factory specifications for your specific RX-7 model (e.g., FC or FD) to confirm deviations. Unusual noises during testing, such as whining or grinding, often signal mechanical wear or debris in the pump. If the pump fails to prime or deliver fuel at all, electrical issues like a faulty relay or corroded connections are likely culprits.
Once you’ve identified the issue, replacement of faulty components is the next logical step. For a failing fuel pump, sourcing a high-quality aftermarket or OEM replacement is critical, especially for high-performance RX-7s. When replacing the pump, inspect the fuel filter and lines for clogs or deterioration—these often contribute to pump failure. If the issue is electrical, test the relay with a multimeter (resistance should match specifications) and clean or replace corroded wiring harnesses. Always use dielectric grease on electrical connections to prevent future corrosion, particularly in older vehicles.
Retesting after repairs is non-negotiable. Reconnect the fuel pressure gauge and repeat the initial test procedure to ensure the new pump operates within spec. Verify that pressure stabilizes at idle (3-5 psi) and increases under load without fluctuation. Listen for abnormal sounds during operation, as even a new pump can exhibit issues if improperly installed or if residual debris is present. If the pump still fails, recheck fuel lines for restrictions or air leaks, as these can mimic pump failure.
A comparative analysis of pre- and post-repair performance provides valuable insights. If the new pump performs flawlessly but fuel delivery remains inconsistent, the issue may lie upstream—such as a clogged fuel tank pickup or failing fuel pressure regulator. In such cases, disassemble and clean the fuel tank or replace the regulator, then retest. This iterative process ensures no underlying issues are overlooked, saving time and preventing recurring failures.
Finally, treat post-test diagnosis as a systematic process, not a one-off check. Document all readings, replacements, and observations for future reference. For RX-7 owners, understanding the interplay between the fuel system and rotary engine dynamics is key. A properly functioning fuel pump ensures consistent fuel delivery, which is critical for maintaining the precise air-fuel ratios required by the Wankel engine. By methodically analyzing results, replacing components, and retesting, you not only resolve immediate issues but also safeguard the longevity of your RX-7’s performance.
Mercruiser Engine: Electric Fuel Pump Presence Explained
You may want to see also
Frequently asked questions
To test the fuel pump, first ensure the ignition is off. Disconnect the fuel pump connector, then connect a voltmeter to the pump’s power and ground wires. Turn the ignition to the "on" position and check for 12 volts. If voltage is present, the issue may be with the pump itself.
Common signs include difficulty starting, engine sputtering, loss of power, or a whining noise from the fuel tank. If the engine stalls or fails to start despite a full tank, the fuel pump may be faulty.
Yes, you can perform a basic test by listening for the pump’s hum when turning the ignition to the "on" position (but not starting the engine). If no sound is heard, check the fuse and relay. For a more accurate test, use a fuel pressure gauge at the fuel rail.
Attach a fuel pressure gauge to the fuel rail’s test port. Turn the ignition to the "on" position and note the pressure reading. Compare it to the manufacturer’s specifications. If the pressure is low or non-existent, the fuel pump may be failing.
