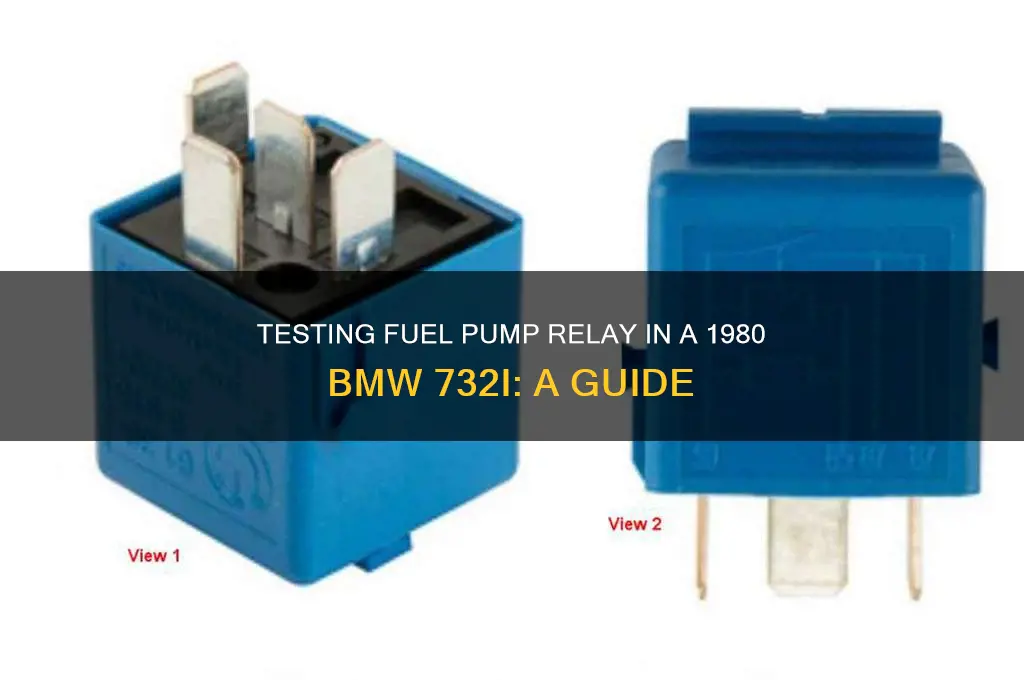

Testing the fuel pump relay on a 1980 BMW 732i is a critical step in diagnosing fuel delivery issues, as a faulty relay can prevent the fuel pump from operating correctly. To begin, locate the fuel pump relay, typically found in the fuse box under the hood or in the trunk, depending on the model. Use the vehicle’s manual or a wiring diagram to identify the correct relay. With the ignition off, remove the relay and inspect it for signs of damage or corrosion. Next, use a multimeter to test the relay’s continuity and ensure the internal contacts are functioning properly. Apply power to the relay’s control circuit and check if the fuel pump engages when the ignition is turned on. If the relay fails these tests, it should be replaced. Additionally, verify power and ground connections at the relay socket to rule out wiring issues. This systematic approach ensures accurate diagnosis and resolves potential fuel system problems efficiently.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1980 BMW 732i |
| Fuel Pump Relay Location | Typically located in the fuse box under the hood or near the firewall. |
| Tools Required | Multimeter, jumper wires, screwdriver. |
| Testing Procedure | 1. Locate the relay and identify its terminals (30, 87, 85, 86). |
| 2. Disconnect the relay and use a multimeter to test continuity between terminals 30 and 87. | |
| 3. Apply power to terminal 85 and ground to terminal 86 to activate the relay. | |
| 4. Check for continuity again between 30 and 87; it should close when activated. | |
| Expected Results | Continuity between 30 and 87 when activated; no continuity when inactive. |
| Common Symptoms of Failure | Engine cranks but doesn’t start, no fuel pressure, or intermittent starting issues. |
| Replacement Relay Part Number | Varies; consult BMW service manual or parts supplier for exact part number. |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards. |
| Additional Tips | Ensure the fuel pump fuse is intact and the fuel pump itself is functional. |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay's position in the fuse box
- Check Power Supply: Test for battery voltage at the relay's input terminal
- Inspect Ground Connection: Verify the relay's ground is clean and secure
- Test Relay Coil: Use a multimeter to check coil resistance and operation
- Swap Relays: Temporarily replace with a known-good relay to confirm functionality
Locate the Relay: Identify the fuel pump relay's position in the fuse box
The fuel pump relay in a 1980 BMW 732i is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Locating this relay is the first step in diagnosing potential issues, such as a failing fuel pump or electrical problems. The relay is typically housed within the fuse box, which serves as the central hub for the car’s electrical system. Understanding its exact position is essential for efficient troubleshooting and maintenance.
To begin, consult the vehicle’s owner’s manual or a BMW service manual for the 732i. These resources often include diagrams that pinpoint the fuel pump relay’s location within the fuse box. If the manual is unavailable, the fuse box is commonly found under the dashboard on the driver’s side or in the engine bay. For the 1980 732i, the fuse box is usually located near the firewall on the driver’s side of the engine compartment. Look for a rectangular or square-shaped panel with a removable cover, often labeled with a diagram of its contents.
Once you’ve located the fuse box, identify the fuel pump relay by cross-referencing the diagram on the cover or in the manual. The relay is typically labeled as “Fuel Pump” or “FP” and is distinguished by its larger size compared to standard fuses. If the cover lacks a diagram, the relay is often positioned near other engine management components, such as the ignition or injection relays. A practical tip is to use a flashlight to inspect the fuse box thoroughly, as the relay’s labeling may be small or faded due to age.
After identifying the relay, take note of its orientation and how it fits into the fuse box. Some relays are color-coded or have unique shapes to prevent incorrect installation. Gently wiggle the relay to ensure it is securely seated, as a loose connection can cause intermittent fuel pump operation. If the relay appears damaged or corroded, it may need replacement, but testing it first is recommended to confirm the issue.
In summary, locating the fuel pump relay in the 1980 BMW 732i’s fuse box requires a systematic approach. Start with the vehicle’s manual, inspect the fuse box cover for diagrams, and verify the relay’s position near related components. Proper identification ensures accurate testing and maintenance, keeping your classic BMW running smoothly.
Automotive Fuel Pumps: Understanding the Role of Check Valves
You may want to see also
Explore related products
Check Power Supply: Test for battery voltage at the relay's input terminal
The fuel pump relay in your 1980 BMW 732i is a critical component, acting as the gatekeeper for power delivery to the fuel pump. Without proper voltage at the relay's input terminal, the pump remains dormant, leaving your engine starved for fuel. Testing for battery voltage here is a fundamental diagnostic step, isolating whether the issue lies with power supply or the relay itself.
A multimeter becomes your trusted tool for this task. Set it to the DC voltage range, typically marked with a "V" and a dashed line, and ensure the range exceeds your battery's expected 12 volts. Locate the fuel pump relay, often found in the engine bay fuse box. Consult your BMW's service manual for its exact location, as models may vary.
With the ignition switched on, carefully touch the multimeter's positive lead to the relay's input terminal, usually marked with a symbol resembling a battery or the number "30". Connect the negative lead to a good ground point, such as an unpainted metal surface on the engine block. A reading close to 12 volts indicates a healthy power supply, shifting suspicion towards the relay itself. Anything significantly lower points to a wiring issue, potentially a loose connection, corroded terminal, or a faulty fuse.
Remember, safety is paramount. Always disconnect the battery before handling electrical components, and avoid touching exposed terminals with bare hands. This simple voltage check, though seemingly basic, is a powerful diagnostic tool, narrowing down the root cause of your fuel pump woes and guiding you towards an effective repair.
Do Lawn Mowers Have Fuel Pumps? A Comprehensive Guide
You may want to see also
Explore related products
Inspect Ground Connection: Verify the relay's ground is clean and secure
A faulty ground connection can mimic symptoms of a failed fuel pump relay, leading to misdiagnosis and unnecessary part replacements. The 1980 BMW 732i relies on a robust electrical system, and the relay's ground is a critical yet often overlooked component. Corrosion, loose connections, or damaged wiring at the ground point can disrupt the flow of current, causing the fuel pump to operate intermittently or not at all. Before condemning the relay, inspect the ground connection to ensure it’s clean, secure, and capable of conducting electricity efficiently.
Steps to Inspect the Ground Connection:
- Locate the Ground Point: On the 1980 732i, the fuel pump relay ground is typically found near the relay itself or on the chassis. Refer to the vehicle’s wiring diagram for precise location.
- Disconnect the Battery: Safety first—disconnect the negative battery terminal to prevent electrical shorts during inspection.
- Clean the Ground Area: Use a wire brush or sandpaper to remove any corrosion, dirt, or paint from the ground terminal and mating surface. Corrosion acts as an insulator, hindering proper grounding.
- Check for Secure Attachment: Ensure the ground wire is tightly fastened to the chassis or mounting point. A loose connection can cause voltage drops, affecting relay performance.
- Test Continuity: Use a multimeter to verify continuity between the ground terminal and the chassis. A reading of 0 ohms confirms a solid ground; anything higher indicates a problem.
Cautions and Practical Tips:
Avoid over-tightening the ground bolt, as this can strip threads or damage the wiring. If the ground wire shows signs of fraying or damage, replace it immediately. For added reliability, apply dielectric grease to the cleaned ground area to prevent future corrosion.
A clean and secure ground connection is as vital as the relay itself. By systematically inspecting and maintaining this often-neglected component, you can eliminate a common cause of fuel pump relay issues in the 1980 BMW 732i. This simple yet critical step ensures accurate diagnostics and saves time and money in the long run.
Mastering Fuel Injection Pump Testing: A Comprehensive Step-by-Step Guide
You may want to see also
Explore related products
Test Relay Coil: Use a multimeter to check coil resistance and operation
The relay coil is the heart of the fuel pump relay, responsible for activating the circuit that powers the fuel pump. Testing its resistance and operation is a critical step in diagnosing fuel pump issues in a 1980 BMW 732i. A multimeter becomes your diagnostic tool, allowing you to verify if the coil is functioning correctly or if it’s the culprit behind a no-start condition.
Steps to Test Relay Coil Resistance:
- Locate the Relay: The fuel pump relay in a 1980 BMW 732i is typically found in the fuse box under the hood or near the firewall. Consult the vehicle’s manual for exact placement.
- Remove the Relay: Carefully unplug the relay from its socket, ensuring not to damage the pins.
- Set Multimeter: Set your multimeter to the resistance (ohms) setting. A typical range for this test is 200 ohms or less, depending on the relay specifications.
- Measure Resistance: Place the multimeter probes across the coil terminals (usually pins 85 and 86). A reading within the specified range indicates a healthy coil. Infinite resistance suggests an open circuit, while zero resistance points to a short.
Testing Relay Operation:
With the relay still removed, use the multimeter to check continuity between the normally open (NO) and common (COM) contacts (usually pins 30 and 87). Without power applied, there should be no continuity. Apply 12 volts to the coil terminals (pins 85 and 86) and recheck continuity. If the relay is functioning, the circuit will close, and the multimeter will show continuity.
Practical Tips:
- Always ensure the ignition is off when testing to avoid accidental activation of the fuel pump.
- Clean the relay terminals and multimeter probes to ensure accurate readings.
- If the relay fails the test, replace it with a known-good unit to confirm the diagnosis.
Testing the relay coil’s resistance and operation is a straightforward yet essential diagnostic procedure. By using a multimeter to verify these parameters, you can quickly determine if the relay is at fault or if the issue lies elsewhere in the fuel pump circuit. This method saves time and eliminates guesswork, making it a valuable skill for any BMW enthusiast or DIY mechanic.
Could a Faulty Fuel Pump Cause Scraping Noise in Mustang?
You may want to see also
Explore related products
Swap Relays: Temporarily replace with a known-good relay to confirm functionality
One of the most straightforward methods to test the fuel pump relay in a 1980 BMW 732i is to swap it with a known-good relay. This approach eliminates guesswork and provides immediate feedback on whether the relay is the source of the issue. Begin by locating the fuel pump relay, typically found in the fuse box under the hood or near the driver’s side kick panel. Ensure the ignition is off before proceeding to avoid electrical hazards. Using a relay diagram or manual, identify the correct relay to avoid confusion with other similar components.
To execute the swap, first disconnect the battery to prevent accidental short circuits. Carefully remove the suspect relay by pulling it straight out of its socket—do not twist or force it, as this can damage the pins. Insert the known-good relay into the same position, ensuring it clicks securely into place. Reattach the battery and attempt to start the vehicle. If the fuel pump engages and the engine starts, the original relay is likely faulty. If the issue persists, the problem may lie elsewhere, such as with the fuel pump itself or the wiring harness.
While this method is effective, it’s crucial to handle relays with care. Relays are sensitive components, and rough handling can damage them or their sockets. Always compare the pin configurations of both relays to ensure compatibility, as using an incorrect relay can cause further issues. Additionally, if the known-good relay is borrowed from another vehicle, return it promptly to avoid leaving that system compromised. This step is not just diagnostic—it’s a practical way to isolate the problem without investing in unnecessary parts.
A key advantage of this method is its speed and minimal cost. Unlike multimeter testing, which requires technical knowledge and additional tools, a relay swap can be completed in minutes with no specialized equipment. However, it does rely on having access to a known-good relay, which may not always be available. If borrowing from another vehicle isn’t an option, consider purchasing a new relay for testing purposes, which can later serve as a spare. This approach combines simplicity with reliability, making it a go-to technique for troubleshooting fuel pump relay issues in older BMWs.
Ford Freestar 2004: Fuel Pump Location and Function Explained
You may want to see also
Frequently asked questions
The fuel pump relay in a 1980 BMW 732i is typically located in the fuse box under the hood or near the firewall. Refer to your vehicle’s manual or a repair guide for the exact location.
You’ll need a multimeter, a 12V test light, and possibly a relay puller. These tools will help you check for continuity, voltage, and proper relay operation.
Use a multimeter to check for continuity across the relay’s terminals when activated. Alternatively, swap the fuel pump relay with another identical relay (e.g., the horn relay) to see if the fuel pump operates.
Common symptoms include the engine not starting, stalling, or difficulty starting. You may also hear no fuel pump humming noise when turning the ignition key to the "on" position.
