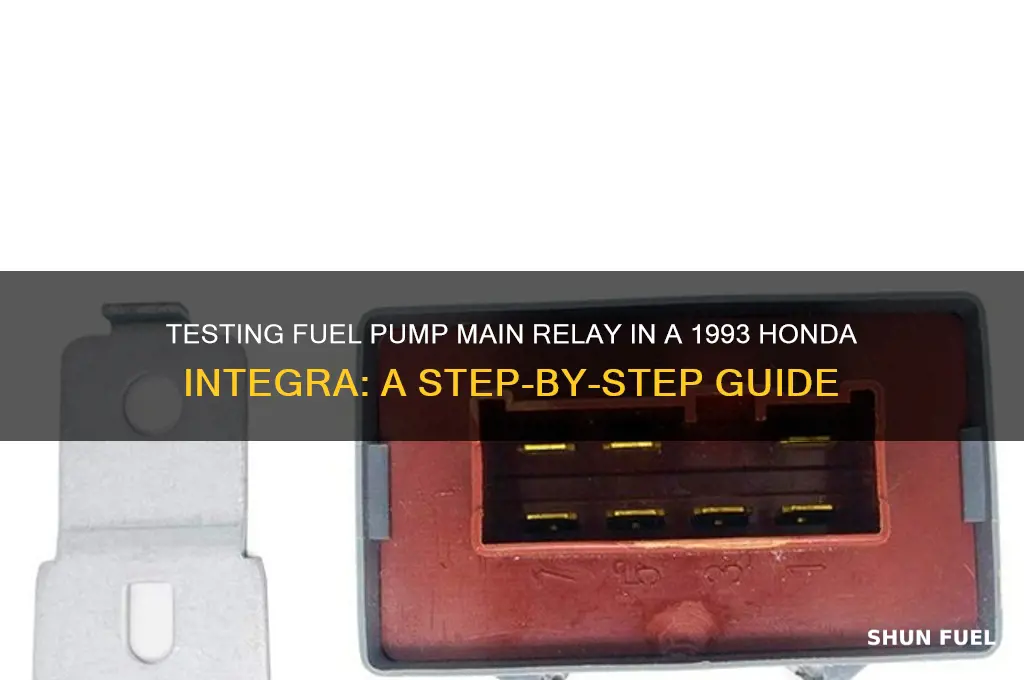

Testing the fuel pump main relay on a 1993 Honda Integra is essential for diagnosing fuel system issues, such as a no-start condition or inconsistent engine performance. The fuel pump relay plays a critical role in controlling power to the fuel pump, ensuring it operates only when the engine is running or being started. To test the relay, start by locating it in the under-hood fuse box, typically labeled as the main relay. Use a multimeter to check for continuity across the relay’s terminals, specifically between the power input and output pins when the ignition is turned on. Additionally, swap the fuel pump relay with a similar relay (like the horn relay) to see if the issue persists, as this can help isolate whether the relay is faulty. If the relay fails these tests, it likely needs replacement to restore proper fuel system functionality. Always consult the vehicle’s service manual for specific pin configurations and testing procedures.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1993 Acura Integra (Honda Integra in some regions) |
| Component to Test | Fuel Pump Main Relay (P/N: 39530-SR3-A01 or equivalent) |
| Location of Relay | Under the dashboard, near the driver's side kick panel or fuse box area. |
| Tools Required | Multimeter, jumper wires, screwdriver, and a helper (optional). |
| Testing Procedure | 1. Locate the relay and identify its terminals (A, B, C, D, E). |
| 2. Check for power at terminal B (constant 12V) and ground at terminal D. | |
| 3. Test for continuity between terminals A and C when the ignition is on. | |
| 4. Verify switching between terminals E and D when the ignition is on. | |
| Expected Results | - Terminal B: 12V constant. |
| - Terminal D: Grounded. | |
| - Terminals A and C: Continuity when ignition is on. | |
| - Terminals E and D: Switching when ignition is on. | |
| Common Symptoms of Failure | No fuel pressure, engine cranks but doesn't start, or intermittent starts. |
| Replacement Part | Fuel Pump Main Relay (P/N: 39530-SR3-A01 or compatible aftermarket part). |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards. |
| Additional Tips | Use a relay tester or swap with a known good relay for quick diagnosis. |
Explore related products
What You'll Learn
- Relay Location and Identification: Find the fuel pump relay under the dashboard or in the engine bay
- Visual Inspection: Check for corrosion, damage, or loose connections on the relay terminals
- Multimeter Testing: Use a multimeter to test continuity and resistance across relay pins
- Power Supply Check: Verify power supply to the relay using a test light or multimeter
- Swap Relay for Diagnosis: Replace the relay with a known good one to confirm if it’s faulty
Relay Location and Identification: Find the fuel pump relay under the dashboard or in the engine bay
The fuel pump relay in a 1993 Acura Integra is a critical component that ensures your engine receives the necessary fuel for operation. Locating this relay is the first step in diagnosing potential issues with your vehicle's fuel system. The 93 Integra's fuel pump relay can typically be found in one of two places: under the dashboard on the driver's side or in the engine bay, often near the fuse box. Understanding its exact location is crucial for efficient troubleshooting and maintenance.
Under the dashboard, the relay is usually housed within a cluster of other relays and fuses, often marked with a diagram on the cover or nearby panel. To access it, you’ll need to remove the lower dashboard panel, which can be done with basic hand tools. Look for a rectangular or square-shaped component with a series of pins and a label indicating "Fuel Pump Relay" or a similar designation. If it’s not under the dashboard, check the engine bay. The relay may be integrated into the main fuse box or mounted nearby, often with a protective cover to shield it from the elements.
Identifying the correct relay is essential, as misidentifying it can lead to unnecessary work or damage. Most relays have a part number or code stamped on them, which you can cross-reference with your vehicle’s manual or a reliable online resource. For the 93 Integra, the fuel pump relay is typically a 4-pin or 5-pin unit, depending on the model and market. If you’re unsure, compare it to diagrams or photos specific to your vehicle’s make and model.
Once located, take note of the relay’s orientation and how it fits into its socket. This will be important if you need to remove or replace it during testing. A practical tip is to label the wires or take a photo before disconnecting anything, as this will save time and prevent confusion later. Proper identification and careful handling ensure that your diagnostic process is both accurate and safe.
In summary, finding the fuel pump relay in a 93 Integra involves checking under the dashboard or in the engine bay, identifying it by its markings or location, and ensuring you handle it correctly. This foundational step sets the stage for effective testing and troubleshooting, helping you address fuel system issues with confidence.
Secure Your Vehicle: Easy Steps to Install a Fuel Pump Kill Switch
You may want to see also
Explore related products
Visual Inspection: Check for corrosion, damage, or loose connections on the relay terminals
Corroded or damaged relay terminals can disrupt the electrical flow to your 93 Integra's fuel pump, leading to starting issues or erratic performance. Before diving into complex diagnostics, a simple visual inspection can reveal telltale signs of trouble. Look for greenish deposits (corrosion), burnt marks, or cracked plastic around the terminals. Even slight discoloration or a loose connection can hinder proper operation. This initial check takes mere minutes and could save you from unnecessary part replacements.
Begin by locating the fuel pump main relay, typically found under the dashboard or in the engine bay fuse box. Consult your Integra's manual for the exact location. With the ignition off, carefully remove the relay. Inspect each terminal for signs of wear. Corrosion often appears as a greenish or white powdery substance, while damage might manifest as bent pins or melted plastic. Loose connections can be identified by wiggling the relay slightly—if it feels unstable, the terminals may need attention.
To address corrosion, gently clean the terminals using a mixture of baking soda and water or an electronic contact cleaner. A small brush or cotton swab works well for this task. For damaged terminals, consider replacing the relay entirely, as repairs can be unreliable. If connections are loose, ensure the relay is seated firmly in its socket. Avoid excessive force, as this can worsen the issue.
While this step may seem basic, it’s a critical first line of defense in diagnosing fuel pump relay issues. Ignoring visual cues can lead to misdiagnosis and unnecessary expenses. By taking the time to inspect the relay terminals, you’re not only troubleshooting effectively but also maintaining the longevity of your Integra’s electrical system.
Electric Fuel Pumps: Understanding Dead Heading and Its Impact
You may want to see also
Explore related products
Multimeter Testing: Use a multimeter to test continuity and resistance across relay pins
A multimeter is an indispensable tool for diagnosing fuel pump relay issues in a 93 Integra. By testing continuity and resistance across relay pins, you can pinpoint internal failures without relying on guesswork. Start by locating the fuel pump main relay, typically found under the dashboard or in the engine bay fuse box. Ensure the ignition is off to prevent electrical hazards during testing.
To test continuity, set your multimeter to the continuity or beep mode. Identify the relay’s pins using the diagram in your vehicle’s manual or online resources. Place the multimeter probes on the appropriate pins—usually the coil pins (85 and 86) and the power input/output pins (30 and 87). A functioning relay will show continuity between the correct pins when activated, indicated by a beep or low resistance reading. If there’s no continuity, the relay is likely faulty.
Resistance testing provides deeper insight into the relay’s health. Switch your multimeter to the resistance (ohms) setting and measure across the coil pins (85 and 86). A typical fuel pump relay should read between 50 and 150 ohms. Values outside this range suggest a weak or damaged coil. Repeat this test across other pin combinations as needed, comparing results to the manufacturer’s specifications.
Practical tips: Always disconnect the relay from the vehicle before testing to avoid interference from other circuits. Clean the relay pins with isopropyl alcohol to ensure accurate readings. If you’re unsure about pin functions, consult a wiring diagram specific to the 93 Integra. Remember, a multimeter is a diagnostic tool, not a repair tool—if the relay fails testing, replacement is often the best course of action.
In conclusion, multimeter testing offers a precise method to evaluate the fuel pump main relay’s condition. By systematically checking continuity and resistance, you can diagnose issues efficiently, saving time and money on unnecessary part replacements. Master this technique, and you’ll approach automotive electrical problems with confidence.
Weak Fuel Pump Lifespan: How Long Can It Last Before Failing?
You may want to see also
Explore related products
Power Supply Check: Verify power supply to the relay using a test light or multimeter
A faulty fuel pump main relay can leave your 93 Integra stranded, but before replacing it, confirm the relay is actually receiving power. This critical step isolates the problem to the relay itself or points to a broader electrical issue.
Understanding the Power Supply Path
The fuel pump main relay relies on a consistent power supply to function. This power originates from the battery, travels through fuses, and reaches the relay via specific terminals. If power isn’t reaching the relay, the fuel pump won’t activate, regardless of the relay’s condition.
Testing with a Multimeter: Precision and Insight
A multimeter is the preferred tool for this test, offering precise voltage readings. Set the multimeter to the DC voltage range (typically 20V) and connect the black lead to a good ground (like the battery negative terminal). Touch the red lead to the relay’s power input terminal (usually labeled “B+” or “PWR”). With the ignition on, you should see battery voltage (around 12V). If not, trace the wiring back to the fuse box, checking for blown fuses or loose connections.
Using a Test Light: Simplicity and Speed
For a quicker check, a test light works well. Connect the test light’s clip to a ground and probe the relay’s power terminal. If the light illuminates with the ignition on, power is present. If not, the issue lies upstream—possibly a blown fuse, faulty ignition switch, or broken wire.
Practical Tips for Accurate Testing
Always test with the ignition in the “ON” position, as this activates the relay’s power circuit. Double-check your relay’s wiring diagram to identify the correct power terminal. If power is absent, retest at the fuse box to pinpoint the failure. This methodical approach ensures you don’t mistakenly condemn a functional relay.
By verifying the power supply, you’ll either confirm the relay as the culprit or redirect your troubleshooting efforts, saving time and frustration in diagnosing your 93 Integra’s fuel system issues.
Restoring Your Fuel Pump: A Step-by-Step Guide to Proper Rest and Maintenance
You may want to see also
Explore related products
Swap Relay for Diagnosis: Replace the relay with a known good one to confirm if it’s faulty
One of the most straightforward methods to diagnose a potentially faulty fuel pump main relay in a 1993 Integra is to swap it with a known good relay. This approach eliminates guesswork and provides a clear, binary result: either the issue persists, indicating the relay isn't the culprit, or it resolves, confirming the relay's failure. Begin by locating the fuel pump main relay, typically found in the under-hood fuse box. Ensure the replacement relay is the exact same model to avoid compatibility issues. With the ignition off, carefully remove the suspect relay and insert the known good one, ensuring proper alignment and a secure fit.
The effectiveness of this method lies in its simplicity and immediacy. After the swap, attempt to start the vehicle. If the engine fires up without hesitation, the original relay is likely defective. However, if the problem remains, the issue may stem from another component, such as the fuel pump itself, a wiring fault, or a malfunctioning ECU. This diagnostic step is particularly useful because it isolates the relay as a variable, narrowing down the list of potential causes. It’s a time-efficient technique that requires minimal tools—just a replacement relay and basic knowledge of relay location.
While this method is reliable, it’s crucial to exercise caution during the swap. Ensure the ignition is off to prevent electrical mishaps, and avoid touching the relay terminals with bare hands to prevent corrosion or damage. If the replacement relay is borrowed from another vehicle, label its original location to avoid confusion later. Additionally, if the issue persists after the swap, consider testing the fuel pump’s operation directly by applying power to it, bypassing the relay entirely. This further isolates the problem and ensures you’re not overlooking a secondary fault.
A practical tip for this process is to keep a spare relay on hand, especially if you suspect relay-related issues frequently. Relays are relatively inexpensive and can save significant diagnostic time. If the swap confirms a faulty relay, replace it immediately to restore functionality. However, if the problem remains unresolved, consult a wiring diagram or seek professional assistance to investigate deeper electrical or mechanical issues. This swap-and-test approach is a cornerstone of automotive diagnostics, offering clarity in a system where symptoms can often be misleading.
Testing Your 95 GMC 2500 Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump main relay is typically located under the dashboard on the driver's side, near the fuse box. Refer to your vehicle's manual for the exact location.
You’ll need a multimeter, a 12V test light, and a basic set of hand tools to access the relay.
Symptoms include the engine not starting, stalling, or difficulty starting, especially after the engine has been running and is hot.
Check for continuity across the relay’s terminals using the multimeter. Compare the readings to the relay’s specifications to determine if it’s functioning correctly.
Yes, you can temporarily bypass the relay by connecting the fuel pump directly to the battery (with a fused wire) to see if the pump operates. If it does, the relay is likely faulty.
