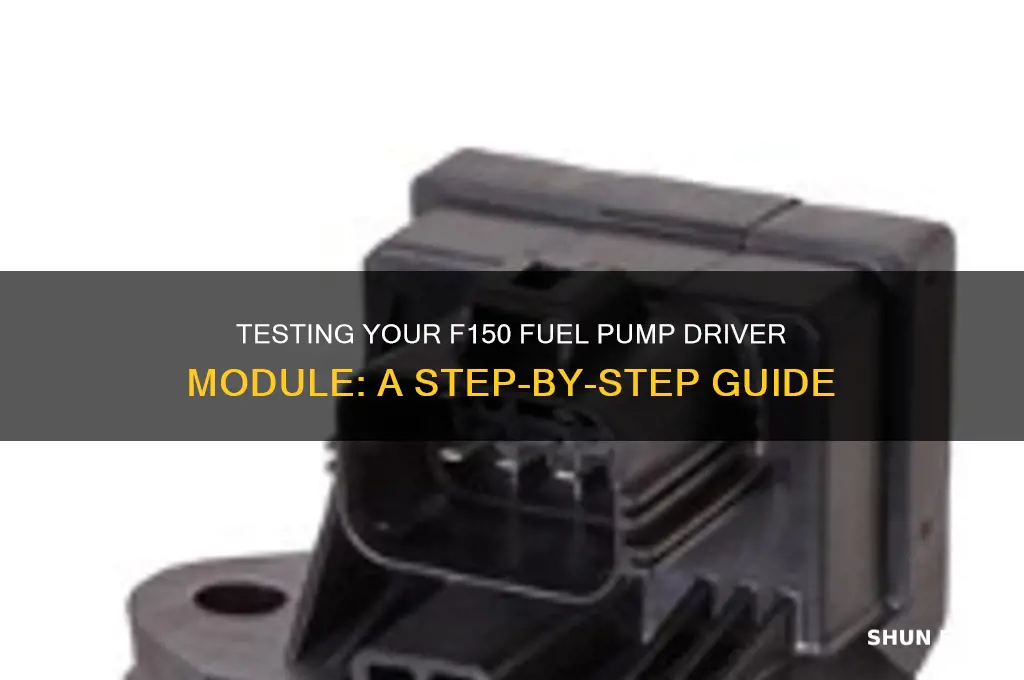

Testing the F150 fuel pump driver module is a critical diagnostic procedure to ensure the vehicle’s fuel system operates efficiently. The fuel pump driver module, often located near the fuel tank or under the rear seat, controls the fuel pump’s operation by regulating voltage and current. To test it, start by verifying the module’s power and ground connections using a multimeter to check for proper voltage supply. Next, inspect the module’s wiring harness for damage or corrosion, as faulty connections can mimic module failure. If the connections are intact, use a scan tool to check for diagnostic trouble codes (DTCs) related to the fuel pump or driver module. Additionally, perform a controlled ground test by momentarily grounding the module’s control wire to activate the fuel pump; if the pump doesn’t run, the module may be defective. Always consult the vehicle’s service manual for specific testing procedures and safety precautions to avoid damage or injury.
| Characteristics | Values |
|---|---|
| Location of Fuel Pump Driver Module | Typically located behind the rear seat or under the driver's side dashboard. |
| Tools Required | Multimeter, screwdriver, safety gloves, and safety goggles. |
| Voltage Check | Set multimeter to DC voltage range (0-20V) to test power and ground circuits. |
| Power Supply Test | Check for 12V at the module's power pin when the ignition is on. |
| Ground Test | Verify a solid ground connection at the module's ground pin. |
| Signal Input Test | Test the signal input from the PCM (Powertrain Control Module) using a multimeter. |
| Resistance Test | Measure resistance across the fuel pump circuit (typically 1-5 ohms). |
| Relay Function Test | Listen for relay click or use a multimeter to test relay coil voltage. |
| Symptoms of Failure | No fuel pressure, engine cranks but won't start, or intermittent starting issues. |
| Safety Precautions | Disconnect battery before testing to avoid electrical hazards. |
| Diagnostic Codes | Scan for trouble codes related to the fuel pump or driver module (e.g., P0230). |
| Replacement Cost | Typically $100-$300 for the module, plus labor if professionally installed. |
| Compatibility | Ensure replacement module matches the F150's year, make, and model. |
Explore related products
What You'll Learn
Symptoms of a Failing Module
A failing fuel pump driver module in your F150 can manifest in several ways, often mimicking other common engine issues. One of the earliest signs is intermittent stalling, particularly during acceleration or under load. This occurs because the module fails to consistently deliver the correct voltage to the fuel pump, causing fuel delivery disruptions. If your truck stalls unpredictably, especially when you press the gas pedal, the driver module should be one of your first suspects.
Another telltale symptom is difficulty starting the engine, even when the battery and starter are in good condition. A failing module may not provide enough power to the fuel pump during startup, resulting in a weak or nonexistent fuel pressure. You might hear the starter cranking but notice the engine struggles to catch. In some cases, the engine may start briefly before dying, a clear indication of fuel starvation caused by a malfunctioning module.
Unusual noises from the fuel tank area can also signal a failing driver module. If the module is short-cycling or sending erratic signals, the fuel pump may operate inconsistently, producing a whining, buzzing, or clicking sound. While some noise is normal during startup, persistent or abnormal sounds warrant immediate inspection. Ignoring these noises can lead to complete pump failure, leaving you stranded.
A check engine light paired with fuel system-related error codes (e.g., P0089, P0191) is a diagnostic clue pointing directly to the driver module. Modern F150s are equipped with sophisticated onboard computers that detect irregularities in fuel pressure or pump operation. If your scanner pulls codes related to fuel delivery, test the module’s voltage output using a multimeter. A reading outside the specified range (typically 12–14 volts) confirms the module’s failure.
Lastly, poor fuel efficiency or rough idling may indicate a deteriorating driver module. When the module fails to maintain steady voltage, the fuel pump delivers fuel inconsistently, disrupting the air-fuel mixture. This not only reduces mileage but can also cause the engine to run roughly or misfire. If other fuel system components test normal, the driver module is likely the culprit. Addressing this issue promptly prevents further damage to the pump and ensures optimal vehicle performance.
Do Inline Fuel Pumps Require a Regulator? Essential Insights
You may want to see also
Explore related products
Tools Needed for Testing
Testing the fuel pump driver module (FPDM) on a Ford F150 requires a precise set of tools to diagnose issues accurately. At the core, a digital multimeter is indispensable. This tool measures voltage, resistance, and continuity, which are critical for verifying the electrical integrity of the FPDM. Ensure your multimeter has a minimum range of 0–20 volts DC for voltage checks and 0–200 ohms for resistance tests. Without this, you’ll lack the data needed to pinpoint faults in the module or its wiring harness.
Beyond the multimeter, a fuel pressure gauge is essential for assessing the mechanical output of the fuel pump. Connect this gauge to the fuel rail to measure pressure under various conditions, such as key-on engine-off (KOEO) and running states. A gauge with a range of 0–100 psi is ideal, as F150 fuel systems typically operate between 30–60 psi. If pressure readings fall outside specifications, the issue may lie with the pump itself rather than the FPDM, narrowing your diagnostic focus.
For hands-on inspection, a set of small screwdrivers and a trim removal tool are necessary to access the FPDM, often located near the fuel tank or under the rear seat. Be cautious when prying panels to avoid damaging clips or wiring. Additionally, a flashlight with a bright, focused beam is invaluable for illuminating tight spaces, ensuring you don’t miss visual cues like corrosion or loose connections that could mimic FPDM failure.
Lastly, a scan tool capable of communicating with Ford’s powertrain control module (PCM) is highly recommended. While not strictly required, it provides diagnostic trouble codes (DTCs) that can confirm FPDM-related issues. Look for a tool with Ford-specific protocols, such as OBD-II and CAN, to retrieve codes like P0230 or P0232, which directly implicate the FPDM. This tool bridges the gap between electrical testing and system diagnostics, offering a comprehensive approach to troubleshooting.
In summary, testing the FPDM demands a blend of electrical, mechanical, and diagnostic tools. A multimeter and fuel pressure gauge form the technical backbone, while practical tools like screwdrivers and a scan tool ensure thorough inspection and data retrieval. Each tool serves a unique purpose, collectively enabling accurate diagnosis and efficient resolution of FPDM-related problems.
Understanding Vacuum Fuel Pumps in Scooters: Functionality and Operation Explained
You may want to see also
Explore related products
Step-by-Step Diagnostic Process
The fuel pump driver module (FPDM) in a Ford F-150 is a critical component that controls the fuel pump’s operation, ensuring proper fuel delivery to the engine. Diagnosing a faulty FPDM requires a systematic approach to avoid misdiagnosis and unnecessary part replacements. Begin by verifying symptoms such as a no-start condition, erratic fuel pressure, or a dead fuel pump, which often point to a potential FPDM issue. Always start with the basics: check the fuel pump relay, fuse, and wiring harness for visible damage or loose connections before proceeding to more complex diagnostics.
Step 1: Visual Inspection and Preliminary Checks
Start by locating the FPDM, typically found near the fuel tank or under the rear seat, depending on the F-150 model year. Inspect the module for physical damage, corrosion, or moisture intrusion, as these can cause intermittent or complete failure. Next, use a multimeter to test the FPDM’s input and output circuits. With the key in the "ON" position, verify that the module is receiving power (12V) at the input terminal. If power is absent, trace the wiring back to the fuse box to identify the fault. If power is present, check for ground continuity at the ground terminal. A lack of ground indicates a wiring issue or a faulty FPDM.
Step 2: Fuel Pump Control Circuit Test
Activate the fuel pump using a scan tool or by cycling the ignition key to the "ON" position while listening for the pump’s priming cycle. If the pump fails to run, use a test light or multimeter to confirm power is reaching the pump connector. If power is present at the pump but it doesn’t operate, the FPDM may be failing to send the control signal. To isolate the issue, backprobe the FPDM’s control circuit while commanding the pump on via a scan tool. If the control signal is absent, the FPDM is likely defective.
Step 3: Resistance and Load Testing
For a more precise diagnosis, measure the resistance of the FPDM’s internal circuitry. Disconnect the module and test the resistance between the control and ground terminals. A reading outside the manufacturer’s specified range (typically 1–2 ohms) indicates an internal short or open circuit. Additionally, perform a load test by connecting a known-good fuel pump directly to the FPDM’s output circuit. If the pump operates, the original pump may be faulty; if not, the FPDM is the culprit.
Cautions and Practical Tips
Avoid testing the FPDM with the fuel tank below a quarter full, as insufficient fuel can lead to pump damage during testing. Always disconnect the battery before handling high-current components like the FPDM to prevent electrical hazards. If using a scan tool, ensure it’s compatible with Ford systems to access FPDM-specific diagnostic codes (e.g., P0230 or P0232). Finally, document each step and test result to streamline troubleshooting and provide a clear diagnostic path for future reference.
Diagnosing the FPDM in a Ford F-150 requires a blend of visual inspection, electrical testing, and systematic elimination of potential causes. By following these steps, you can accurately identify whether the FPDM is at fault or if the issue lies elsewhere in the fuel system. This methodical approach not only saves time and money but also ensures the vehicle returns to reliable operation with confidence.
Visual Guide: Identifying the Fuel Pump in a 2003 Chevy Cavalier
You may want to see also
Explore related products
Common Fault Codes to Check
Diagnosing issues with the Ford F150's fuel pump driver module often begins with understanding the fault codes stored in the vehicle's computer system. These codes, typically accessed via an OBD-II scanner, provide critical insights into the specific malfunctions affecting the module. Common fault codes related to the fuel pump driver module include P0627, which indicates a problem with the fuel pump "A" control circuit, and P2292, signaling a low fuel pressure issue. Recognizing these codes is the first step in pinpointing the root cause of the problem, allowing for targeted troubleshooting and repair.
Analyzing fault codes requires more than just identifying them—it involves interpreting their implications. For instance, P0627 often suggests a wiring issue, a faulty fuel pump relay, or a malfunctioning driver module itself. On the other hand, P2292 may point to a clogged fuel filter, a failing fuel pump, or even a problem with the fuel pressure sensor. Cross-referencing these codes with symptoms like engine stalling, reduced power, or difficulty starting can help narrow down the issue. For example, if P0627 is accompanied by intermittent power loss, the driver module or its wiring harness is likely the culprit.
A practical approach to addressing these fault codes involves systematic testing. Start by inspecting the wiring harness for damage or loose connections, especially near the fuel pump driver module. Use a multimeter to check for continuity in the circuit associated with P0627. If the wiring is intact, proceed to test the fuel pump relay by swapping it with a similar relay in the fuse box. For P2292, verify fuel pressure using a gauge to ensure it meets the manufacturer’s specifications (typically 30–60 PSI for the F150). If pressure is low, inspect the fuel filter and pump for signs of wear or blockage.
While fault codes provide valuable clues, they are not always definitive. False codes can occur due to intermittent issues or sensor malfunctions. For instance, P2292 might appear if the fuel pressure sensor is faulty, even if the fuel pump driver module is functioning correctly. To avoid misdiagnosis, always corroborate code readings with physical inspections and component tests. Additionally, clearing codes after repairs and retesting the system ensures the issue has been resolved. This methodical approach minimizes guesswork and maximizes efficiency in diagnosing and fixing fuel pump driver module problems.
In conclusion, understanding and addressing common fault codes like P0627 and P2292 is essential for effectively testing the F150's fuel pump driver module. By combining code interpretation with hands-on testing, you can accurately diagnose issues and implement the right repairs. Remember, fault codes are tools, not verdicts—use them as starting points for a thorough investigation. With patience and precision, even complex fuel system problems can be resolved, restoring your F150's performance and reliability.
2007 GSXR 1000 Fuel Pump PSI: Unveiling the Pressure Specs
You may want to see also
Explore related products
Replacement vs. Repair Options
The decision to replace or repair the F150 fuel pump driver module hinges on diagnostic clarity and cost-benefit analysis. Testing the module involves checking for power at the module’s harness, verifying ground connections, and using a multimeter to assess voltage outputs. If the module fails these tests, the next step is determining whether the issue is repairable, such as a faulty relay or corroded connector, or if the entire unit is compromised. Repairing often requires technical expertise, while replacement offers a quicker, albeit pricier, solution.
Analyzing the repair route reveals its limitations. Common issues like burnt traces on the circuit board or damaged components may be fixable by skilled technicians, but such repairs are not always reliable long-term. For instance, soldering a broken trace requires precision and access to specialized tools. Additionally, diagnosing the exact fault can be time-consuming, potentially outweighing the savings compared to replacement. Repair is most viable when the damage is isolated and superficial, such as a loose wire or a single faulty component.
Replacement, on the other hand, provides immediate resolution and peace of mind. OEM modules ensure compatibility and durability, though aftermarket options may offer cost savings. Installation typically involves disconnecting the battery, removing the module (often located near the fuel tank or under the rear seat), and swapping it with the new unit. While this process is straightforward, accessing the module can be labor-intensive, especially in older F150 models. Replacement is ideal when testing confirms irreversible damage or when time constraints prioritize functionality over frugality.
A comparative perspective highlights the trade-offs. Repair costs range from $50 to $200, depending on the issue and labor rates, while replacement modules cost $150 to $400, excluding installation fees. Repair extends the module’s lifespan but carries a higher risk of recurrence. Replacement guarantees immediate performance but demands a larger upfront investment. For DIY enthusiasts, repairing may be appealing, but professionals often recommend replacement to avoid repeat failures.
Ultimately, the choice between replacement and repair depends on diagnostic results, budget, and tolerance for risk. Testing the module thoroughly is the first step, as it clarifies the extent of the damage. If the issue is minor and repairable, opting for a fix can save money. However, for severe or complex failures, replacement is the safer, more efficient option. Always weigh the long-term reliability against immediate costs to make an informed decision tailored to your F150’s needs.
Does the Fleece Fuel Pump Effectively Remove Air? A Detailed Analysis
You may want to see also
Frequently asked questions
Symptoms include engine stalling, difficulty starting, reduced engine power, or a complete failure to start. The check engine light may also illuminate.
Use a multimeter to check for voltage at the module’s connector while attempting to start the vehicle. If no voltage is present, the module may be faulty. Additionally, listen for the fuel pump humming sound when turning the ignition on.
Basic testing can be done with a multimeter to check for power and ground signals. However, advanced diagnostics may require a scan tool to read error codes or monitor module performance.
If the module fails, replace it with a new or remanufactured unit. Ensure all connections are secure and clean before installation. Clear any related error codes after replacement.
