Testing fuel pressure on a common rail diesel engine is important to ensure the engine is functioning correctly and to identify any potential issues. The fuel rail pressure sensor plays a critical role in monitoring fuel pressure and ensuring the correct fuel delivery to the engine. To test fuel pressure, it is recommended to wear safety gear, including gloves and glasses, and work in a well-ventilated area. The process involves starting the car, installing a fuel pressure gauge, running the pump, and noting the pressure reading. This reading is then compared to the manufacturer's specifications to determine if the pressure is within the acceptable range. If the pressure is low, further diagnostics may be required, such as checking the fuel supply system, fuel filter, and fuel lines. Additionally, measuring fuel volume and electrical integrity are crucial aspects of comprehensive fuel system testing.
Explore related products
What You'll Learn
Wear safety gear and work in a well-ventilated area
Testing fuel pressure on a common rail diesel engine can be dangerous, so it is important to take the proper precautions. Fuel vapors are highly flammable, even more so than liquid fuel, so it is crucial to work in a well-ventilated area. Working in a well-ventilated space reduces the risk of fire and ensures that you are breathing clean air. Keep a fire extinguisher nearby in case of any accidents.
In addition to a well-ventilated workspace, it is essential to wear the proper safety gear when testing fuel pressure. Safety glasses will protect your eyes from any debris or sparks, while gloves will safeguard your hands from potential hazards such as sharp edges or hot surfaces. It is also crucial to avoid smoking or any activities that could create a spark, as this may ignite the fuel vapors.
Before beginning the test, ensure that you have prepared the necessary tools and that there are no sources of ignition nearby. It is also recommended to have an assistant to help with the process and to keep a watchful eye on your safety. By taking these precautions, you can help ensure a safe and efficient testing process.
When you are ready to begin, start by checking the fuel pressure. Turn on the vehicle and let it idle. Install a fuel pressure gauge and run the pump, noting the pressure reading. Compare this reading to the manufacturer's specifications to determine if the pressure is within the acceptable range. If the pressure is low, you may need to address potential issues with the fuel pump or fuel delivery system.
In summary, when testing fuel pressure on a common rail diesel engine, always prioritize safety. Work in a well-ventilated area, wear safety gear such as glasses and gloves, and avoid any sources of ignition. By following these guidelines, you can help ensure a safe and successful testing process.
Diesel Fuel Prices in Rochester, NY: Current Rates
You may want to see also
Explore related products
Check the rail pressure control solenoid valve
When testing fuel pressure on a common rail diesel engine, it is important to check the rail pressure control solenoid valve. This is because the pressure value is regulated by the solenoid valve, and a faulty valve can cause a range of issues.
Before checking the pump itself, evaluate the operation of the valve. If the engine does not start, it could be due to low pressure, which causes the valve to let the fuel overflow. Check the valve circuits of the pump and the fuel pressure sensor. If this does not identify the issue, you can, as a last resort, check the high-pressure pump by testing it on a test table.
Excessively high pressure can also be an issue, as it can lead to accelerated wear or damage to injection system components. The most common cause of this problem is the fuel pressure control valve. Contamination can cause the valve to become jammed or pinched, leading to an excessive increase in pressure, which can be identified by pressure ripples during operation.
It is important to diagnose issues accurately, as problems with the pressure in common rail systems can often be caused by other components, such as the injectors or the pump.
Dealing with Gelled Diesel: Effective Solutions and Quick Fixes
You may want to see also
Explore related products
Measure pressure with an independent meter, oscilloscope, or pressure gauge
Measuring fuel pressure is an important step in diagnosing fuel-related issues in diesel engines. Here are the detailed steps on how to measure fuel pressure using an independent meter, oscilloscope, or pressure gauge:
Using an Independent Meter or Oscilloscope:
If the offered sampling rate does not provide clear insights or there is a delay in data transmission, you can use an independent meter or oscilloscope. First, locate the sensor on the injection rail, which is usually found on the fuel rail, a metal pipe connecting the fuel system to the engine. Then, measure the signal from the sensor using the independent meter or oscilloscope. This method allows you to directly measure the signal from the sensor and diagnose potential issues.
Using an External Pressure Gauge:

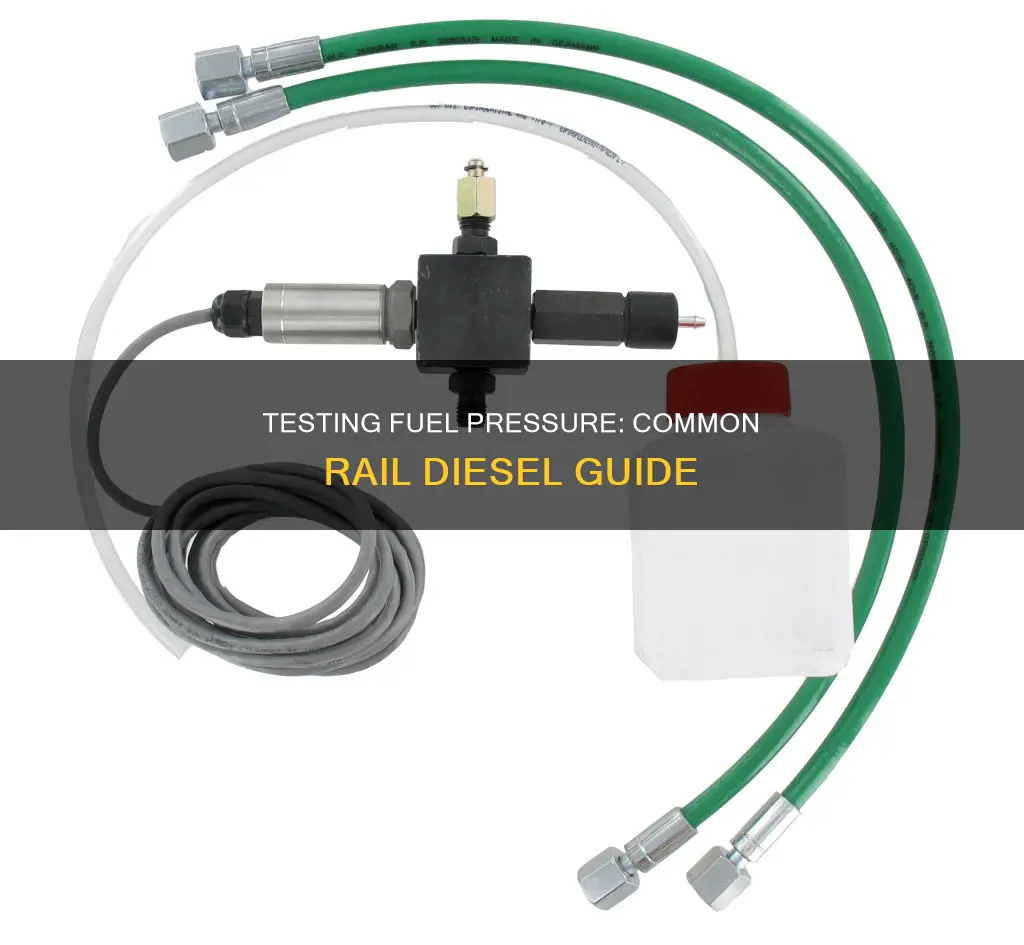

An alternative approach is to attach an external pressure gauge to the system. To do this, disconnect one of the injectors and connect the pressure gauge in its place. This method allows you to measure the pressure independently and detect any faults in the sensor itself. However, it is relatively slower and requires you to observe the pointer during the start-up test. Ensure that you follow safety precautions, such as wearing safety gear and working in a well-ventilated area, as releasing fuel under pressure can be dangerous.
Interpreting Pressure Readings:
When interpreting pressure readings, it is essential to compare the actual pressure in the rail with the setpoint. The minimum pressure can vary depending on the system, typically ranging from 180 to 250 bar for newer systems. If the pressure is lower than expected, you should address the issue to ensure proper engine performance. Additionally, you can perform a fuel volume test to determine if the correct amount of fuel is being delivered to the fuel injectors, using a flowmeter or a timed fuel delivery test.
Recommendations for Specific Engines:
For CP3 and CP4-equipped engines, such as Dodge/Cummins, GMC/Duramax, and Ford/Powerstroke, it is recommended to maintain fuel pressure within specific ranges. For example, for Dodge/Cummins '03–'16 (5.9L & 6.7L), the pressure should be no less than 8 PSI and no more than 15 PSI. Refer to the manufacturer's specifications to ensure the correct pressure settings for your specific engine.
Revitalizing Old Diesel: Effective Fuel Rejuvenation Techniques
You may want to see also
Explore related products
Compare actual pressure in the rail with the setpoint
When testing fuel pressure in a common rail diesel engine, it is important to compare the actual pressure in the rail with the setpoint. This is because the pressure in common rail systems is constantly changing. Typically, this is done by reading the operating parameters from a diagnostic tester. This method works best when the engine starts and runs stably under certain conditions.
By examining the pressure, you can observe the actual value with the setpoint in the operating range from slow speed up to full-power operation. An efficient system is capable of maintaining the required pressure over the full range of operation. The extreme points are important to note: under idling conditions, the minimum fuel flow occurs, and it is easiest for the pressure to be too high due to a clogged control valve. Conversely, high pressure is necessary for high load, requiring a functioning pump, control valve, and injectors.
There are several tools that can be used to compare the actual pressure with the setpoint. The EDIA-PRO tester, for example, allows you to test the engine during operation. The system uses an oscilloscope method to test the system, allowing, in many cases, to distinguish between a malfunction of the injection pump and the injectors themselves. Alternatively, you can use an independent meter or oscilloscope to measure the signal from the sensor on the injection rail. You can also attach an external pressure gauge to the system by connecting it instead of one of the injectors and measure the pressure independently. This allows you to detect a fault in the sensor itself, which is not possible without an independent measurement. However, this method is relatively slow and requires physical observation of the pointer during the start-up test.
In the case of a defective sensor, a typical working pressure sensor can be used as a reference sensor. This additional sensor is powered by the tester and attached to the system. This allows you to compare the readings of both sensors simultaneously and avoid unnecessary replacement of the sensor.
Toxic Diesel: The Poisonous Chemicals in Diesel Fuel
You may want to see also
Explore related products
Check the fuel supply system
To check the fuel supply system, start with the tank itself. Inspect the fuel filter, pre-pump and the condition of the fuel lines. Check the rail pressure control solenoid valve. Evaluate the operation of the valve before checking the pump itself. If the engine does not start, it could be because the pressure is too low, and the valve is letting fuel overflow.
Check the valve circuits of the pump and the fuel pressure sensor. If the pressure sensor goes bad, you will likely experience problems starting the engine, poor engine performance, and a check engine light. The fuel rail pressure sensor is an electronic sensor that monitors fuel rail pressure. It is usually mounted on the fuel rail, which is a metal pipe that connects the fuel system to the engine. The sensor consists of an electric circuit and a semiconductor. As fuel passes through the rail, the sensor measures the pressure and sends a signal to the PCM (powertrain control module).
If the fuel pump is supplying sufficient pressure, perform a fuel volume test to determine if the proper amount of fuel is being delivered to the fuel injectors. The most accurate way to test fuel delivery is by using a flowmeter. However, a reliable alternative is to perform a timed fuel delivery test. Start the car and let it idle. You will need to collect a fuel sample for five seconds with the pump running. Check your manufacturer's specifications to see if your pump is delivering the right amount and your system is working properly.
If you are running a CP3 in a high-performance application, it is recommended to install a fuel supply pressure gauge to ensure there is correct fuel pressure at all times.
