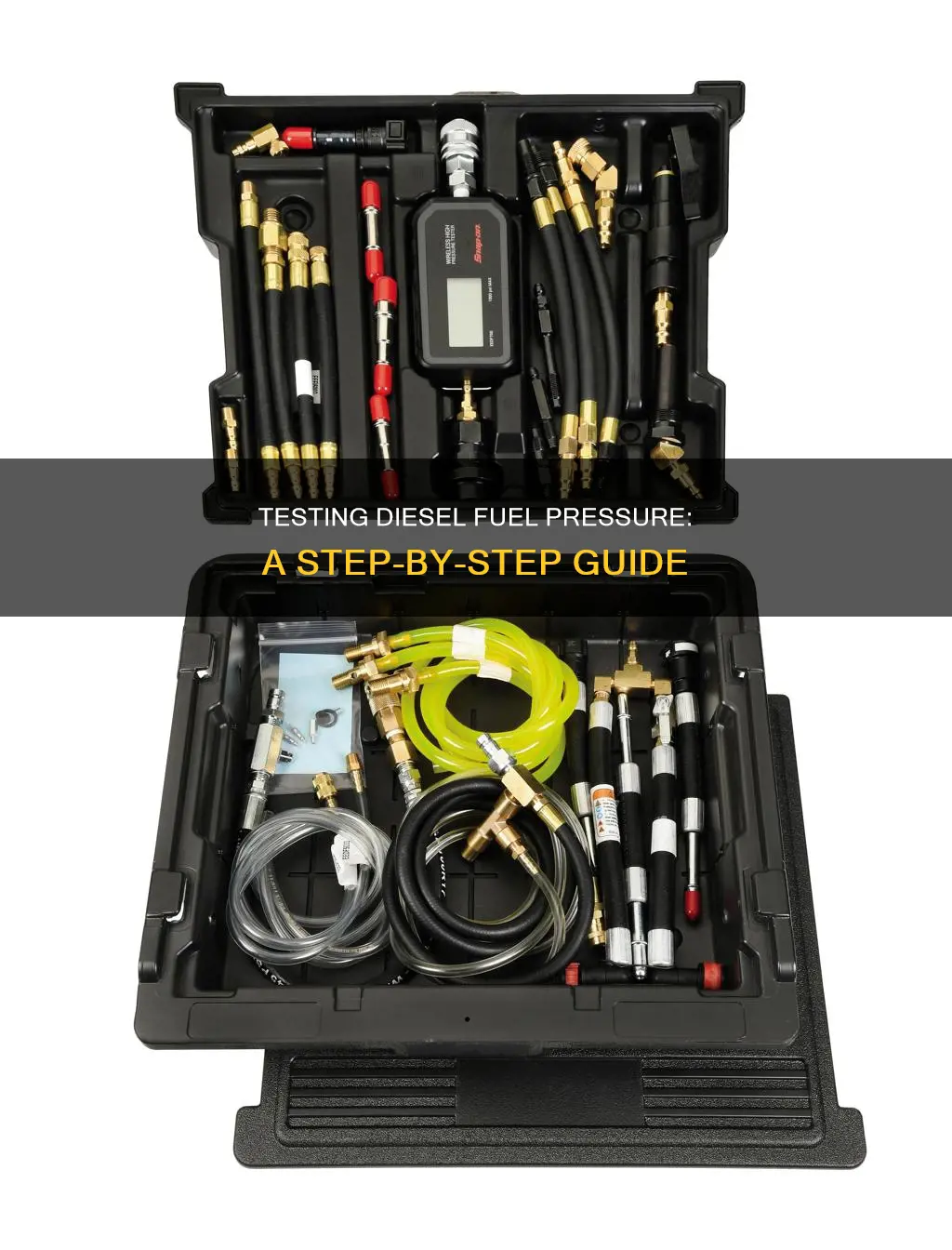

Testing diesel fuel pressure is a simple process that can be done by one person. Before beginning, ensure you are wearing safety gear such as gloves and safety goggles, and that you are working in a well-ventilated area. You will need a fuel pressure tester, which consists of a gauge attached to a fuel hose and multiple fittings. The fitting should be attached to the Schrader valve on the fuel rail. Once the tester is connected, start the engine and let it idle. You should see a steady fuel pressure within a few psi of the recommended pressure. If the pressure is low, this could be due to a clogged fuel filter or a failing pump.
| Characteristics | Values |
|---|---|
| Safety precautions | Wear safety glasses and gloves, work in a well-ventilated area, and don’t smoke or have anything around that can cause a spark |
| First step | Check if there is gas in the tank |
| Second step | If there is gas in the tank, check the fuel gauge for internal failure and replace if needed |
| Third step | Verify that the fuel pump works |
| Fourth step | Check the fuel pressure by installing a fuel pressure gauge, running the pump, and noting the pressure reading |
| Fifth step | Compare the pressure reading to the manufacturer's specification |
| Sixth step | If the pressure is low, address the problem |
| Seventh step | If the fuel pump is supplying sufficient pressure, perform a fuel volume test to determine if the proper amount of fuel is being delivered to the fuel injectors |
Explore related products
What You'll Learn
Wear safety gear and work in a well-ventilated area
When testing diesel fuel pressure, safety should always be the top priority. Diesel fuel can be highly flammable, and releasing fuel under pressure can cause fires and injuries. Therefore, it is crucial to wear the appropriate safety gear and work in a well-ventilated area.
Safety gear is essential when working with diesel fuel. Always wear safety glasses to protect your eyes from any splashes or debris. Gloves are also necessary to protect your hands and provide a secure grip when handling tools and equipment. It is also recommended to wear long sleeves and pants to protect your skin from any potential spills or splashes. Additionally, avoid wearing loose-fitting clothing that could get caught in moving parts.
Working in a well-ventilated area is of utmost importance. Diesel fuel gives off vapours that are highly flammable and can accumulate in enclosed spaces. Ensure you are working outdoors or in a space with ample ventilation to prevent the build-up of these dangerous vapours. Keep the area clear of any potential sources of ignition, such as open flames, sparks, or hot surfaces. Do not smoke or perform any activities that could create sparks, such as welding or grinding, while working on diesel fuel systems.
Having a fire extinguisher nearby is also a crucial safety precaution. In the event of a fire, you will have the necessary equipment to extinguish the flames quickly and effectively. Familiarise yourself with the proper use of the fire extinguisher and ensure it is easily accessible and within reach. Additionally, keep a spill kit on hand to deal with any accidental fuel spills or leaks.
By following these safety precautions and working in a well-ventilated area, you can help ensure your safety and minimise the risk of accidents when testing diesel fuel pressure. Always put safety first and give it the highest priority.
Gasoline vs Diesel: Understanding Fuel Differences
You may want to see also
Explore related products
Check the fuel pressure with a fuel pressure tester
To check the fuel pressure with a fuel pressure tester, start by parking your vehicle and applying the parking brake. Allow the engine to cool down. This will ensure your working area is safe.
Next, locate the fuel pressure test port. You can refer to your vehicle's manual for guidance on locating the port. Once you've found it, place a rag underneath the test port to catch any fuel that may be released during the testing process.
Now, install the fuel pressure tester onto the test port. Start the engine and let it idle. You should see a steady fuel pressure, within a few psi of the recommended pressure. You can find the recommended pressure in your vehicle's manual or by checking the manufacturer's specifications.
Once the engine is warmed up, slowly rev it and ensure that the pressure rises with the RPMs. If your fuel pressure holds steady, increases with engine speed, and meets the recommended pressure, your engine issue is likely not fuel-related.
If you experience zero fuel pressure, it could indicate a dead pump or a lack of power to the pump. In this case, check the fuel pump fuse and verify power to the pump with a multimeter. If the pump is receiving power but still isn't functioning, it may be time to replace it.
Low fuel pressure can be caused by a clogged fuel filter or a failing pump. If you have a serviceable type filter, it is recommended to replace it. Remember, it is essential to prioritize safety when working with fuel systems. Always wear safety gear, work in a well-ventilated area, and have a fire extinguisher nearby.
The Best Fuel Formula for Diesel RC Engines
You may want to see also
Explore related products
Compare the pressure to the manufacturer's specification
To test diesel fuel pressure, you will need to check the fuel pressure by installing a fuel pressure gauge and noting the pressure reading. Once you have this reading, it's time to compare it to the manufacturer's specification.
Fuel pump pressure specifications vary according to the engine type. For example, gasoline engines have different fuel pressure requirements than diesel engines. Even vehicles with the same engine type can have different fuel pressure specifications. Therefore, it is important to refer to the manufacturer's specifications for your specific vehicle.
If the pressure reading from your gauge is lower than the manufacturer's specification, this could indicate an issue with the fuel pump, fuel filter, or pressure regulator. A clogged fuel filter, for instance, can block the fuel flow and place extra stress on the fuel pump. If the pressure is within the specified range, your engine problem is likely not fuel-related.
In addition to checking the fuel pressure, it is also important to verify that the fuel pump is working properly. This can be done by listening for a two-second whir, hum, or series of rapid clicks as the fuel pump pressurizes the fuel line to the engine. If there is no noise, it could mean that the pump is not receiving power or has failed.
By comparing the fuel pressure to the manufacturer's specification and performing additional checks on the fuel pump, you can effectively diagnose fuel-related issues in your diesel engine.
Bleeding Diesel Fuel: Datsun's Guide to Success
You may want to see also
Explore related products
If pressure is low, perform a fuel volume test
If the pressure is low, you should address the problem. If the fuel pump is supplying sufficient pressure, perform a fuel volume test to determine if the proper amount of fuel is being delivered to the fuel injectors. The most accurate way to test fuel delivery is by using a flowmeter. However, not all repair facilities have access to one, so here is a reliable method for performing a timed fuel delivery test.
Make sure to be careful and use an appropriate measuring container. Glass is a good choice because fuel can corrode or fog up plastic. Starting the car will signal the pump to run, so start the car and let it idle. You will need to collect a fuel sample for five seconds with the pump running. The pump should deliver a specific amount of fuel within that time frame—check your manufacturer's specification to see if your pump is delivering the right amount and your system is working properly. You might have to convert milliliters per second to gallons per hour to figure that out.
Another method is to isolate the pump close to the fuel injector rail, then pressurize the system. No fuel pressure should reach the injectors or the pressure regulator during this test. If the fuel line pressure rapidly drops to zero, the residual fuel pressure is leaking past the fuel pump check valve or through a fuel line fitting.
A deadhead fuel pressure test is another way to determine the fuel pump's reserve capacity. Briefly ask the pump to deliver as much pressure as it can. To perform this test, pinch off the fuel return line while observing the rise in fuel pressure. A healthy pump may manage to jump from 60 to 90 psi. However, if the pressure rise is minimal, it could indicate a weak pump or another issue.
Diesel Pusher Fuel Efficiency: What's the Average Mileage?
You may want to see also
Explore related products
Check the fuel pump fuse and relay
If your fuel pump is not working, it could be due to a problem with the fuel pump relay, which controls the electric current running through the pump. To check the fuel pump fuse and relay, start by locating the relay box. The main fuse box is usually located underneath the hood near the front of your vehicle, but there may also be a smaller fuse box under the steering column inside the vehicle.
Consult your vehicle's manual to check the location of the fuse box and the fuel pump relay. If the manual does not list the location, look under the hood or the dashboard for a black box near the battery or along the sides. Most vehicles have a fuse and relay box in these areas. With the key in the "on" position, you may also hear a click from the relay.
Once you have located the relay box, pull off the cover and look at the diagram printed on it to identify the fuel pump relay. The diagram usually labels each relay and fuse. The fuel pump relay is usually coloured green or grey. If you cannot find the fuel pump relay, consult online resources or a mechanic.
After locating the fuel pump relay, pull it straight out from the fuse box to remove it. Grab the relay firmly on either side and pull it straight up and out from the terminals of the fuse box. If the relay doesn't pull out right away, try rocking it back and forth to loosen the connection.
Before inspecting the relay, disconnect the battery to prevent electrical shock or damage. Always wear gloves to protect your hands from dirt and electrical static discharge. Use a relay puller or pliers to remove and inspect the relay safely. Check for signs of damage, such as corrosion, burns, or broken pins, indicating a faulty relay. Clean the relay prongs with a wire brush if necessary.
