Fuel injectors are designed to spray fuel into the cylinders of an engine. They can be tested on a bench using a variety of methods and tools, such as a noid light, a 9V battery, a hose, an air compressor, and small alligator clips. The injectors are checked for damage, and the coils are inspected for resistance, shorts, and current draw. The flow rate, spray pattern, and pulse width are also evaluated, and the results are recorded on a test data evaluation sheet. Some people opt for a DIY approach, using a homemade fuel injector tester or a vacuum pump, while others use a commercial injector tester.

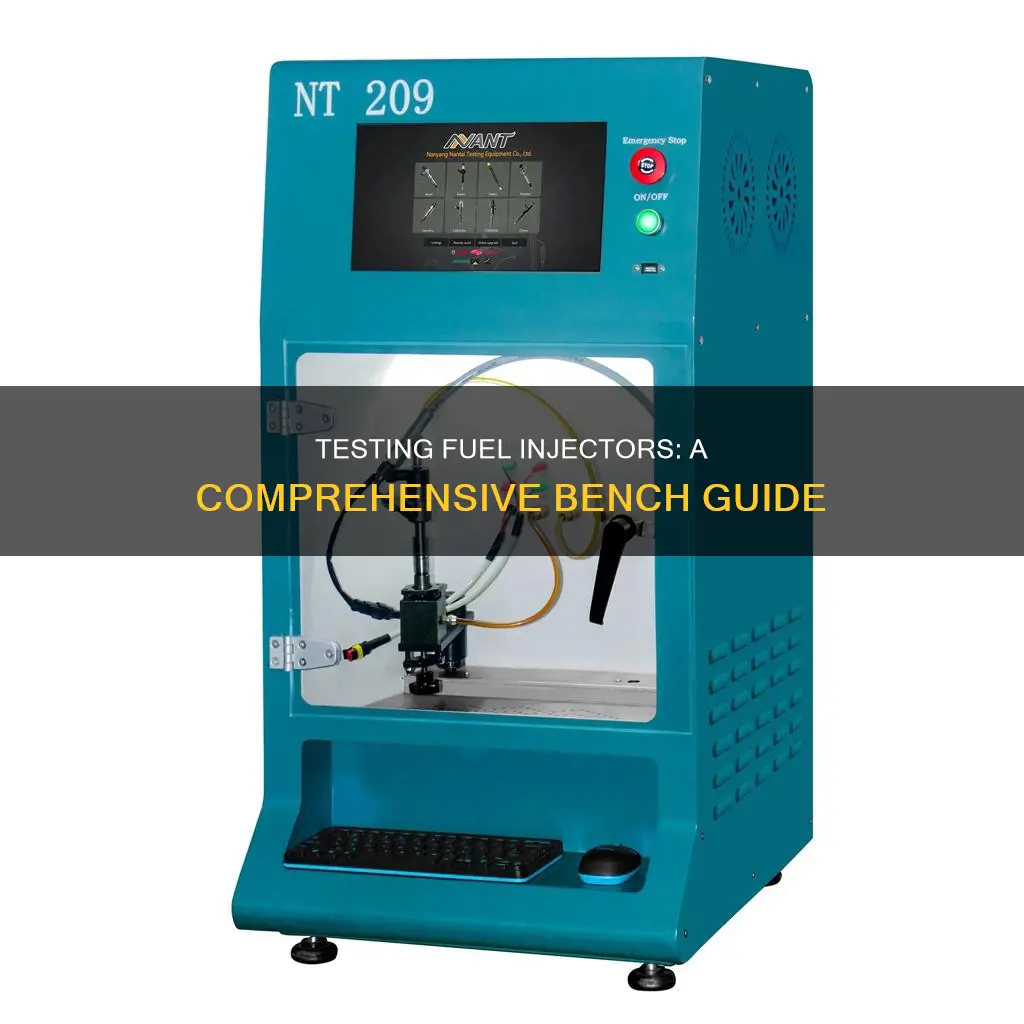

Testing Fuel Injectors on a Bench
| Characteristics | Values |
|---|---|
| Equipment | Noid light, 9V battery, correct harness for the injector, on/off switch, vacuum pump, injector tester, voltmeter, test light, hose, air compressor, alligator clips, pressure vessel, fittings, tubing, quarter-turn shut-off valve, test leads, 12-volt source |
| Process | Leave injectors on the rail, turn the key to the "on" position without starting the engine, check for droplet formation, test for voltage, check spray pattern, check for leaks, reverse flow for cleaning, check coils for resistance, shorts, and current draw, flow test at 43.5 psi or 3 bars, dynamic (pulsed) flow test at different duty cycles and pulse widths |
| Results | Injectors that don't pass the test are marked as defective, and parts like filter baskets, O-rings, and pintle caps are replaced |
Explore related products
Check for leaks
Checking for leaks in your fuel injectors is an important part of vehicle maintenance. Fuel injector leaks can cause a host of issues, including rough starts, poor fuel economy, engine misfires, and even engine damage if left unchecked. Here are some detailed steps to help you check for leaks in your fuel injectors:
Step 1: Visual Inspection
Start by popping the hood of your vehicle and inspecting each fuel injector carefully. Look for any wet spots or residual gasoline near the injectors. A shiny substance that resembles gasoline could indicate potential leakage. Sometimes, instead of an obvious wet spot, you may notice an accumulation of dirt or grime around an injector. This can be a result of fuel leaking and attracting dust and debris, so if one injector appears dirtier than the others, it could be a sign of leakage.
Step 2: Aural Inspection
If a visual inspection doesn't reveal any issues, you can use your ears to listen for any unusual sounds that could indicate problems with the fuel system. Start the engine and let it run as usual, then move close to the area around the injectors and fuel rail. Unusual sounds, such as coughing or abnormal vibrations, could indicate a fuel injector leak.
Step 3: Smell for Gasoline
Leaks on or around fuel injectors can often be detected by the smell of gasoline. Turn on the engine and let the car idle for a few minutes. Then, lean in and smell for the distinctive odour of gasoline. Shine a flashlight or work light under the hood to help you see any leaking gas.
Step 4: Check Spark Plugs
Another way to check for leaks is to inspect the spark plugs. Remove the spark plugs and look for any fuel residue or signs of fouling. Fuel injector leaks can cause excess fuel to flood the engine, leading to spark plug fouling and engine misfires.
Step 5: Use a Diagnostic Scanner
A diagnostic scanner, also known as an On-Board Diagnostics (OBD) reader, can be extremely helpful in identifying bad fuel injectors. These devices read the data stored in your vehicle's computer system, allowing you to spot errors and problems related to the fuel injectors.
Remember, if you notice any signs of leakage, it's important to address the issue promptly to prevent further damage and ensure your safety on the road.
Best Diesel Fuel Injector Cleaners: Top Recommendations
You may want to see also
Explore related products
Test spray pattern
Testing the spray pattern of a fuel injector is an important step in ensuring the correct functioning of an engine. A faulty injector can cause significant fuel mixture errors, leading to an engine misfire.
To test the spray pattern, the injector must be removed. The first step is to inspect the injector housing for any leaks and electrical connectors for corrosion. It is important to wear protective gloves and eyewear during this process, as fuel may be present. Once the injector is removed, the spray pattern can be observed. This can be done by using a remote starter switch or a similar tool to crank the engine and observing the spray pattern into a catch jar. The ignition switch must be in the "run" position to power up the D jet controller and observe the spray pattern. With the main and cold start injectors removed, the engine should not start. However, if there is residual fuel in the intake manifold, the engine may briefly start before running out of fuel. It is also recommended to have a small fire extinguisher nearby as a safety precaution.
Another method to test the spray pattern is to use a voltmeter to check the resistance through the injector. The voltmeter should be adjusted to ohms, and the test can be performed with the injector installed or uninstalled. This test will expose the injector electrical terminals, and the voltmeter leads should be connected to these terminals. The polarity of the leads is irrelevant. This test provides a baseline ohm reading of the injector, which can be compared to the service manual specifications. A typical injector reading should range between 11 and 14 ohms. If the test shows high resistance or an open circuit, the injector may need replacement.
Additionally, the spray pattern can be evaluated by measuring the flow rate and atomization. This can be done by setting up the injector over a measuring device, such as a flask with graduations of known value. The injector is then activated for a set time, and the flow rate can be calculated. While the injector is pulsing, the spray pattern and atomization can be observed. A well-functioning injector should produce a fine, light mist with good atomization, ensuring that the fuel mixes evenly with the air and ignites properly.
Fuel Injector Cleaners: Do They Work?
You may want to see also
Explore related products
Test fuel flow
Testing the fuel flow of a fuel injector on a bench can range from a simple visual check of "do these work" to a more complex set of tests for balance, flow, and pattern.
A basic visual check involves observing the spray pattern of the injector. A strong, even spray pattern indicates the injector is working, while a weak or uneven spray pattern may indicate a problem.
A more comprehensive test involves using a flow testing bench unit, which can measure the flow rate and leak-down performance of the injector. The flow rate is typically measured in cc/min at a fuel pressure of 43.5 psi or 3 bar, and the injectors should be flowing within 5% of each other for proper engine performance. The leak-down test is performed at 60-80 psi, and the injector should not leak any fuel when in the closed position.
Before performing flow tests, the injectors should be cleaned. This involves external cleaning with a detergent, followed by a more thorough ultrasonic cleaning to remove any particles or buildup inside the injectors.
There are also dynamic (pulsed) flow tests that simulate real-world conditions such as idling, acceleration, and deceleration. These tests vary the pulse width and RPM to ensure the injectors are performing properly under different engine speeds and loads.
The choice of test fluid is also important. While water or alcohol can be used, they may not have the same viscosity as gasoline and can oxidize metal parts. Stoddard solvent, heptane, and Viscor are commonly used in the auto industry and are suitable alternatives.
Fuel Injector Cleaning: AutoZone's Service or DIY?
You may want to see also
Explore related products
Test for dirt
Dirt in the fuel injectors can cause them to malfunction. To test for dirt, you can use a metal rod or screwdriver to listen for clicking sounds from the injectors. This is done by placing one end of the metal rod or screwdriver on the injector and holding it at an angle that allows you to bring your ear close to the opposite end. As the engine runs, listen for an audible clicking sound, which indicates that the injector is functioning properly. Repeat this process for each injector, and if you find one that is not clicking, it may be due to dirt or a problem with the electronic control transmitting to the injector.
Another method to test for dirt in the fuel injectors is to remove the cable going to the injector. If the engine sound does not change, that injector is either not firing or is very dirty. However, this method may not work for newer engines that have displacement on demand.
Additionally, you can perform a visual and olfactory inspection for leaks on or around the fuel injectors. Leaks can occur due to worn-out O-ring seals, and if detected, the injector may need to be replaced.
To thoroughly clean the inside of a fuel injector, it is recommended to reverse flow it. This involves applying fuel pressure to the opposite side of the injector and using an air compressor to apply pressure. This method can effectively dislodge and remove dirt from the injector.
For a more comprehensive cleaning, ultrasonic cleaning can be performed. This process involves placing the injectors in an ultrasonic cleaning tank, where they are electronically cycled on and off while being ultrasonically cleaned with detergents and then rinsed with fresh water. This helps break up and remove any particles, dirt, carbon, gum, and varnish from the injectors.
Cleaning Throttle Body Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Test voltage
To test the voltage of your fuel injectors, you will need to locate the injectors and the wires connected to them. The fuel injectors are usually located on the intake manifold, connected by a fuel rail.
Each fuel injector will have a metal clip with two wires coming out of it. One of these wires is a 12-volt constant that should be continuously receiving power from your vehicle's electrical system. These wires are often grey and black but can be any colour.
To test the voltage, use a test light. Press the sharp end of the test light firmly into the rubber coating around each wire until it penetrates the metal wiring. One of the wires should make the test light turn on when it comes into contact with the wire inside the protective coating. If the test light turns on, the injector is receiving the necessary constant voltage.
Repeat this process for each injector. If you locate one injector with a power issue, continue to test the rest, as others may have the same problem.
To further test the voltage, you can turn the key to the "on" position without starting the engine. This will activate the vehicle's electrical system. The vehicle's battery will power everything during this test, so turn off things like the headlights and stereo to conserve power.
Using Lucas Fuel Injector Cleaner on 2-Cycle Engines
You may want to see also
Frequently asked questions
You can test for fuel injector pulse with a noid light and leaving the injectors in place. If you want to test for fuel flow, you will need specialised equipment to measure against the specification and other injectors.
The industry-standard test pressure for flow numbers is 43 psi, but it is not uncommon for real-world applications to run at a higher pressure.
First, locate the two wires going into each injector. One of these should be a 12-volt constant that is continuously receiving power. Then, test each wire for voltage using a test light. If the test light turns on with one wire, the injector is receiving the necessary constant voltage. If not, there is an issue with the power reaching the fuel injector.
