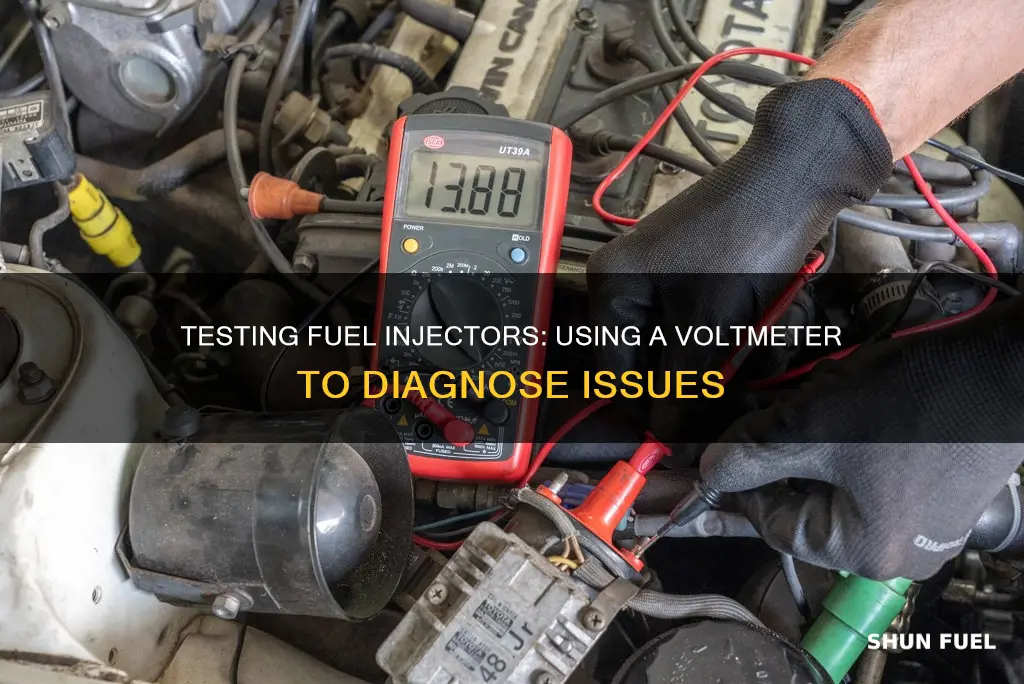

Fuel injectors are a crucial component of your vehicle, delivering a precise amount of fuel into the engine. A faulty injector can cause issues with the engine, affecting its performance and fuel economy. While a mechanic can diagnose and fix the issue, it can be an expensive service. To test a fuel injector with a voltmeter, you'll need to locate the injectors, which are usually found on the intake manifold, with one injector per cylinder. You can then use the voltmeter to check the resistance through the injector by connecting the leads to the terminals. A typical reading should be between 11 and 14 ohms. If the reading shows high resistance, the injector may need to be replaced. Additionally, you can use a metal rod or screwdriver to listen for an audible clicking sound, indicating the injector is activated.
| Characteristics | Values |
|---|---|
| Purpose | To test whether a fuel injector is working properly |
| Tools | Voltmeter, screwdriver or long metal rod, protective gloves and eyewear |
| Step 1 | Open the hood and locate the fuel injectors (usually one per cylinder) |
| Step 2 | Place the tip of the screwdriver or rod on the fuel injector |
| Step 3 | Bring your ear close to the opposite end of the screwdriver or rod and listen for a clicking sound |
| Step 4 | Repeat for each injector |
| Step 5 | With the vehicle off, disconnect the electrical connector for the fuel injector |
| Step 6 | Use a voltmeter to take a resistance reading (should be between 10-18 ohms) |
| Step 7 | Reconnect the injector and check the next one |
| Step 8 | If any resistance readings are off, the injector needs to be repaired or replaced |
| Alternative Method | Use a test light to observe the pulse produced by the PCM |
| Alternative Method | Attach the test light lead to the positive side of the battery and start the engine |
| Alternative Method | Probe the opposite side of the injector connector from the power circuit; the test light should flicker |
Explore related products
What You'll Learn
Locating the fuel injectors
Each injector will have a part number stamped on its side, which can be used to search for the correct injector for your vehicle. Alternatively, you can search using your engine code or name.
If you are having trouble locating the fuel injectors, it may be helpful to consult a mechanic or a repair manual specific to your vehicle's make and model.
Once you have located the fuel injectors, you can proceed to test them with a voltmeter. It is important to note that if you are replacing any fuel injectors, you should also replace all of the injector seals and any steel high-pressure fuel lines that you disconnect, as these are one-time-use only.
Driving with a Faulty Fuel Injector: Is It Safe?
You may want to see also
Explore related products
Using a screwdriver to listen for clicking
To test a fuel injector with a screwdriver, you will need to listen for a clicking sound. This is a simple test that can help you determine whether the injector is working. Start by popping the hood of your car while the engine is running. Place the tip of a screwdriver on one of the injectors, holding it at an angle that allows you to bring your ear close to the opposite end of the screwdriver. Make sure to keep your eyes open and be cautious when leaning into the engine bay to avoid any potential injuries.
As the engine runs, listen closely for an audible clicking sound. This clicking indicates that the injector is being activated and is functioning properly. The clicking sound originates from the solenoid inside the injector, which activates and deactivates the injector's valve. If you don't hear the clicking, it could mean that either the solenoid has failed or the computer isn't sending the pulse signal, resulting in a dead injector.
Repeat this test for each injector in your vehicle. If you come across an injector that is not clicking, there may be an issue with that particular injector or the electronic component that controls it. In such cases, further diagnostics or replacement of the injector may be necessary.
It is important to note that while this screwdriver test is a useful method for checking the functionality of fuel injectors, there are also other tests available, such as using a mechanic's stethoscope or a length of hose to listen for the clicking sound. Additionally, visual inspections and other simple tools can be employed to diagnose common problems with fuel injectors.
Removing Fuel Injectors from a 2005 Honda Civic
You may want to see also
Explore related products
Checking for correct voltage
To check the voltage of your fuel injectors, you will need a voltmeter or a test light. You can also use a DVOM to measure ohms.
Firstly, turn the key to the "on" position without starting the engine. You want battery power flowing, but you don't want the engine running. Locate your fuel injectors. There is usually one fuel injector per cylinder, and they are usually located on the intake manifold.
Now, connect the voltmeter leads to the terminals. The polarity of the leads is irrelevant. This test gives a baseline ohm reading of all injectors, and a service manual should also have this information. Most injector readings should range between 11 and 14 ohms. You can also use a multimeter to take a resistance reading. Check your vehicle's service manual or look online to learn the correct value (most fuel injectors should read between 10 and 18 ohms). All readings should be within the range suggested by the manufacturer and should be the same for all injectors.
If you are using a test light, gently probe both sides of the injector wiring connector. One of the wires should react by registering around 12 volts on the meter or illuminating the test light. If neither wire reacts, test the fuel injector fuse in the PDC. If the fuse is fine, you will need a fuel injection wiring diagram to help trace the wire and repair the connection.
If your voltmeter test shows high resistance or an open circuit, the injector needs replacement. If the resistance readings are off, the faulty injector needs to be repaired or replaced.
Fuel Injector Wire Shorting: Can You Hear It?
You may want to see also
Explore related products
Testing the spray pattern
A good spray pattern will be in an inverted V-shape. This is because the more atomised the fuel is, the better it will mix with the air and ignite evenly. If you observe a solid, single spray or an irregular pattern, the injector may be dirty or broken.
You can also test the flow rate of the injector. To do this, you will need a pump with a known pressure, a pulse tool, and a measuring device such as a flask. Set up the injector over the flask with the pump on. If you see drips or a poor flow, the injector pintle is not sealing. If the flow is good, activate the pulser for a set time, such as 5 or 10 seconds, and then calculate the flow rate.
It is important to test the spray pattern of a fuel injector because a faulty injector will not supply the correct amount of fuel to the engine at the right time, and the vehicle will not be able to move. A faulty injector can cause the engine to misfire, stall, or idle roughly.
Should You Opt for a 3-Part Fuel Injector Service?
You may want to see also
Explore related products
Ensuring the correct flow rate
To test the flow rate, you will need to set up a pump with a known pressure, for example, 50 psi. You will also require a pulse tool that can be calibrated to pulse the injector at a known rate, such as 100 hz. Finally, you will need a measuring device, such as a flask with known-value graduations. Place the injector over the measuring device, turn on the pump, and activate the pulser for a set time, such as 5 or 10 seconds. After pulsing, you can examine the pattern and atomization to determine the quality of the injector. A good pattern indicates a well-functioning injector, while a muted pattern suggests the need for a replacement.
The pattern is crucial because the more atomized the fuel, the better it mixes with the air and ignites evenly. Additionally, the flow rate is vital as the ECU (engine control unit) is programmed to operate with known values of the components. If the flow rate deviates significantly from the expected value, the engine may not run properly or even fail to start.
Fuel Injector Maintenance: Mini Cooper Edition
You may want to see also
Frequently asked questions
The fuel injectors are usually located on the intake manifold and are connected to one another with a fuel rail. They are typically black plastic housing installed directly above the cylinder. You can also refer to the service manual for your vehicle.
With the key in the "on" position, use a voltmeter connected to the negative side of the battery. Probe both sides of the injector wiring connector. One of the wires should react by registering around 12 volts on the meter.
If neither wire reacts, test the fuel injector fuse in the PDC. If the fuse is fine, you will need a fuel injection wiring diagram to help trace the wire and repair the connection.
The injector must be removed for this test. Attach pressurized air to the injector inlet and a 12-volt power and ground source to energize the injector. Observe the spray pattern. If the pattern is muted, the injector should be replaced.
