Fuel injectors are a simple device that allow fuel to enter the engine. They can be tested using an ohm meter to measure the coil resistance of the injectors. This can be done by disconnecting the electrical connector for the fuel injector and using a multimeter or voltmeter to take a resistance reading. The injector must be removed and the housing inspected for leaks and electrical connectors for corrosion. If the resistance is too low, the injector is weak and will need to be replaced. If the engine is running and no pulse is observed, this could indicate a bad wiring connection or a failed PCM injector driver.
| Characteristics | Values |
|---|---|
| Testing method | Use a test light or voltmeter to check resistance through the injector |
| Testing tools | Ohm meter, impedance bridge, multimeter, screwdriver |
| Testing conditions | Injectors should be tested cold unless otherwise specified |
| Normal range | 10-18 ohms |
| Action if abnormal | Repair or replace the injector |
| Other testing methods | Observe clicking sound, test light flickering, cylinder balance test, flow test, spray pattern test |
Explore related products
What You'll Learn
How to check for resistance with an ohm meter
To check for resistance with an ohm meter, you will need to use a multimeter. This device will allow you to take a resistance reading.
First, turn off your vehicle and disconnect the electrical connector for the fuel injector you want to test. Then, set your multimeter to the resistance or ohms setting. The display should show OLΩ or MΩ. Next, insert the black test lead into the COM jack and the red lead into the VΩ jack. Now, connect the test leads to the component you are testing, ensuring good contact between the leads and the circuit.
The resistance reading will depend on the component being tested. Most fuel injectors should read between 10 and 18 ohms, but you should check your vehicle's service manual or look online for the correct value. If your resistance readings are off, the faulty injector may need to be repaired or replaced.
It is important to note that a resistance check will only show gross failures of the coil in the injector. A more conclusive test is to measure the inductance and coil "Q" with an impedance bridge. Additionally, it is recommended to check the injectors when they are hot, at operating temperature.
Testing a Fuel Injector Harness: A Step-by-Step Guide
You may want to see also
Explore related products
Interpreting the ohm meter reading
An ohm meter can be used to measure the coil resistance of the injectors. The resistance of the coils should be within about plus or minus 10% of each other. For example, if one vehicle's injectors measured about 12 ohms, and one measured 8 ohms, the last one likely has shorted turns and needs replacement.
If the resistance reading is too low, the injector is weak and has shorted windings. If the resistance is infinite, the injector has an open in its windings. If the resistance is 0 ohms, the coil is likely shorted. If the resistance reading is out of range, the display will show all 0s or be blank.
If the injectors are all gummed up, more current is required to open them. If the ECU can't open them, it will set a code. Too much current draw will eventually kill the drivers in the ECU.
The ohm test only verifies that the injectors are electrically capable of working. It does not indicate whether there is a leak in the fuel system. To check for a leak, put a gauge on the Schraeder valve at the fuel rail and watch the leak-down rate. If the pressure is slowly dropping, there is a leak in the injector or somewhere along the high-pressure side of the fuel system.
Resistance measurements can only show gross failures of the coil in the injector. A much more conclusive test is to measure the inductance and coil "Q" with an impedance bridge. An impedance bridge measures the AC impedance of coils, capacitors (reactance and resistance) and will also measure pure resistance.
If the ohm reading is abnormal, the injector may need to be cleaned or replaced.
Removing Fuel Injectors from Cobalt SS: Step-by-Step Guide
You may want to see also
Explore related products
Identifying a leaking injector
There are several ways to identify a leaking fuel injector. One way is to check the spark plugs. If a fuel injector is leaking, the cylinder spark plug will be wet with fuel and potentially damaged. Another method is to use a fuel pressure gauge. The initial pressure should be approximately 40 pounds per square inch (PSI). Turn the key to "ON", let the pump prime the fuel rail, then turn the key "OFF" and pinch the return line. If the pressure drops rapidly, for example, 5 PSI in a minute, then the injectors are leaking.
Another, more extensive method is to check for leaks by disassembling the TPI, raising the fuel rail above the intake base (with the fuel lines still hooked up), putting paper under all the injectors, and priming the rail. This method is time-consuming but effective. Additionally, you can buy a fuel injector tester to pulse the fuel injectors off the car using a can of carburetor cleaner as the spray. This will cause a check engine light, but you can also test with the engine off by unplugging the wiring harness injectors one at a time.
It is important to note that some symptoms of a leaking fuel injector include rough idle, rough acceleration with a loss of power, vibrations, and white smoke from the exhaust. If you suspect a leaking injector, it is important to address the issue promptly to prevent further damage or safety hazards.
Cleaning Yamaha Outboard Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Testing the injector signal from the computer
It is also possible to test the injector signal using a voltmeter. First, start the engine and let it idle. Then, take a long metal rod, such as a screwdriver, and touch one end to the injector. Place your ear close to the other end of the rod and listen for an audible clicking sound, which indicates that the injector is working.
Another method of testing the injector signal is to use an ohmmeter to measure the coil resistance of the injectors. This can be done with the injector still on the car by disconnecting the injector and placing the two prongs of a multimeter on the metal contacts. The resistance should be between 10 and 18 ohms, and all injectors should have similar readings. If the readings are off, the injector may have shorted turns and needs to be replaced.
Additionally, the valve and spray pattern of the injector can be tested. This can be done with the injector still installed by attaching a 12-volt power source and a fuel pressure gauge while hot-wiring the fuel pump to stay on. If the injector valve is working properly, the gauge should fluctuate as you connect and disconnect the circuit. To check the spray pattern, the injector must be removed, and pressurized air should be attached to the inlet. A 12-volt power source should be connected to energize the injector, and compressed air with fuel traces should be released from the outlet valve. The spray pattern should be robust, and if it is muted, the injector should be replaced.
Finally, if your vehicle is equipped with an OBDII scanner and the check engine light is on, you can use it to check for any errors in the computer related to the cylinder or injector. A diagnostic test by a professional mechanic may also be necessary to identify issues with the vehicle's electronic control unit and fuel system.
Fuel Injector Cleaner: A Lawn Mower's Best Friend?
You may want to see also
Explore related products

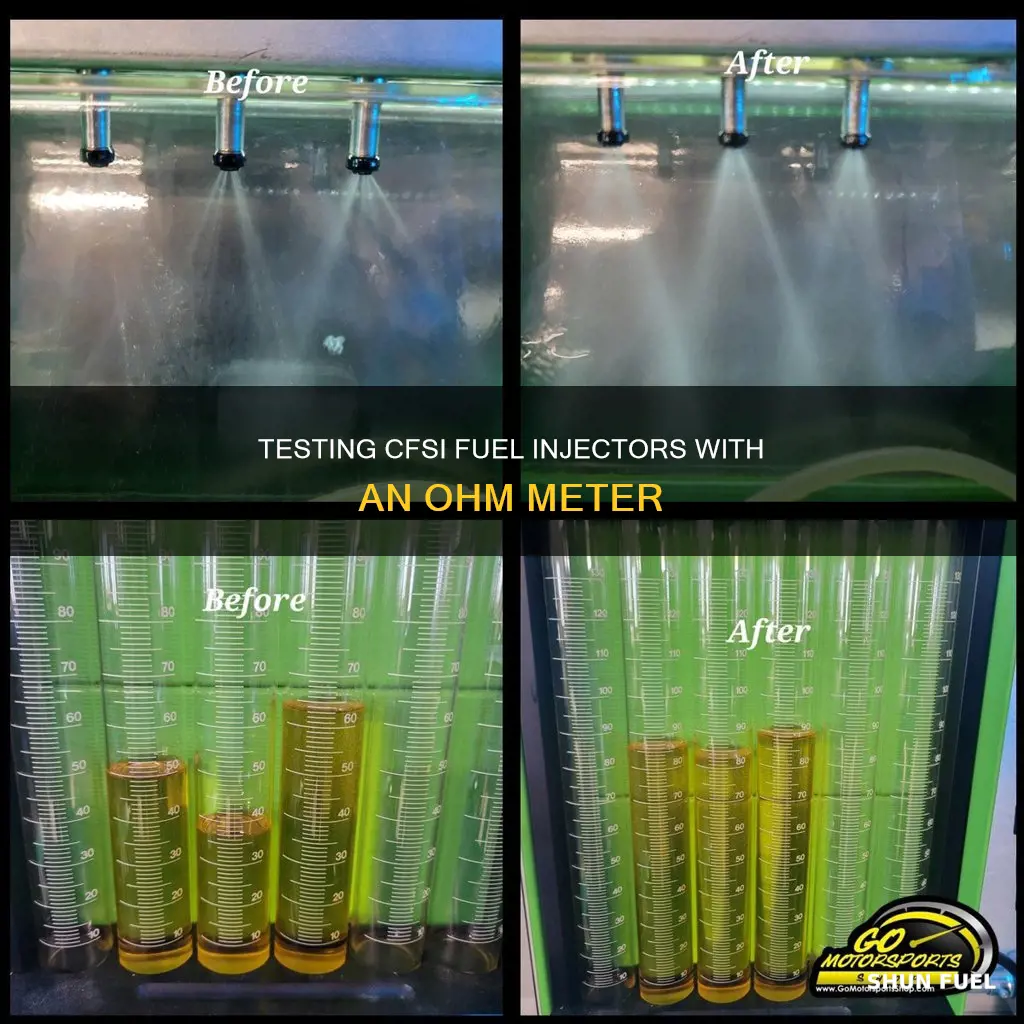

Testing the injector spray pattern
Firstly, it is important to understand the different types of spray patterns. Injectors with a wide "V" pattern, for example, may not work optimally if they miss the intake valves. Some injector types have two holes, directing the spray to either the backside of a single intake valve or the back of a two-intake valve system. These two-hole spray patterns can vary, with some having a narrow "V" and others a wide "V". They can also be angled differently, with some injectors having a bent spray that does not spray straight down.
To test the spray pattern, start by locating the fuel injectors in your engine. They are typically installed at an angle, but some may be placed vertically. Once located, observe the spray pattern by placing the injector in a testing machine with settings adjusted for clear visibility. A properly functioning fuel injector should produce a clear, fine spray, resembling a light mist.
The spray pattern is crucial as it needs to be directed into the combustion chamber at the correct angle and atomization shape. Any deviations from the specified pattern can lead to engine misfires. Therefore, it is important to compare the observed spray pattern with the manufacturer's specifications for your specific injector and engine type.
Additionally, keep in mind that a common cause of spray pattern distortion is a dirty or clogged injector. Regular cleaning and maintenance of the injectors can help prevent this issue.
Ford Flex Fuel Injectors: How Many Are There?
You may want to see also
Frequently asked questions
First, turn off your vehicle and disconnect the electrical connector for your fuel injector. Then, use an ohm meter to measure the resistance. If the ohm meter measures infinity, this indicates an open circuit and a bad coil in the injector.
Most fuel injectors should read between 10 and 18 ohms. However, some sources state that the reading should be between 11 and 14 ohms, while others suggest that anything above 10 ohms is acceptable.
If the resistance reading is too low or too high, the injector may need to be replaced. You can try cleaning the injectors first, and if that doesn't work, consult a mechanic or a specialist forum for further advice.
