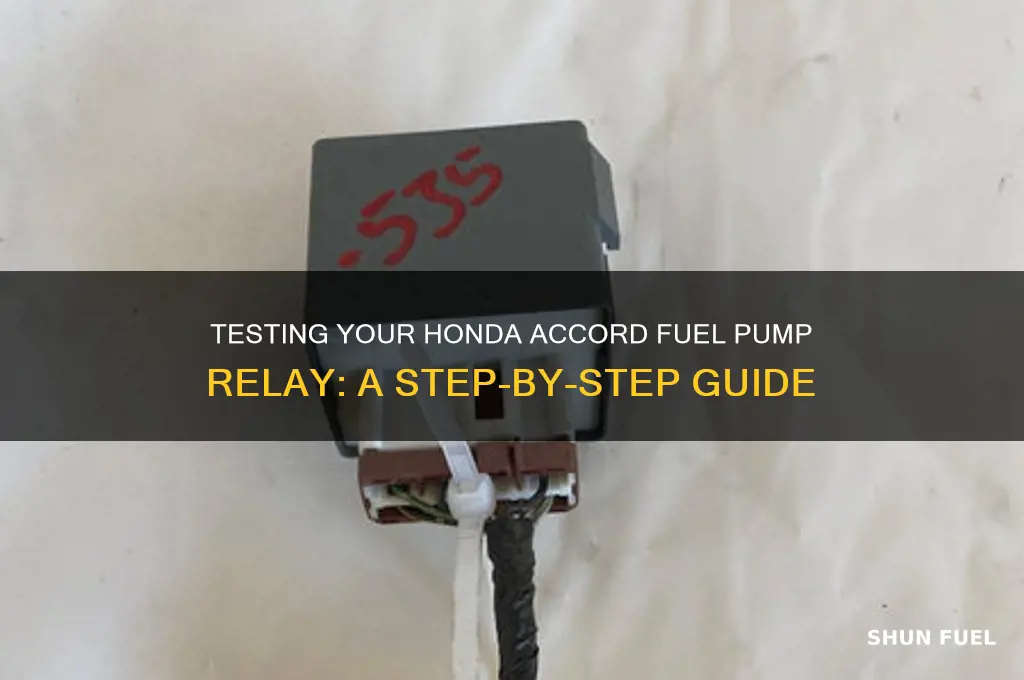

Testing a Honda Accord fuel pump relay is a crucial diagnostic step to ensure your vehicle’s fuel system is functioning properly. The fuel pump relay acts as a switch, controlling the power supply to the fuel pump, and a faulty relay can lead to symptoms like engine stalling, difficulty starting, or no-start conditions. To test the relay, you’ll need a multimeter and a basic understanding of electrical circuits. Start by locating the relay, typically found in the under-hood fuse box, and consult your vehicle’s manual for its exact position. With the ignition off, remove the relay and inspect it for visible damage. Next, use the multimeter to check for continuity across the relay’s terminals, ensuring the internal contacts are functioning correctly. If the relay fails the test, it’s likely the cause of your fuel system issues and should be replaced. This process helps pinpoint the problem efficiently, saving time and potential repair costs.
| Characteristics | Values |
|---|---|
| Location of Fuel Pump Relay | Typically found in the under-hood fuse/relay box (check owner's manual). |
| Tools Required | Multimeter, screwdriver, jumper wires (optional). |
| Testing Procedure | 1. Locate the relay and identify its terminals (e.g., 30, 87, 85, 86). |
| 2. Remove the relay and use a multimeter to check for continuity between terminals 30 and 87 (power supply). | |
| 3. Test the control circuit by applying power to terminal 85 and ground to 86. | |
| 4. Listen for the fuel pump operation when the ignition is turned on. | |
| Symptoms of a Faulty Relay | Engine cranks but doesn’t start, no fuel pressure, or intermittent starting issues. |
| Replacement | Replace the relay if it fails the continuity or control circuit test. |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards. |
| Applicable Honda Accord Models | Most 1990-2020 models (specific location may vary by year). |
| Additional Tips | Check the fuel pump fuse and wiring harness for damage if the relay tests good. |
Explore related products
What You'll Learn
- Locate the fuel pump relay in the under-hood fuse/relay box
- Check for power at the relay's input terminal with a multimeter
- Test the relay's ground connection for continuity using a multimeter
- Swap the fuel pump relay with a similar one to test functionality
- Use a test light to verify power is reaching the fuel pump
Locate the fuel pump relay in the under-hood fuse/relay box
The under-hood fuse/relay box of a Honda Accord is a labyrinth of electrical components, each with a specific function. Among these, the fuel pump relay is a critical player in your vehicle's fuel delivery system. To locate this relay, start by opening the hood and identifying the fuse/relay box, typically situated near the battery or along the driver's side fender. This box houses a multitude of relays and fuses, each labeled with a diagram or chart on the underside of the lid.
Analyzing the layout of the under-hood fuse/relay box reveals a systematic organization. Relays are often grouped by function, with the fuel pump relay usually located near other engine management components. In most Honda Accord models, the fuel pump relay is labeled as "PGM-FI Main Relay" or "Fuel Pump Relay." Refer to your vehicle's manual or online resources for a precise diagram, as the location may vary depending on the year and trim of your Accord. A 2013 Honda Accord, for instance, has the fuel pump relay in position 33 of the under-hood fuse/relay box.
Locate the fuel pump relay by comparing the diagram with the actual components in the box. Take note of the relay's orientation, as some relays are polarized and must be reinstalled in the correct direction. To remove the relay, grasp it firmly and pull straight up, avoiding any twisting or tilting that may damage the surrounding components. Keep in mind that the under-hood fuse/relay box is a sensitive area, and mishandling can lead to electrical issues. As a precautionary measure, disconnect the battery before attempting to remove or test any relays.
A practical tip for locating the fuel pump relay is to use a relay puller tool, which provides a secure grip and minimizes the risk of damage. If you're unsure about the relay's position, consult a trusted mechanic or online forum specific to your Honda Accord model. Remember, the fuel pump relay is a vital component, and its proper functioning is essential for your vehicle's performance. By taking the time to accurately locate and identify this relay, you'll be better equipped to diagnose and resolve potential fuel delivery issues. This attention to detail can save you time, money, and frustration in the long run.
Step-by-Step Guide to Safely Pumping Out a Fuel Dispenser
You may want to see also
Explore related products
Check for power at the relay's input terminal with a multimeter
A multimeter is your detective in diagnosing fuel pump relay issues, and the input terminal is your first crime scene. Before accusing the relay itself, you need to confirm if it’s even receiving the power it needs to function. Think of it as checking if the phone line is dead before blaming the person on the other end. To do this, set your multimeter to measure DC voltage, typically in the 20V range, and locate the relay’s input terminal, often labeled as "IN" or "87" on the relay’s body or wiring diagram. With the ignition in the "ON" position (not cranking), touch the multimeter’s positive lead to the input terminal and the negative lead to a good ground, such as the battery negative terminal. If the reading shows battery voltage (around 12V), the relay is getting power; if not, the problem lies upstream, possibly in the wiring or the ECU’s control circuit.
Now, let’s break this down step-by-step for clarity. First, ensure your multimeter is properly set to DC voltage mode and the range is sufficient to read 12–14 volts. Second, identify the correct input terminal on the relay—this is crucial, as testing the wrong terminal will lead to misleading results. Third, with the key in the "ON" position, take your reading. A steady 12V indicates power is reaching the relay, narrowing your diagnostic focus to the relay itself or its output circuit. If the reading is zero or erratic, trace the wiring back to the fuse box or ECU, checking for breaks, corrosion, or blown fuses along the way.
One common pitfall is assuming the relay is at fault without verifying power at the input terminal. This oversight can lead to unnecessary part replacements and wasted time. For instance, a blown fuse in the fuel pump circuit or a faulty ignition switch could prevent power from reaching the relay, mimicking symptoms of a bad relay. By systematically checking the input terminal first, you eliminate these variables and ensure your diagnosis is accurate. Pro tip: Always consult your Honda Accord’s wiring diagram to confirm terminal designations, as these can vary by model year.
Comparatively, testing the relay’s input terminal is like checking the water supply to a faucet before blaming the faucet itself for not working. If water isn’t reaching the faucet, fixing it won’t solve the problem. Similarly, if power isn’t reaching the relay, replacing it won’t fix your fuel pump issue. This analogy underscores the importance of this step in the diagnostic process. It’s a simple yet critical check that can save you hours of troubleshooting and unnecessary expenses.
In conclusion, checking for power at the relay’s input terminal with a multimeter is a foundational step in diagnosing fuel pump relay issues in a Honda Accord. It’s straightforward, requires minimal tools, and provides clear direction for further troubleshooting. By confirming whether the relay is receiving power, you either validate the relay as a suspect or shift your focus to other components in the circuit. This methodical approach not only saves time but also ensures you address the root cause of the problem, rather than chasing symptoms.
Testing a 1979 Dodge Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Test the relay's ground connection for continuity using a multimeter
A faulty ground connection can render even the most robust fuel pump relay ineffective. Testing for continuity ensures the relay’s ground circuit is intact, allowing it to function properly. This step is critical because a broken or corroded ground wire will prevent the relay from energizing the fuel pump, leading to a no-start condition.
To begin, locate the fuel pump relay in your Honda Accord’s fuse box, typically found under the dashboard or in the engine bay. Consult your vehicle’s manual for the exact location. Once identified, remove the relay by pulling it straight out of its socket. A multimeter, set to the continuity or resistance mode (usually denoted by a diode symbol or the Greek letter omega), is your tool for this test. Touch the multimeter probes to the relay’s ground terminal and a known good ground point, such as the battery negative terminal. A continuous circuit will produce a beep (if in continuity mode) or a low resistance reading (near 0 ohms), confirming the ground connection is intact.
If no continuity is detected, the issue likely lies in the wiring between the relay and the ground point. Inspect the wiring harness for damage, corrosion, or loose connections. Common trouble spots include areas where wires flex frequently or are exposed to moisture. Repair or replace damaged wiring as needed.
While testing, ensure the ignition is off to avoid accidental circuit activation. Also, be cautious of sharp edges in the fuse box area. This test, though straightforward, is a powerful diagnostic tool that can save hours of troubleshooting by pinpointing ground-related issues quickly.
In summary, testing the relay’s ground connection for continuity is a precise and efficient way to diagnose fuel pump relay issues in a Honda Accord. By systematically checking the ground circuit with a multimeter, you can isolate problems and take targeted corrective action, restoring your vehicle’s functionality with confidence.
Do Carbureted Motorcycles Need Fuel Pumps? A Comprehensive Guide
You may want to see also
Explore related products
Swap the fuel pump relay with a similar one to test functionality
Swapping the fuel pump relay with a similar one is a straightforward yet effective method to diagnose potential issues in your Honda Accord's fuel system. This technique leverages the principle of substitution, allowing you to isolate whether the relay itself is the culprit behind fuel pump malfunctions. By temporarily replacing the suspect relay with a known-good one from another circuit, you can quickly determine if the original relay is faulty. This approach is particularly useful when other diagnostic methods, such as voltage testing or visual inspection, yield inconclusive results.
To execute this test, locate the fuel pump relay in your Honda Accord’s fuse box, typically found under the dashboard or in the engine bay. Consult your vehicle’s manual for the exact location, as it varies by model year. Once identified, swap the fuel pump relay with a relay from a similar circuit, such as the horn or A/C compressor relay, ensuring they share the same part number and pin configuration. Start the engine and listen for the fuel pump’s priming hum, which should occur for 2–3 seconds upon ignition. If the fuel pump operates correctly after the swap, the original relay is likely defective and needs replacement.
While this method is efficient, exercise caution to avoid damaging components. Ensure the replacement relay is compatible, as using an incorrect one can lead to electrical issues. Additionally, avoid swapping relays while the engine is running, as this can cause voltage spikes or short circuits. If you’re unsure about compatibility or procedure, refer to a repair manual or seek professional assistance. This test is a practical, low-cost way to pinpoint relay issues before investing in unnecessary parts or repairs.
A key advantage of this method is its ability to provide immediate feedback. Unlike multimeter testing, which requires technical knowledge and tools, the swap test relies on observable results—either the fuel pump works or it doesn’t. This makes it accessible to DIY enthusiasts who may lack advanced diagnostic equipment. However, if the fuel pump still fails after the swap, the issue likely lies elsewhere, such as a faulty pump, wiring, or ECU. In such cases, further investigation is warranted.
In conclusion, swapping the fuel pump relay with a similar one is a reliable, hands-on approach to diagnosing relay functionality in a Honda Accord. It’s a quick, cost-effective method that requires minimal tools and technical expertise, making it an invaluable technique for troubleshooting fuel system issues. Always prioritize safety and compatibility during the process, and use this test as a stepping stone to more advanced diagnostics if needed.
Is Your Fuel Pump Covered Under Powertrain Warranty?
You may want to see also
Explore related products
Use a test light to verify power is reaching the fuel pump
A test light is an essential tool for diagnosing fuel pump relay issues in a Honda Accord. By verifying power delivery to the fuel pump, you can isolate whether the problem lies with the relay, wiring, or the pump itself. This method is straightforward, requiring only a test light, basic hand tools, and about 15 minutes of your time. Start by locating the fuel pump relay in the under-hood fuse box—typically labeled "PGM-FI Main Relay" or "Fuel Pump Relay." With the ignition off, remove the relay and inspect its pins. The test light will help you confirm if power is present at the relay’s input and output terminals, ensuring the circuit is functioning as expected.
To begin testing, connect the test light’s ground clip to a clean metal surface on the engine bay. Turn the ignition to the "ON" position but do not start the engine. Probe the relay socket’s power input terminal (usually pin 1) with the test light. If the light illuminates, power is reaching the relay. Next, move to the output terminal (often pin 5) and check for power. If the light remains off here, the relay may be faulty, preventing power from reaching the fuel pump. This step-by-step approach ensures you systematically diagnose the issue without guesswork.
While using a test light is effective, caution is necessary to avoid short circuits. Always double-check the test light’s polarity and ensure the ignition is off when connecting the ground clip. If you’re unsure about terminal numbers, consult your Honda Accord’s service manual for accurate pin identification. Additionally, avoid probing terminals with excessive force, as this can damage the relay socket. A steady hand and attention to detail will yield reliable results.
Comparing this method to others, such as using a multimeter, the test light offers a quicker, more visual diagnosis. While a multimeter provides precise voltage readings, a test light is ideal for confirming basic power presence, especially for beginners. Its simplicity makes it a go-to tool for initial troubleshooting, allowing you to narrow down the problem before investing in more complex tests. By mastering this technique, you’ll save time and potentially avoid unnecessary part replacements.
In conclusion, using a test light to verify power at the fuel pump relay is a practical and efficient diagnostic step. It bridges the gap between symptom observation and definitive diagnosis, providing clarity on whether the relay is functioning correctly. With minimal tools and a clear process, this method empowers even novice mechanics to tackle fuel system issues confidently. Always prioritize safety and accuracy, and you’ll find this technique indispensable in your automotive troubleshooting toolkit.
Fuel Pump PSI for a 1999 Ford Pickup Explained
You may want to see also
Frequently asked questions
The fuel pump relay is typically located in the under-hood fuse/relay box. Refer to your Honda Accord’s manual for the exact location, as it may vary by model year.
Common symptoms include difficulty starting the engine, stalling, or a complete failure to start. You may also notice the engine sputtering or losing power while driving.
Disconnect the relay and use a multimeter to check for continuity across the relay’s terminals. Compare the readings to the relay’s specifications in your vehicle’s manual to determine if it’s functioning correctly.
Yes, you can temporarily bypass the relay by connecting the fuel pump’s power wire directly to the battery (with a fuse in line). If the fuel pump operates, the relay is likely faulty. However, this is a temporary diagnostic step and not a permanent solution.
