Ameer Randolph
Testing the fuel pump on a 2002 Ford F150 is a critical diagnostic step to ensure your truck’s engine is receiving the proper fuel supply. Symptoms of a failing fuel pump include difficulty starting, stalling, or a lack of power, making it essential to verify its functionality. The process involves checking for fuel pressure using a gauge, listening for the pump’s operation when the key is turned to the on position, and inspecting the fuel pump relay and fuse for any issues. Proper testing ensures you can accurately diagnose whether the fuel pump is the source of your vehicle’s performance problems or if further investigation is needed.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Inside the fuel tank (under the truck bed, requires tank removal). |
| Tools Required | Multimeter, wrenches, screwdriver, safety gloves, safety goggles. |
| Testing Method 1: Listen for Operation | Turn ignition to "ON" (do not start), listen for fuel pump hum (2-3 sec). |
| Testing Method 2: Check Fuel Pressure | Use fuel pressure gauge, connect to Schrader valve, check pressure (30-60 PSI). |
| Testing Method 3: Electrical Testing | Measure voltage at fuel pump connector (12V at pump relay and ground). |
| Relay Location | Under hood fuse/relay box (Fuel Pump Relay). |
| Inertia Switch | Located behind driver’s seat (reset if tripped). |
| Safety Precautions | Work in well-ventilated area, disconnect battery, avoid sparks. |
| Common Symptoms of Failure | Engine cranks but won’t start, sputtering, loss of power. |
| Replacement Access | Fuel tank must be lowered for pump replacement. |
| Diagnostic Trouble Codes (DTCs) | Scan for codes related to fuel pump (e.g., P0230, P0231). |
| Fuel Pump Fuse | Check fuse #27 (20A) in interior fuse panel. |
| Fuel Filter Location | Near driver’s side frame rail (check for clogs). |
| Recommended Fuel Pressure | 30-60 PSI (varies by engine model). |
| Estimated Repair Time | 2-4 hours (DIY), depends on experience. |
| Professional Diagnosis Cost | $75-$150 (varies by shop). |
Explore related products
What You'll Learn
- Pre-Test Checks: Battery, fuel pump relay, and fuse inspection before testing the fuel pump
- Pressure Testing: Use a gauge to measure fuel pressure at the Schrader valve
- Electrical Testing: Check voltage at the pump connector using a multimeter
- Listening Test: Turn the key to On and listen for the pump’s hum
- Resistance Check: Test fuel pump resistance with a multimeter for proper ohms reading
Pre-Test Checks: Battery, fuel pump relay, and fuse inspection before testing the fuel pump
Before diving into fuel pump diagnostics on your 2002 Ford F150, remember: a weak battery can mimic fuel pump failure. A battery with less than 12.4 volts under load won't provide sufficient power for the pump to operate correctly. Use a multimeter to test voltage at the battery terminals with the engine off, then again with the starter engaged. If voltage drops significantly, address the battery issue first.
The fuel pump relay acts as a switch, controlling power delivery to the pump. A faulty relay can prevent the pump from receiving power, even if the pump itself is functional. Locate the relay in the under-hood fuse box (consult your manual for exact placement). Swap it with a relay of similar rating from another circuit (like the horn) to test. If the pump activates, the relay is likely the culprit.
Fuses are the first line of defense against electrical overload. A blown fuel pump fuse will immediately cut power to the pump. Locate the fuse in the under-hood fuse box, typically labeled "Fuel Pump" or "FP." Visually inspect the fuse for a broken filament or use a multimeter to check for continuity. Replace with a fuse of the exact same amperage if blown, but if it blows again, investigate for a short circuit.
These pre-test checks are critical because they isolate common culprits before condemning the fuel pump itself. A systematic approach saves time, money, and frustration. By verifying battery health, relay functionality, and fuse integrity, you ensure that the fuel pump is receiving the power it needs to operate. Only after confirming these components are functioning should you proceed with direct fuel pump testing.
Does the 1991 CRX Si Have a Fuel Pump Fuse?
You may want to see also
Explore related products
Pressure Testing: Use a gauge to measure fuel pressure at the Schrader valve
The Schrader valve on a 2002 Ford F150 is your gateway to diagnosing fuel pump issues. Located on the fuel rail, this unassuming valve allows you to directly measure fuel pressure, a critical indicator of pump health.
Understanding the Numbers: Ford specifies a fuel pressure range of 30-40 psi for the 2002 F150 with a 4.6L or 5.4L engine. Deviations from this range signal potential problems. Low pressure points to a weak pump, clogged filter, or faulty regulator. High pressure suggests a failing regulator or restricted return line.
Conducting the Test: With the engine off, depressurize the fuel system by disconnecting the fuel pump relay and cranking the engine for a few seconds. Attach a fuel pressure gauge to the Schrader valve. Start the engine and observe the reading. A stable reading within the specified range indicates a healthy pump. Fluctuations or readings outside the range warrant further investigation.
Tools of the Trade: Invest in a quality fuel pressure gauge designed for Schrader valves. Look for a gauge with a range encompassing the F150's specifications and clear, easy-to-read markings. A gauge with a hose extension can provide easier access to the valve, especially in cramped engine bays.
Beyond the Numbers: While pressure is a key metric, pay attention to other clues. A whining noise from the fuel tank during testing could indicate pump wear. Difficulty starting after testing might suggest a failing check valve within the pump, allowing fuel to drain back into the tank.
Remember, pressure testing is a diagnostic tool, not a definitive answer. If you suspect a fuel pump issue, consult a qualified mechanic for a comprehensive diagnosis and repair.
Understanding Gas Pumps: How Fuel Grade Selection Works at Stations
You may want to see also
Explore related products
Electrical Testing: Check voltage at the pump connector using a multimeter
One of the most critical steps in diagnosing a faulty fuel pump on a 2002 Ford F150 is verifying the electrical supply to the pump. The fuel pump relies on a consistent voltage to operate, and any deviation from the specified range can lead to poor performance or complete failure. By checking the voltage at the pump connector using a multimeter, you can determine whether the issue lies within the electrical system or the pump itself. This test is straightforward but requires precision to ensure accurate results.

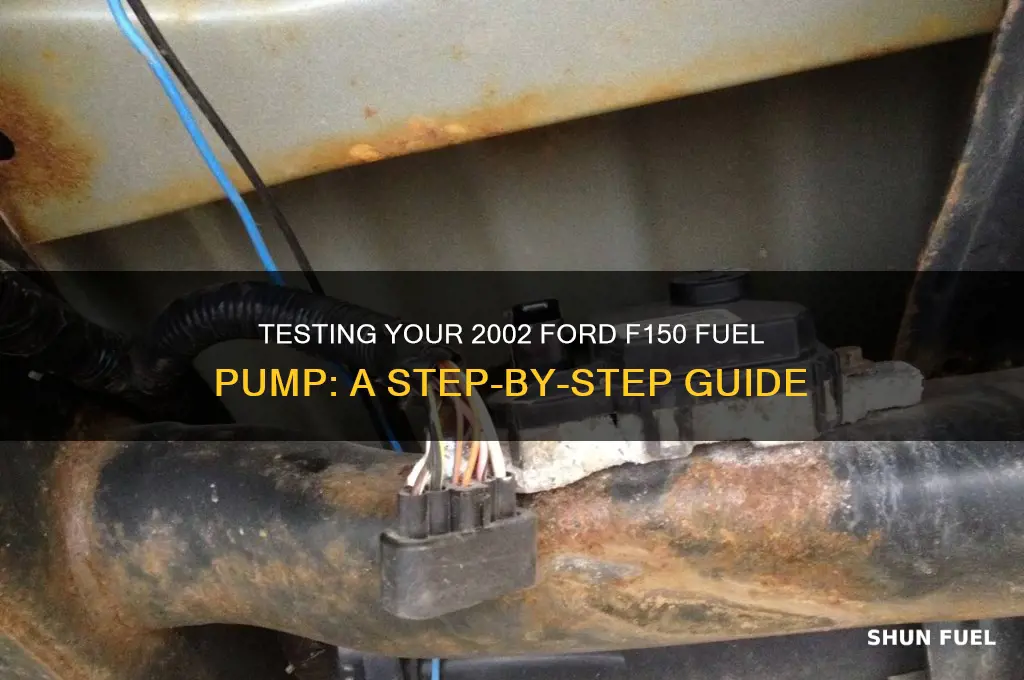

To begin, locate the fuel pump connector, typically found near the fuel tank. Access may require removing a panel or working from underneath the vehicle, so ensure safety precautions are in place. With the ignition in the "ON" position but the engine off, set your multimeter to measure DC voltage. Connect the multimeter probes to the appropriate pins on the fuel pump connector, referencing your vehicle’s wiring diagram for pinout specifics. A healthy system should show a voltage reading close to the battery voltage (around 12 volts), though slight variations may occur depending on the vehicle’s electrical load.
Interpreting the results is key. If the voltage reads within the expected range, the electrical supply is likely not the issue, and the fuel pump itself may be faulty. Conversely, a low or absent voltage reading suggests a problem in the wiring, relay, or fuse. For instance, a reading of 0 volts could indicate a blown fuse or a broken wire, while a significantly lower voltage might point to high resistance in the circuit. Always cross-reference your findings with the vehicle’s specifications to avoid misdiagnosis.
Practical tips can enhance the accuracy of this test. Ensure the multimeter leads are securely connected to the connector pins to prevent false readings. If the connector is difficult to access, consider using extension wires or a remote display multimeter for convenience. Additionally, testing the voltage under different conditions—such as with the fuel pump relay engaged—can provide further insight into the system’s behavior. This methodical approach not only isolates the problem but also saves time and resources by narrowing down potential causes.
In conclusion, checking the voltage at the fuel pump connector is a fundamental diagnostic step that bridges the gap between electrical theory and practical troubleshooting. By combining technical knowledge with hands-on techniques, you can efficiently determine whether the fuel pump’s electrical supply is functioning correctly. This test, when performed accurately, is a powerful tool in diagnosing and resolving fuel system issues on a 2002 Ford F150.
Malossi P200 Reed Valve: Fuel Pump Requirement Explained
You may want to see also
Explore related products
Listening Test: Turn the key to On and listen for the pump’s hum
One of the simplest yet most effective ways to test the fuel pump on a 2002 Ford F150 is by performing a listening test. This method relies on your ability to hear the fuel pump’s operation, which can provide immediate insight into its functionality. Start by ensuring the fuel tank is at least a quarter full, as an empty tank can lead to inaccurate results. With the key in the "On" position (but not cranking the engine), pay close attention to the sound coming from the fuel tank area. A healthy fuel pump should produce a faint humming noise for about 2-3 seconds, indicating it’s priming the fuel system. If you hear nothing, it could signal a failed pump, a blown fuse, or a faulty relay.
The listening test is particularly useful as a preliminary diagnostic step because it’s non-invasive and requires no specialized tools. However, it’s important to note that the absence of a hum doesn’t always confirm a bad fuel pump. Other factors, such as a disconnected wiring harness or a malfunctioning inertia switch, could also be at play. To isolate the issue, check the fuel pump fuse (typically located in the engine bay fuse box) and the inertia switch (often found in the passenger side kick panel). If both are intact, the problem likely lies with the pump itself or its wiring.
For a more accurate assessment, combine the listening test with a visual inspection. Pop the hood and have an assistant turn the key to the "On" position while you observe the fuel pump relay. If the relay clicks but no hum is heard, the issue may be with the pump’s electrical connection or its internal components. In such cases, further testing with a multimeter or fuel pressure gauge may be necessary. However, for many DIY mechanics, the listening test serves as a quick and reliable first step in diagnosing fuel pump issues.
A common mistake during this test is confusing the fuel pump’s hum with other engine noises. To avoid this, turn off the radio and ensure the vehicle is in a quiet environment. Additionally, familiarize yourself with the sound of a functioning fuel pump by listening to online audio clips or testing a known-good vehicle. This will help you distinguish between normal operation and potential malfunctions. Remember, while the listening test is a valuable tool, it’s not definitive—always follow up with additional tests if you suspect a problem.
In conclusion, the listening test is a straightforward and cost-effective method to assess the health of your 2002 Ford F150’s fuel pump. By turning the key to the "On" position and listening for the pump’s hum, you can quickly identify potential issues before they escalate. Pair this test with basic checks of fuses and relays to narrow down the problem, and don’t hesitate to consult a professional if you’re unsure. With this approach, you’ll save time and potentially avoid unnecessary repairs.
Walbro vs Aeromotive: Are These Fuel Pumps Interchangeable?
You may want to see also
Explore related products
Resistance Check: Test fuel pump resistance with a multimeter for proper ohms reading
A faulty fuel pump can leave your 2002 Ford F150 stranded, but a simple resistance check with a multimeter can help diagnose the issue. This test verifies if the pump's internal windings are functioning within specifications, measured in ohms.
Understanding Resistance: Think of resistance as friction within the fuel pump's electrical circuit. Too much resistance indicates a potential short or damaged winding, while too little suggests an open circuit. The manufacturer specifies a resistance range for optimal performance, typically found in your F150's service manual or online resources.
For a 2002 Ford F150, the typical fuel pump resistance falls between 15 and 20 ohms.
Conducting the Test:
- Safety First: Disconnect the battery negative terminal to prevent accidental starting.
- Locate the Pump: Access the fuel pump, often located within the fuel tank. This may require removing the bed or accessing an inspection plate.
- Disconnect the Pump: Carefully disconnect the electrical connector from the fuel pump.
- Set Your Multimeter: Turn your multimeter to the resistance (ohms) setting.
- Measure Resistance: Touch the multimeter probes to the fuel pump's connector terminals. Note the reading displayed.
Interpreting Results:
- Within Range: A reading within the specified range (15-20 ohms) indicates the fuel pump's windings are likely functioning correctly.
- Out of Range:
- High Resistance: A reading significantly above the range suggests a potential short circuit or damaged winding, requiring pump replacement.
- Low Resistance: A reading below the range indicates an open circuit, meaning the windings are not conducting electricity properly, also necessitating pump replacement.
Important Considerations:
- Temperature: Resistance can vary slightly with temperature. For the most accurate reading, allow the fuel pump to cool down before testing.
- Multimeter Accuracy: Ensure your multimeter is calibrated and functioning properly for reliable results.
- Further Diagnosis: While a resistance check is valuable, it's not definitive. If the resistance is within range but you still suspect a fuel pump issue, further tests like fuel pressure testing may be necessary.
Choosing the Right Fuel Pump: A Comprehensive Guide for Vehicle Owners
You may want to see also
Frequently asked questions
Common signs of a failing fuel pump include difficulty starting the engine, sputtering or stalling at high speeds, loss of power, and unusual noises from the fuel tank.
You’ll need a fuel pressure gauge, a multimeter to test electrical connections, and basic hand tools to access the fuel pump and related components.
Yes, you can test the fuel pump’s electrical connections at the fuel pump relay or fuse box and use a fuel pressure gauge to check pressure at the fuel rail without removing the tank.
Connect a fuel pressure gauge to the Schrader valve on the fuel rail, turn the ignition to the "ON" position (but don’t start the engine), and compare the reading to the manufacturer’s specifications.
Check the fuel pump fuse and relay for continuity using a multimeter. If they’re functioning, inspect the wiring harness and fuel pump connector for damage or corrosion.
