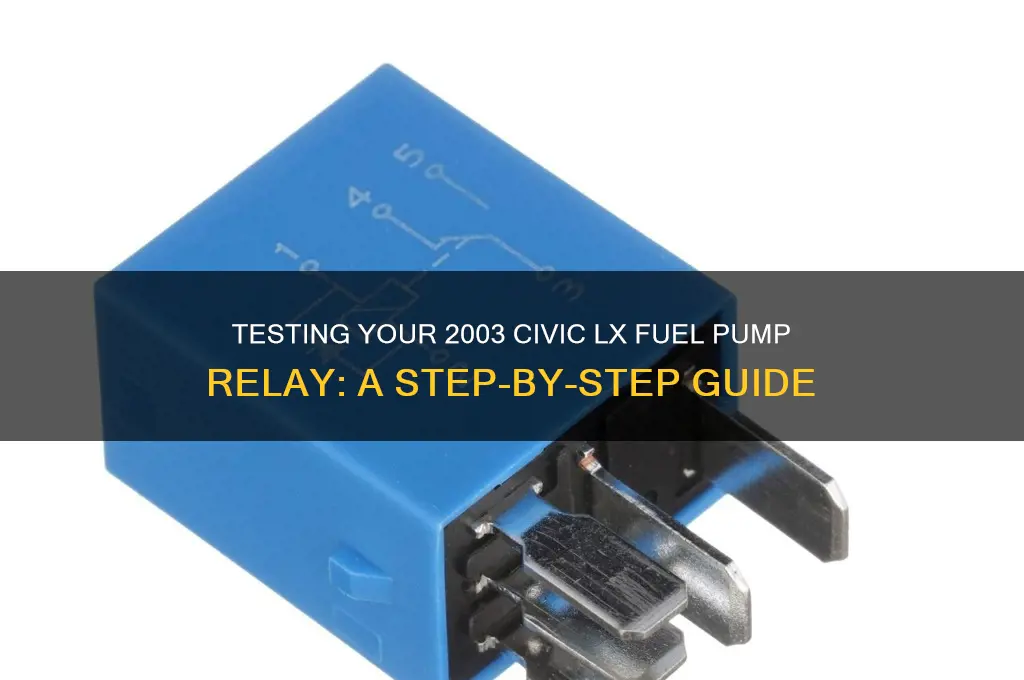

Testing the fuel pump relay on a 2003 Honda Civic LX is a straightforward process that can help diagnose issues with the vehicle's fuel system. The fuel pump relay is a critical component that controls the power supply to the fuel pump, ensuring it operates only when the engine is running. To test the relay, start by locating it in the under-hood fuse box, typically labeled as PGM-FI Main Relay or Fuel Pump Relay. Use a multimeter to check for continuity across the relay's terminals when the ignition is turned on, and listen for the fuel pump's hum to confirm it’s functioning. If the relay fails the test, it may need to be replaced to restore proper fuel system operation. Always consult the vehicle’s manual or a repair guide for specific details and safety precautions.
| Characteristics | Values |
|---|---|
| Relay Location | Under the dashboard, near the driver's side kick panel or fuse box. |
| Relay Pin Configuration | Typically 5 pins (A, B, C, D, E) with specific functions. |
| Power Supply Pin | Pin B (Battery power from the main relay). |
| Ground Pin | Pin D (Ground connection). |
| Control Pin | Pin A (ECU-controlled signal to activate the relay). |
| Output Pin | Pin C (Power output to the fuel pump). |
| Testing Tool | Multimeter or 12V test light. |
| Test Procedure | 1. Locate and remove the relay. 2. Check for continuity between pins B and C with the relay activated. 3. Verify power supply at Pin B and ground at Pin D. 4. Test control signal at Pin A with the ignition on. |
| Expected Results | Continuity between pins B and C when activated; power and ground present. |
| Common Symptoms of Failure | No fuel pump operation, engine cranks but doesn't start, or intermittent starting issues. |
| Replacement Relay | Honda OEM part or compatible aftermarket relay with the same pin configuration. |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards. |
| Additional Notes | Ensure the fuel pump fuse is intact and the main relay is functioning properly. |
Explore related products
What You'll Learn
- Locate the Fuel Pump Relay: Identify relay position in under-hood fuse box
- Check Relay for Power: Test input and output terminals for voltage
- Inspect Relay for Damage: Look for corrosion, burns, or loose connections
- Swap Relays for Testing: Use a similar relay to confirm functionality
- Use Multimeter for Diagnostics: Measure resistance and continuity across relay terminals
Locate the Fuel Pump Relay: Identify relay position in under-hood fuse box
The 2003 Honda Civic LX's fuel pump relay is a critical component in the vehicle's fuel system, and locating it is the first step in any diagnostic or testing procedure. This relay is typically housed in the under-hood fuse box, a centralized hub for various electrical components. To begin, open the hood and locate the fuse box, usually positioned near the battery or along the inner fender. The exact location may vary slightly depending on the Civic's trim and regional specifications, but it is generally within easy reach.
Identification and Access: The under-hood fuse box is often a rectangular or square-shaped unit with a removable cover. Upon removing the cover, you'll be greeted by an array of fuses and relays, each with its designated position. The fuel pump relay is typically labeled, making identification more straightforward. Look for a diagram or label on the fuse box cover or inside the lid, which should indicate the relay's position. In the 2003 Civic LX, the fuel pump relay is commonly found in the top row of relays, but this may differ, so consulting the owner's manual or a repair guide is advisable for precise location details.
Practical Tips for Access: When accessing the under-hood fuse box, ensure the vehicle is turned off and the keys are removed to prevent any accidental electrical hazards. The fuse box cover might require a gentle pry or a specific tool for removal, depending on the design. Once the cover is off, take a moment to familiarize yourself with the layout. Relays are usually larger than fuses and often have a distinct shape, making them easier to identify. If the fuel pump relay is not immediately apparent, refer to the vehicle's service manual or online resources for a detailed diagram of the fuse box layout.
Cautions and Considerations: It's essential to exercise caution when handling electrical components. Avoid touching any terminals or connectors with bare hands, as oils and dirt can cause corrosion or interference. If you're unsure about the relay's position, consult a professional or refer to reliable automotive resources. Misidentifying the relay could lead to incorrect diagnostics or potential damage to other components. Additionally, be mindful of the vehicle's age; over time, labels may fade or become less legible, making identification more challenging.
