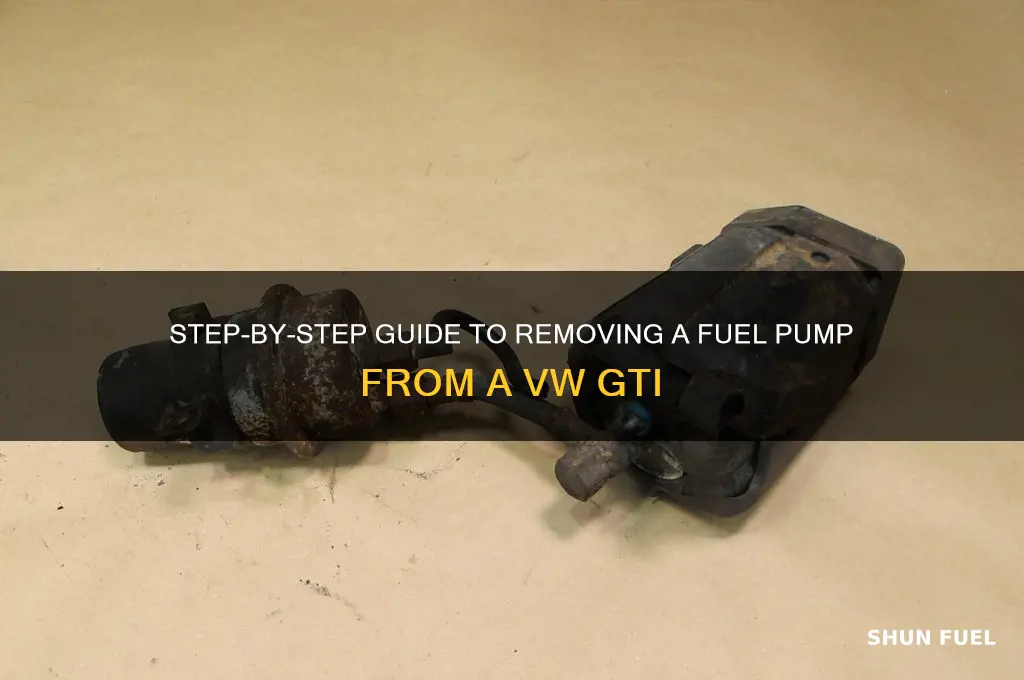

Removing the fuel pump from a VW GTI requires careful preparation and attention to detail to ensure safety and efficiency. Begin by disconnecting the vehicle’s battery to prevent electrical hazards and relieving fuel system pressure by locating and depressing the Schrader valve on the fuel rail. Next, safely jack up the car and remove the rear seat and access panel to expose the fuel pump assembly. Disconnect the electrical connectors and fuel lines, taking note of their positions for reassembly. Finally, carefully lower the fuel pump module from the tank, ensuring no damage occurs to the surrounding components. This process demands precision and adherence to safety protocols to avoid fuel spills or system damage.
| Characteristics | Values |
|---|---|
| Vehicle Model | Volkswagen GTI (specific year not mentioned, but generally applicable to MK5, MK6, and MK7 models) |
| Tools Required | Jack, Jack Stands, 10mm Socket, Ratchet, Extension, Flathead Screwdriver, Pliers, Fuel Line Disconnect Tool (optional) |
| Safety Precautions | Work in a well-ventilated area, wear safety goggles, relieve fuel system pressure, disconnect battery |
| Fuel Pump Location | Inside the fuel tank, accessed from the top of the tank |
| Access Method | Remove rear seats and fuel pump access panel (varies by model) |
| Fuel Pump Assembly Components | Fuel pump, sender unit, fuel level sensor, locking ring |
| Steps to Remove Fuel Pump | 1. Relieve fuel pressure 2. Disconnect battery 3. Remove rear seats and access panel 4. Disconnect electrical connectors 5. Release fuel lines (using disconnect tool if necessary) 6. Remove locking ring and lift out fuel pump assembly |
| Common Issues | Stuck locking ring, damaged fuel lines, corroded electrical connectors |
| Reinstallation Tips | Ensure new gasket is properly seated, torque locking ring to spec, reconnect all lines and electrical connectors securely |
| Estimated Time | 1-3 hours depending on experience and model |
| Difficulty Level | Moderate |
| Reference Sources | Volkswagen service manuals, online forums (e.g., VW Vortex, GTI Forum), YouTube tutorials |
Explore related products
What You'll Learn
Disconnect Battery and Fuel Lines
Before diving into the fuel pump removal process on your VW GTI, prioritize safety and precision by disconnecting the battery and fuel lines. This step is non-negotiable, as it mitigates the risk of electrical shorts, fuel leaks, or accidental ignition. Start by locating the battery, typically in the trunk or under the rear seat, depending on your GTI model. Use a 10mm wrench to loosen the battery terminal nuts, beginning with the negative (-) terminal to prevent arcing. Once disconnected, secure the cable away from the battery to ensure it doesn’t accidentally reconnect. This simple act neutralizes the electrical system, safeguarding you from potential hazards during the fuel pump removal process.
Next, address the fuel lines, a task that demands both caution and methodical execution. Locate the fuel pump assembly, usually housed in the fuel tank. Before disconnecting the lines, relieve the fuel system pressure to avoid spills or spray. Insert the ignition key without starting the engine, then carefully remove the fuel pump fuse or relay to disable the pump. Attempt to start the engine until it stalls, confirming pressure relief. Once complete, disconnect the fuel lines using appropriate tools, such as fuel line disconnect tools or pliers. Be mindful of the quick-connect fittings, as forcing them can damage the lines. Work slowly, ensuring each connection is fully released before moving on.
A critical aspect of this process is managing fuel spillage. Even after relieving pressure, residual fuel may remain in the lines. Prepare by placing a drain pan or absorbent cloth beneath the fuel pump assembly to catch any drips. If you encounter stubborn connections, avoid excessive force; instead, inspect for locking mechanisms or tabs that may need to be depressed or released. For example, some VW GTI models use a retaining clip on the fuel lines that requires a specific tool to disengage. Familiarize yourself with your vehicle’s specific design to avoid unnecessary complications.
Finally, consider the environmental and safety implications of this step. Fuel is highly flammable, so ensure proper ventilation and keep open flames or sparks away from the work area. Dispose of any spilled fuel responsibly, following local regulations. By meticulously disconnecting the battery and fuel lines, you not only protect yourself but also set the stage for a smoother, safer fuel pump removal. This preparatory work, though time-consuming, is indispensable for a successful and hazard-free repair.
Does the Cat 3126B Engine Feature a Fuel Injection Pump?
You may want to see also
Explore related products
Access Fuel Pump Assembly
The fuel pump assembly in a VW GTI is nestled within the fuel tank, a design choice that enhances safety and efficiency but complicates access. To begin, ensure the vehicle is on a level surface, the ignition is off, and the fuel tank is as empty as possible to minimize spillage and fire hazards. Relieve the fuel system pressure by locating the pressure relief valve, typically found near the engine bay, and depressurizing the system according to the manufacturer’s instructions. This step is critical to prevent fuel from spraying during disassembly.
Once the system is depressurized, disconnect the negative battery terminal to eliminate any risk of electrical shorts. Raise the vehicle using a hydraulic lift or jack stands, ensuring stability before proceeding. Locate the fuel tank, which is usually beneath the rear seat. Remove the rear seat bottom by pulling the release tabs and lifting it out, exposing the fuel pump assembly access panel. This panel is secured with screws or bolts, which should be removed carefully to avoid stripping. With the panel off, you’ll see the fuel pump assembly, often connected to the tank via locking rings or clips.
Removing the fuel pump assembly requires precision. Disconnect the electrical connector and fuel lines, taking note of their positions for reassembly. Use a fuel line disconnect tool if necessary to avoid damaging the lines. The assembly is typically held in place by a locking ring or retainer, which can be released using a specialized tool or a flathead screwdriver and mallet. Apply gentle, even pressure to avoid bending or cracking the tank. Once the retainer is removed, carefully lift the assembly out of the tank, being mindful of any residual fuel.
Caution is paramount during this process. Fuel is flammable and can cause severe injuries if mishandled. Work in a well-ventilated area, avoid open flames, and have a fire extinguisher nearby. If you encounter resistance while removing the assembly, reassess your approach rather than forcing it, as damage to the tank or pump can be costly. Always refer to the VW GTI service manual for model-specific details, as variations may exist between years and trims.
In conclusion, accessing the fuel pump assembly in a VW GTI is a task that demands preparation, precision, and caution. By following these steps and adhering to safety guidelines, you can successfully remove the assembly for inspection, repair, or replacement. This process, while intricate, is manageable with the right tools and a methodical approach, ensuring your vehicle’s fuel system remains reliable and efficient.
Secure Your Vehicle: Easy Steps to Install a Fuel Pump Kill Switch
You may want to see also
Explore related products
Remove Fuel Tank Retaining Straps
Before tackling the fuel pump itself, you'll need to free the fuel tank. This involves removing the retaining straps that secure it in place. These straps are typically located on the sides of the tank, near the rear of the vehicle.
They are often held in place by bolts or nuts, which can be accessed from underneath the car.
Understanding the Straps:
Think of the retaining straps as the tank's safety harness. They're designed to keep it securely fastened during driving, preventing movement and potential damage. Typically made of sturdy metal, these straps are bolted to the vehicle's chassis, ensuring the tank remains firmly in place.
Recognizing their purpose is crucial before attempting removal.
Removal Process:
- Locate the Straps: Crawl under the vehicle and locate the fuel tank. You'll find the retaining straps on either side, usually near the rear. They're often secured with bolts or nuts, accessible from underneath.
- Gather Tools: You'll need a suitable socket or wrench to loosen the bolts. Ensure you have the correct size to avoid damaging the fasteners.
- Loosen and Remove: Using your chosen tool, loosen the bolts securing the straps. Be mindful of any rust or corrosion that might make this task more challenging. Once loosened, carefully remove the bolts and set them aside, keeping track of their original positions for reassembly.
- Detach the Straps: With the bolts removed, gently detach the straps from the tank. Take note of how they're positioned and attached, as this will be crucial for reinstallation.
Cautions and Considerations:
- Safety First: Always work in a well-ventilated area, and ensure the vehicle is on a level surface with the engine turned off. Fuel tanks contain flammable liquids, so exercise caution.
- Rust and Corrosion: Over time, bolts and straps can become corroded, making removal difficult. Penetrating oil or rust remover can help loosen stubborn fasteners.
- Reinstallation: Pay close attention to the strap positioning during removal. This will ensure a proper and secure fit when reinstalling the tank.
By carefully removing the fuel tank retaining straps, you'll gain access to the fuel pump, allowing you to proceed with the necessary maintenance or replacement. Remember, patience and attention to detail are key to a successful and safe repair.
Bypassing Fuel Pump Relay on a 1988 Chevy Truck: A Guide
You may want to see also
Explore related products
Detach Electrical Connector and Lock Ring
Before attempting to remove the fuel pump from your VW GTI, it's essential to understand the critical steps involved in detaching the electrical connector and lock ring. This process requires precision and care to avoid damaging the components or compromising the fuel system's integrity.
Analytical Perspective: The electrical connector and lock ring are integral components of the fuel pump assembly, serving as the interface between the pump and the vehicle's electrical system. The connector transmits power and signals to the pump, while the lock ring secures the pump in place, preventing leaks and ensuring proper fuel flow. To detach these components, you'll need to understand their design and function, as well as the tools required to access and manipulate them.
Instructive Steps: Begin by locating the electrical connector, typically found near the top of the fuel pump module. Gently press the release tab, which is usually a small, colored lever or button, to disengage the connector. Be cautious not to force or twist the connector, as this can damage the terminals or wiring. Once the connector is released, carefully pull it away from the pump, ensuring that the wiring harness has enough slack to avoid strain. Next, focus on the lock ring, which is often secured by a series of tabs or clips. Use a suitable tool, such as a flathead screwdriver or a specialized lock ring removal tool, to carefully pry the tabs away from the ring. Work your way around the circumference of the ring, taking care not to damage the tabs or the surrounding components.
Cautions and Tips: When detaching the electrical connector, be mindful of the fuel system's pressure and the potential for fuel spills. It's recommended to relieve the fuel pressure before attempting this step, which can be done by running the engine until it stalls or using a specialized fuel pressure relief tool. Additionally, consider using a catch pan or absorbent materials to contain any fuel that may leak during the process. When working with the lock ring, avoid using excessive force or sharp tools that could damage the ring or the fuel pump housing. If the ring is particularly stubborn, try applying a small amount of penetrating oil or using a gentle tapping motion with a soft-faced mallet to help loosen it.
Comparative Analysis: Compared to other fuel pump removal processes, the VW GTI's design is relatively straightforward, but it still requires attention to detail. The electrical connector and lock ring are designed to be accessible, but their location within the fuel tank can make them challenging to reach. By comparison, some vehicles may require more extensive disassembly or specialized tools to access these components. However, the GTI's modular design allows for a more streamlined approach, provided you follow the correct procedures and take necessary precautions.
Does a Fuel Pump Fail Suddenly or Gradually? Explained
You may want to see also
Explore related products
Extract Fuel Pump Module Safely
Removing the fuel pump module from a VW GTI requires precision and caution to avoid hazards like fuel spills or electrical damage. Begin by relieving fuel system pressure—locate the pressure relief valve on the fuel rail, connect a pressure gauge, and slowly depressurize the system. This step is critical because residual pressure can cause fuel to spray during disassembly, posing a fire risk. Always work in a well-ventilated area and avoid open flames or sparks.
Once pressure is relieved, disconnect the negative battery terminal to prevent accidental activation of the fuel pump. Next, access the fuel tank by removing the rear seat or trunk lining, depending on your GTI model. Use a siphon or electric transfer pump to drain the tank to below a quarter full, reducing weight and spill risks. Label and disconnect the electrical connectors and fuel lines attached to the module, taking care not to damage the quick-connect fittings. A small pry tool can help release stubborn connections without breaking them.
With the module exposed, loosen the locking ring securing it to the tank using a specialized fuel pump removal tool or a flat-head screwdriver and mallet. Rotate the ring counterclockwise, but avoid forcing it to prevent stripping the threads. Once free, carefully lift the module out of the tank, tiling it to minimize fuel spillage. Inspect the module and tank seal for wear; replace the seal if it shows signs of degradation to prevent future leaks.
Reinstallation requires reversing these steps with meticulous attention to detail. Ensure the new or cleaned module aligns properly before tightening the locking ring. Reconnect fuel lines and electrical connectors, verifying they click securely into place. Refill the tank and check for leaks by running the pump briefly before starting the engine. This methodical approach ensures safety and functionality, preserving the GTI’s performance while minimizing risks.
