Replacing the fuel filter on a 2008 Ford Escape can be a challenging task. While it is not impossible to do it yourself, it is important to be cautious and follow the correct procedure to avoid damage or injury. The process may vary depending on the specific model and configuration of your vehicle, so consulting a repair manual or seeking professional assistance is recommended. The fuel filter is responsible for ensuring that clean fuel is delivered to the engine, and replacing it can help improve fuel efficiency and engine performance.

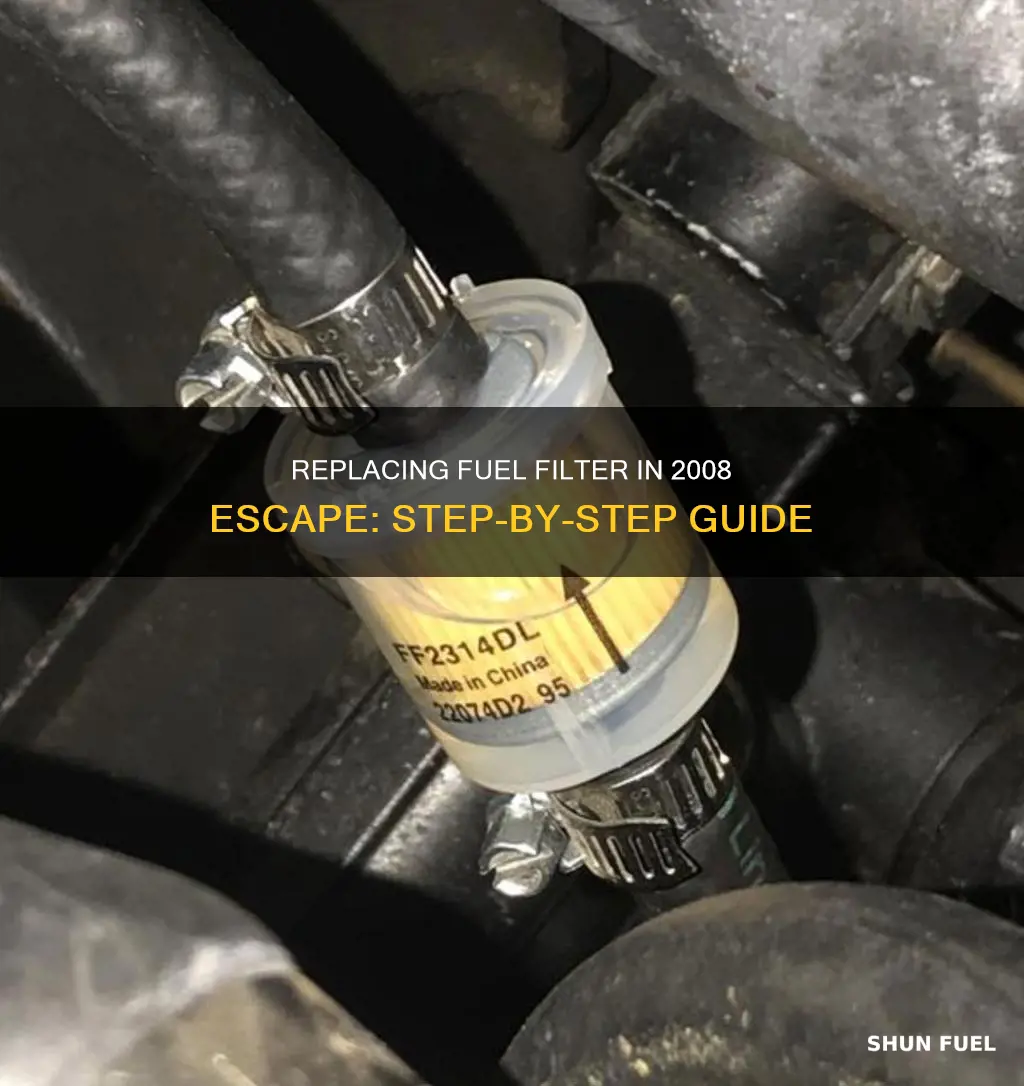

How to replace fuel filter in 08 Escape
| Characteristics | Values |
|---|---|
| Tools required | Spring lock disconnect tool, Double half moon release tool, Small screwdriver, Hacksaw |
| Steps | 1. Relieve the pressure in the fuel line. 2. Remove the clips and hoses. 3. Cut through the spigots of the old fuel filter. 4. Remove the old filter and insert the new one. |
| Tips | 1. Elevate the vehicle to gain better access to the filter. 2. Be careful not to lose the little o' rings in the line ends. 3. Wear goggles as gas will spill out. |
Explore related products
What You'll Learn
Relieve fuel pressure
To relieve fuel pressure in a 2008 Ford Escape, follow these steps:
First, locate the inertia switch. With the engine idling, rap the switch with your hand. Once the switch trips, the engine will stop running due to a lack of fuel pressure. Next, crank the starter a few times to release any remaining pressure. Now it is safe to open the system and change the filter. Be careful not to lose the little O-rings in the line ends.
There are a few other ways to relieve fuel pressure in your vehicle. One way is to locate and use the quick disconnect downstream of the fuel filter on the DS frame rail. This is the second leg of the fuel filter-to-engine piping. You can release this by hand. Next, flip up the back seat on the DS and remove the four screws to access the fuel pump. There is another quick disconnect for the fuel pump outlet-to-fuel filter pipe that you can undo by hand.
Another way to relieve fuel pressure is to lower the fuel tank and access the fuel pump to fuel filter pipe. From there, you can remove the fuel filter and pipes assembly.
It is important to relieve the pressure in the fuel line before performing any maintenance on the fuel system. Failure to do so could result in something breaking.
Fuel Filters: Are They in All Cars?
You may want to see also
Explore related products
Remove the fuel filter
To remove the fuel filter from a 2008 Ford Escape, you must first relieve the fuel pressure in the line. This can be done by locating the inertia switch and, with the engine idling, rapping the switch with your hand. Once the switch trips, the engine will stop running due to a lack of fuel pressure. You can then crank the starter a few times to release any leftover pressure.
Next, elevate the vehicle to gain better access to the filter. You can do this by driving the car up onto landscaping pavers—even a couple of inches can make a difference.
Now, remove the clips and hoses from the fuel filter. Be careful not to force, damage, or break the clips; remove them correctly. You may need a special fuel line release tool for this step, which you can purchase at a local auto store. The lines are held on by a circular spring that needs to be expanded.
Once the clips and hoses have been removed, you can take out the fuel filter. Be sure to have a pan ready to catch any fuel that spills out of the canister.
Finally, cut through the spigots of the old fuel filter using a hacksaw. Cut as near to the fuel filter body as possible, just outside of the integrated shoulder.
Guide to Installing Fuel Filter in '02 Chevy Tahoe
You may want to see also
Explore related products
Cut the old filter
To cut the old filter, you will need to first relieve the fuel pressure. This can be done by locating the inertia switch and, with the engine idling, rapping the switch with your hand. Once the switch trips, the engine will stop running due to a lack of fuel pressure. You can then crank the starter a few times to release any leftover pressure.
Now that the pressure has been relieved, you can begin to work on the filter itself. If your vehicle is set up like the 2008 model, you will find a quick disconnect downstream of the fuel filter on the DS frame rail. This is the second leg of the fuel filter-to-engine piping. You can release this by hand.
Next, flip up the back seat on the DS and remove the four screws to access the fuel pump. There is another quick disconnect for the fuel pump outlet-to-fuel filter pipe that you will also undo by hand.
Back underneath the car, you will need to unscrew the fuel filter holding clamp and remove the fuel filter assembly, which includes both the inlet and outlet pipes. At this point, you can take a hacksaw and cut through the spigots of the old fuel filter. Cut as near to the fuel filter body as possible, just outside of the integrated shoulder. This will leave enough spigot remaining in the disconnect so that you can hold it with a pair of needle-nose pliers.
Alternatively, if you are unable to remove the lines, you can try using a small screwdriver to pull up and release the white plastic clips from the lines before pulling on them. If this is also unsuccessful, you may need to elevate the vehicle to gain better access to the filter. Driving the car up onto landscaping pavers can make a difference of a couple of inches, which may be helpful.
If you are still unable to remove the filter, you may need to use a tool such as a hex driver or a pair of flathead screwdrivers. Place the flathead screwdrivers in the slots of the filter at 12 and 6, and cross the shafts to get a counterclockwise rotation. This should allow you to slowly work the filter off.
Ford Fusion Fuel Filter: Is It Necessary?
You may want to see also
Explore related products
Prepare the new filter
To prepare the new fuel filter for installation in your 2008 Escape, you'll need to follow these steps:
- Ensure you have the correct fuel filter for your vehicle. The 2008 Escape may have different fuel line coupler styles, so it's important to get the right one.
- Familiarize yourself with the spring lock disconnect mechanism on the fuel filter couplings. This mechanism requires a plastic sleeve with a disc backing to release the inner mechanism. Standard discs may be too large, so you might need to source a "low profile" version.
- Gather the necessary tools, such as a fuel line disconnect tool, a hacksaw, needle-nose pliers, and a special double half-moon release tool to release the fuel line from the old filter.
- Prepare the new fuel filter by attaching the fuel lines to it. Push the ends of the fuel lines onto the new filter ends securely.
- Check that the new fuel filter is securely attached to the fuel lines by giving them a gentle tug.
- If your 2008 Escape has a different fuel filter setup, such as a quick-release mechanism, familiarize yourself with the procedure and any necessary tools.
Remember to relieve the pressure in the fuel line before beginning any work, and always exercise caution when working with your vehicle's fuel system.
Fuel Filter Clog: Why Your Car Hesitates
You may want to see also
Explore related products
Install the new filter
To install the new fuel filter, you will need to follow these steps:
First, ensure that you have relieved the fuel pressure in the line. This can be done by locating the inertia switch and, with the engine idling, rapping the switch with your hand. Once the switch trips, the engine will stop running due to a lack of fuel pressure. Crank the starter a few times to release any remaining pressure.
Next, elevate the vehicle to gain better access to the filter. You can drive the car up onto landscaping pavers—even a couple of inches can make a difference. Be sure to also put on some goggles, as fuel will spill out of the canister.
Now, take the new filter and push the ends onto the new filter ends. Give them a tug to make sure they are on securely. Be careful not to lose the little O-rings in the line ends.
Finally, you can start the engine and check for any leaks.
Cleaning Your CBR1000RR: Fuel Pump Filter Maintenance
You may want to see also
Frequently asked questions
You will need a special double half-moon release tool to release the fingers that hold the fuel line onto the neck of the filter. Before you do anything, you must relieve the pressure in the line. You can do this by locating the inertia switch and, with the engine idling, rap the switch with your hand. Once the switch trips, the engine will stop running due to a lack of fuel pressure. Crank the starter a few times to release any leftover pressure, then it is safe to open the system and change the filter.
It is important to elevate the vehicle to gain access to the filter. You must also be careful not to force, damage, or break the clips. Remove them correctly.
You may need a small screwdriver to pull up and release the white plastic clips off the lines before you pull on them.
You will need a plastic sleeve with a disc backing to release the inner mechanism. The standard discs are not small enough to fit, so you may need to make your own out of a plastic bottle.
