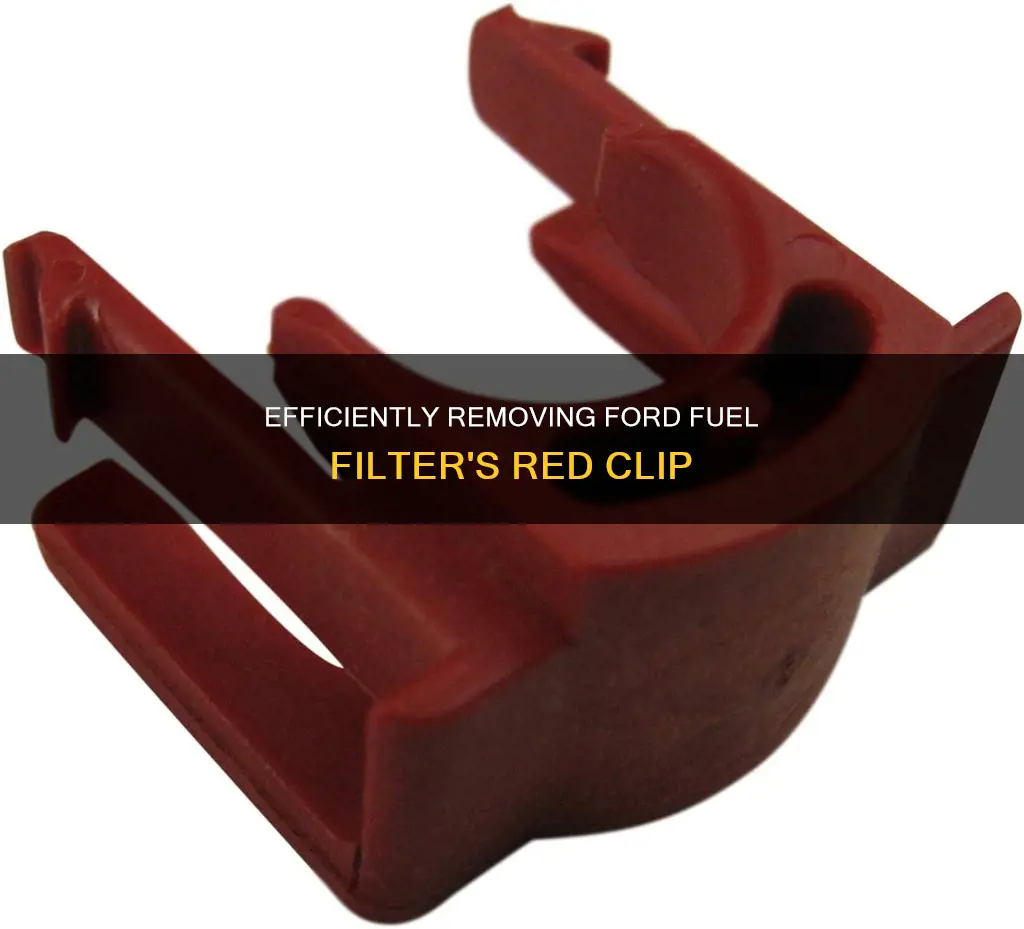

Removing the red clip on a Ford fuel filter can be a challenging task, as many Ford owners have expressed frustration online when attempting this procedure. The process can vary depending on the model and year of the Ford vehicle in question. For example, the steps for a 2002 Ford Explorer involve relieving the fuel system pressure, unlocking the red clips, and pinching and pushing them through, while being cautious of spraying fuel. Other models may have different clip designs, such as the U-shaped tabs on the fuel tank side and the circular spring-like clips on the engine side. It is recommended to consult a Ford service manual or seek advice from a Ford technician to ensure the correct and safe removal of the red clip on a Ford fuel filter.
Explore related products
What You'll Learn
Safety first: relieve fuel pressure and remove battery ground cable
Safety should always be the number one priority when working on a vehicle. Before attempting to remove the red clip on a Ford fuel filter, it is important to relieve the fuel pressure and remove the battery ground cable.
Fuel in the fuel system remains under high pressure even when the engine is not running. Therefore, it is crucial to relieve the fuel system pressure before servicing or disconnecting any fuel lines or fuel system components. One way to do this is by unplugging the inertia switch and then cranking the engine until the fuel runs out. Alternatively, you can remove the fuel pump fuse and then crank the engine. It is also recommended to wait a few hours after turning off the truck before starting the fuel filter replacement process.
Additionally, always make sure to remove the battery ground cable to prevent any accidental electrical shorts during the procedure. This simple step can help protect both you and the vehicle's electrical system from potential harm.
When working with fuel, it is essential to take extra precautions to avoid any potential hazards. Do not smoke or carry any lighted tobacco or open flames near any fuel-related components. Highly flammable mixtures are always present and may be easily ignited, leading to possible personal injury.
By following these safety precautions, you can help ensure a smooth and safe process when removing the red clip on a Ford fuel filter. Remember to refer to the Ford service manual or seek professional guidance if needed.
Fuel Filter Maintenance: How Much Fuel is Enough?
You may want to see also
Explore related products
Remove the top fuel line from the filter
To remove the top fuel line from the filter of a Ford vehicle, there are a few methods you can use. It's important to note that you should not use any tools when removing the fuel line, as this may cause a deformity in the clip components and lead to fuel leaks.
One method is to first relieve the fuel pressure in the system. This is because fuel in the fuel system remains under high pressure even when the engine is not running, and relieving this pressure is essential for safety. Once the pressure is relieved, you can try unlocking the clips and pinching and pushing through, but be cautious as fuel may spray.
Another method is to use a cheap plastic fuel line disconnect tool, which can be purchased for around $9.99. These tools work well and are designed to release the fuel lines from the filter without causing any damage.
If you are having trouble removing the clips, you can try pushing down on the safety clip towards the end of the hard fuel line, clearing the "fangs" from the end of the fuel line. Then, the clip should pop right off.
Additionally, some people have had success using a $2 rubber strap wrench to remove the fuel filter. This method may require more elbow grease, but it can be effective in breaking the seal and removing the fuel line from the filter.
It is important to approach this task with caution and to ensure that you have the correct tools and knowledge before attempting any repairs or maintenance on your vehicle.
Replacing the Fuel Filter in Your 06 Duramax: Step-by-Step Guide
You may want to see also
Explore related products
Push down on the safety clip to clear the fangs
When removing the red clips and fuel line from the fuel filter on a Ford Explorer, it is important to exercise caution. The Ford service manual recommends changing the fuel filter every 15,000 to 30,000 miles, depending on the driving conditions. Before beginning the process, ensure that you are working in a well-ventilated area and avoid any open flames or sparks, as fuel is highly flammable. It is also crucial to relieve the fuel system pressure before proceeding.
Now, to specifically address the task of pushing down on the safety clip to clear the fangs, here is a detailed guide:
- Understand the Safety Clip Mechanism: The safety clip has a unique design with "fangs" that reach up under the housing near the fuel filter. These fangs need to be cleared in order to release the clip.
- Position Your Hands Properly: Grasp the safety clip firmly with one hand, ensuring you have a stable grip. You may need to wear protective gloves to protect your hands and improve grip.
- Apply Downward Pressure: Exert a gentle but firm downward force on the safety clip. Push it towards the end of the hard fuel line, specifically targeting the part that has a slightly larger circumference. This motion will help clear the fangs from the end of the fuel line.
- Clear the Fangs: As you push down on the safety clip, pay close attention to the fangs. Ensure that they are no longer obstructed by any part of the fuel line or housing. You may need to wiggle the clip slightly to ensure the fangs are completely free.
- Release the Clip: Once the fangs are cleared, you can release the clip. It should pop off easily without requiring excessive force. Be cautious, as there may still be residual fuel in the system, and you don't want to accidentally spray fuel onto yourself or nearby components.
- Inspect the Clip: After removing the safety clip, take a moment to inspect it. Note the position and orientation of the fangs in relation to the rest of the clip. This visual inspection will help you understand how the clip functions and ensure that it is in good condition.
- Reinstallation Considerations: When it's time to reinstall the safety clip, remember to position the fangs correctly during the installation process. They should be aligned properly to ensure the clip functions effectively.
By following these steps, you can successfully push down on the safety clip to clear the fangs when working on the fuel filter of a Ford Explorer. Remember to work cautiously and refer to the Ford service manual or seek professional guidance if you have any doubts during the process.
Mustang Fuel Filter: Removing the 99 Model's Filter
You may want to see also
Explore related products
Remove the bottom fuel line
To remove the bottom fuel line, you must first relieve the fuel system pressure. This is because fuel in the fuel system remains under high pressure even when the engine is not running. Before disconnecting any of the fuel lines or fuel system components, the pressure must be relieved.
Now, to remove the bottom fuel line, you will need to remove the top fuel line from the filter first. This will give you the space to reach the bottom fuel line. Once you have removed the top fuel line, you can then push the filter under the frame to access the bottom fuel line.
The bottom fuel line is connected to the filter via a clip. This clip has a small red tab. To remove the clip, pull down on the small red tab. This will unlock the clip, and you can then pinch and push through. Be careful, as fuel may spray out.
The clip has fangs that reach up under the housing near the filter. To remove the clip, push down on the safety clip first to clear the fangs, and then it will pop off.
Replacing the Fuel Filter in Your 2005 F150: Step-by-Step Guide
You may want to see also
Explore related products
Shimmy the tabs on the gas tank side clip
To remove the red clip on your Ford fuel filter, you must first shimmy the tabs on the gas tank side clip. This is a crucial step to ensure you do not damage the clip components, which could lead to fuel leaks.
Step 1: Safety First
Before you begin, it is important to relieve the fuel system pressure. Fuel in the system remains under high pressure, even when the engine is off. Relieving this pressure is essential to avoid the risk of personal injury from highly flammable mixtures. Refer to your Ford service manual or seek guidance from a qualified technician to understand the correct procedure for your specific vehicle model.
Step 2: Locate the Fuel Filter
The fuel filter is typically located near the fuel tank or fuel pump, but its exact location can vary. Consult your vehicle's owner's manual or a mechanic to identify the correct location.
Step 3: Shimmy the Tabs
Once you have located the fuel filter, identify the small red tab on the clip. Pull down on this tab, shimmying it gently towards the ground. This action will help unlock the clip and prepare it for removal.
Step 4: Prepare for Fuel Release
As you work on the fuel filter, be cautious of potential fuel spray or drips. Place a bowl or bucket beneath the filter to catch any spilled fuel. Wear eye protection and gloves to protect yourself from fuel splatter.
Step 5: Remove the Fuel Lines
With the shimmying process complete, you can now proceed to the next step of removing the fuel lines from the filter. This step involves pressing the tab on the fitting and pulling the line away from the filter.
By following these steps, you will have successfully shimmed the tabs on the gas tank side clip, allowing for the safe removal of the red clip on your Ford fuel filter. Remember to refer to your vehicle's specific instructions and take all necessary safety precautions during this process.
Inspecting Your Fuel Pump Filter: DIY Guide
You may want to see also
Frequently asked questions
Do not use any tools as they may deform the clip and cause fuel leaks. First, pull down on the small red tab of the clip. Then, push down on the safety clip to clear the fangs and pop it off.
Before servicing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved. Do not smoke or carry lighted tobacco or open flames near any fuel-related components. Highly flammable mixtures are always present and may ignite.
First, remove the top fuel line from the filter. Then, remove the filter from the frame and push it under the frame to remove the lower fuel line. Next, push down on the safety clip and clear the fangs from the end of the fuel line. Finally, pop off the clip.
