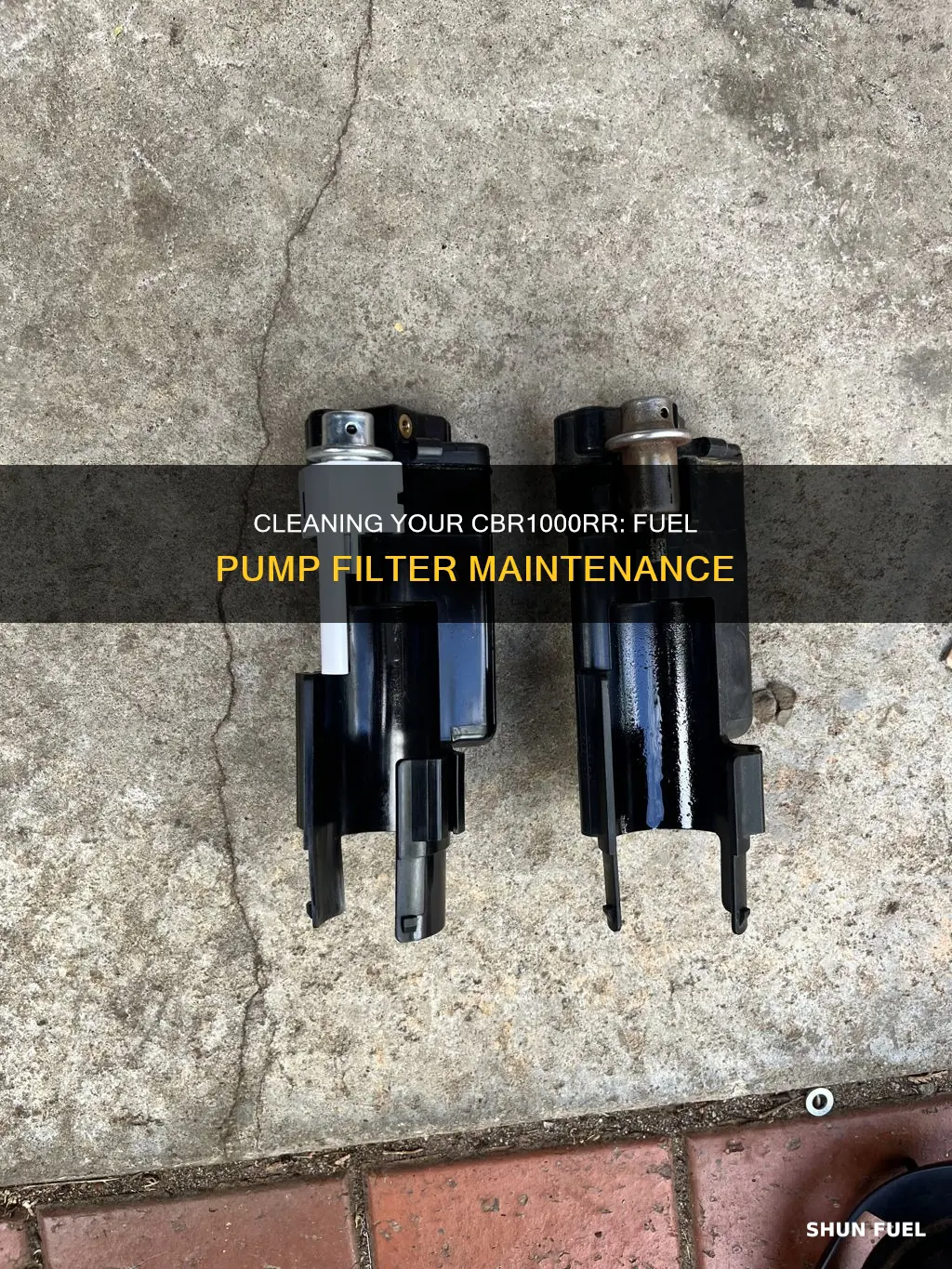

Cleaning the fuel pump filter of a Honda CBR1000RR motorcycle can be a complex task, requiring mechanical expertise and a range of tools and materials. The process involves removing the fuel tank, releasing fuel pressure, disconnecting hoses and clamps, and carefully pulling out the assembly. It is important to avoid damaging any internal wirings during this process. The fuel filter and pump can then be cleaned with solvents, ultrasonically, or by soaking in a container with a carb cleaner or detergent additive. It is also recommended to clean the base of the assembly with acetone and vinegar to remove any rust buildup. However, some sources suggest that rather than cleaning the stock filter, it is more effective to replace it with an aftermarket filter, as the stock filter is made of paper and can be difficult to clean thoroughly.
Characteristics and Values Table for Cleaning Fuel Pump Filter CBR1000RR
| Characteristics | Values |
|---|---|
| Symptoms | Bogging down, sputtering, lagging at lower RPM, bad gas mileage, slow RPM rise with open throttle |
| Required Tools | Allen screw sets (5mm & 6mm), Ratchet wrench, Sockets (8mm, 10mm & 12mm), Hand syphon tool, Gas container, Bungee cords, Phillips screwdriver, WD40, Acetone, White vinegar |
| Estimated Time | 3-4 hours for rust cleaning and filter replacement; 1 hour for filter replacement only |
| Spare Parts | Base gasket, Fuel filter, Fuel return filter, Sealing washer |
| Procedure | 1. Remove rear cowl, seat, and bolts. 2. Release fuel pressure. 3. Disconnect fuel return hose. 4. Remove bolts at fuel pump mounting base. 5. Pull out assembly carefully. 6. Unscrew fuel filter holder and hose clamps. 7. Clean with Acetone (without soaking). 8. Replace parts and reconnect hoses. 9. Test before reassembling. |
| Alternative Solutions | Use additives like LUCAS fuel injector cleaning, Amsoil's PI, Chevron's Techron, Seafoam, or Redline's Complete Fuel System Cleaner |
Explore related products
What You'll Learn
Cleaning the fuel tank
To clean the fuel tank of your Honda CBR1000RR, you will need to remove the rear cowl, seat, and bolts. You will also need to release the fuel pressure by loosening the service check bolt. Here is a step-by-step guide:
Step 1: Remove the rear cowl and seat
Use a 10mm socket wrench to remove the rear cowl and seat. This will give you access to the fuel tank and fuel pump assembly.
Step 2: Release the fuel pressure
Loosen the service check bolt (12mm) to release the fuel pressure. This is an important step to ensure that fuel does not leak out during the cleaning process.
Step 3: Disconnect the fuel return hose
Disconnect the fuel return hose from the fuel pressure regulator. Be careful not to damage any wirings inside, as it can be costly to repair.
Step 4: Remove the fuel pump assembly
Remove the 6 bolts at the fuel pump mounting base using an 8mm socket. Carefully pull out the assembly. If your tank is rusty, you may need to use electrolytic rust removal methods, which are not covered here.
Step 5: Clean the fuel tank
Inspect the inside of your fuel tank for any signs of rust or debris. If there is rust, consider using a rust removal method or seeking professional help. Clean the tank thoroughly to ensure that all residue and contaminants are removed.
Step 6: Reinstall the fuel pump assembly
Follow the previous steps in reverse to reinstall the fuel pump assembly. Ensure that all connections are secure and properly tightened.
Step 7: Refill the fuel tank and test
Refill the fuel tank and test your bike before putting back everything. Start the engine and check for any leaks or unusual noises. If everything seems fine, you can put back the remaining components.
It is important to note that cleaning the fuel tank is a complex process and may require mechanical expertise. If you are unsure about any steps or feel uncomfortable performing the task, it is recommended to seek assistance from a professional mechanic. Additionally, always refer to your owner's manual for specific instructions related to your Honda CBR1000RR model.
Cleaning a 20 HP Mercury Outboard: Fuel Filter Guide
You may want to see also
Explore related products
Removing the fuel pump
To remove the fuel pump of a Honda CBR1000RR, you will need the following tools and materials:
- Allen screw sets: 5mm & 6mm
- Ratchet wrench
- Sockets (8mm, 10mm & 12mm)
- Bungee cords
- Phillips screwdriver
- WD40, Acetone & White vinegar (optional)
- Spare parts: base gasket, fuel filter, fuel return filter, sealing washer (optional)
First, remove the rear cowl, seat (using a 10mm socket), and two bolts. Release the fuel pressure by loosening the service check bolt (12mm). Disconnect the fuel return hose from the Fuel Pressure Regulator. Remove the six bolts at the fuel pump mounting base (8mm socket). Carefully pull out the assembly, ensuring you do not damage any wirings inside. Unscrew the fuel filter holder and the hose clamps using a Phillips screwdriver, and install a new one. If the base is rusty, clean it with a small amount of acetone, scrubbing the rust away. Do not soak the base in acetone as it will damage the rubber parts.
At this stage, you can check the inside of your tank for rust. If there is rust, the best method for removal is electrolytic rust removal. Replace the base gasket and put in a new fuel return filter, squeezing it into the base. Carefully put the assembly back into the fuel tank, and put back the six bolts at the base in a criss-cross order, tightening them to a specific torque of 12 N.m. Tighten the service check bolt to a torque of 15 N.m and use a new sealing washer if possible. Reconnect the fuel return hose and fuel pump sensor, and fill the tank with gas. Finally, test your bike before putting back everything else.
Sol Fuel Filter Change: A Step-by-Step Guide
You may want to see also
Explore related products
Cleaning the fuel filter
Step 1: Prepare the necessary tools and materials
Before you begin, make sure you have all the required tools and materials ready. These include Allen screw sets (5mm and 6mm), a ratchet wrench, sockets (8mm, 10mm, and 12mm), a hand siphon tool, a gas container or jerry can, bungee cords, a Phillips screwdriver, and cleaning solutions such as WD40, acetone, and white vinegar.
Step 2: Remove the rear cowl and seat
Start by removing the rear cowl and then the seat, using the appropriate socket size (usually 10mm). This will give you access to the fuel pump and filter assembly.
Step 3: Release the fuel pressure
Loosen the service check bolt (12mm) to release the fuel pressure. This is an important step to ensure safety and reduce the risk of fuel leakage.
Step 4: Disconnect the fuel return hose
Disconnect the fuel return hose from the Fuel Pressure Regulator. Be careful not to damage any wirings inside as it can be costly to repair.
Step 5: Remove the fuel pump mounting base
Using an 8mm socket, remove the bolts at the fuel pump mounting base. Carefully pull out the assembly. If you have a steel 'Brillo pad', this is the fuel return filter.
Step 6: Clean the fuel filter and base
If your fuel filter is clogged or dirty, you can attempt to clean it. Some people suggest backflushing it in reverse to unclog it. However, if it's made of paper, it might be difficult to clean effectively. In that case, you might want to consider replacing it with an aftermarket filter. To clean the base, use acetone. Pour a small amount onto the rusty areas and scrub until clean. Do not soak the base in acetone as it will damage the rubber parts.
Step 7: Reassemble and test
After cleaning the fuel filter and base, carefully put the assembly back into the fuel tank. Reinstall the fuel pump mounting base and tighten the bolts in a criss-cross pattern to the specified torque. Reconnect the fuel return hose and fuel pump sensor, and then refill the gas tank. Finally, test your bike to ensure everything is functioning properly.
It is important to note that cleaning the fuel filter may not always be a permanent solution, especially if your fuel tank is rusty. In such cases, you may need to consider converting to an aftermarket filter or finding ways to filter your fuel before putting it into the tank. Regular maintenance and cleaning of your fuel system, including the injectors, can also help maintain optimal performance.
Effective Cleaning of Ceramic Fuel Filters
You may want to see also
Explore related products
Replacing the fuel filter
To replace the fuel filter on a Honda CBR1000RR, you will need the following tools and materials:
- Allen screw sets: 5mm & 6mm
- Ratchet wrench
- Sockets (8mm, 10mm & 12mm)
- Hand syphon tool
- Gas container / Jerry can
- Bungee cords
- Phillips screwdriver
- WD40, Acetone & White vinegar (optional)
- Spare parts: base gasket, fuel filter, fuel return filter, sealing washer (optional)
The process of replacing the fuel filter can be summarised as follows:
- Remove the rear cowl and seat using a 10mm socket.
- Remove the two bolts securing the fuel pump assembly.
- Release the fuel pressure by loosening the service check bolt (12mm).
- Disconnect the fuel return hose from the Fuel Pressure Regulator.
- Remove the six bolts at the fuel pump mounting base (8mm socket).
- Carefully pull out the assembly, being mindful of any wiring inside.
- Unscrew the fuel filter holder and the hose clamps, then install the new filter.
- If necessary, clean the base with acetone, being careful not to soak it as this will damage the rubber parts.
- Replace the base gasket.
- Put a new fuel return filter in place.
- Reinstall the assembly, ensuring the six bolts are tightened in a criss-cross order and to the specified torque.
- Reconnect the fuel return hose and fuel pump sensor.
- Refill the gas tank and test the bike before reassembling any remaining components.
It is important to note that some Honda CBR models may have a fuel strainer instead of a fuel filter. In such cases, the process may involve cleaning the strainer screen rather than replacing a filter. Additionally, it is recommended to check the fuel line and air filter for any potential issues.
Changing Fuel Filters: Freightliner Cascadia Guide
You may want to see also
Explore related products
Using additives to prevent clogging
One way to prevent clogging in your fuel pump filter is to use additives. This method can be used in conjunction with or independently from the cleaning methods outlined previously.
Using additives is a preventative measure, meaning it should be done regularly to avoid the need for more intensive cleaning. It involves adding a small amount of oil to the fuel to lubricate the pump. This can be done before installation or during regular maintenance.
One user on a CBR1000RR forum recommends using a small quantity of oil in the fuel to lubricate the pump, especially if you are facing issues with carbon buildup. This is a similar process to using additives, and the oil acts as an additive to the fuel.
Another user on the same forum mentions using denatured alcohol to clean rust out of the fuel pump and filter. This is done by reversing the flow through the filter with the help of the pump. While this is not a regular additive, it can be used as a preventative measure if rust is an issue.
It is important to note that while additives can help prevent clogging, they may not always be a permanent solution. For example, one user reported that using denatured alcohol improved their flow test results, but it was only temporary, and the tank clogged up again after a few hundred miles.
Therefore, using additives is a useful preventative measure, but it should be combined with other maintenance and cleaning methods for the best results. Regularly checking and cleaning your fuel pump and filter, as well as considering aftermarket options, will help ensure optimal performance.
Signs Your Fuel Filter Needs Replacing
You may want to see also
Frequently asked questions
To clean the fuel pump filter on your CBR1000RR, you will need to remove the rear cowl, seat, and bolts to access the fuel pump assembly. You can then clean the filter with solvents and air pressure or replace it with a new one if it is too clogged. It is recommended to replace the entire fuel filter with an aftermarket one rather than attempting to clean the stock paper filter.
The tools and supplies you will need include Allen screw sets (5mm and 6mm), a ratchet wrench, sockets (8mm, 10mm, and 12mm), a hand siphon tool, a gas container, bungee cords, a Phillips screwdriver, and cleaning solutions such as WD40, acetone, and white vinegar.
It is recommended to regularly maintain your fuel pump filter to prevent clogging and ensure optimal performance. The frequency of cleaning or replacement may depend on various factors, such as the quality of fuel used and the age of the bike. However, some symptoms of a clogged fuel filter include bogging down, sputtering, lagging at lower RPM, poor gas mileage, and slow RPM rise when opening the throttle. If you experience any of these issues, it may be time to clean or replace your fuel pump filter.
