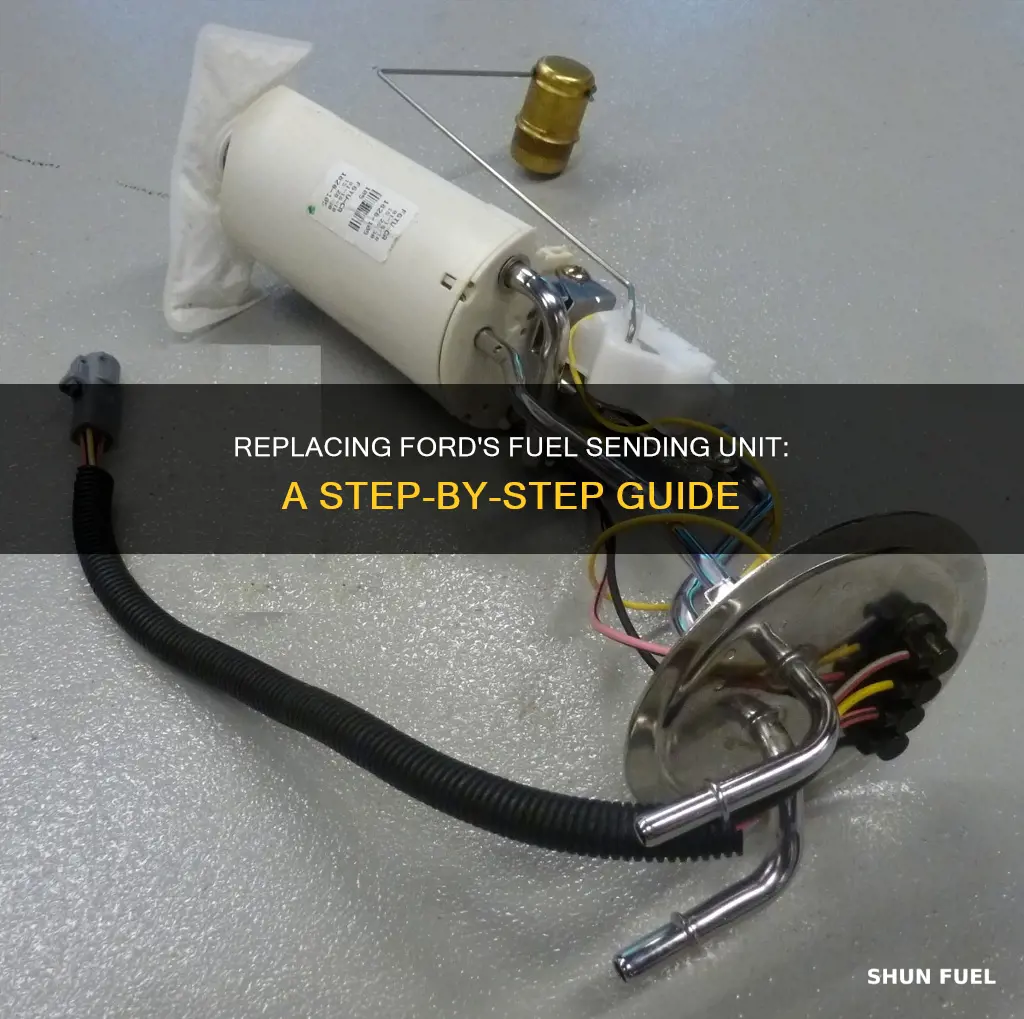

Replacing Ford's Fuel Sending Unit: A Step-By-Step Guide

If your fuel gauge is acting up, you may need to replace your fuel tank sending unit. This is generally a simple process, but it is important to take safety precautions as you will be dealing with gasoline, which is highly flammable. Before you begin, disconnect the negative battery cable to prevent any electrical sparks, and work in a well-ventilated area to avoid inhaling fumes. You can also use a professional respirator.

The fuel tank sending unit is located at the top of the fuel tank and is accessible under the back seat or in the trunk. It will be protected by an access cover, usually held in place with screws. Remove the screws and the access cover to reveal the fuel tank sending unit.

Unplug the wiring harness and move it to the side. The sending unit may be screwed or bolted in place, so remove the screws or bolts. Some units have a twist-lock type mechanism, which can be loosened by placing the tip of a flat-head screwdriver in the notch and gently tapping it counter-clockwise.

Now you can remove the fuel tank sending unit. Attached to it is a long rod with a float at the end, so you may need to try a few different angles to get it out. Installation of the new unit is the reverse of this process. Be sure to plug in the new sender when installing.

Disconnect the negative battery cable to avoid sparks

When working on a car, it is important to disconnect the negative battery cable to avoid sparks. This is because the negative terminal is connected to the vehicle's engine, body, and chassis. Disconnecting the negative battery cable ensures that the likelihood of an accidental short circuit is practically zero.

Disconnecting the negative battery cable is a safety precaution to prevent sparks and accidental fires. Gasoline is highly flammable, and by removing the fuel tank sending unit, you are opening the gas tank. Therefore, it is crucial to disconnect the negative battery cable to eliminate any potential sources of sparks.

Additionally, removing the positive terminal first without removing the negative terminal can create a hazardous situation. If a tool touches the engine or body, it can short out against the positive battery terminal. While this is unlikely, it is still a significant risk when working with gasoline.

To disconnect the negative battery cable, locate the battery, which is usually under the hood or in the trunk. The negative terminal is typically denoted by a "-" symbol and a black battery cable. Use a wrench to loosen the nut on the negative terminal and remove it from the battery post. Ensure that the cable is kept away from the terminals.

By following this step, you can work on your Ford's fuel sending unit replacement safely and reduce the risk of sparks and accidental fires.

Locate the fuel tank sending unit

To locate the fuel tank sending unit of your Ford, you'll first need to disconnect the negative battery cable to ensure that there are no electrical sparks. This is important because you'll be working with gasoline, which is highly flammable.

Next, you'll want to roll down all the windows and work in a well-ventilated area to prevent inhaling fumes. Alternatively, you could use a professional respirator.

The fuel tank sending unit is located at the top of the fuel tank and is accessible under the back seat or under the carpet in the trunk. You'll need to lift the back seat or trunk carpet to locate the access cover for the fuel tank sending unit. The access cover is usually held in place by a couple of screws.

Once you've located the access cover, remove the screws holding it in place and take it off to reveal the fuel tank sending unit.

It's important to note that some fuel may escape during this process, so it's recommended to cover part of the work area inside the car with plastic and an old towel to catch any spills.

Remove the access cover

To remove the access cover of your Ford's fuel sending unit, you will first need to locate it. The fuel tank sending unit is located at the top of the fuel tank, but it is accessible under your back seat or under the carpet in your trunk.

Once you have located the access cover, you will need to remove the screws that are holding the cover in place. These screws will usually be located underneath the back seat or trunk carpet. Use a screwdriver to remove the screws, and then carefully lift off the access cover.

It is important to note that you should take precautions to protect against fuel escaping while removing the access cover. It is also recommended to work in a well-ventilated area and to disconnect the negative battery cable to prevent any electrical sparks.

• Ensure that you have the necessary tools, such as a screwdriver, and protective gear, like gloves and eye protection.
• Locate the access cover by lifting the back seat or trunk carpet.
• Identify the screws holding the access cover in place.
• Carefully remove the screws using the appropriate screwdriver. Place them in a safe location to avoid losing them.
• Gently lift and remove the access cover, being cautious not to spill any fuel that may be present.
• Set the access cover aside in a safe place, keeping it separate from the screws to avoid confusion during reassembly.
• Proceed with caution, as you will now have access to the fuel tank sending unit and its components.

Remember to work slowly and carefully, especially when dealing with fuel and electrical systems, to ensure your safety and the proper functioning of your vehicle.

Disconnect the wiring harness

Disconnecting the wiring harness is a crucial step in replacing a Ford fuel sending unit. Here is a detailed guide on how to do it:

Before you begin, it is important to take safety precautions. Disconnect the negative battery cable to ensure that no electrical sparks occur, as you will be working with gasoline, which is highly flammable. It is also recommended to work in a well-ventilated area and roll down all the windows to prevent inhaling fumes.

Now, let's get started with the process:

• Locate the Fuel Tank Sending Unit: The fuel tank sending unit is usually located at the top of the fuel tank and is accessible under the backseat or the carpet in the trunk. It is protected by an access cover, which is typically secured with a few screws. Remove the screws holding the cover in place and set it aside.
• Unplug the Wiring Harness: With the access cover removed, you will see the fuel tank sending unit. It will have a wiring harness plugged into the top, which sends information to the gas gauge about the fuel level. Carefully unplug the wiring harness and set it aside safely. Ensure you do not drop it into the fuel tank.
• Secure the Wiring Harness: Once the wiring harness is unplugged, you may need to secure it safely to the side to ensure it does not interfere with the rest of the process. You can use zip ties or tape to temporarily secure it, ensuring it does not dangle or touch any fuel.
• Prepare for Removal: At this point, you may need to remove any screws or bolts holding the fuel tank sending unit in place. Some units are also secured with a locking ring, which can be released by turning it anticlockwise with a suitable tool, such as a C-spanner. Be cautious not to strip any screws or damage any components during this process.
• Optional: If your fuel filter is located near the sending unit, now would be a good time to consider replacing it as well. It is generally recommended to replace the fuel filter periodically for optimal performance.

By following these steps, you will have successfully disconnected the wiring harness from the Ford fuel sending unit, and you can proceed with the rest of the replacement process. Remember to work carefully and refer to your vehicle's repair manual for any specific instructions or variations for your particular model. Safety should always be the top priority when working with flammable substances and electrical systems.

Remove the unit by unscrewing or using a screwdriver and hammer

To remove the fuel sending unit, you will need to expose the access cover by lifting the back seat or trunk carpet. Once you have located the access cover, you will need to remove the screws holding it in place. With the access cover removed, you will see the fuel sending unit.

If your fuel sending unit is screwed or bolted in place, you will need to remove the screws or bolts. Be careful not to snap any studs, as this could mean having to replace the entire tank. Place the tip of a sturdy, flathead screwdriver in the notch and gently tap it counter-clockwise with a hammer. The unit will rotate until it is loose. Now you can remove the fuel sending unit in one piece.

It is important to note that attached to the unit is a long rod with a float at the end, so you might have to try a couple of different angles to get it out. Be careful not to bend the float arm, as this will cause the gauge to give a false reading.
