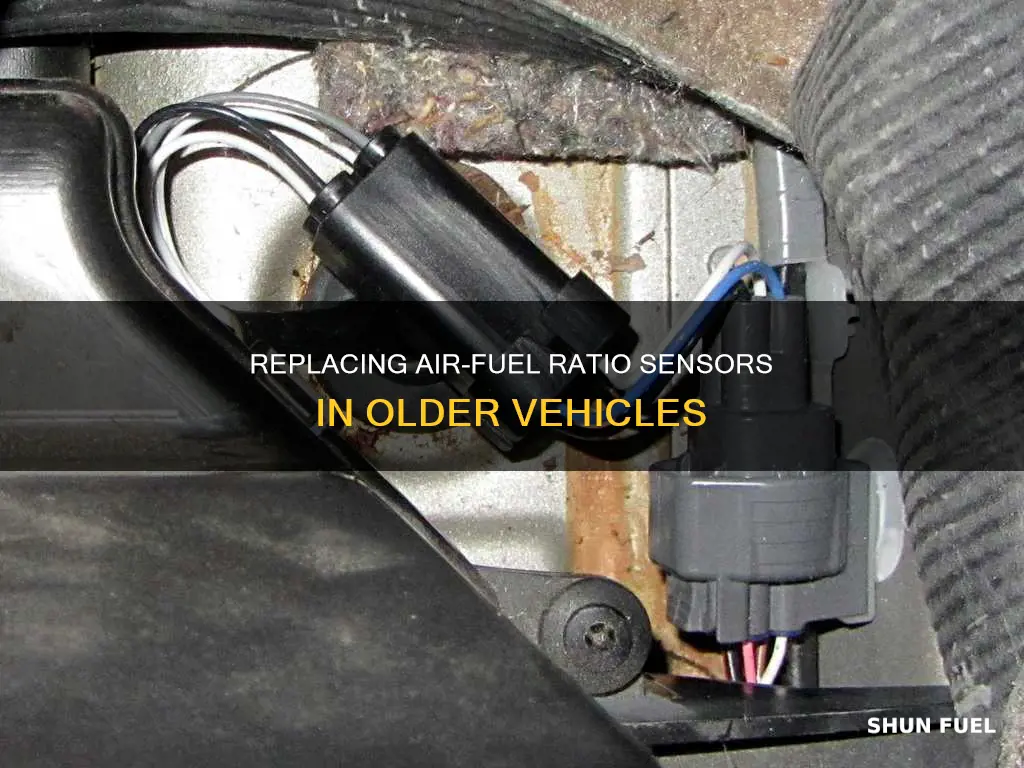

Replacing Air-Fuel Ratio Sensors In Older Vehicles

If you're looking to replace the air-fuel ratio sensor on your 2008 Toyota Sienna, you've come to the right place. This is a complex task that requires careful attention to detail, but with the right tools and knowledge, it can be accomplished successfully. The air-fuel ratio sensor, also known as the oxygen sensor, plays a crucial role in regulating the fuel mixture your car burns. A faulty sensor can lead to decreased fuel mileage and poor idling. In this guide, we will walk you through the process of replacing the air-fuel ratio sensor on your 2008 Toyota Sienna, ensuring your vehicle runs efficiently and safely.

Disconnect the negative battery terminal

Disconnecting the negative battery terminal is an important first step when replacing the air fuel ratio sensor on a 2008 Sienna. This is because it will prevent any power from being supplied to the vehicle's electrical system during the repair process, ensuring that you don't accidentally short-circuit anything. Here's a detailed, step-by-step guide on how to do this:

Step 1: Park your 2008 Sienna on a flat, level surface and engage the parking brake. This will ensure that the vehicle remains stationary and secure throughout the process.

Step 2: Locate the negative battery terminal. The battery is typically located in the engine compartment, but it may also be found in the trunk or under a panel in the floorboard of the passenger side of the vehicle. Refer to your owner's manual if you're unsure of the battery's location.

Step 3: Identify the negative terminal. It will be clearly marked, usually with a "-" symbol or a black cover. The negative terminal is where the battery cable connects to the battery, providing a ground for the electrical system.

Step 4: Before proceeding, ensure that you are wearing protective gear, such as safety goggles and gloves. This will help protect you from any potential hazards, such as battery acid.

Step 5: Using the appropriate tools, loosen and remove the nut and bolt that secure the negative battery cable to the terminal. You may need a wrench or socket that fits securely over the nut. Be careful not to drop or damage the hardware, as you will need to reinstall it later.

Step 6: Once the cable is loose, carefully move it away from the battery terminal. Ensure that the cable does not touch any metal parts of the vehicle to avoid creating an unintended connection.

Step 7: If there is a battery clamp or holder, carefully remove the battery and set it aside in a safe place. If the battery is fixed in place, simply ensure that the negative terminal and cable are completely separated.

Step 8: Cover the negative terminal with an insulating material, such as electrical tape, to prevent accidental contact during the air fuel ratio sensor replacement process.

Step 9: Proceed with the replacement of the air fuel ratio sensor, following the appropriate instructions for your vehicle.

Step 10: Once the repair or replacement is complete, carefully remove the insulation from the negative terminal and reconnect the negative battery cable. Ensure that the connection is secure and tight.

Step 11: Reinstall the battery, if it was removed, and secure it in place.

Step 12: Double-check that all connections are secure and that the battery cable is not touching any metal surfaces that could cause a short circuit.

Step 13: Lower the vehicle and turn on the ignition to ensure that the electrical systems are functioning properly.

Remember, working with a vehicle's electrical system can be dangerous if proper precautions are not taken. Always exercise caution and refer to a professional mechanic if you are unsure about any aspect of the process.

Disconnect the sensor connector

To disconnect the sensor connector, start by allowing your vehicle to cool completely. This is important for safety reasons. Once the engine is cool, open the hood and locate the air-fuel ratio sensor on the exhaust manifold. This is the large exhaust component that bolts directly to the engine.

Next, trace the sensor's wiring towards the driver's side of the engine. You will need to remove the wiring from any routing clips you encounter along the way. Once you have reached the end of the wiring, unplug the sensor's harness from the vehicle's wiring harness. Be sure to pull the wiring straight out of the connector to avoid damage.

Now, locate the locking tab on the connector. Release this tab and separate the two halves of the connector. With the connector halves separated, you have successfully disconnected the sensor connector.

At this point, you can proceed to remove the air-fuel ratio sensor from the exhaust manifold using a ratchet and oxygen sensor socket. Pull the sensor out of the engine compartment, being careful not to damage any surrounding components.

It is always a good idea to refer to your vehicle's service manual for specific instructions and torque specifications when performing maintenance or repairs. Additionally, working on a vehicle can be dangerous, so ensure you take the proper safety precautions and wear the appropriate protective gear.

Remove the sensor from the exhaust manifold

To remove the sensor from the exhaust manifold, you will need a ratchet and an oxygen sensor socket. You may also need a breaker bar if you are using a sensor socket.

First, locate the air-fuel ratio sensor on the exhaust manifold. This is the large exhaust component that bolts directly to the engine.

Next, trace the sensor's wiring towards the driver's side of the engine and remove it from any routing clips you encounter. Once you reach the end of the wiring, unplug the sensor's harness from the engine harness.

Now, you can remove the air-fuel ratio sensor from the exhaust manifold using your ratchet and oxygen sensor socket. Pull the sensor from the engine compartment.

That's it! You have now successfully removed the sensor from the exhaust manifold.

Reset the CEL with an ODB2 tool

Resetting the CEL with an OBD2 tool is a straightforward process and can be done by following these steps:

• Purchase an OBD2 tool: There are many OBD2 tools available in the market, and they can be purchased from any store that sells automotive service tools. Some popular options include the Autel MaxiScan AL301, Innova Diagnostic Code Scanners, and Bluetooth Wireless OBD2 Readers. These tools have varying features and price points, so choose one that suits your needs and budget.
• Locate the OBD2 port in your 2008 Sienna: The OBD2 port in your 2008 Toyota Sienna is typically located in the cabin, usually under the steering column or below the dashboard on the driver's side. It should be easily accessible and does not usually have a cover.
• Plug in the OBD2 tool: Simply plug the OBD2 tool into the OBD2 port. The plug and socket are standard across all OBD2 connections, so they should fit together without any issues.
• Reset the CEL: Follow the instructions provided with your chosen OBD2 tool to reset the CEL (Check Engine Light). This process may vary slightly depending on the tool you are using, but it often involves selecting the appropriate option from the tool's menu and following the on-screen instructions.
• Complete a drive cycle: Once the CEL has been reset, start your 2008 Sienna and take it for a drive. This will allow the vehicle's computer to monitor and assess the various systems, ensuring that the trouble lights stay off.

By following these steps, you can effectively reset the CEL with an OBD2 tool and address any issues related to the air fuel ratio sensor on your 2008 Toyota Sienna.

Jack up the car and use jack stands

Jacking up your car and using jack stands is an essential step in replacing the air-fuel ratio sensor on your 2008 Sienna. This process will ensure you have safe and easy access to the underside of the vehicle, where the sensor is located. Here's a detailed guide on how to do it:

Park Your Car on a Flat Surface:

Before you begin, find a flat, level surface to park your Sienna. This is crucial for stability and safety when jacking up the car. Engage the parking brake to prevent accidental rolling.

Jack Up the Front of the Car:

Place a jack at the designated jack point, typically located near the front of the vehicle, behind the radiator support. Refer to your owner's manual for the exact jack point location. Slowly raise the jack until the front tires are off the ground and the car is securely lifted.

Secure the Car with Jack Stands:

Once the car is lifted, place jack stands under the front suspension or subframe. Jack stands provide a stable and secure support for the vehicle, reducing the risk of accidental lowering or collapse. Make sure the jack stands are positioned on a solid part of the frame.

Ensure Stability with Wheel Chocks:

For added safety, place wheel chocks behind the rear wheels. Wheel chocks prevent the vehicle from rolling and provide an extra layer of stability while you work.

Check for Stability:

Before proceeding, ensure that the car is securely supported by the jack stands and cannot roll in any direction. You can gently try to rock the vehicle back and forth to confirm its stability.

Prepare to Work Under the Vehicle:

Put on safety gear, such as gloves and eye protection, before crawling under the car. Have a flashlight or work light handy to illuminate the underside of the vehicle, making it easier to locate the air-fuel ratio sensor and its components.

Locate the Air-Fuel Ratio Sensor:

The air-fuel ratio sensor is located on the passenger side of the vehicle, just above the drive shaft. It is positioned within arm's reach, making it accessible without fully crawling under the car.

Prepare for Sensor Removal:

With the sensor located, you can proceed to the next steps, which include applying penetrating oil, disconnecting the sensor's wiring, and removing the sensor using the appropriate tools. Refer to the sensor replacement procedure for the complete process.

Remember to exercise caution when working with a jack and jack stands. Always ensure the vehicle is securely supported, and never work under a car that is solely supported by a jack. By following these steps, you'll be able to safely access and replace the air-fuel ratio sensor on your 2008 Sienna.
