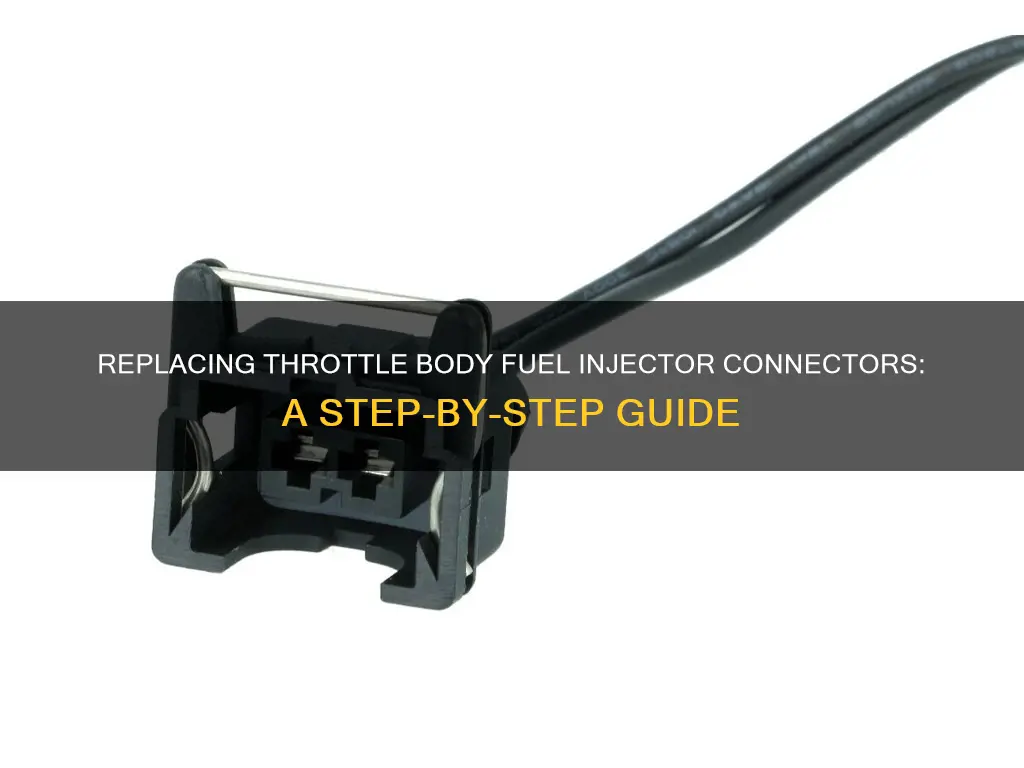

Replacing Throttle Body Fuel Injector Connectors: Diy Guide

Replacing a throttle body fuel injector connector is a complex task that requires careful attention to detail. The process involves several steps, including disabling the battery and fuel system, relieving pressure, removing the air cleaner intake system, disconnecting wires, and using an air compressor to remove the injector. It is important to note that different vehicles may have unique requirements for this process, and it is recommended to refer to specific manufacturer guidelines or seek professional assistance if unsure.

Disconnect the battery, fuel system, and relieve pressure

Disconnecting the battery, fuel system, and relieving pressure is an important step in replacing a throttle body fuel injector. This step ensures that the vehicle's electrical system is deactivated, preventing any accidental activation of the fuel injectors during the replacement process. It also helps to relieve pressure from the fuel system, making it safer to work on. Here is a detailed guide on how to do this:

Firstly, locate the battery in your vehicle and disconnect the negative terminal using a suitable wrench or socket. This will ensure that the electrical system is deactivated. Set the battery aside in a safe place, away from any metal objects that could cause a short circuit.

Next, locate the fuel lines and the fuel pump relay or fuse. The fuel lines are usually colour-coded and can be found near the engine. The fuel pump relay or fuse may be located in the engine bay or inside the vehicle, depending on the make and model. Once located, disconnect the fuel lines and the fuel pump relay or fuse. This will prevent fuel from flowing to the injectors and relieve pressure in the system. Place a rag over the fuel line connection to catch any residual fuel that may drip out.

Now, to relieve any remaining pressure in the fuel system, you can use an air compressor. Connect the air compressor to the closest fuel line tube near the throttle body. Ensure that the rag is still in place to catch any fuel that may be released. Slowly release compressed air into the fuel line. This will push out any remaining fuel and relieve pressure, making it safer to remove the injector.

At this point, it is important to ensure that the fuel system is not damaged or leaking. Check the fuel lines for any signs of cracks or leaks. Also, inspect the injector for any signs of clogging or leakage. If the injector is clogged or leaking, it will need to be replaced. Additionally, check the fuse for the fuel injector and ensure it is in good condition.

Finally, before proceeding with the replacement, make sure to have a suitable replacement injector and all the necessary tools ready. This includes a torque tool to remove and tighten the screws, as they are typically very tight. It is also recommended to have a spare injector on hand in case of any issues.

Remove the air cleaner intake system covering the throttle body

To remove the air cleaner intake system covering the throttle body, you'll need to locate the throttle body first. It is usually located between the air cleaner and the intake manifold on fuel-injected cars.

Once you've found the throttle body, disconnect the battery as a safety precaution and ensure the engine is turned off.

Now, you can start removing the air intake tube. Use a screwdriver to loosen the hose clamp. You can then gently twist and pull the duct until it comes off. Be careful not to disconnect any electrical wires or terminals during this process.

In some cases, the throttle body may have two air intake tubes, one on each side. If so, you only need to remove one of them to access the throttle body for cleaning or replacement.

After removing the air intake tube(s), you should be able to access the throttle body and proceed with the next steps in the replacement or cleaning process.

Remove the injector connector wires

To remove the injector connector wires, you will need to first locate the metal or plastic clip that is holding the connector in place. Using a small tool like a needle, small screwdriver, or 90-degree pick, gently pry or push the clip to release it. Be careful not to break the plastic or damage the wiring.

Some connectors may have a blue or white cap that needs to be removed before accessing the wires. In some cases, there may be a small hole where you can insert a safety pin or thumbtack to release the wires. It is important to be gentle when removing these connectors to avoid any damage.

If you are having difficulty accessing the connector or are worried about breaking the plastic, you can try removing the fuel rail first. This will give you more room to work and make it easier to remove the connector without causing any damage.

Additionally, there are aftermarket connectors available that are designed to be easier to remove and reinstall. These can be purchased and soldered onto the existing wiring, providing a more secure and user-friendly connection.

Overall, when removing the injector connector wires, it is important to take your time, use the appropriate tools, and be gentle to avoid any damage to the connector, wiring, or surrounding components.

Disconnect the fuel line and use compressed air

Disconnecting the fuel line and using compressed air is an essential step in replacing a throttle body fuel injector connector. Here is a detailed guide on how to do it:

Firstly, relieve the fuel system pressure and disconnect the negative battery cable using a socket wrench. This is a crucial safety step to prevent any accidental ignition during the replacement process. Next, separate the air intake case from the throttle body. This will give you access to the fuel line and the injector.

Now, locate the clamp for the fuel send line on the intake manifold and remove it with a socket wrench. Once the clamp is removed, carefully disconnect the fuel line from the throttle body. At this point, it is a good idea to insert clean cloths into the throttle body to catch any debris or dirt that might fall into the engine.

Before proceeding, make sure to loosen the screws on the fuel injector cover with a Phillips screwdriver and remove the cover. This will expose the fuel injector and its coupler. Disconnect the coupler and release the electrical harness from the clamp. Now, you can remove the grommet from the throttle body.

Place a cloth over the injector and gently blow air into the fuel inlet port of the throttle body using an air gun. This will unseat the fuel injector, allowing you to remove it from the throttle body. Be cautious during this step to avoid any damage to the injector or the throttle body.

Once the fuel injector is removed, you can install the new one by following the previous steps in reverse. Make sure to lubricate the new O-rings with a thin coat of gasoline before installing them. Additionally, apply a thin coat of locking compound to the screws on the fuel injector cover to secure it in place.

Finally, replace all the components and turn the ignition switch on without starting the engine. Pressurize the fuel system and carefully check for any fuel leaks. This will ensure that the new fuel injector is properly seated and functioning correctly.

Reassemble in reverse order

To reassemble the throttle body fuel injector in reverse order, start by placing a little oil on the o-rings so they can easily slide into the bores. Next, grab the centre of the injectors and rotate it to set it in place. Put the top cover back on and secure it with the eight Torx screws. Reattach the injector connector wires to the combination wire connector and clip them into place. Reinstall the air cleaner intake system, covering the throttle body. Finally, reconnect the battery and fuel system.
