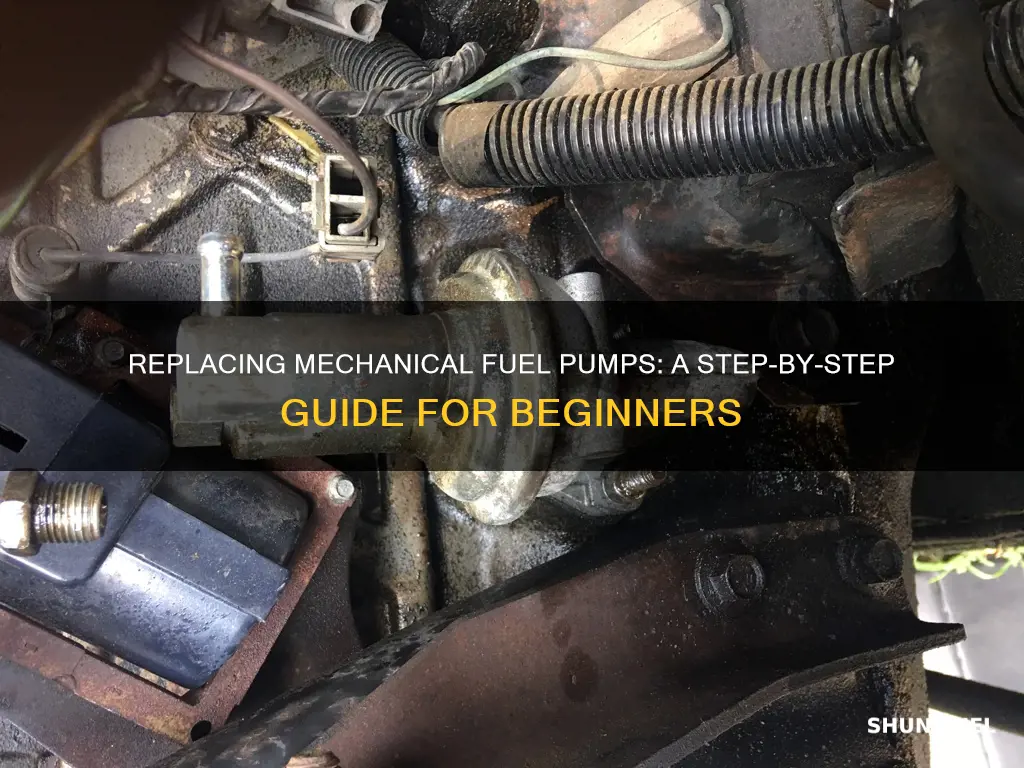

Replacing Mechanical Fuel Pumps: Step-By-Step Guide For Diyers

Replacing a mechanical fuel pump is a fairly simple task that can be accomplished at home in about an hour or two. It is a messy job, so it is important to be dressed appropriately and work in a well-ventilated area. A fire extinguisher rated for gasoline fires should also be kept on hand as a precaution. The process involves disconnecting the negative battery cable, fuel tank hose, and outlet line to the carburetor, before removing the old fuel pump and installing the new one, ensuring that all hoses and clamps are secure and there are no leaks.

Characteristics of replacing a mechanical fuel pump

Disconnect the negative battery cable

Disconnecting the negative battery cable is the first step in replacing a mechanical fuel pump. This is a crucial safety precaution to prevent any accidental sparks that could cause an explosion or fire. Before beginning any work on your vehicle, it is essential to ensure that you are working in a safe area, away from any potential sources of ignition.

To disconnect the negative battery cable, locate the battery in your vehicle. The battery is typically located in the engine bay, but it can also be found in the trunk or under a seat. Once you have located the battery, identify the negative terminal. The negative terminal will be clearly marked, often with a "-" symbol or a black cover. Using an appropriate wrench or socket, loosen the nut or bolt securing the cable to the terminal. Be sure to support the cable as you disconnect it to avoid any strain on the wires. Place the cable away from the battery, ensuring it cannot accidentally make contact with the terminal.

It is important to note that modern vehicles may have multiple batteries or complex electrical systems. Always refer to your vehicle's repair manual or seek advice from a qualified mechanic if you are unsure about the electrical system in your car.

With the negative battery cable disconnected, you can now safely proceed with the next steps of replacing the mechanical fuel pump. Remember to work in a well-ventilated area and avoid any potential sources of ignition throughout the process.

Remove the fuel tank hose

Removing the fuel tank hose is a crucial step in replacing a mechanical fuel pump. Here is a detailed guide on how to do it:

Before starting, ensure you have the necessary tools, including a ratchet wrench set, tubing or open-end wrenches, hose clamp pliers or a screwdriver, and a bolt or wooden dowel. It is also important to work in a well-ventilated area and avoid any activities that may cause sparks, such as smoking or using an open flame.

First, disconnect the negative battery cable from your vehicle. This is an important safety precaution. Next, locate the fuel tank hose connected to the fuel pump. Before disconnecting the hose, plug the end that is attached to the fuel pump with a bolt or a wooden dowel to prevent any fuel from flowing out. This step is crucial to avoid spills and ensure a safe working environment.

Now, carefully disconnect the fuel tank hose from the fuel pump. This may require some wiggling and gentle force, but be cautious not to damage the hose or any nearby components. Once the hose is disconnected, securely plug the open end with the bolt or wooden dowel to prevent any fuel leakage.

Inspect the old fuel hose for any signs of wear or damage, such as fraying or cracking. If the hose is in poor condition, it is recommended to replace it with a new fuel line hose. This will ensure the safety and integrity of your fuel system.

Finally, clean the area around the fuel tank hose and the mounting surface of the engine. Use a shop rag or a suitable cleaning solution to remove any dirt, grease, or old gasket material. This step will help ensure a clean and proper connection when installing the new fuel pump.

By following these steps, you will have successfully removed the fuel tank hose, readying your vehicle for the installation of a new mechanical fuel pump. Remember to work cautiously and refer to your vehicle's manual for any specific instructions or variations unique to your car model.

Check the fuel line

Checking the fuel line is an important step in the process of replacing a mechanical fuel pump. Here's a detailed guide on what to look for and how to address any issues:

Before you begin working on your vehicle, it's crucial to take safety precautions. Ensure you are dressed appropriately and have the necessary tools, including a ratchet wrench set, tubing or open-end wrenches, hose clamp pliers or a screwdriver, and a bolt or wooden dowel. Most importantly, do not smoke or introduce any ignition sources near the fuel line, as fuel vapors can be dangerous and flammable.

Now, let's get started with checking the fuel line:

• Disconnect the fuel tank hose at the fuel pump: First, disconnect the fuel tank hose from the fuel pump. This will allow you to access and inspect the fuel line. Remember to plug the hose with a bolt or wooden dowel to prevent any fuel from flowing out and causing a hazardous spill.
• Inspect the fuel line for damage: Carefully examine the exposed fuel line for any signs of damage, such as cracks, leaks, or fraying. If you notice any issues, it's important to replace the fuel line to ensure uninterrupted fuel flow to the engine.
• Check for leaks or blockages: Pay close attention to any signs of leaks or blockages in the fuel line. Leaks can be caused by cracks or holes in the line, loose fittings, or damaged components. Blockages, on the other hand, can be due to contaminants or debris buildup.
• Ensure proper connections: Check that the fuel line is securely connected to the fuel pump and the carburetor. Loose connections can lead to fuel leaks and affect engine performance.
• Test fuel flow: To confirm that fuel is flowing through the line as expected, you can perform a simple test. Disconnect the fuel line at the carburetor and place the open end into a canister. Crank the engine, and if you see strong, steady spurts of fuel, the fuel pump and line are functioning correctly. However, if you observe weak spurts or no fuel flow, it could indicate an issue with the fuel pump, a blockage in the fuel line, or a clogged fuel filter.
• Measure fuel pressure: Connect a fuel pressure gauge to the fuel line or the pump outlet. Crank the engine and note the pressure reading. Low or no pressure could indicate a problem with the fuel pump or a blockage in the fuel line.
• Replace the fuel line if necessary: If you notice any damage, leaks, or blockages in the fuel line, it's important to replace it with a new one. This will ensure uninterrupted fuel delivery to the engine and maintain the vehicle's performance.

Remember, always refer to your vehicle's service manual for specific instructions related to your make and model. Working with fuel lines can be dangerous, so ensure you take the necessary safety precautions and have the appropriate tools and knowledge before proceeding.

Disconnect the outlet line

Disconnecting the outlet line is a crucial step in replacing a mechanical fuel pump. Here's a detailed guide on how to do it:

Before you begin, ensure you have the necessary tools, including a ratchet wrench set with a universal joint, tubing or open-end wrenches, hose clamp pliers or a screwdriver, and a bolt or wooden dowel. It is also important to work in a well-ventilated area and avoid any sources of ignition, such as smoking or open flames, due to the presence of fuel and fuel vapors.

Now, to disconnect the outlet line, follow these steps:

• Place a cloth or rag underneath the fuel pump to catch any spills or leaks. This is important for safety and to prevent fuel from coming into contact with hot engine components.
• Identify the outlet line that runs from the fuel pump to the carburetor. This line carries fuel from the pump to the carburetor, where it is mixed with air before entering the engine.
• Using two wrenches, one on the fuel pump fitting and another on the line nut, loosen and disconnect the outlet line. It is important to have a firm grip on both the fitting and the line nut to avoid stripping the threads or causing damage.
• Once the line is disconnected, gently move it aside, ensuring it doesn't interfere with other engine components. You may need to label or mark the line to ensure proper reconnection during the reinstallation process.

Remember to work cautiously and refer to your vehicle's repair manual for specific information about your car's fuel pump and outlet line configuration. Always put your safety first when working with automotive fuel systems.

Install the new pump

Now that you've removed the old fuel pump, it's time to install the new one.

First, apply a coat of gasket sealer to both sides of the new gasket. Next, put the attaching bolts through the new pump and slip the gasket over the bolts. Make sure the push rod is correctly installed in both the engine and the fuel pump. If the push rod slides out, you can pack it with some heavy grease to hold it in place while you install the pump.

Now, install the new pump on the engine. If your vehicle has a rocker arm, make sure it is against the eccentric inside the engine. If your vehicle has a push rod, make sure it is correctly installed in both the engine and the fuel pump. You can test this by cranking the engine by hand and observing whether the rod follows the cam pump lobe and moves in and out. When the rod is furthest into the engine, stop rotating. The rod is now on the lobe base circle.

Attach the fuel outlet line that runs to the carburetor. If it's difficult to connect, remove the other end of the line from the carburetor. Connect the line to the fuel pump, and then reattach the other end to the carburetor. Use a wrench to hold the fuel pump fitting and tighten the line nut with another wrench.

Finally, attach the fuel inlet hose from the gas tank and the vapor-return hose (if your vehicle has one). Tighten all clamps.
