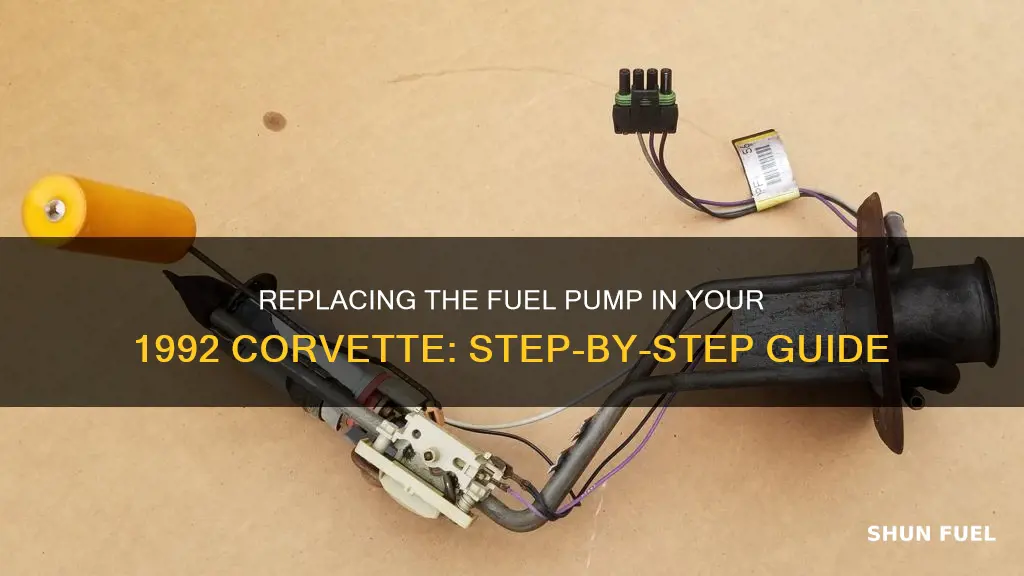

Replacing The Fuel Pump In Your 1992 Corvette: Step-By-Step Guide

If you're looking to replace the fuel pump on your 1992 Corvette, you'll need to be prepared for a moderately complicated job that will require some time and patience. The fuel pump is located inside the fuel tank and can be accessed through an access panel in the passenger compartment or by removing the tank from the vehicle. It's important to work with as little fuel in the tank as possible, and you may need to remove both rear wheels to access the tank. You'll also need to disconnect various hoses, wires, and fittings, so having a basic understanding of car mechanics is essential. Additionally, you may want to refer to a repair manual or seek the help of a professional if you're unsure about any part of the process.

The fuel pump is located inside the fuel tank

As the fuel pump is submerged in the cool liquid inside the tank, it is less likely to start a fire. The pump is also located at the farthest point away from the hot engine, which further reduces the risk of fire.

To access the fuel pump, a mechanic will need to get to it through the top of the fuel tank. They can do this via an access panel in the passenger compartment or by removing the tank from the vehicle. This is a moderately complicated job and is best performed at a dealership's service department.

There are signs that indicate your fuel pump needs replacing. These include a car that won't start or stalls once it has started. You might also hear a whirring sound coming from your fuel tank, which could mean the pump is about to fail—fuel pumps do not normally make noise.

Signs of a failing fuel pump include engine choking, noises, and hesitation at start-off

If you're driving a 1992 Corvette and you're experiencing engine choking, noises, and hesitation at start-off, it might be time to check the fuel pump for issues. Here are some detailed signs of a failing fuel pump and some instructions on how to replace it.

Signs of a Failing Fuel Pump

A failing fuel pump can cause a range of issues with your Corvette's performance. Here are some key signs to look out for:

• Engine choking or struggling to maintain speed: If your engine is choking or struggling to maintain a consistent speed, it could be a sign that your fuel pump isn't delivering enough fuel to the engine.
• Noises, backfires, and a sputtering engine: Unusual noises, such as whining, humming, screeching, or squealing, could indicate a worn-out fuel pump motor or a loose drive belt. Additionally, backfires and a sputtering engine can also be symptoms of a failing fuel pump.
• Hesitation at start-off: If your Corvette hesitates or struggles to accelerate from a stationary position, it might be due to insufficient fuel pressure caused by a failing fuel pump.
• Overheating engine: A bad fuel pump can cause the engine to overheat as it may not be able to circulate enough fuel to keep the engine cool.
• "Check Engine" light: If the "Check Engine" light comes on, it could be due to several issues, including a failing fuel pump.

Replacing the Fuel Pump in a 1992 Corvette

If you suspect that your fuel pump needs to be replaced, here are some general steps to follow:

• Drain the fuel tank: Start by draining the fuel from the tank.
• Remove the necessary components: This includes the left rear tire, left rear wheelhouse panel, mufflers (if applicable), and the driveline support assembly.
• Disconnect fuel-related components: Disconnect the fuel fill hose, recirc line, fuel pump jumper harness connector, and fuel feed pipe at the rear of the fuel tank.
• Loosen and remove the fuel tank strap: Loosen the strap to drop the tank and then remove it completely.
• Access the fuel pump: Depending on your Corvette's configuration, you may need to remove the back seat or a trunk panel to access the fuel pump through an access cover in the chassis.
• Replace the fuel pump: Follow the instructions provided by the manufacturer of your new fuel pump to ensure a proper installation.
• Reassemble the components: Reinstall the fuel tank, reconnect all the disconnected fuel-related components, and reattach the rear tire, wheelhouse panel, mufflers, and driveline support assembly.

Please note that this is a general guide, and it's always best to refer to a repair manual specific to your vehicle for detailed instructions. Additionally, working on fuel systems can be dangerous, so if you're uncomfortable with any part of the process, it's best to consult a qualified mechanic.

A mechanic will need to access the fuel pump through the top of the fuel tank

To access the fuel pump in a 1992 Corvette, a mechanic will need to remove the driver's side rear inner fender liner. They will then need to disconnect the fuel filler hose and the vent return hose at the fuel filler neck. Next, they will need to unplug the 4-pin connector with larger gauge wires on the outer pins and smaller gauge wires on the inner pins. This is the connector for the electric fuel pump.

With the connector disconnected, the mechanic can now access the fuel pump through the top of the fuel tank. They will need to remove the five bolts that hold the aluminium panel under the tank and then disconnect the fuel line that runs down the rear of the tank. At this point, the tank can be safely lowered out of the car.

Once the tank is out, the mechanic can remove the large metal locking ring that secures the fuel pump to the tank. They can then pull the pump halfway out of the tank and disconnect the two fuel lines that run to and from the passenger side tank. With these lines disconnected, the pump can be fully removed from the tank.

The fuel pump uses recirculating fuel to cool itself

The fuel pump in a 1992 Corvette is located inside the fuel tank. It uses recirculating fuel to cool itself. This is a common feature in modern cars, which have electronic fuel injection systems. The pump is submerged in the fuel, which acts as a coolant, preventing the pump from overheating.

The Corvette's fuel system has two tanks, each with a capacity of around 9 gallons. When fuelling up, the driver's side tank fills first, and when full, the fuel spills over into the passenger side tank via a large crossover tube. The fuel in the passenger side tank is used first and is continuously transferred to the driver's side via a pump. This process ensures a constant supply of fuel to the engine and helps to cool the pump by keeping it submerged.

It is important to maintain adequate fuel levels in the tank to ensure proper cooling of the pump. Allowing the fuel level to drop below a quarter tank can lead to reduced cooling and potentially shorten the life of the fuel pump.

When replacing the fuel pump in a 1992 Corvette, it is necessary to access the pump through the top of the fuel tank. This process can be challenging and time-consuming, requiring the removal of multiple components and careful disconnection of fuel lines. It is recommended to have the vehicle serviced by a qualified mechanic or a dealership's service department.

The replacement cost for a fuel pump is between $611 and $894

The replacement cost for a fuel pump on a 1992 Corvette is between $611 and $894, according to Kelley Blue Book. This price includes parts and labor and is dependent on the age of the vehicle.

The fuel pump is located inside the fuel tank and can be accessed through an access panel in the passenger compartment or by removing the tank from the vehicle. This is a moderately complicated job and is best performed by a qualified mechanic or at a dealership's service department.

There are several signs that indicate a fuel pump failure, including a car that won't start or stalls after starting. Other signs include a slowly starving fuel flow, which causes the check engine light to come on, or a whirring sound coming from the fuel tank.

The replacement process involves disconnecting the battery, draining the fuel tank if necessary, and removing the fuel pump supply and return hoses, as well as EVAP system hoses and electrical connections. Once the new pump is installed, the mechanic will add fuel and run the engine to test for leaks.

It is important to note that working with the fuel system can be dangerous, and it is recommended to take all precautions to avoid starting a fire.
