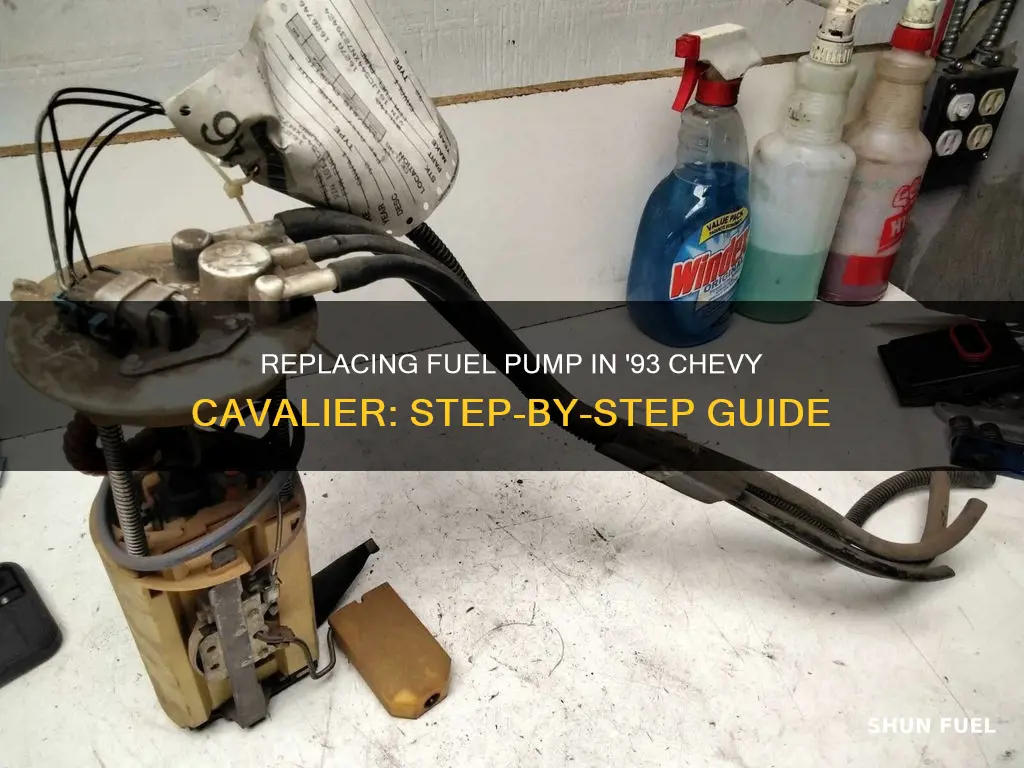

Replacing The Fuel Pump In A '93 Chevy Cavilier

If the fuel pump in your 1993 Chevy Cavalier is acting up, it may be time for a replacement. The fuel pump is responsible for delivering fuel from the tank to the fuel injectors, and when it fails, it can cause a loss of engine power or even prevent the car from starting. While it is a moderately complicated job best performed by professionals, it is possible to replace the fuel pump yourself. Before starting, ensure your fuel tank is almost empty, as you will need to store the remaining gas outside the tank during the replacement process. You will also need various tools, including a socket wrench, mechanic's ramps, a creeper, and an empty gas can. Once you have drained the fuel tank and removed the fuel pump, you can install the new pump and reconnect the fuel lines and wiring harness. Finally, replace the fuel, reconnect the battery terminal, and test your car to ensure everything is working properly.

How to replace a fuel pump on a 1993 Chevy Cavalier

Disconnect the battery

Disconnecting the battery is the first step to replacing the fuel pump on a 1993 Chevy Cavalier. This is an important safety precaution to reduce the chance of a fire. Here is a detailed, step-by-step guide on how to disconnect the battery:

Step 1: Park your car on a flat, level surface.

It is important to find a safe and level area to park your car before beginning any repairs. This will ensure your car does not roll or shift while you are working on it.

Step 2: Turn off the engine and remove the keys from the ignition.

Before proceeding, make sure that the engine is completely turned off. This is a critical safety measure as you do not want the engine to accidentally turn on while you are working on the battery.

Step 3: Locate the battery and identify the negative terminal.

The battery is usually located under the hood of your Chevy Cavalier. If you are unsure, you can always refer to your owner's manual for the exact location. Once you have located the battery, identify the negative terminal. It is usually marked with a minus sign (-) or a black cover.

Step 4: Use a wrench to loosen the nut on the negative terminal.

Loosen the nut that secures the cable to the negative terminal. Do not remove it completely yet. This step is important as it ensures that the electrical circuit is open and there is no current flowing through the battery.

Step 5: Disconnect the negative cable.

Once the nut is loosened, you can now safely disconnect the negative cable from the terminal. Be careful not to let the cable touch the battery to avoid any accidental contact or electrical short. Move the cable away from the battery to a safe place.

Step 6: Identify and disconnect the positive terminal.

Next, locate the positive terminal, which is usually marked with a plus sign (+) or a red cover. Again, use your wrench to loosen the nut that secures the cable to the terminal. Once loosened, carefully remove the cable from the positive terminal.

Step 7: Store the disconnected cables safely.

Make sure to place the disconnected cables in a safe location away from the battery. You do not want them to accidentally come into contact with the battery terminals while you are working on other parts of the car.

By following these steps, you will have successfully disconnected the battery on your 1993 Chevy Cavalier, ensuring a safer environment for you to proceed with the fuel pump replacement. Remember to always take necessary safety precautions when working with car batteries to avoid any potential hazards.

Remove the fuel

To remove the fuel from a 1993 Chevy Cavalier, follow these steps:

First, ensure that you run your fuel almost out before you begin. You will need to store the remaining gas outside of the fuel tank while you work, so ensure you have a storage container that can hold the amount of fuel remaining in your tank. Park your car on a flat, level surface and disconnect the positive battery terminal.

Next, you will need to siphon the gas from the tank. Place the mechanic's ramps behind the rear tires of the car and push the car backward onto the ramps to access the underside of the fuel tank. Use a siphon to transfer the gas from the tank into your gas can. Follow the instructions on the siphon for correct usage.

Once the fuel is removed, you can proceed to remove the fuel tank. The tank is held to the frame by two metal straps. Use a socket wrench to unbolt the tank from the car. As the tank is now empty, it will be lightweight, so you can carefully lower it onto your chest to disconnect the wiring before placing it on the ground.

Now that the tank is disconnected, pull it out from under the car. There are bolts holding the fuel pump onto the gas tank, and the cylinder has two tubes coming out of it. Pull the fuel pump up and let it drain into the tank before removing it. Ensure that no debris falls into the tank.

At this point, you can install a new fuel pump.

Access the fuel tank

To access the fuel tank of a 1993 Chevy Cavalier, follow these steps:

Firstly, ensure your fuel tank is almost empty before you begin. You will need to store the remaining gas outside the fuel tank while you work, so make sure you have a suitable storage container. Siphon out the gas tank and let it run into the empty gas can.

Park on a flat, level surface and disconnect the positive battery terminal. Place mechanic's ramps behind the rear tires of the car and push the car up onto the ramp to access the underside of the fuel tank.

Use a creeper and roll under the back of the car to reach the fuel tank. You will need to unbolt the tank from the car using a socket wrench. There are two metal straps holding the tank to the frame. As the tank is now empty, it will be lightweight enough to rest on your chest while you disconnect the wiring.

Push the white buttons on the fuel lines and the wiring harness to disconnect them. Once the tank is disconnected, carefully pull it out from under the car.

Now you can access the top of the fuel tank and begin the process of removing and replacing the fuel pump.

Please note that this is a complex procedure and it is recommended that you seek professional assistance unless you are very experienced in auto repair.

Disconnect the fuel pump

To disconnect the fuel pump on a 1993 Chevy Cavalier, you must first ensure that your fuel tank is almost empty. Park your car on a flat, level surface and disconnect the positive battery terminal. You will need to store the remaining fuel outside the fuel tank while you work, so it is crucial to have a suitable storage container.

Once you have addressed these preliminary steps, you can proceed with the following detailed instructions for disconnecting the fuel pump:

Accessing the Fuel Tank

Place mechanic's ramps behind the rear tires of the car and push the vehicle up onto the ramps. This will provide you with access to the underside of the fuel tank. Remember to perform this step only after removing the fuel to avoid any issues with fully emptying the tank.

Disconnecting the Fuel Pump

Use a creeper to roll under the back of the car to reach the fuel tank. It is a large black tub located under the back seat. You will notice two metal straps holding the tank to the frame. Use a socket wrench to unbolt the tank from the car. As the tank is now empty, it will be lightweight, allowing you to gently lower it onto your chest momentarily.

At this point, you can proceed to disconnect the wiring. Look for white buttons on the fuel lines and the wiring harness, and push them to disconnect. Once the tank is fully disconnected, carefully pull it out from under the car.

Removing the Fuel Pump

Before removing the fuel pump, ensure that you have a suitable container to catch any fuel that may drain from the pump. There are bolts holding the fuel pump onto the gas tank, and the cylinder has two tubes coming out of it. Pull the fuel pump up and let it drain into the tank before removing it. Be cautious to prevent any debris from falling into the tank.

Now that you have successfully disconnected and removed the fuel pump, you can proceed with installing the new pump. Remember to exercise extreme caution throughout the process, as working with the fuel system can be dangerous.

Install the new fuel pump

To install the new fuel pump, first, you will need to slide back under the car. Place a small jack under the fuel tank to hold it up while you reattach the fuel lines and the wiring harness. Reconnect the wiring and ensure the new pump is bolted into place on the gas tank.

Use the jack to hold up one end of the tank while you reattach the metal straps that hold the tank in place. Tighten the strap bolts so the tank is secured to the frame of the vehicle.

Next, you can replace the fuel that you siphoned out and reconnect the battery terminal. Drive down from the ramps and make sure that everything is working properly.

Finally, it is recommended that you replace the fuel filter at the same time as the fuel pump. This will help to ensure that any issues with fuel delivery are resolved.
