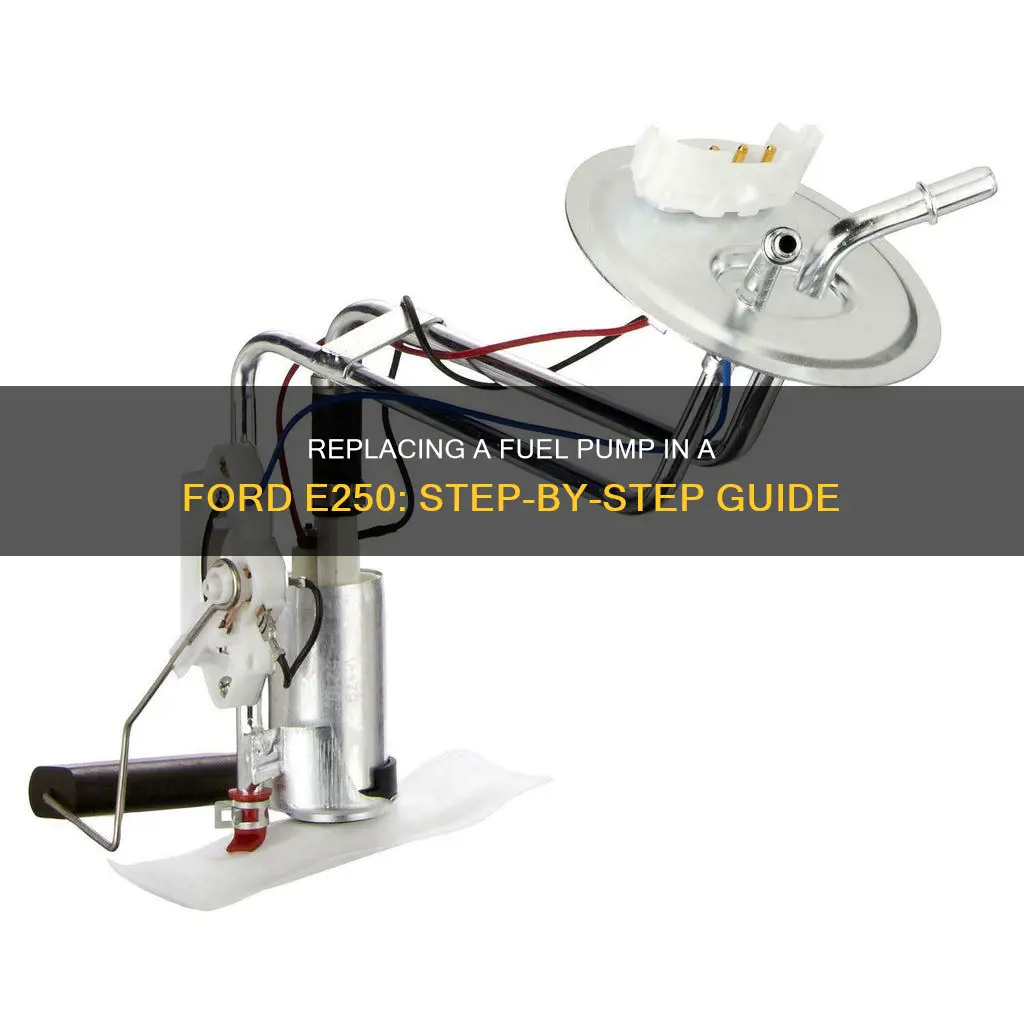

Replacing A Fuel Pump In A Ford E250: Step-By-Step Guide

Replacing the fuel pump on a Ford E250 involves a few steps and can be done at home, although it is recommended to get it done at a repair shop due to the risk of fire. The fuel pump is responsible for delivering gas from the fuel tank to the fuel injectors, and issues with it can cause a loss of engine power or prevent the car from starting. The first step is to disconnect the battery to reduce the chance of a fire. Next, the technician will need to remove the access cover and replace the pump and pre-pump filter screen. In some cases, fuel will need to be drained before removing the access panel. Finally, the mechanic will reconnect the fuel lines and install the new pump. The cost of replacing a fuel pump on a Ford E250 ranges from $1,313 to $1,660, with labour costs estimated between $256 and $322, and parts priced between $1,057 and $1,338.

Disconnect the battery

Disconnecting the battery is the first step when replacing the fuel pump on a Ford E250. This is a crucial safety measure to reduce the chance of a fire when working with the fuel system.

Before beginning any work, ensure you have the necessary tools and safety equipment, including gloves and eye protection. Identify the battery and its location in the vehicle. The battery is typically located in the engine bay, secured by a clamp.

To disconnect the battery, follow these steps:

• Locate the negative terminal, identified by a "-" symbol or a black cover. This is usually on the left side of the battery, but may vary depending on your vehicle's make and model.
• Using the appropriate tool, loosen the clamp or bolt securing the negative cable to the battery terminal. Do not allow the negative cable to touch any part of the battery or vehicle.
• Carefully remove the cable from the battery terminal, ensuring that it does not touch any metal surfaces.
• Move the cable away from the battery and secure it in a safe position to prevent accidental contact.
• Optionally, you may also disconnect the positive cable, identified by a "+" symbol or a red cover, following the same steps.

Once the battery is disconnected, you can proceed with the next steps of the fuel pump replacement process. Remember to exercise caution and refer to a qualified mechanic or repair manual for detailed instructions specific to your vehicle.

Remove the fuel tank

To remove the fuel tank on a Ford E250, you will first need to disconnect the battery to reduce the chance of a fire.

If the tank is full, siphon some fuel out through the filler neck. Then, disconnect the filler neck and lower the tank with a floor jack. Be careful, as there are several lines into the tank, other than the filler lines, and you will need to check that there is enough slack in these lines to lower the tank.

Once the tank is lowered, you can gain access to the fuel lines and wiring. You will need a special tool to remove the fuel lines.

Disconnect the fuel lines

Disconnecting the fuel lines is a crucial step in replacing the fuel pump on a Ford E250. Here is a detailed guide on how to do it:

Before beginning, ensure you have the necessary tools and safety equipment, including gloves and eye protection. It is also recommended to relieve any pressure in the fuel system before proceeding.

First, locate the fuel lines. On a Ford E250, the fuel lines are connected to the fuel pump, which is typically located inside the fuel tank. To access the fuel pump, you may need to remove an access cover or lower the fuel tank.

Once you have located the fuel lines, you will need to disconnect them from the fuel pump. This process can vary depending on the specific model of your Ford E250, but it typically involves using a specialized tool to release the connector or clamp securing the fuel line to the pump. Be cautious when handling the fuel lines, as they may be under pressure, and be prepared to catch any spilled fuel with a suitable container.

After disconnecting the fuel lines, it is important to cap or plug the open ends to prevent fuel leakage and minimize the risk of fire. Use approved fuel line caps or plugs designed for this purpose.

If your vehicle is equipped with a fuel filter, it is usually recommended to replace it at the same time as the fuel pump. The fuel filter is often located along the fuel lines, either inside or outside the fuel tank. Refer to your vehicle's repair manual or seek advice from a qualified mechanic if you are unsure about the location of the fuel filter or the specific procedure for your model.

Finally, properly dispose of any spilled fuel and contaminated materials, following local regulations and safety guidelines.

Remember, working with the fuel system can be dangerous, so take all necessary precautions and ensure you are in a well-ventilated area. If you are unsure about any part of the process, it is always best to consult a professional mechanic.

Replace the pump and pre-pump filter screen

To replace the pump and pre-pump filter screen of a Ford E-250, you will need to take the following steps:

First, disconnect the battery to reduce the chance of a fire. Next, locate the fuel pump. If it is inside the fuel tank, you will need to remove the access cover. In some cases, you may need to drain the fuel before removing the access panel. Once you have access to the pump, remove the old pump and pre-pump filter screen. Then, install the new pump. If the pump is outside the tank, simply disconnect the fuel lines and remove the old pump before installing the new one.

After installing the new pump, check for any fuel leaks to ensure the problem has been solved. It is recommended to replace the fuel filters at the same time as the fuel pump. This includes the intake screen for in-tank fuel pumps. Additionally, on some vehicles, the fuel pump relay is known to fail, so it is good practice to replace the relay when replacing the pump.

Working with the fuel system can be dangerous, so take all necessary precautions to prevent fires. If you are not experienced in auto repair, it is recommended to leave this job to a professional.

Check for leaks

Once you have replaced the fuel pump in your Ford E250, you will need to check for leaks. This is a critical step, as working with the fuel system is dangerous and there is a risk of fire.

Firstly, add fuel to the tank and run the engine. With the system pressurised, you will be able to see any fuel leaking from under the vehicle. If you notice any leaks, do not start or drive the car, and do not park inside your house or under a covered structure. Have the car towed to a shop for inspection and repair.

If there are no visible leaks, you should also check for fuel odours. If you can smell gasoline, this is a sign of a leak and you should follow the same steps as above.

It is also recommended that you replace the fuel filter at the same time as the fuel pump. This is because a fuel leak at the filter is normally caused by damaged or defective banjo bolts that connect the fuel lines to the fuel filter.
