Replacing The Fuel Pump In A 2001 Escape: Step-By-Step Guide

Replacing the fuel pump on a 2001 Ford Escape is a moderately complicated job. The fuel pump is located inside the fuel tank, and there are two ways to access it: through an access panel in the passenger compartment or by removing the tank from the vehicle. You can access the pump by pulling the left rear seat cushion forward, pulling the carpet back, and removing the access panel with four screws. Once the panel is removed, you can disconnect the fuel lines, unplug the connector, and replace the fuel pump. It is recommended to get the pump replaced at a dealership's service department to ensure the highest level of training and knowledge.

Removing the rear seat cushion to access the fuel pump

To remove the rear seat cushion of your 2001 Ford Escape and access the fuel pump, follow these steps:

Firstly, locate the strap on the front of the seat cushion near the carpeted floor. Pull on this strap to swing the seat cushion upwards and towards the back of the front seat. This action will expose the area underneath the rear seat cushion.

Next, identify the four bolts that secure the front seats to the floor. Using the appropriate tool, unbolt these fasteners to allow for the tilting and shifting of the seats. This step will provide you with better access to the underside of the rear seat cushion.

Now, carefully examine the underside of the rear seat cushion. You will notice that the seat covers are held in place using a combination of elastic bands, plastic dot-type push-in pins, and plastic strips that clip over the long metal edges. There may also be some velcro strips, but exercise caution when separating these to avoid tearing them.

Gently remove the seat cushion by pulling back the carpet and disconnecting the fuel lines and connector. With the cushion removed, you will now have access to the fuel pump for replacement.

Disconnecting the fuel lines and unplugging the connector

Step 1: Accessing the Fuel Pump

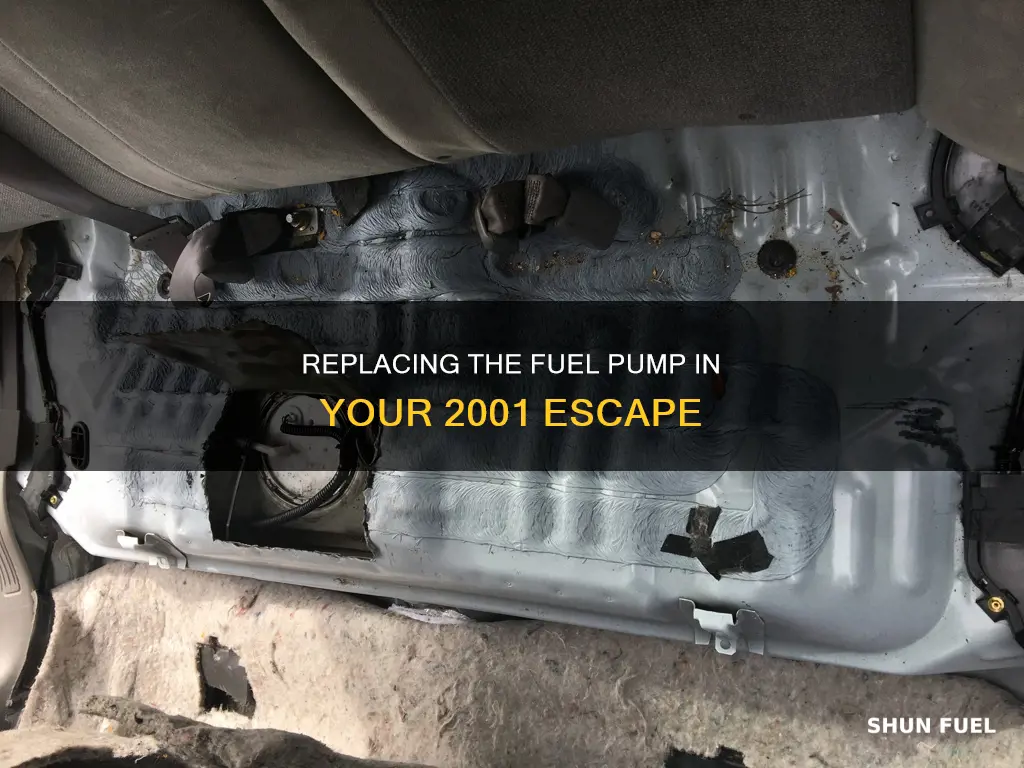

Before you can begin disconnecting the fuel lines and unplugging the connector, you need to locate and access the fuel pump itself. In the 2001 Ford Escape, the fuel pump is located under the rear seat. To reach it, carefully pull forward the left rear seat cushion. This will expose the carpet, which you can then pull back to reveal an access panel secured by four screws. Remove these screws to gain access to the fuel pump.

Step 2: Locating the Fuel Lines and Connector

With the access panel removed, you will now see the fuel pump along with the associated fuel lines and connector. The fuel lines are the tubes or hoses that carry fuel to and from the fuel pump, while the connector is the electrical component that provides power to the pump. Both need to be carefully disconnected to facilitate the replacement of the fuel pump.

Step 3: Disconnecting the Fuel Lines

When disconnecting the fuel lines, it's important to exercise caution as they contain flammable fuel. If possible, relieve any pressure in the fuel lines before proceeding. Wear protective gear, such as gloves and eye protection, to safeguard against any fuel spray or spillage. To disconnect the fuel lines, locate the couplings or fittings that secure the lines to the fuel pump. These couplings may have quick-release mechanisms or may require specialized tools for detachment. Refer to your vehicle's repair manual or seek guidance from an experienced mechanic if you're unsure about the specific process for your car.

Step 4: Unplugging the Connector

The connector is typically plugged into the fuel pump, providing the electrical connection necessary for its operation. To unplug the connector, locate the locking tabs or release mechanisms on the connector. In some cases, there may be tabs on both the top and bottom of the connector that need to be pressed simultaneously to release the connector. You may need specialized tools, such as needle-nose pliers or a flat-head screwdriver, to reach and depress these tabs effectively. Gently wiggle and pull the connector to detach it from the fuel pump, being careful not to damage the connector or its wires.

Step 5: Handling Disconnected Components

Once you've successfully disconnected the fuel lines and unplugged the connector, it's important to properly manage the disconnected components. Place the disconnected fuel lines and connector in a safe location away from any potential sources of ignition. If there is any residual fuel in the lines, carefully absorb it with a suitable absorbent material. Always exercise extreme caution when working with fuel lines and electrical connectors to prevent any safety hazards.

By carefully following these steps, you can effectively disconnect the fuel lines and unplug the connector as part of the process of replacing the fuel pump on your 2001 Ford Escape. Remember to refer to your vehicle's repair manual or seek advice from a qualified mechanic if you encounter any challenges or uncertainties during the process.

Signs of a failing fuel pump

A fuel pump is designed to last for the life of the vehicle, but sometimes it can fail. Here are some signs that indicate a failing fuel pump:

• Engine "chokes" or struggles to maintain speed: A faulty fuel pump may not be able to keep up with the demands of the engine, causing the engine to choke or struggle to maintain speed.
• Noises, backfires, and a sputtering engine: A failing fuel pump can cause the engine to make unusual noises, backfire, or sputter.
• Hesitation at start or take-off: If the fuel pump is not delivering enough fuel to the engine, you may experience hesitation or delays when starting or accelerating.
• Overheating: A bad fuel pump can overheat, which can lead to engine overheating. This is often caused by an old and worn pump motor that gets too hot.
• Check Engine Light: If the fuel flow becomes restricted, the check engine light may come on.
• Whining noise from the fuel tank: A damaged fuel pump may make a loud, whining noise, indicating a problem. This noise is usually louder when the pump works harder to deliver fuel.
• Trouble starting the car: If the fuel pump cannot get gas from the tank to the engine, you will have difficulty starting the car.
• Engine stalling: If the fuel pump cannot produce a constant stream of fuel at higher speeds, the engine may stall.
• Loss of power: As the engine requires more fuel to operate under stress, you may experience a loss of power when driving up steep inclines or when the vehicle is loaded with cargo.
• Power surges: If the fuel pump delivers too much fuel to the engine, you may experience speed spikes and drops while driving.
• Decreased fuel efficiency: A faulty fuel pump may consume more power, resulting in decreased fuel efficiency and more frequent trips to the gas station.
• Engine misfire: A failing fuel pump may not be able to supply enough fuel to the engine, causing one or more cylinders to misfire.
• Stalling at high temperatures: A bad fuel pump may struggle to supply enough fuel to the engine when it gets hot, leading to stalling.

Fuel pump replacement cost

The cost of replacing a fuel pump varies depending on the age of your vehicle and the type of service center you choose. The national average cost for a fuel pump replacement across all vehicles is between $611 and $894, including parts and labor. For a 2001 Ford Escape, the price range is between $839 and $1,059, with labor costs estimated to be between $243 and $307, and parts priced between $595 and $752.

You can replace the fuel pump yourself, but it is not recommended due to the risk of fire. The first step is to disconnect the battery to reduce the chance of a fire. If the pump is inside the fuel tank, there will usually be an access cover that needs to be removed. For pumps outside the tank, the fuel lines will need to be disconnected.

You can find fuel pumps for the 2001 Ford Escape online, with prices ranging from $49 to $72.

Troubleshooting fuel pump issues

• Warning Signs: Pay attention to warning signs that may indicate a faulty fuel pump. These include issues such as engine choking, struggling to maintain speed, unusual noises, backfires, and a sputtering engine. If your car exhibits hesitation at start-up or take-off, or the engine overheats, these could also be signs of a bad fuel pump. Additionally, a "Check Engine" light, combined with any of these issues, warrants further investigation.
• Fuel Pressure Check: Before concluding that the fuel pump is faulty, it is essential to check the fuel pressure. You can purchase a fuel pressure gauge from an automotive store or online. Connect the gauge to the fuel pressure port, which is usually located near the fuel rail, and compare the measured pressure to the specifications in your vehicle's repair manual.
• Accessing the Fuel Pump: If you determine that the fuel pump needs to be replaced, you can access it through the floor under the rear seat. Pull the left rear seat cushion forward, pull back the carpet, and you should see an access panel with four screws. Remove this panel to disconnect the fuel lines and unplug the connector.
• Replacement: When installing a new fuel pump, ensure that you clean the cover and the inside and outside of the tank. Replace the old strainer and fuel pipe, and use clean, standard fuel from a gas station. It is recommended to keep the vehicle's fuel tank full before parking it for an extended period.
• Alternative Causes: In some cases, issues with the fuel pump may be caused by other components. For example, a faulty fuel filter, a dirty or sticky Idle Air Control Valve (IAC), or a stuck-open Exhaust Gas Recirculation Valve (EGR) can lead to similar symptoms. It is worth considering these possibilities before concluding that the fuel pump is solely responsible.
• Professional Diagnosis: If you are unsure about the cause of the problem or uncomfortable with performing the repairs yourself, it is best to consult a professional mechanic or your local dealership's service department. They have the necessary training and equipment to accurately diagnose and address fuel pump issues.
