Removing fuel lines from a gas tank can be a challenging task, and there are several methods to do so. One common method is to use a fuel line removal tool, which can be made of plastic or metal, to disconnect the fuel line from the tank. It is important to relieve any pressure in the gas tank before removing the fuel line to prevent fuel leaks. Additionally, the type of connector will vary, with some having push-type, push-and-lock, or pinch-type connectors. When removing the fuel line, it is important to be aware of any fuel that may be sitting in the hoses and to have a small cup or rag handy to catch any drips or spills.
Characteristics and their values for removing fuel lines from a gas tank
| Characteristics | Values |
|---|---|
| Fuel line removal tools | Fuel line removal tool kit, plastic removal tools, aluminum tool, Lisle tool, crowbar |
| Fuel line types | Push-type connector, push-and-lock style connector, pinch-type connector |
| Fuel tank and cap | Vented gas cap, non-vented gas cap, sealed gas tank |
| Fuel hose | Dripping fuel hose, non-dripping fuel hose |
| Fuel | High-octane unleaded fuel, ethanol fuel |
| Fuel tank problems | Dual tank problem, distorting tank problem, expanding tank problem |
| Fuel tank maintenance | Disconnecting and reconnecting hoses, removing and reinstalling connectors, lubricating O-rings, aligning and prying the tank |
Explore related products
What You'll Learn
How to disconnect common fuel line fittings
Disconnecting fuel lines from a gas tank can be a challenging task. There are various line styles, such as push-type, push-and-lock style, and pinch-type connectors. Here is a step-by-step guide on how to disconnect common fuel line fittings:
Push-Type Connector:
- Identify the type of push-type connector you have. Some have a push point on both sides, requiring you to push from both directions to release it.
- For connectors with only one push point, simply push it down and pull it off.
- To reinstall, push the connector onto the fitting until you hear a click.
Push-and-Lock Style Connector:
- Push the connector onto the fitting.
- Engage the locking mechanism by pushing the locking tab through.
- To remove, release the safety latch and push the connector back through.
Pinch-Type Connector:
- Locate the retainers on each side of the connector.
- Pinch the retainers together to disconnect the connector.
- For reinstallation, you have two options: leave the retainer on the male end and slide the female fitting over it, or remove the retainer once it's in place and then slide the fitting.
Additional Tips:
- When dealing with quick-disconnect fittings, coat the O-rings with a lubricant like Vaseline to prevent fuel drying and potential leaks.
- If a fuel line breaks during removal, use a release tool and insert a screw or bolt that fits into the line to extract the broken piece.
- To prevent fuel leakage, use a rag to catch any dripping fuel during the removal process.
- Equalize pressure in the gas tank by removing the gas cap before attempting to remove the fuel lines.
Remember to exercise caution when working with fuel lines, and always refer to the specific instructions and guidelines provided by the manufacturer of your vehicle.
Fuel Line Purchase: Where and How to Buy
You may want to see also
Explore related products
How to remove a fuel line with a check valve
Removing a fuel line with a check valve can be a challenging task, as evident in some forum discussions. It is important to have the right tools and techniques to ensure success. Here is a step-by-step guide on how to remove a fuel line with a check valve:
Step 1: Understand the Purpose and Function of the Check Valve
Before attempting removal, it is essential to understand the role of the check valve in the fuel system. Check valves, also known as non-return valves or anti-siphon valves, are installed in fuel lines to prevent fuel from flowing in the wrong direction and leaking from the tank. They are designed to allow fuel to flow in one direction only, ensuring the fuel pump's efficiency and preventing fuel from running out of the tank in case of a leak.
Step 2: Gather the Necessary Tools
Having the right tools is crucial for successful fuel line removal. Some commonly recommended tools include fuel line removal tools, plastic removal tools, and, in some cases, a high-dollar metal fuel line removal tool set. It is beneficial to have a variety of tools of different sizes to increase the chances of finding one that fits the specific fuel line.
Step 3: Prepare the Fuel Line for Removal
Before attempting to remove the fuel line with the check valve, ensure that you have detached it from the fuel tank. This may involve jacking up the car and placing it on jack stands for better access. Additionally, try pushing the line further in, twisting it back and forth to break up any debris or rust that might be causing it to stick.
Step 4: Use the Fuel Line Removal Tool
Position the fuel line removal tool correctly by pushing the ends towards each other and maintaining pressure while inserting it. This step may require persistence and some technique. Ensure the tool is securely in place before attempting to remove the fuel line to avoid any damage or further complications.
Step 5: Remove the Fuel Line with the Check Valve
With the fuel line removal tool securely in place, you can now remove the fuel line with the check valve. Apply steady and controlled force to detach the fuel line from the tank. If the check valve is particularly stubborn, you may need to use a punch to remove it, as suggested in some forums. Be cautious when using a punch to avoid causing any damage to surrounding components.
Step 6: Clean and Inspect the Removed Components
Once the fuel line with the check valve is removed, take the time to clean and inspect the components. Look for any signs of damage, corrosion, or clogging that might have contributed to the removal challenge. Cleaning and inspecting the parts will also help identify any necessary repairs or replacements before reinstallation or the installation of a new fuel line.
Removing a fuel line with a check valve can be a delicate process that requires patience and the right tools. It is important to follow safety protocols and consult a professional if you are unsure about any steps or have difficulty removing the fuel line.
Best Places to Buy Nylon Fuel Line
You may want to see also
Explore related products
How to prevent fuel lines from breaking
To prevent fuel lines from breaking during removal, there are several measures you can take. Firstly, it is important to exercise patience and caution. Take your time and work carefully to avoid damaging the fuel system. Make sure to follow proper safety precautions, including working in a well-ventilated area away from sources of ignition.
If the fuel lines are stuck, there are a few techniques you can try to loosen them:
- Use a penetrating oil, such as WD-40 or PB Blaster, to spray on the stuck hardware and let it sit.
- Clean the lines with a product like Brakleen to remove oils and contaminants, then use compressed air to blow them dry.
- If you don't have access to compressed air, let the lines dry naturally.
- Use a heat gun to apply moderate heat to the hose end, expanding and softening it. Practice applying heat slowly and evenly to avoid damaging the hose.
- Use fuel line pliers, also known as fuel line clip pliers. These grip the fuel line and allow you to apply force to release the locking mechanism without causing damage.
- If the lines are rusty, try the heating and cooling method. With a handheld propane torch, heat the bolt head until it turns red hot, then squirt it with water. Repeat this process several times while wearing proper safety attire and having a fire extinguisher nearby.
Additionally, if you're dealing with quick-release fuel lines, dirt and grime can accumulate and prevent the quick-release tool from fully disengaging. In this case, a few shots of brake cleaner will help loosen the lines.
If the fuel lines are damaged or corroded, it is recommended to replace them. This will help ensure the fuel system functions properly and prevent future issues.
Identifying Fuel Lines: Materials and Compatibility
You may want to see also
Explore related products
How to deal with fuel dripping from the hose
Before removing the fuel lines from the gas tank, it is important to relieve the pressure in the fuel system. Most cars today use fuel injection, which sprays fuel at incredibly high pressures. If you are removing the fuel lines from the fuel pump, they may break, leaving part of the line in the fitting. In such cases, use a release tool and insert a screw or bolt that fits into the line.
To deal with fuel dripping from the hose, it is recommended to lay down a few towels to absorb the spillage. Additionally, keep a small cup handy to collect the fuel that sits in the hoses after removal. It is important to be cautious and avoid tipping the hoses upside down to prevent excessive fuel spillage. Always wash your hands immediately after handling fuel, and rinse the affected areas of your vehicle with water.
When removing the fuel lines, it is crucial to have a drip pan placed under the fuel tank to catch any dripping fuel. Make sure to also remove the fuel hose clamp that holds the hose in place. In some cases, you may need to disconnect other fuel lines to access the one you are replacing. If you encounter a push-type connector, push it from both directions to release it. For a push-and-lock-style connector, push it onto the fitting and then push the locking tab through. To remove, release the safety latch and push the connector back through.
After successfully removing the fuel lines, it is important to clean the surfaces where the fuel hoses attach using a lint-free cloth. This ensures that any residual fuel or debris is removed before installing the new fuel hose. It is also recommended to check the connector O-rings before reassembly and coat them with grease or Vaseline to ease refitting and prevent leaks.
Flue Liner Sizing for Multi-Fuel Stoves: A Comprehensive Guide
You may want to see also
Explore related products

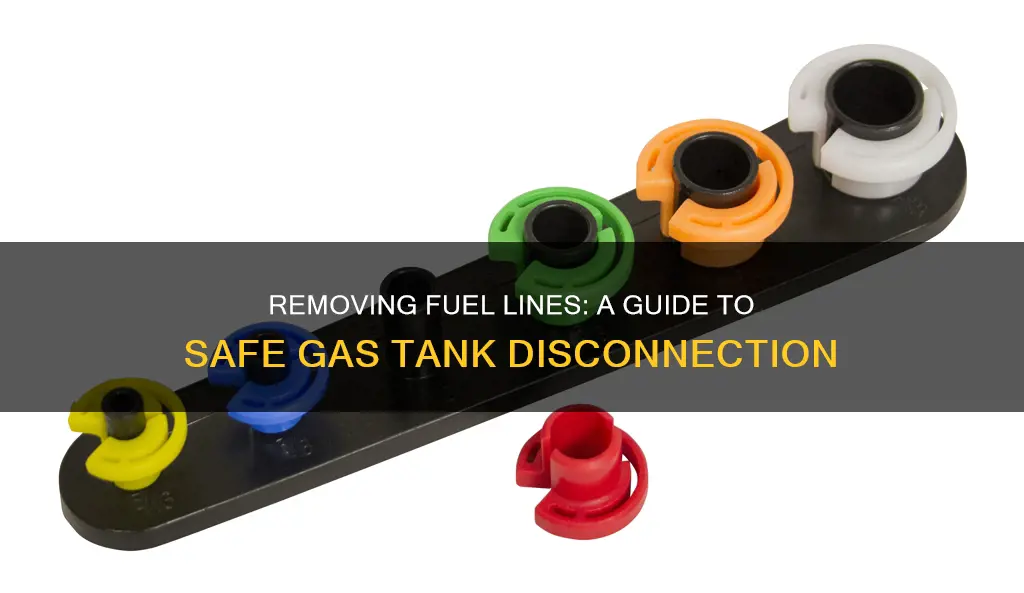

How to use a fuel line removal tool
Using a fuel line removal tool is the easiest and safest way to remove fuel lines from a gas tank. Before you begin, ensure you have the correct size and type of tool for your specific vehicle's fuel line. It is also important to work in a well-ventilated area away from sources of ignition and to take the proper safety precautions to avoid injury or fire.
First, clean the area around the fuel line to remove any dirt or debris. This is important to prevent any contamination of the fuel system. If the fuel lines are stuck, you can try using a heat gun to warm them up and help loosen them. Be careful not to overheat the lines, as this can cause damage. You can also try using a penetrating oil, such as WD-40 or PB Blaster, to help loosen any stubborn connections.
Once the area is clean and the fuel lines are loosened, you can begin to use the removal tool. The specific steps will depend on the type of fuel line and connector you have. Here are some general instructions for different types of connectors:
- For a push-type connector, simply push it from one side or both sides, depending on the version, and then pull it off.
- For a push-and-lock style connector, push the locking tab through and release the safety latch before pulling the connector back through.
- For a pinch-type connector, pinch both sides or the retainers together to disconnect.
- For a black ring release tool, pull the ring back toward the fitting and then pull the fitting off.
- For a hose and clamp-style fitting, use pliers to pinch the clamp together, slide it back, and then pull the line off.
If you encounter any issues or the fuel lines are damaged or corroded, it is recommended to seek professional help or refer to specific instructions for your vehicle's fuel system. It is important to work carefully and patiently when dealing with fuel lines to avoid any damage to the system or potential safety hazards.
Wing Tank Fuel Lines: Where Are They Located?
You may want to see also
Frequently asked questions
There are various types of fuel line styles, and the method of disconnecting them differs. For example, for a push-type connector, you push from both directions to release it, while for a push-and-lock-style connector, you push it onto your fitting and then push the locking tab through.
If the fuel line breaks and gets stuck, you can use a release tool and insert a screw or bolt that fits into the line to remove it.
You can try using a fuel line removal tool, twisting the line back and forth to break up any debris or rust, or spraying WD-40 on the connection.
It is important to have a small cup handy to collect the fuel that comes out of the hoses when you remove them. Remember to wash your hands immediately if you get any fuel on them.
